- Automatic switching
- Dimming when used in combination
- 1-10V dimmable LED drivers or ballasts
- Built-in daylight sensor
- 1-10V interface can match up with Merrytek
- Stand-alone daylight sensor MS01
- Achieve daylight harvesting
- Compact size
- It suitable to fix within most luminaires
- Detection area, time delay
- Daylight threshold
- Can be precisely set via DIP switch
- Wide detection area
- Range up to 16m in diameter
- Support higher mounting height 15m Max
- Optional surface mounting and base mounting
Request For Quote
Become a Distributor

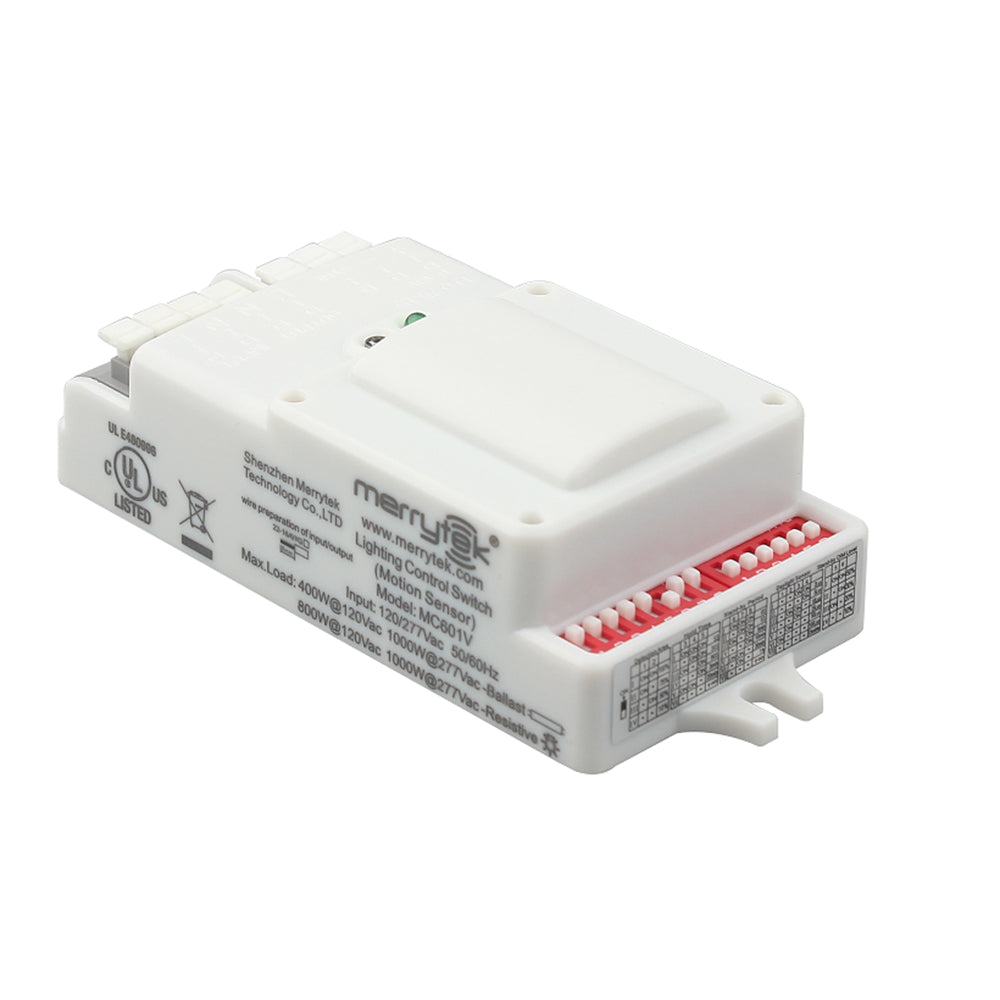

The MC605V-D innovative and active motion detectors with HF system 5.8GHz. Motion Can be detected through plastic, glass and thin non-metal materials.
- Automatic switching or dimming when used in combination with 1-10V dimmable LED drivers or ballasts.
- Built-in daylight sensor.
- 1-10V interface can match up with Merrytek stand-alone daylight sensor MS01 and achieve daylight harvesting.
- Compact size makes it suitable to fix within most luminaires.
- Detection area, time delay and daylight threshold can be precisely set via DIP switch.
- Wide detection area, range up to 16m in diameter.
- Support higher mounting height 15m Max.
- Optional surface mounting and base mounting.
