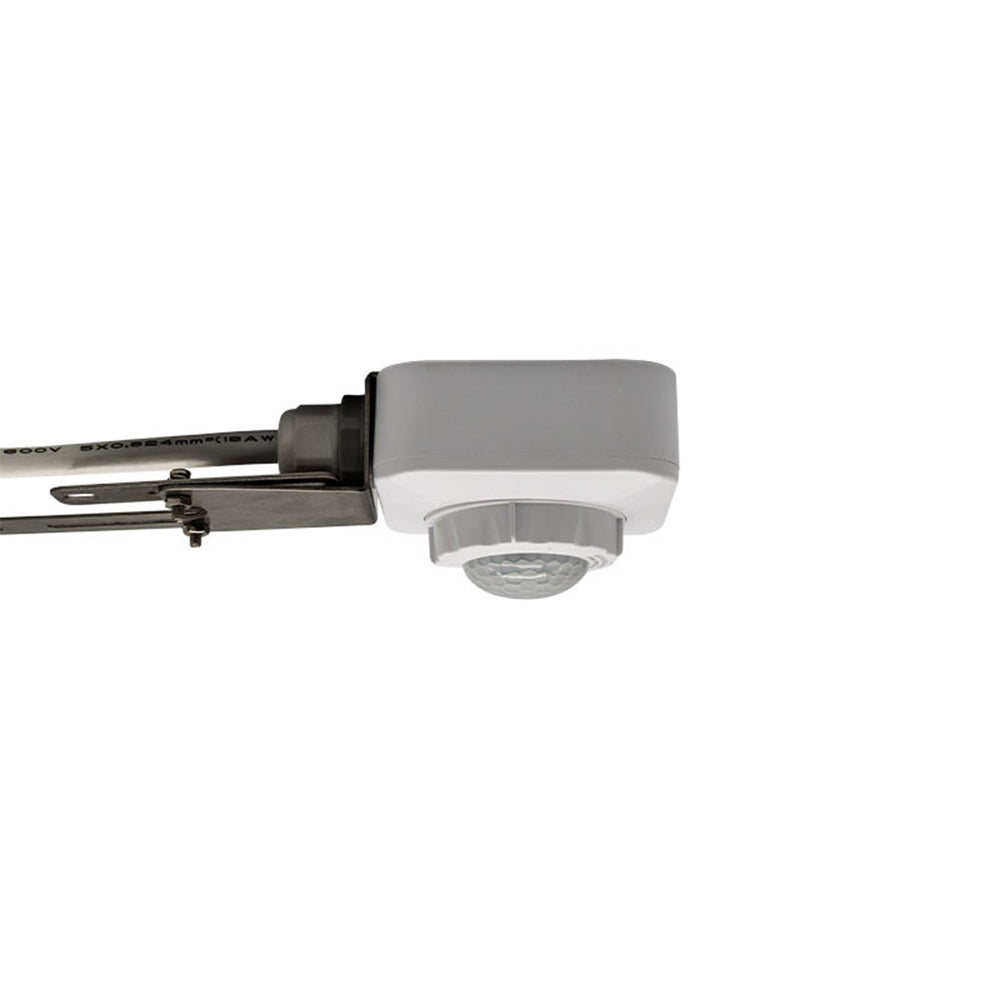

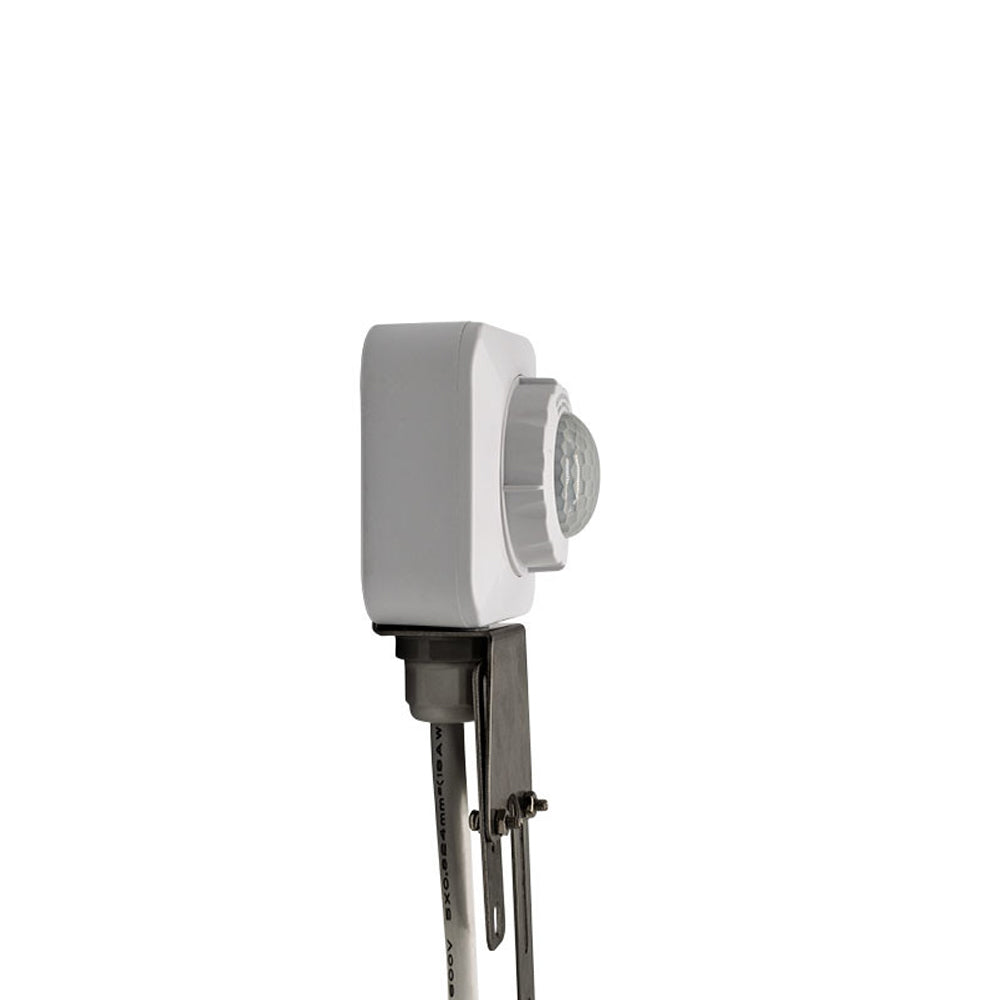

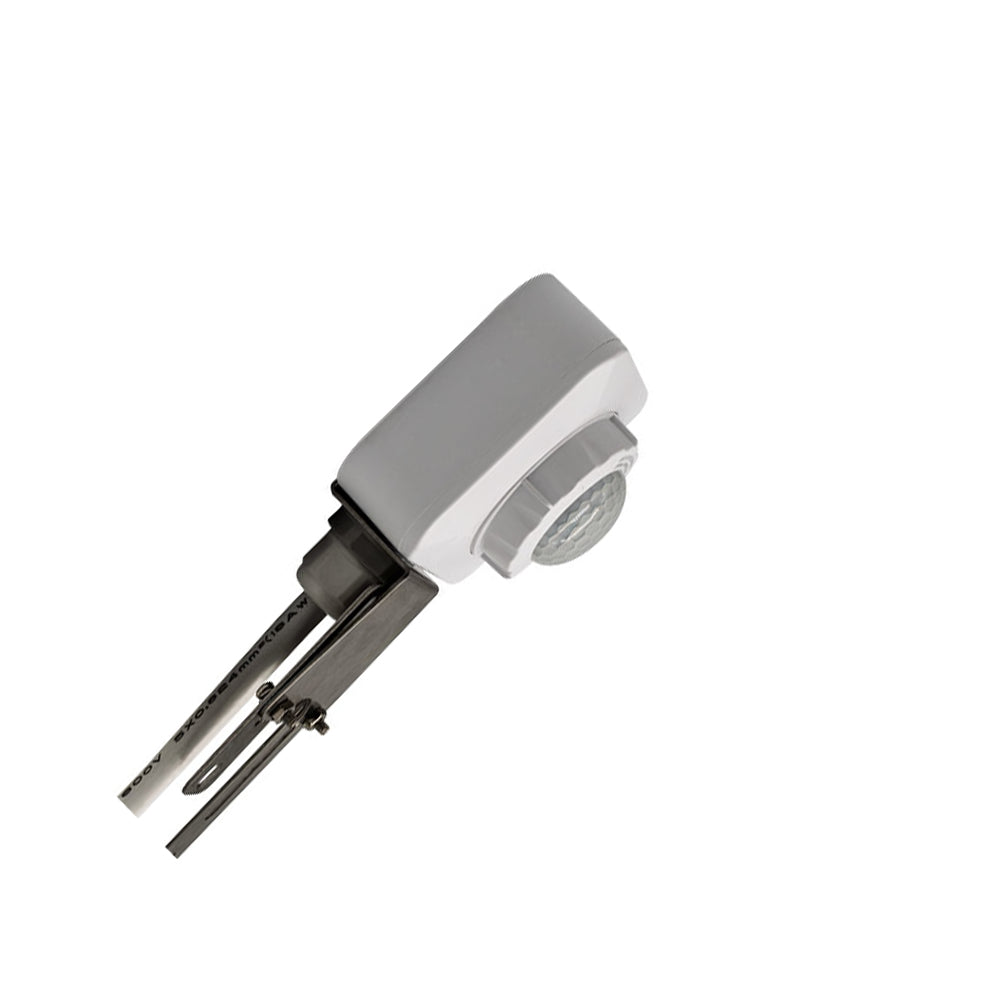

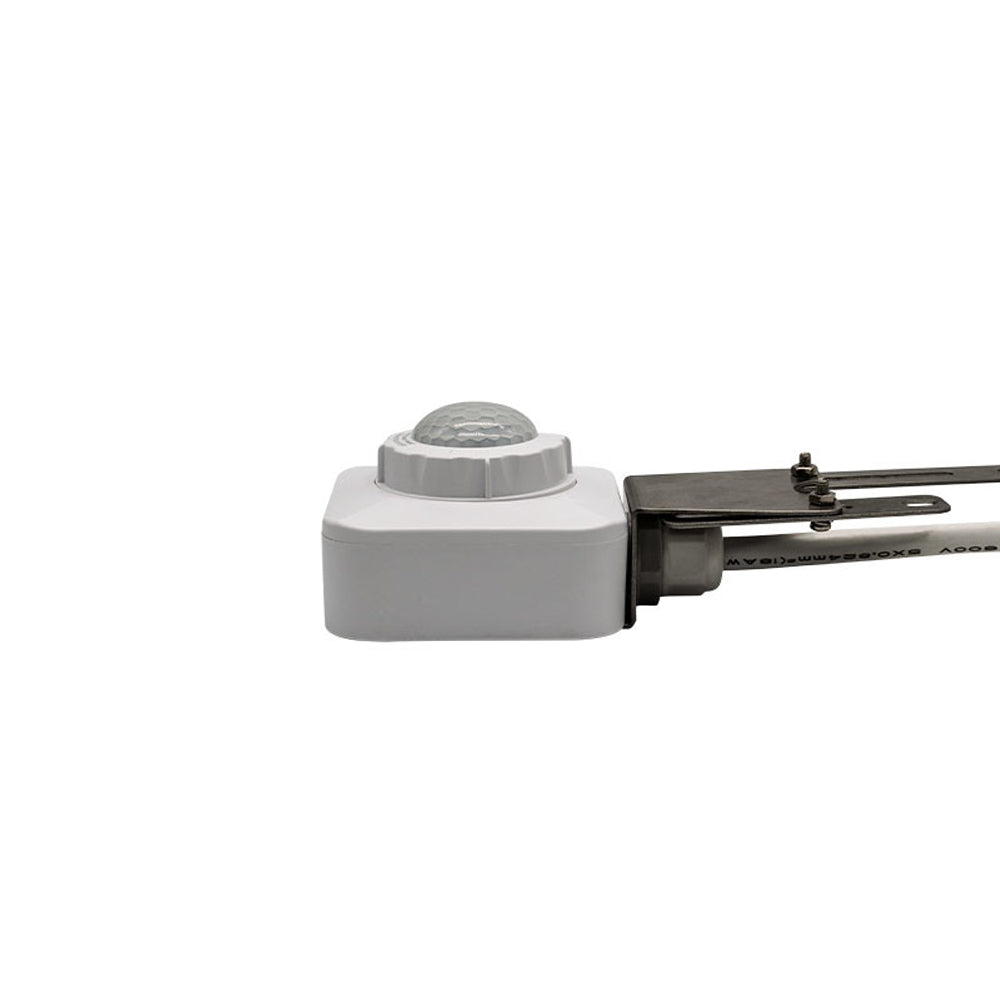

PIR Motion Sensor

Versatile for Indoor and Outdoor Use
Innovative Dual Sensor Design: Combines PIR and microwave sensors
IP20 Rated Protection
Remote Controller Available
Mounting Heights: Up to 19ft and 39ft
Power Consumption: Less than 0.5W
Wide Detection Angle: Up to 120° without glass cover
Extended Detection Range: Maximum radius of 9m/30ft
Adjustable Hold Time: From 5 seconds to 30 minutes
Customizable Standby Duration: From 0 seconds to 1 hour or infinite
Variable Standby Dimming Levels: 10%, 20%, 30%, 50%
Lux Settings: 2-120lx or disabled
Certified Safety: UL, ROHS, and CE certified
Warranty: 3 years

SKU	PCS/ BOX	Minimum QTY To BUY	PRICE PER PIECE	QTY	IN STOCK SHIPS TODAY

156825	1 PC/BOX	1	login to see prices

Spec Sheet

This innovative motion sensor is ideal for both indoor and outdoor applications, featuring a unique design that combines PIR and microwave sensors. With an IP20 rating and optional remote controller, it offers flexibility and ease of use. It supports mounting heights up to 39ft, consumes less than 0.5W of power, and has a wide detection angle of up to 120°. The sensor can detect motion within a 9m/30ft radius and offers adjustable settings for hold time, standby duration, dimming levels, and lux sensitivity. Certified by UL, ROHS, and CE, it comes with a 3-year warranty for added peace of mind.
