Home > Products >ECOPANEL | LED Backlit Panel
ECOPANEL | LED Backlit Panel
ECOPANEL | LED Backlit Panel
ECOPANEL | LED Backlit Panel
ECOPANEL | LED Backlit Panel
ECOPANEL | LED Backlit Panel
ECOPANEL | LED Backlit Panel

ECOPANEL | LED Backlit Panel

Adj Watt 20W/25W/30W/35W/40W · 5,000 Lumens · Adj CCT 3K/3500K/4K/5K/6500K · White Housing

Watt: 20W/25W/30W/35W/40W Lumens: 5000Lm CCT: 3K-3500K-4K-5K-6500K Rating: ETL & DLC Listed IP: IP20
★★★★★ 4.8 · 42 reviews
MSRP: $59.95
PRICE PER PIECE
$39.95
You save $20.00
Contractor, distributor, or reseller? Log in for trade pricing »
Min order: 4 per box
×

The product SKU is: 157062

✓ Free shipping on all Orders
✓ Ships from Stone Mountain, GA — most orders ship in 1 business day
✓ 30-day returns · 5-year warranty · ETL & DLC Listed
Want to Buy in bulk ?

Contact us for volume pricing or become a trade partner.

Contact Team Become Partner

Product Description

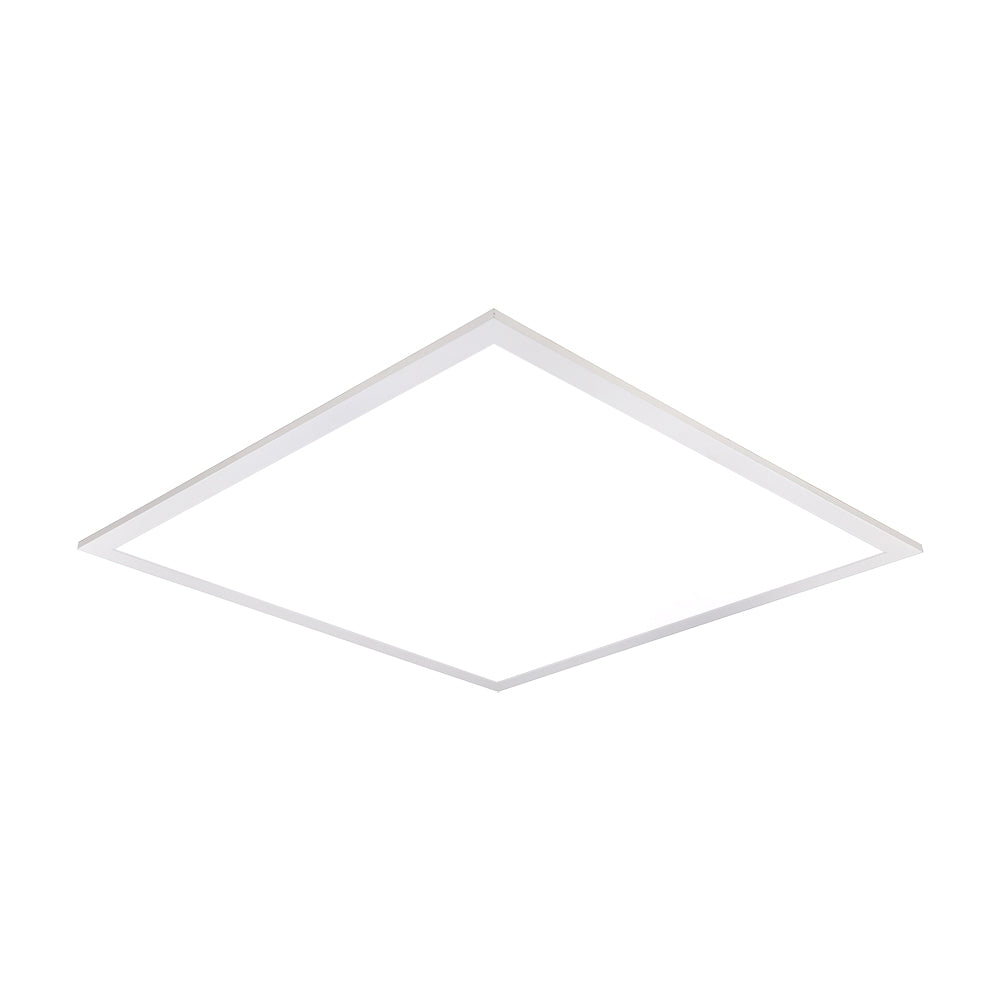

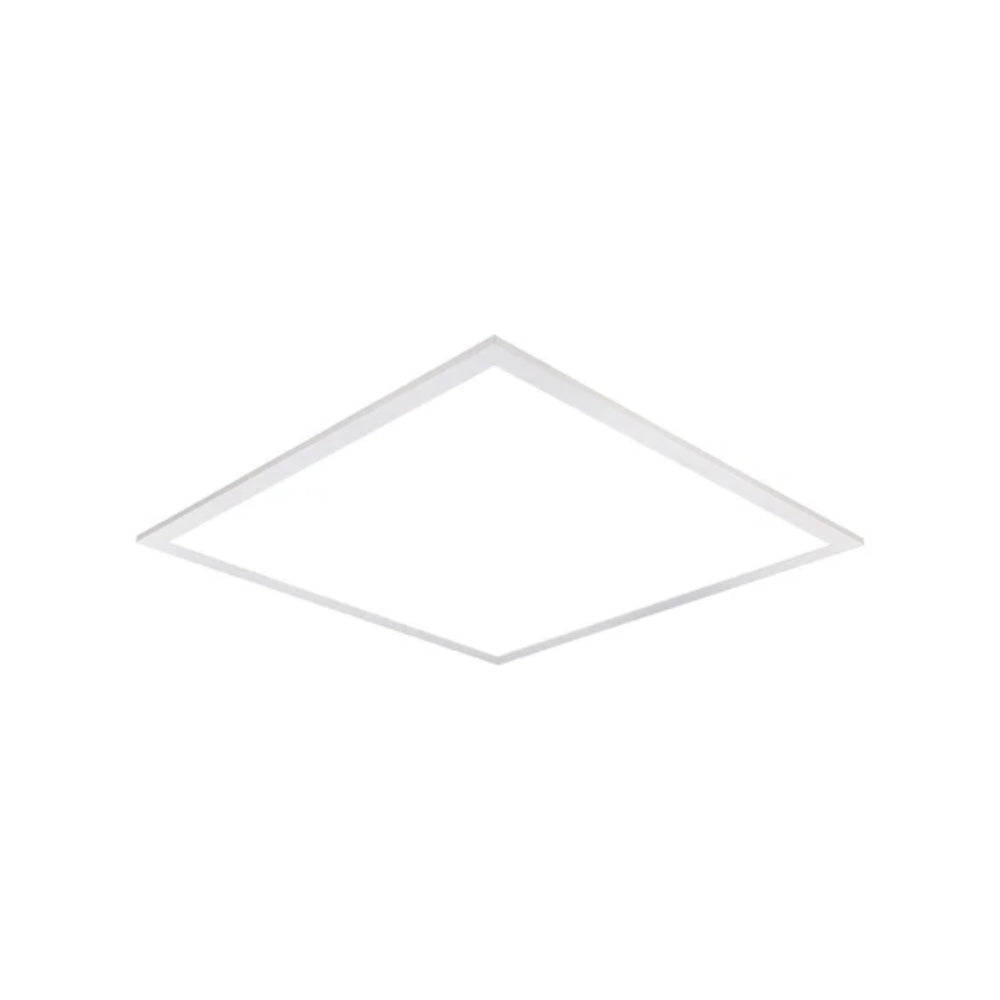

Beyond LED Technology's ECOPANEL is a 2'×2' backlit LED panel built for commercial projects where consistent ambient output, energy efficiency, and procurement simplicity are the primary specification drivers. Five field-selectable wattage settings and five CCT options allow a single SKU to cover offices, corridors, healthcare facilities, libraries, and hospitality spaces without separate variants per zone. The backlit PS lens delivers soft, glare-free illumination across the full panel face without hotspots. DLC listing supports utility rebate eligibility, and multiple mounting options — recessed, suspended, or surface — suit both new construction and retrofit ceiling applications.

Key Features

  • Up to 125 lm/W efficacy
  • Adjustable CCT — field selectable
  • Adjustable wattage — field selectable
  • Backlit PS lens for glare-free output
  • 120° beam angle
  • 0–10V dimmable
  • White housing finish
  • Input voltage 100–277VAC
  • IP20 rated
  • ETL & DLC Listed
  • PCS/Box: 4
  • 5-year warranty

Applications

Commercial Offices Healthcare Facilities Libraries Hospitality Spaces Educational Institutions Retrofit Ceilings

Specifications

SKU 157062
Wattage 20W/25W/30W/35W/40W
CCT 3K-3500K-4K-5K-6500K
Lumens 5000Lm
Input Voltage 100-277Vac
Size 2'×2'
Construction White Housing
PCS/BOX 4 PCS/BOX
Construction White Housing
Dimming 0–10V
IP Rating IP20
Certification ETL & DLC Listed
Warranty 5 Years

Downloads

Spec Sheet PDF
LM80 Report PDF
LM79 Report PDF
IES File IES

Need help?

Talk to a lighting specialist about project pricing, photometrics, or custom requirements.

866-786-1117
sales@beyondledtechnology.com
— FAQ —

Frequently Asked Questions

Everything you need to know before specifying ECOPANEL | LED Backlit Panel into a lighting project.

What makes backlit panels better than edge-lit for ambient lighting?+
Backlit panels position LEDs directly behind the diffuser, producing more uniform light across the full panel face. Edge-lit designs can show brighter edges and a dimmer center. For offices and healthcare spaces where even ambient output matters, backlit consistently outperforms edge-lit alternatives.
Does the ECOPANEL qualify for utility rebates?+
Yes. DLC listing makes it eligible for utility rebate programs across most U.S. markets. Approved trade partners through the Beyond LED Trade Partner Program receive rebate filing assistance to help maximize savings on qualifying projects.
Can wattage and CCT be adjusted after installation?+
Yes — both are field selectable at the fixture. Five wattage levels and five CCT options can be configured during installation without stocking separate variants, simplifying procurement across projects with varied room types or lighting targets.
What mounting options does the ECOPANEL support?+
It supports recessed, suspended, and surface mounting — covering standard drop ceiling grid installations, pendant-style suspended configurations, and direct surface mounting where grid ceiling infrastructure is not present.
How quickly does the ECOPANEL ship and is trade pricing available?+
Most orders ship within one business day from Beyond LED Technology's Stone Mountain, Georgia warehouse. It ships in cases of 4, and approved trade partners through the Beyond LED Trade Partner Program receive factory-direct trade pricing and dedicated account support.
