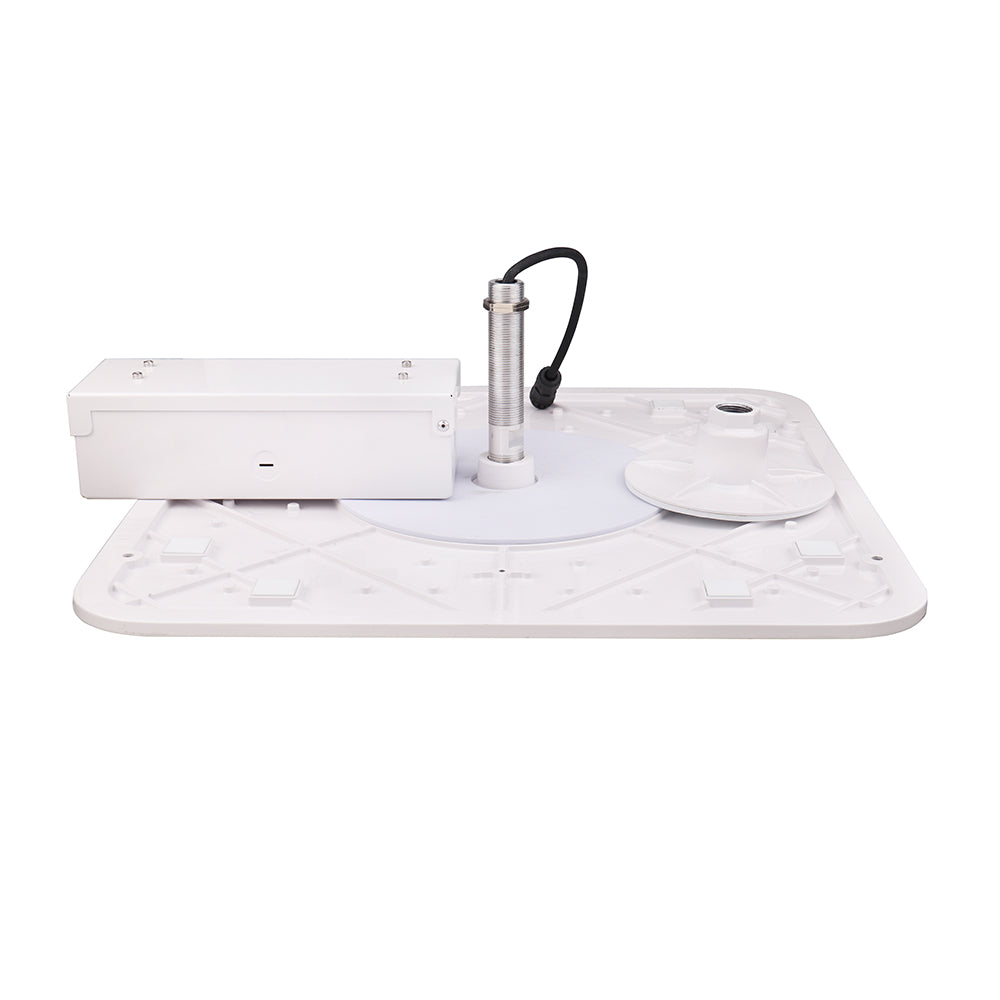

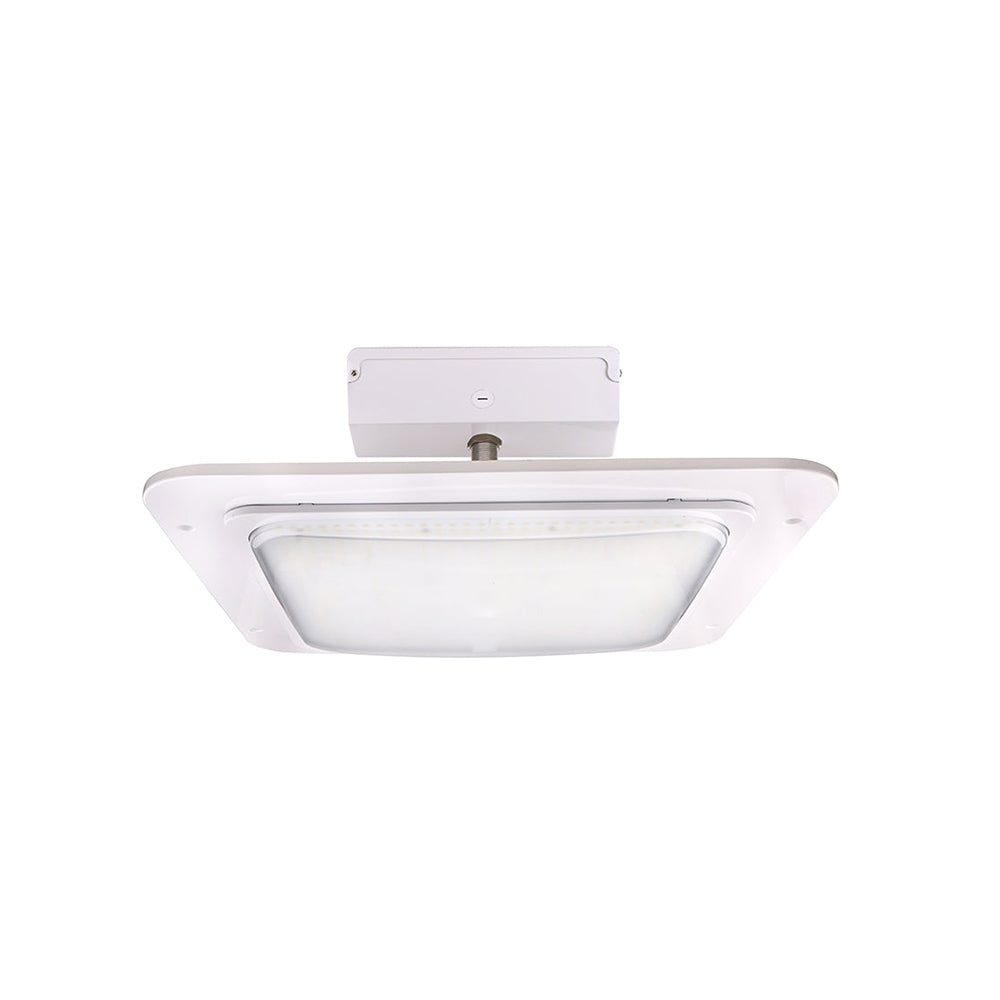

Vail 2nd Gen | LED Canopy Light
Contact us for volume pricing or become a trade partner.
Product Description
The Vail 2nd Gen Led Canopy Light from Beyond LED Technology is built for high-traffic commercial environments that require bright, dependable illumination and long-term efficiency. Designed to provide uniform light distribution across covered spaces, it is well suited for fueling stations, parking garages, loading areas, and pedestrian canopies. The rugged die-cast aluminum housing and IP65-rated construction help withstand demanding outdoor conditions while reducing maintenance requirements. Featuring premium Lumileds LEDs, integrated surge protection, and dimming capability, this fixture offers a reliable solution for both retrofit and new construction projects where visibility, safety, and performance are critical.
Key Features
- Produces 28,080 lumens of output
- Up to 156 lumens per watt efficacy
- Fixed 5700K color temperature
- Wide 110° beam angle
- 0-10V dimmable
- Premium Lumileds SMD2835 LEDs
- SOSEN LED driver
- Integrated 6KV surge protection
- Die-cast aluminum housing construction
- White housing finish
- Input voltage range of 120-277VAC
- UL & DLC listed
Applications
Specifications
| SKU | 156792 |
| Wattage | 180W |
| CCT | 5700K |
| Lumens | 28080Lm |
| Input Voltage | 120V-277V |
| CRI | >80 |
| Power Factor | ≥0.9 |
| Light Spread | 110° |
| Dimming | 0-10V |
| IP Rating | IP65 |
| Certification | UL & DLC Listed |
| Warranty | 5 Years |
Need help?
Talk to a lighting specialist about project pricing, photometrics, or custom requirements.
866-786-1117sales@beyondledtechnology.com
Frequently Asked Questions
Everything you need to know before specifying Vail 2nd Gen | LED Canopy Light into a lighting project.
