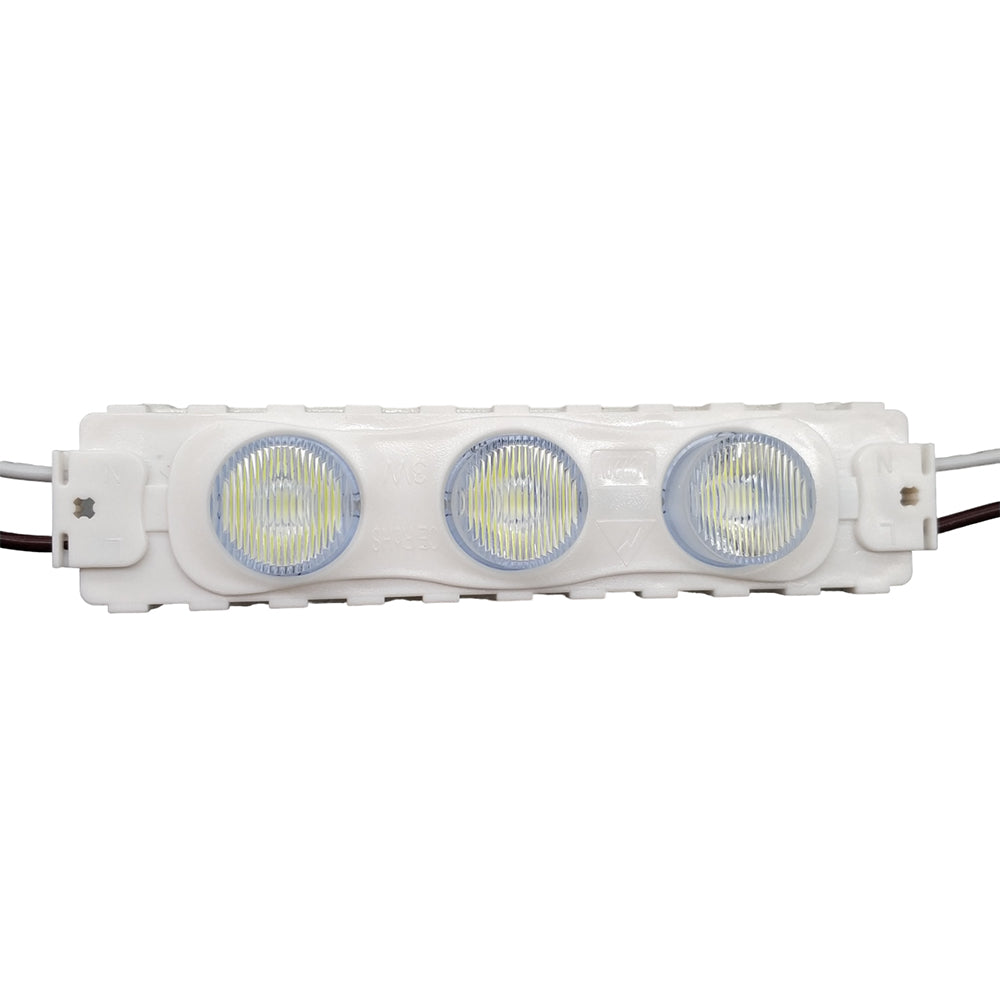

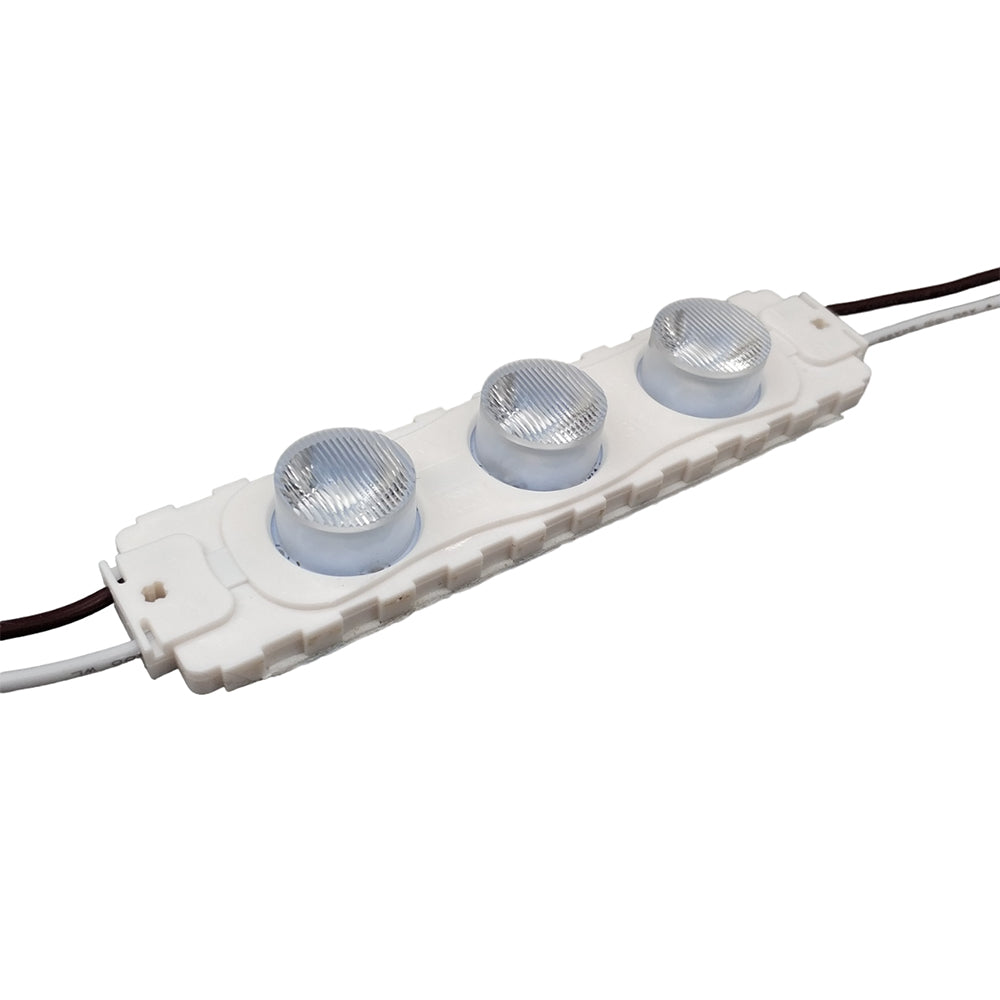

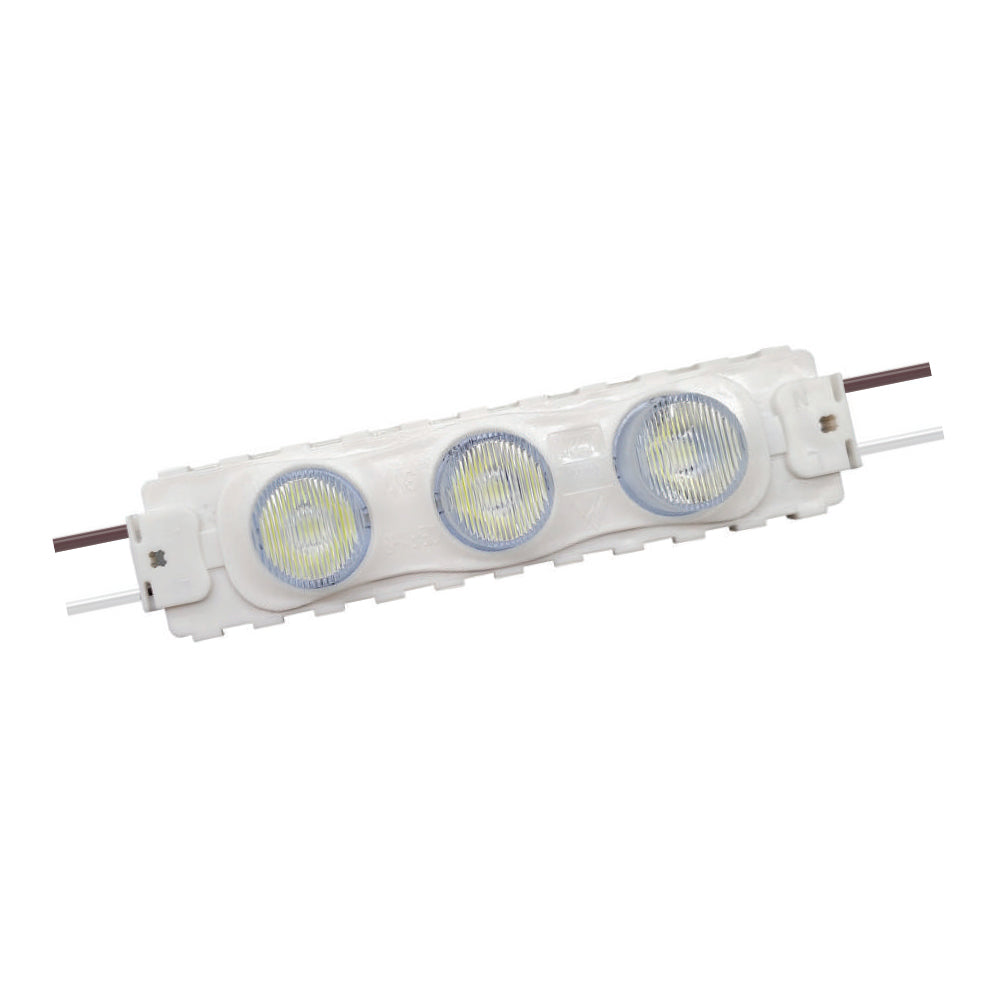

ASTRO | LED AC Module
ASTRO | LED AC Module
ASTRO | LED AC Module
ASTRO | LED AC Module

ASTRO | LED AC Module

3W · 300 Lumens · 10000K · White · 110VAC · IP65

Watt: 3W Lumens: 300Lm CCT: 10000K Rating: UL Listed IP: IP65
★★★★★ 4.8 · 42 reviews
MSRP: $112.50
PRICE PER PIECE
$4.50
You save $108.00
Contractor, distributor, or reseller? Log in for trade pricing »
Min order: 25 per box
×

The product SKU is: 156840

✓ Free shipping on all Orders
✓ Ships from Stone Mountain, GA — most orders ship in 1 business day
✓ 30-day returns · 5-year warranty · UL & DLC Listed
Want to Buy in bulk ?

Contact us for volume pricing or become a trade partner.

Contact Team Become Partner

Product Description

Beyond LED Technology's ASTRO is an AC LED module that connects directly to 110V without a driver — eliminating a component that adds cost, failure risk, and installation complexity to channel letter and sign cabinet projects. Up to 100 modules string together per run without voltage drop, covering large channel letter sets and medium to large sign cabinets from a single power connection. SMD2835 chips deliver 10000K ultra-cool white output well suited to high-contrast signage where maximum brightness and crisp color temperature are specified. IP65 sealing and a 5.11" module pitch suit both new sign construction and fluorescent sign retrofits across outdoor commercial applications.

Key Features

  • Fixed output: 3W / 300 lm / 10000K
  • Connects direct to 110VAC
  • Up to 100 modules per string
  • SMD2835 LED chip
  • Asymmetric 15×45° beam angle
  • IP65 rated
  • Module pitch 5.11"
  • 24AWG 600V/105°C cable
  • Operating temperature -20°C to 60°C
  • Input voltage 110VAC
  • UL Listed
  • PCS/Box: 100

Applications

Channel Letters Sign Cabinet Retrofits Outdoor Signage Sign Decoration Display Light Boxes Commercial Signage

Specifications

SKU 156840
Wattage 3W
CCT 10000K
Lumens 300Lm
Input Voltage 110VAC
Color White
PCS/BOX 100 PCS/BOX
IP Rating IP65
Certification UL Listed

Downloads

Spec Sheet PDF
LM80 Report PDF

Need help?

Talk to a lighting specialist about project pricing, photometrics, or custom requirements.

866-786-1117
sales@beyondledtechnology.com
— FAQ —

Frequently Asked Questions

Everything you need to know before specifying ASTRO | LED AC Module into a lighting project.

What does "no driver required" mean for channel letter installations?+
The ASTRO connects directly to 110V AC power without an external LED driver. This removes a component from the sign assembly — reducing parts count, eliminating a common failure point, and simplifying wiring in channel letter retrofits and new sign builds where driver space inside the letter is limited.
What is the advantage of 100 modules per string without voltage drop?+
Standard module strings lose voltage along the run, causing dimming toward the end of long strings. The ASTRO maintains consistent output across up to 100 modules from a single connection without brightness variation across the run.
Why is 10000K specified for channel letter and sign applications?+
10000K ultra-cool white delivers maximum brightness contrast against the sky and building surfaces in daylight conditions. For outdoor commercial signage where the sign must read clearly at distance and in direct sunlight, the higher color temperature produces a crisper, higher-contrast output than warmer CCT alternatives.
Does IP65 provide adequate protection for outdoor channel letter use?+
Yes. IP65 sealing protects against dust ingress and water jets from any direction covering rain, cleaning, and humidity exposure in outdoor sign environments. The ultrasonically welded module body provides structural water resistance across the full operating temperature range of -20°C to 60°C.
How quickly does the ASTRO ship and is trade pricing available?+
Most orders ship within one business day from Beyond LED Technology's Stone Mountain, Georgia warehouse. It ships in cases of 100, and approved trade partners through the Beyond LED Trade Partner Program receive factory-direct trade pricing and dedicated account support.
