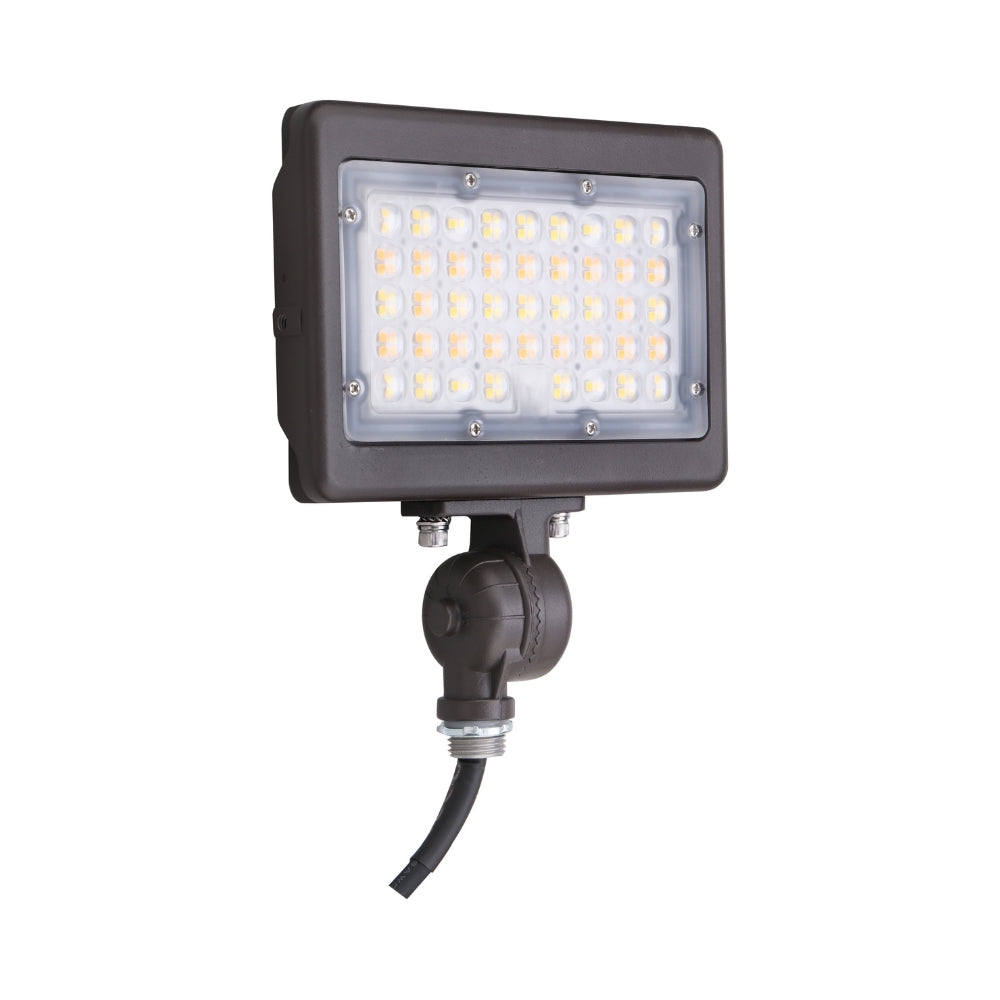

ATLAS 3rd Gen | LED Flood Light
Contact us for volume pricing or become a trade partner.
Product Description
Beyond LED Technology's ATLAS 3rd Gen is a compact LED flood light built for dependable, uniform outdoor lighting. It offers field-selectable wattage from 30W to 50W and CCT options of 3000K, 4000K, and 5000K, so one fixture covers driveways, walkways, small parking lots, and building perimeters. This means a single SKU handles jobs that would otherwise need several fixtures. Premium Lumileds LEDs and a die-cast aluminum housing deliver up to 143 lm/W of high-CRI light while staying cool and reliable over years of outdoor use. A built-in photocell turns the fixture on at dusk and off at dawn automatically, and the IP65 rated housing keeps it protected from rain, dust, and humidity.
Key Features
- Adjustable wattage — field selectable
- Adjustable CCT — field selectable
- High efficacy: up to 143 lm/W
- 0–10V dimmable
- Die-cast aluminum housing with PC lens
- Built-in photocell for dusk-to-dawn operation
- UL & DLC listed, 5-year warranty
- Diffused, UV-resistant lens for even light distribution
- Dust and water-resistant: IP65 rated
- Wide 150° light spread
- Built-in 2.5kV surge protection
- Input voltage- 120–277VAC
Applications
Specifications
| SKU | 157544 |
| Wattage | Adj Watt 30W/40W/50W |
| CCT | 3000K/4000K/5000K |
| Lumens | 7,150 lm |
| Input Voltage | 120-277VAC |
| Surge Protection | 2.5kV |
| CRI | >80 |
| Lumen Efficacy | Up to 143 lm/W |
| Construction | Die-cast aluminum |
| Light Spread | 150° |
| Dimming | 0–10V |
| IP Rating | IP65 |
| Certification | UL & DLC Listed |
| Warranty | 5 Years |
Need help?
Talk to a lighting specialist about project pricing, photometrics, or custom requirements.
