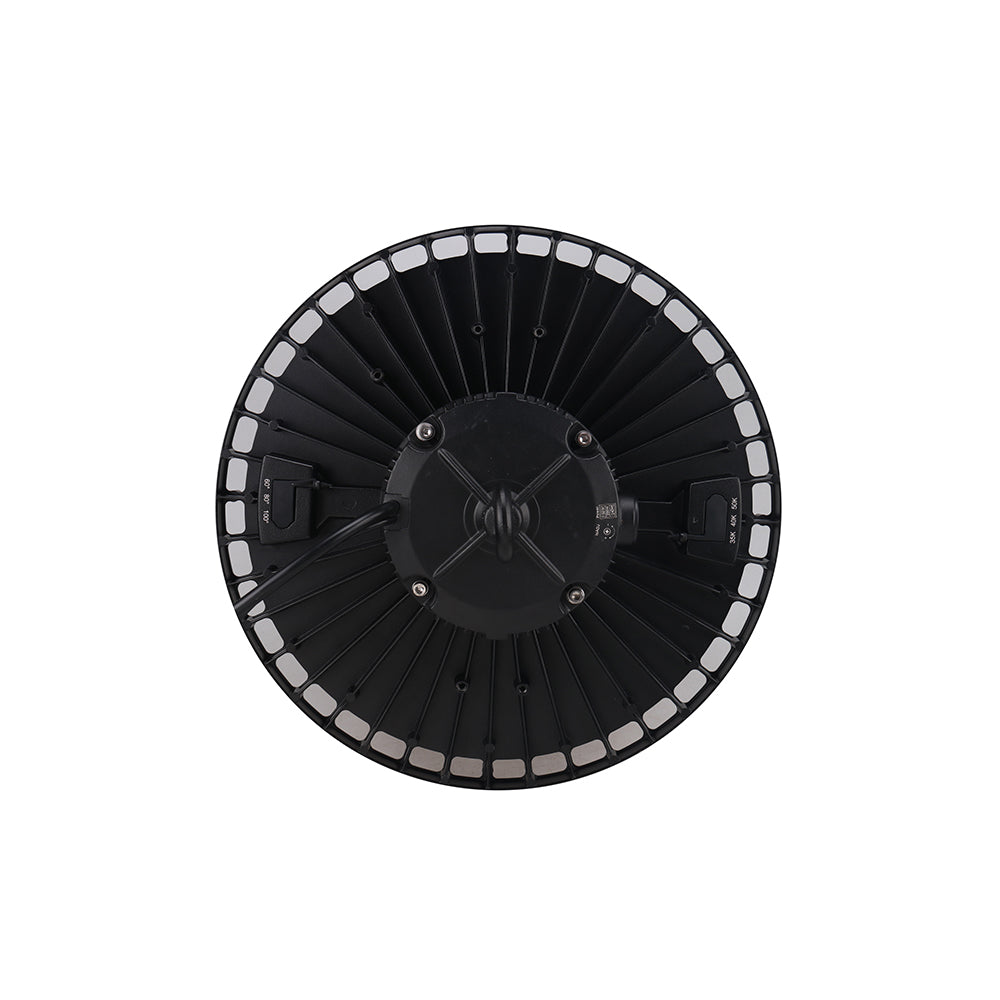

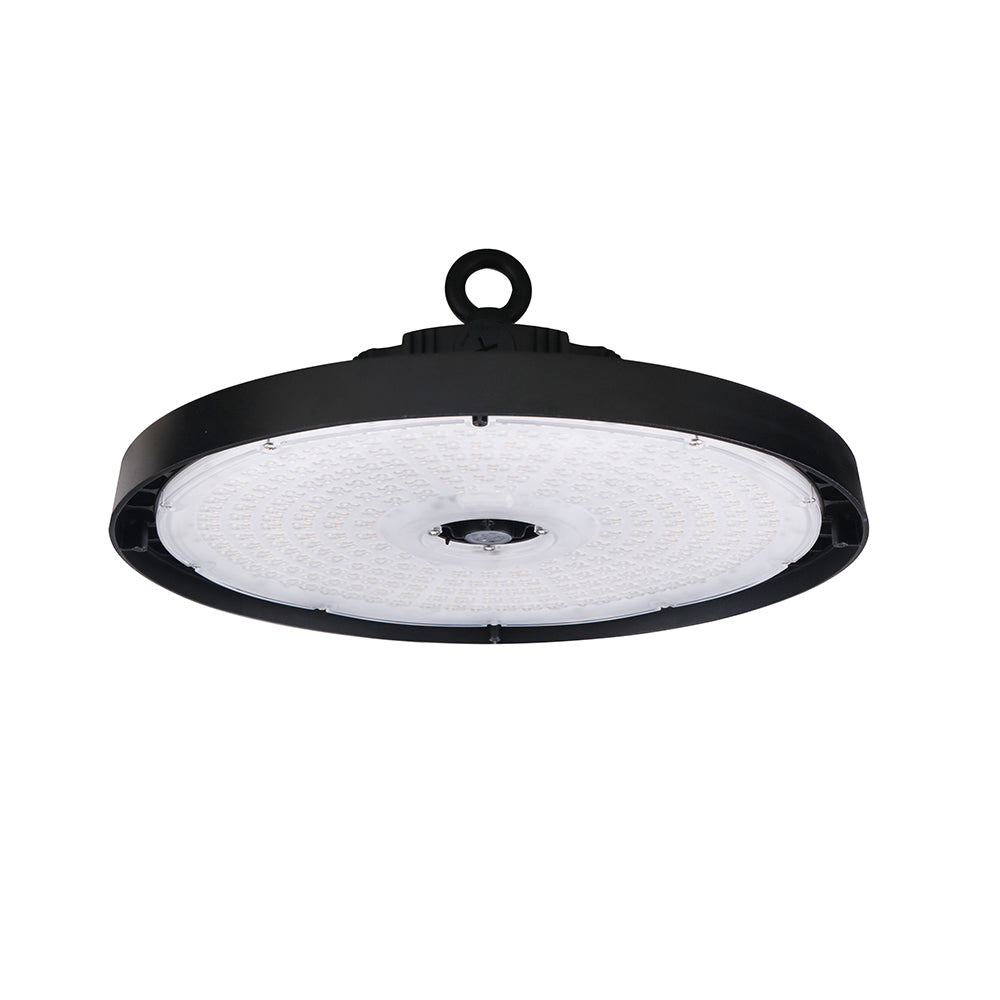

BEYONDBEAM | LED UFO High Bay
Contact us for volume pricing or become a trade partner.
Product Description
Beyond LED Technology's BEYONDBEAM is a precision-engineered UFO high bay that puts three adjustable beam angles — 60°, 80°, and 100° — at the installer's fingertips via a simple DIP switch. This makes it one of the most adaptable high bay fixtures available for commercial and industrial spaces, covering narrow aisle coverage at 60°, balanced general illumination at 80°, and broad open-floor coverage at 100° without changing optics or ordering a different SKU. At up to 170 lm/W, it delivers industry-leading efficiency across three selectable wattages and three CCT options. The Sosen driver, O-hook mount, and IP65-rated die-cast aluminum housing make it a complete, reliable solution for warehouses, manufacturing facilities, and large commercial interiors.
Key Features
- Up to 170 lm/W efficacy
- Adjustable CCT — field selectable
- Adjustable wattage — field selectable
- Adjustable beam angle via DIP switch
- 0–10V dimmable
- CRI>80
- O-hook mount included
- Die-cast aluminum + PC construction
- Input voltage 120VAC
- Black housing finish
- Input voltage 120–277VAC
- IP65 rated
Applications
Specifications
| SKU | 157063 |
| Wattage | 160W/200W/240W |
| CCT | 3K-4K-5K |
| Lumens | 38000Lm |
| Input Voltage | 120-277Vac |
| CRI | >80 |
| Dimming | 0–10V |
| IP Rating | IP65 |
| IP Rating | IP65 |
| Certification | UL & DLC Listed |
| Warranty | 5 Years |
Need help?
Talk to a lighting specialist about project pricing, photometrics, or custom requirements.
866-786-1117sales@beyondledtechnology.com
Frequently Asked Questions
Everything you need to know before specifying BEYONDBEAM | LED UFO High Bay into a lighting project.
