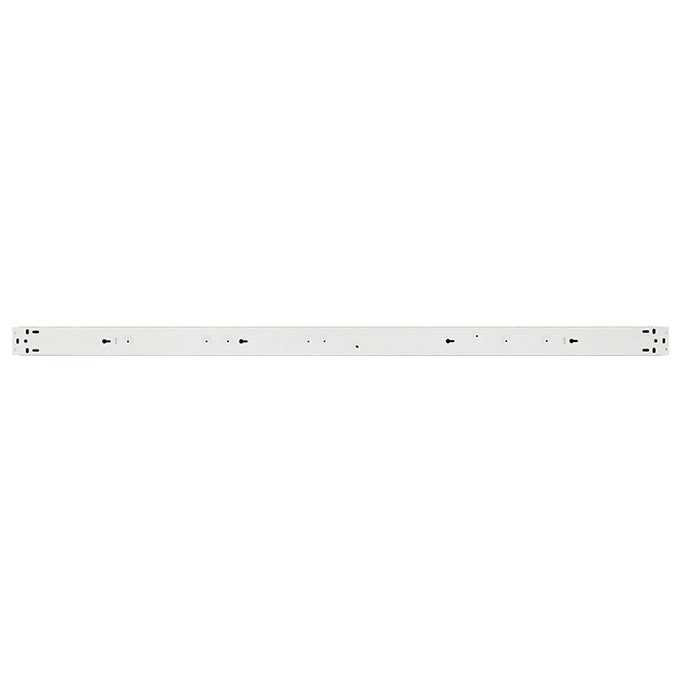

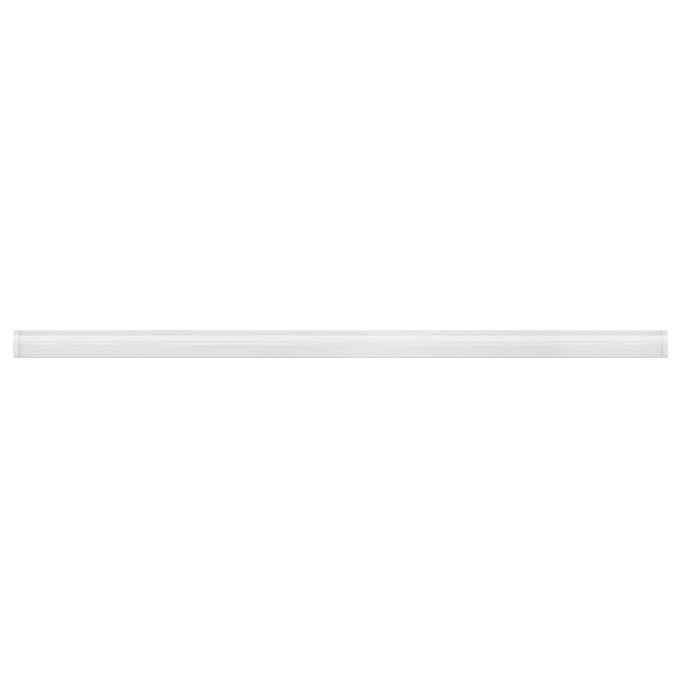

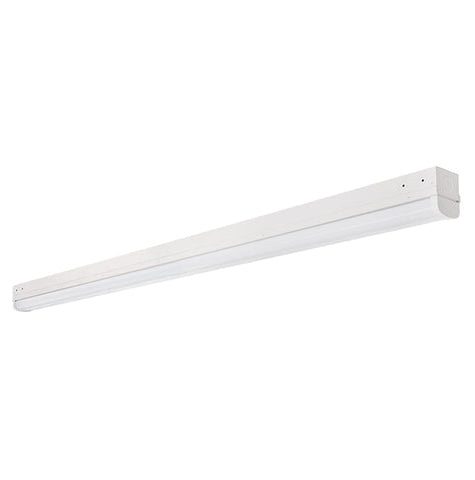

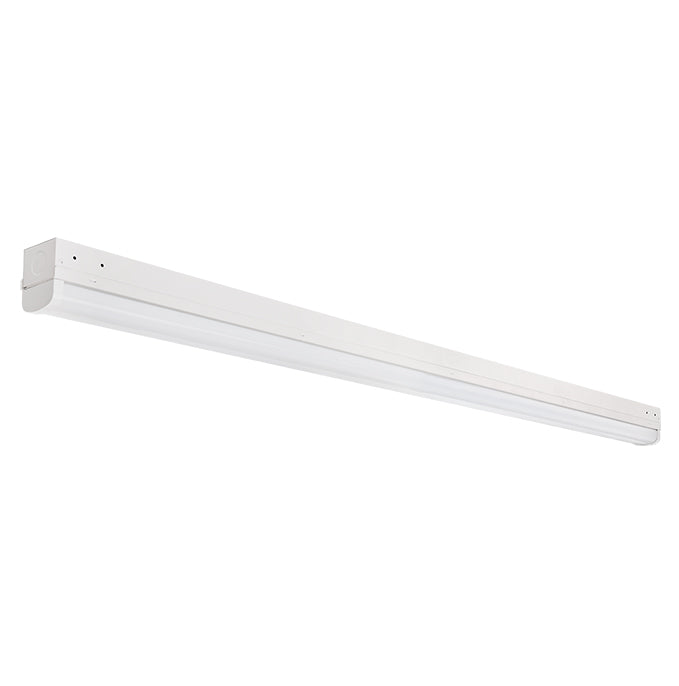

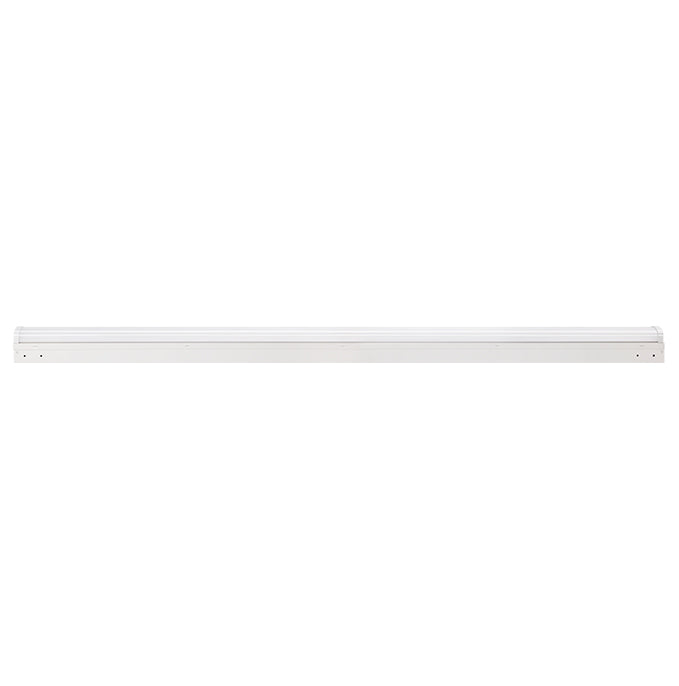

BROOKS | LED Linkable Strip Fixture

BROOKS | LED Linkable Strip Fixture

Adj Watt 40W/60W/80W · 10,400 Lumens · Adj CCT 3500K/4K/5K · 8ft · Frosted Lens

Watt: Adj Watt 40W/60W/80W Lumens: 10400Lm CCT: Adj CCT 3500K/4000K/5000K Rating: UL & DLC Listed
★★★★★ 4.8 · 42 reviews
MSRP: $199.95
$174.95
You save $25.00
Contractor, distributor, or reseller? Log in for trade pricing »
Min order: 4 per box
×

The product SKU is: 156741

✓ Free shipping on all Orders
✓ Ships from Stone Mountain, GA — most orders ship in 1 business day
✓ 30-day returns · 5-year warranty · UL & DLC Listed
Want to Buy in bulk ?

Contact us for volume pricing or become a trade partner.

Contact Team Become Partner

Product Description

Beyond LED Technology's BROOKS 8ft Emergency is a high-output LED linkable strip fixture with a built-in 8W emergency battery backup — combining standard commercial strip lighting with code-compliant egress illumination in a single fixture. When power fails, the backup activates automatically, sustaining emergency-level output without a separate emergency fixture or additional wiring. At 40W to 80W and 10,400 lumens across an 8ft span, it delivers strong, even coverage for offices, corridors, retail floors, and industrial spaces while eliminating the cost and complexity of separate emergency lighting installations. Up to 10 units link per run, and 0–10V dimming supports building automation integration during normal operation.

Key Features

  • Up to 130 lm/W efficacy
  • Adjustable wattage — field selectable
  • Adjustable CCT — field selectable
  • Built-in 8W emergency battery backup
  • Linkable up to 10 units
  • Integral driver — direct line voltage
  • Self-supporting surface mount design
  • 0–10V dimmable
  • 120° beam angle
  • Frosted lens
  • Input voltage 120–277VAC
  • 5-year warranty

Applications

Corporate Offices Supermarket Floors Educational Spaces Clinical Facilities Assembly Areas Storage Facilities

Specifications

SKU 156741
Wattage Adj Watt 40W/60W/80W
CCT Adj CCT 3500K/4000K/5000K
Lumens 10400Lm
Input Voltage 120-277Vac
Construction UL & DLC Listed
Dimming 0–10V
Certification UL & DLC Listed
Warranty 5 Years

Downloads

Spec Sheet PDF
LM80 Report PDF
IES File IES

Need help?

Talk to a lighting specialist about project pricing, photometrics, or custom requirements.

866-786-1117
sales@beyondledtechnology.com
— FAQ —

Frequently Asked Questions

Everything you need to know before specifying BROOKS | LED Linkable Strip Fixture into a lighting project.

What does the built-in emergency battery backup mean for code compliance?+
The 8W built-in backup activates automatically during a power failure, sustaining emergency-level illumination for egress lighting compliance without a separate emergency fixture. This simplifies code compliance on commercial projects by combining standard and emergency lighting into a single fixture installation.
How does the emergency backup version differ from the standard BROOKS 4ft?+
Two key differences — the 8ft format delivers 10,400 lumens at 40–80W versus the 4ft's 5,200 lumens at 20–40W, and the built-in 8W emergency backup adds automatic power-failure illumination that the standard 4ft version doesn't include.
How many units can be linked in an 8ft BROOKS run?+
Up to 10 units per run in the 8ft format — fewer than the 4ft version's 20 units due to the higher per-fixture wattage. Each linked group covers significant ground, and multiple groups can be installed across larger spaces with separate power connections.
Does the BROOKS 8ft Emergency qualify for utility rebates?+
Yes. UL and DLC listing qualifies it for most US utility rebate programs. Beyond LED Technology provides free photometric layout support within 24 hours for approved trade partners, helping streamline documentation on larger commercial and institutional installations.
Is the BROOKS 8ft suitable for school and healthcare corridor lighting requiring emergency backup?+
Yes. The combination of UL and DLC listing, built-in emergency backup, and 0–10V dimming makes it a strong specification for schools, healthcare facilities, and commercial corridors where both energy efficiency standards and emergency lighting code requirements apply simultaneously.
How quickly does it ship and is trade pricing available?+
Most orders ship within one business day from Beyond LED Technology's Stone Mountain, Georgia warehouse. It ships in cases of 4, and approved trade partners through the Beyond LED Trade Partner Program receive factory-direct trade pricing and dedicated account support.
