CAPSULE | LED Sign Module

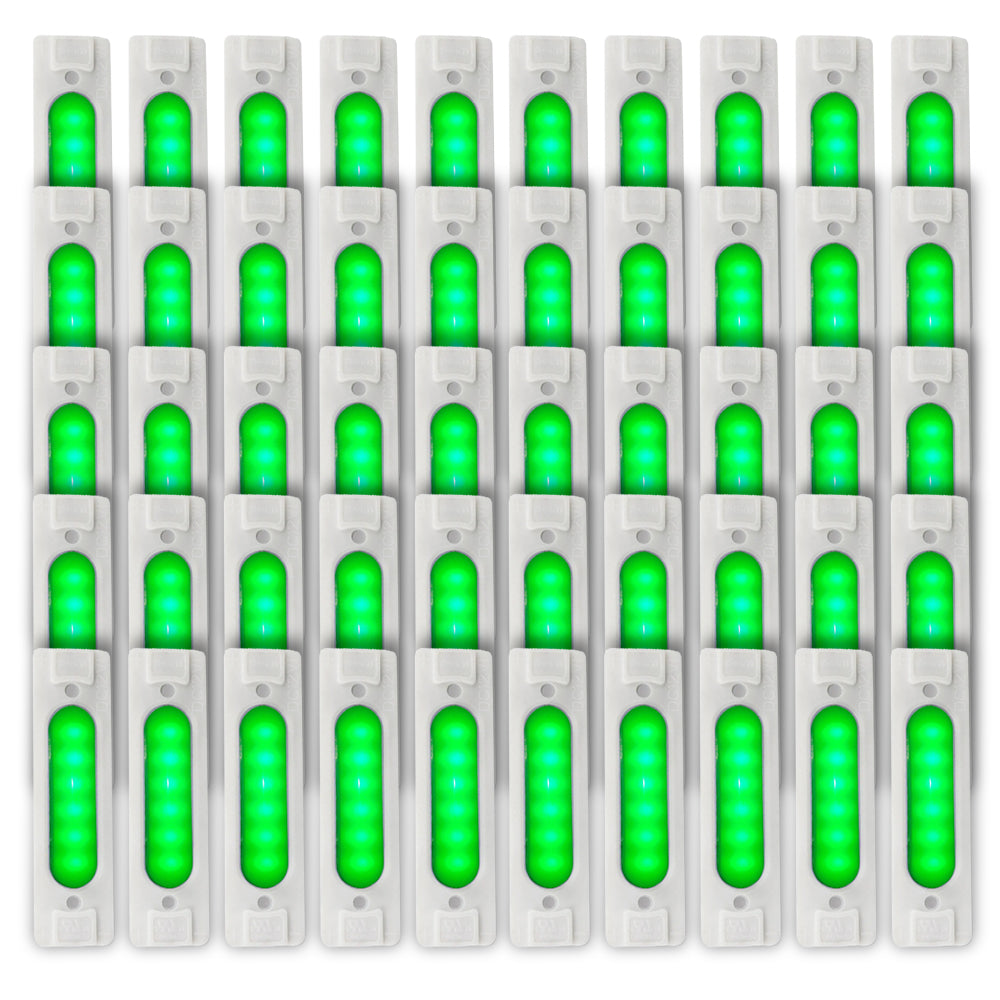

CAPSULE | LED Module High Efficiency | 1.8 Watt | Green | 12V | IP65 | UL Listed | Pack of 50
CAPSULE | LED Module High Efficiency | 1.8 Watt | Green | 12V | IP65 | UL Listed | Pack of 50
CAPSULE | LED Module High Efficiency | 1.8 Watt | Green | 12V | IP65 | UL Listed | Pack of 50 - Beyond LED Technology
CAPSULE | LED Sign Module

CAPSULE | LED Sign Module

1.8W · Green · 12V · IP65 · Pack of 50

Watt: 1.8W Rating: UL Listed IP: IP65
★★★★★ 4.8 · 42 reviews
MSRP: $49.50
PRICE PER PIECE
$37.50
You save $12.00
Contractor, distributor, or reseller? Log in for trade pricing »
Min order: 1 per box
×

The product SKU is: 153700

✓ Free shipping on all Orders
✓ Ships from Stone Mountain, GA — most orders ship in 1 business day
✓ 30-day returns · 5-year warranty · UL Listed
Want to Buy in bulk ?

Contact us for volume pricing or become a trade partner.

Contact Team Become Partner

Product Description

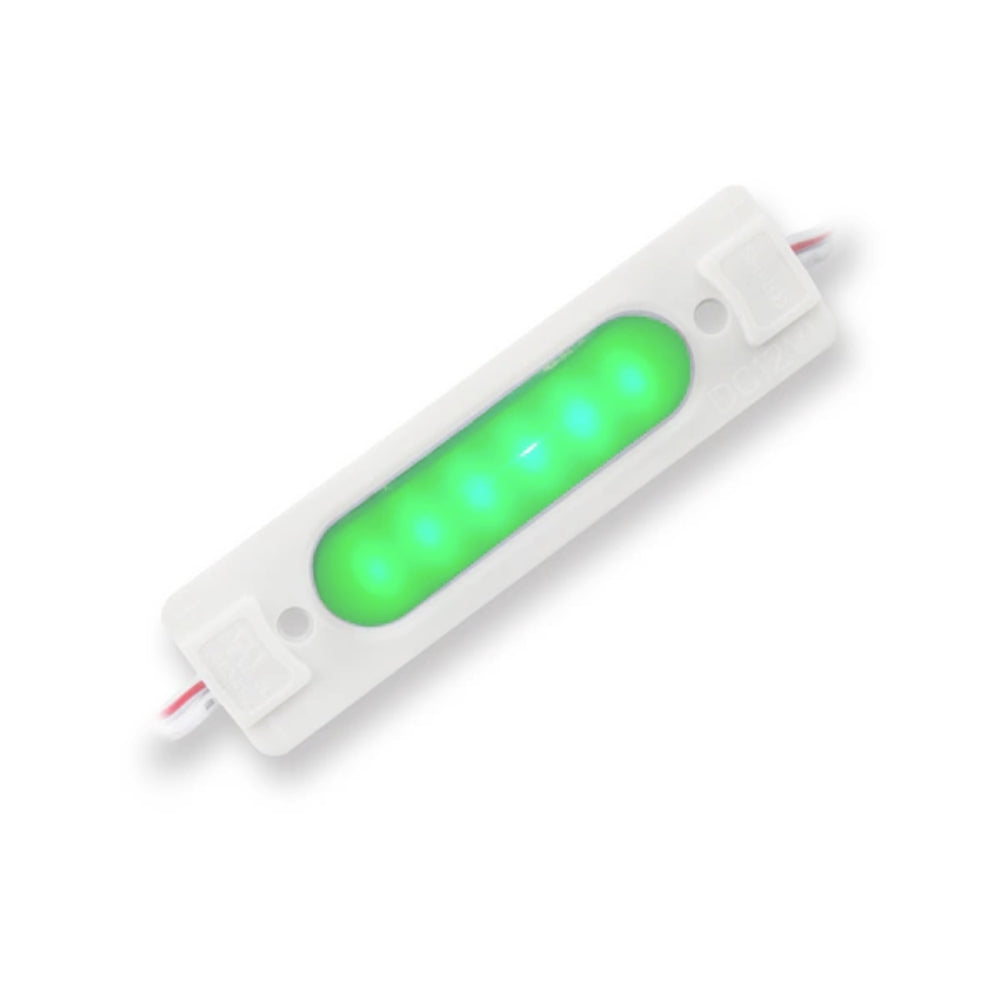

Beyond LED Technology's CAPSULE is a 1.8W green LED sign module engineered specifically for thick, large-format channel letters where standard low-wattage modules cannot deliver adequate face brightness across deep return depths. Nine SMD5730 LEDs per module driven by San'an chips produce strong, consistent green output across the full 180° beam. Up to 40 modules chain consecutively — subdivisible at every single module position for precise layout control across any letter configuration. Aluminium PCB board construction manages heat effectively for the rated 50,000-hour lifespan. IP65 ultrasonically welded body provides waterproof protection for permanent outdoor sign service.

Key Features

  • Fixed output: 1.8W · Green
  • 9× SMD5730 LEDs per module
  • San'an LED chips
  • 180° beam angle
  • Aluminium PCB board construction
  • IP65 ultrasonically welded body
  • Max 40 consecutive modules per chain
  • Chain subdivisible every 1 module
  • Double-sided VHB 3M tape installation
  • 50,000-hour lifespan
  • Input voltage 12V
  • UL Listed



Applications

Large Channel Letters Thick Letter Returns Outdoor Sign Construction Letter Retrofits Brand Signage Commercial Signage

Specifications

SKU 153700
Wattage 1.8W
Input Voltage 12V
Color Green
Construction Aluminium PCB Board
PCS/BOX 50 PCS/BOX
Construction Aluminium PCB Board
IP Rating IP65
Certification UL Listed

Downloads

Spec Sheet PDF
LM79 Report PDF
IES File IES

Need help?

Talk to a lighting specialist about project pricing, photometrics, or custom requirements.

866-786-1117
sales@beyondledtechnology.com
— FAQ —

Frequently Asked Questions

Everything you need to know before specifying CAPSULE | LED Sign Module into a lighting project.

Why is the CAPSULE designed specifically for thick, large channel letters?+
Thick letter returns require higher output per module to project sufficient light across the greater distance to the face material. At 1.8W with 9 SMD5730 LEDs, the CAPSULE delivers the lumen density needed for deep return depths where 0.72W or 1W modules produce inadequate face brightness.
What does "subdivisible every 1 module" mean for installation?+
The chain can be cut and reconfigured at every individual module position — not just at fixed intervals. This gives installers precise control over module spacing and layout across any letter size or configuration without wasting modules or leaving gaps in coverage.
How does aluminium PCB board construction benefit module performance?+
Aluminium PCBs conduct heat away from the LED chips more effectively than standard FR4 boards. Better thermal management keeps junction temperatures lower during continuous operation, directly protecting lumen output and extending the module's 50,000-hour rated lifespan in enclosed letter environments.
What is the maximum chain length per power supply run?+
Up to 40 consecutive CAPSULE modules can be connected per chain. For larger letter sets requiring more modules, additional chains with separate power supply connections are used to maintain consistent voltage and output across the full installation.
How quickly does the CAPSULE ship and is trade pricing available?+
Most orders ship within one business day from Beyond LED Technology's Stone Mountain, Georgia warehouse. It ships in cases of 50, and approved trade partners through the Beyond LED Trade Partner Program receive factory-direct trade pricing and dedicated account support.
