CONVEX | LED T8 Tube
CONVEX | LED T8 Tube
CONVEX | LED T8 Tube
CONVEX | LED T8 Tube
CONVEX | LED T8 Tube
CONVEX | LED T8 Tube
CONVEX | LED T8 Tube

CONVEX | LED T8 Tube

Adj Watt 36W/48W/60W · 7,500 Lumens · Adj CCT 4K/5K/6500K · 8ft · Frosted Lens

Watt: 36W/48W/60W Lumens: 7500Lm CCT: 34K/5K/6500K Rating: ETL Listed IP: Frosted Lens
★★★★★ 4.8 · 42 reviews
Pack of
MSRP: $34.95
PRICE PER PIECE
$29.95
You save $5.00
Contractor, distributor, or reseller? Log in for trade pricing »
Min order: 10 per box
×

The product SKU is: 157101

✓ Free shipping on all Orders
✓ Ships from Stone Mountain, GA — most orders ship in 1 business day
✓ 30-day returns · 5-year warranty · ETL Listed
Want to Buy in bulk ?

Contact us for volume pricing or become a trade partner.

Contact Team Become Partner

Product Description

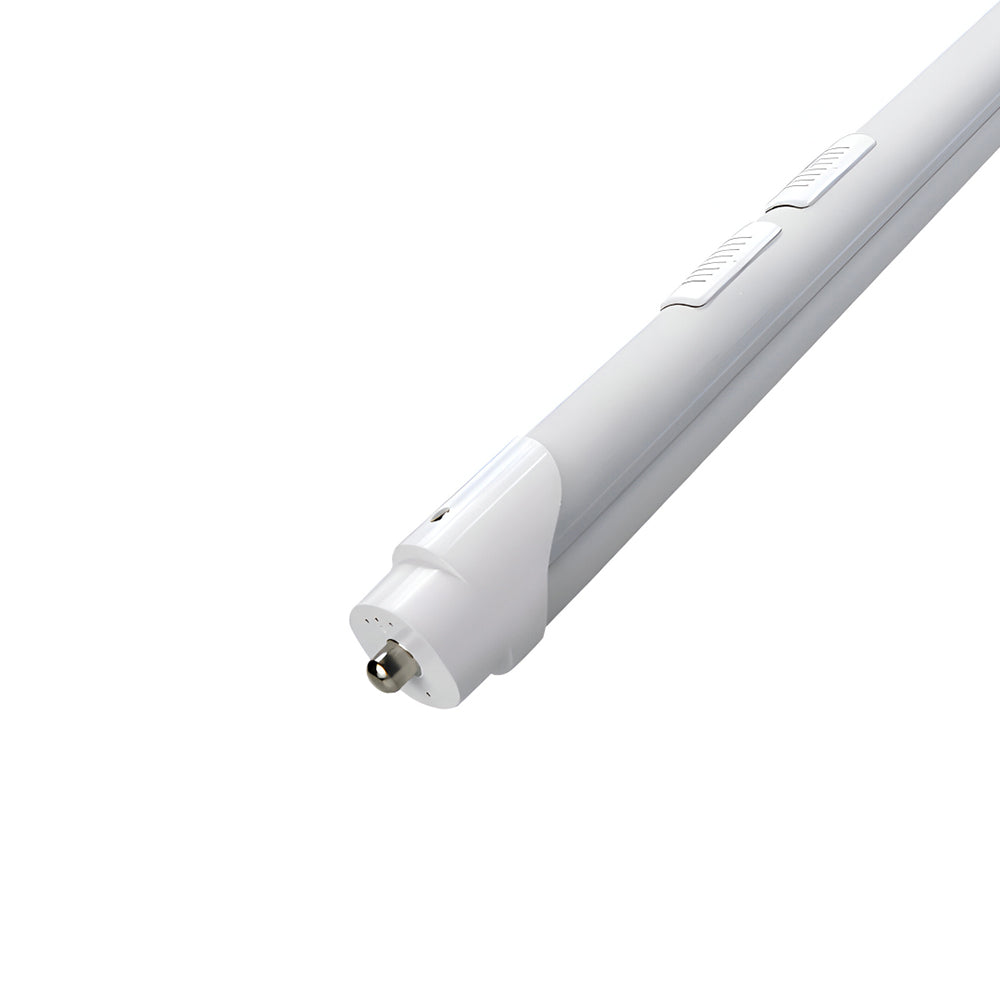

Beyond LED Technology's CONVEX is an 8ft Type B FA8 LED T8 tube engineered for direct ballast bypass installation in commercial and industrial fixtures running on FA8 double-ended power configurations. The double-ended power design ensures stable, consistent current delivery across the full 8ft tube length — critical for maintaining uniform light output in long-run fixture applications like warehouse aisle lighting, gymnasium ceiling fixtures, and large retail floor installations. Adjustable wattage across 36W, 48W, and 60W and CCT options from 4000K through 6500K give facility teams precise control over output and color temperature, while the frosted lens delivers smooth, glare-reduced illumination across the 140° beam angle.

Key Features

  • Up to 125 lm/W efficiency
  • Adjustable wattage — field selectable
  • CCT options: 4000K / 5000K / 6500K
  • Adjustable CCT – field selectable
  • Type B FA8 double-ended power
  • 8ft tube length
  • 140° beam angle
  • Frosted lens
  • Non-dimmable
  • Aluminum housing
  • Input voltage 120–277VAC
  • ETL listed

Applications

Distribution Centers Gymnasiums Supermarkets Industrial Plants Office Workspaces Institutional Lighting

Specifications

SKU 157101
Wattage 36W/48W/60W
CCT 34K/5K/6500K
Lumens 7500Lm
Input Voltage 120-277V
CRI >80
Light Spread 140°
IP Rating Frosted Lens
Certification ETL Listed
Warranty 5 Years

Downloads

Spec Sheet PDF
LM80 Report PDF
LM79 Report PDF
IES File IES

Need help?

Talk to a lighting specialist about project pricing, photometrics, or custom requirements.

866-786-1117
sales@beyondledtechnology.com
— FAQ —

Frequently Asked Questions

Everything you need to know before specifying CONVEX | LED T8 Tube into a lighting project.

What does Type B FA8 double-ended power mean for installation?+
Type B means the tube bypasses the ballast entirely and runs directly on line voltage — eliminating ballast replacement costs and failure points. FA8 refers to the single-pin base configuration standard on 8ft commercial fixtures. Double-ended power means both ends of the tube carry current for stable, uniform output across the full length.
What fixtures is the CONVEX 8ft tube compatible with?+
It's compatible with 8ft commercial fluorescent fixtures using FA8 single-pin sockets configured for double-ended power input. Verifying socket type and wiring configuration before installation is recommended, as Type B tubes require ballast bypass.
Why does the CONVEX include 6500K as a CCT option?+
6500K daylight output is the brightest, highest-contrast color temperature available — preferred in warehouses, gymnasiums, and large retail floors where maximum visual acuity and color contrast are priorities. It's an option not commonly found on standard T8 tubes.
Is the CONVEX dimmable?+
No — the CONVEX is a fixed-output, non-dimmable tube designed for installations where consistent full-output illumination is the requirement. For applications requiring dimming capability, a dimmable LED tube alternative would be the appropriate specification.
Does the CONVEX qualify for rebate programs?+
ETL listing qualifies it for many energy efficiency programs across the US. Confirming eligibility with your local utility before installation is always recommended, particularly on large-scale commercial retrofits.
How quickly does the CONVEX ship and is trade pricing available?+
Most orders ship within one business day from Beyond LED Technology's Stone Mountain, Georgia warehouse. Approved trade partners through the Beyond LED Trade Partner Program receive factory-direct trade pricing and dedicated account support.
