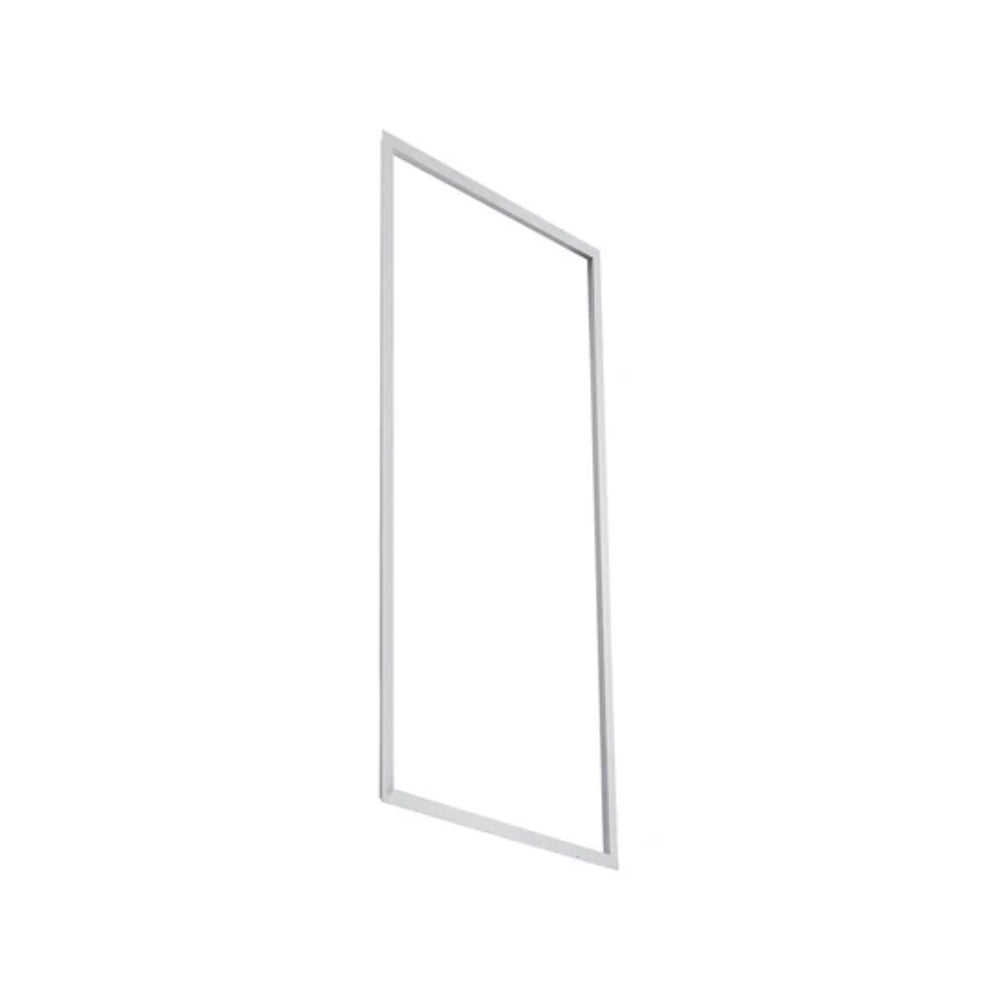

GEOMETRIC 2nd Gen | LED Grid Panel
Contact us for volume pricing or become a trade partner.
Product Description

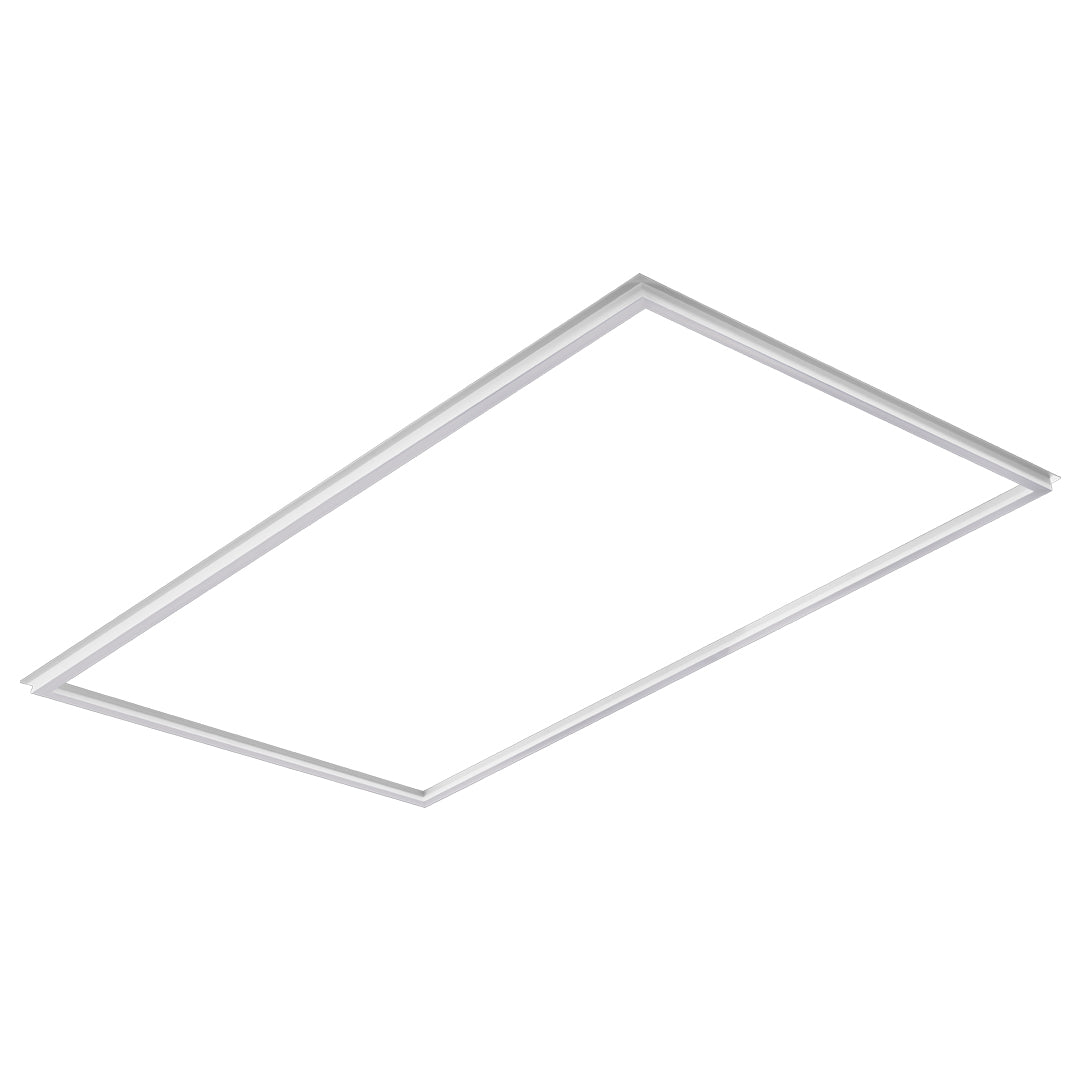

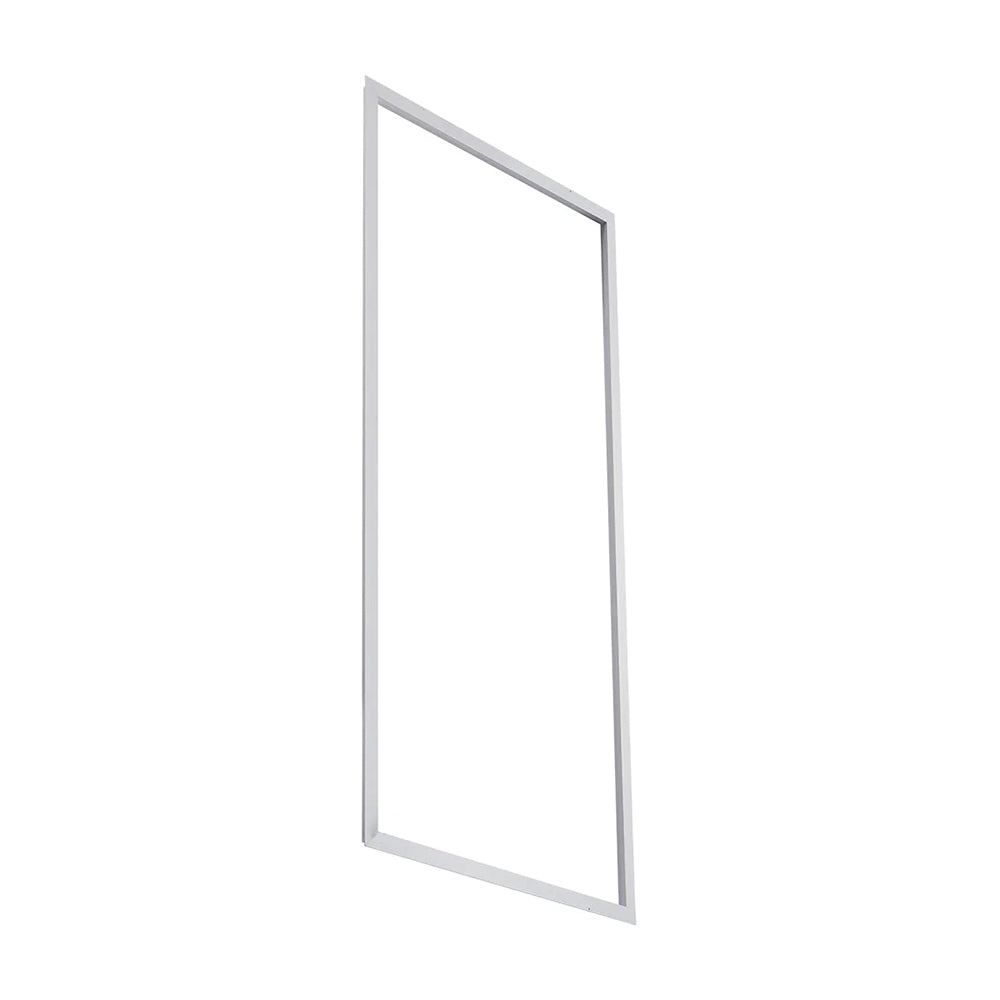

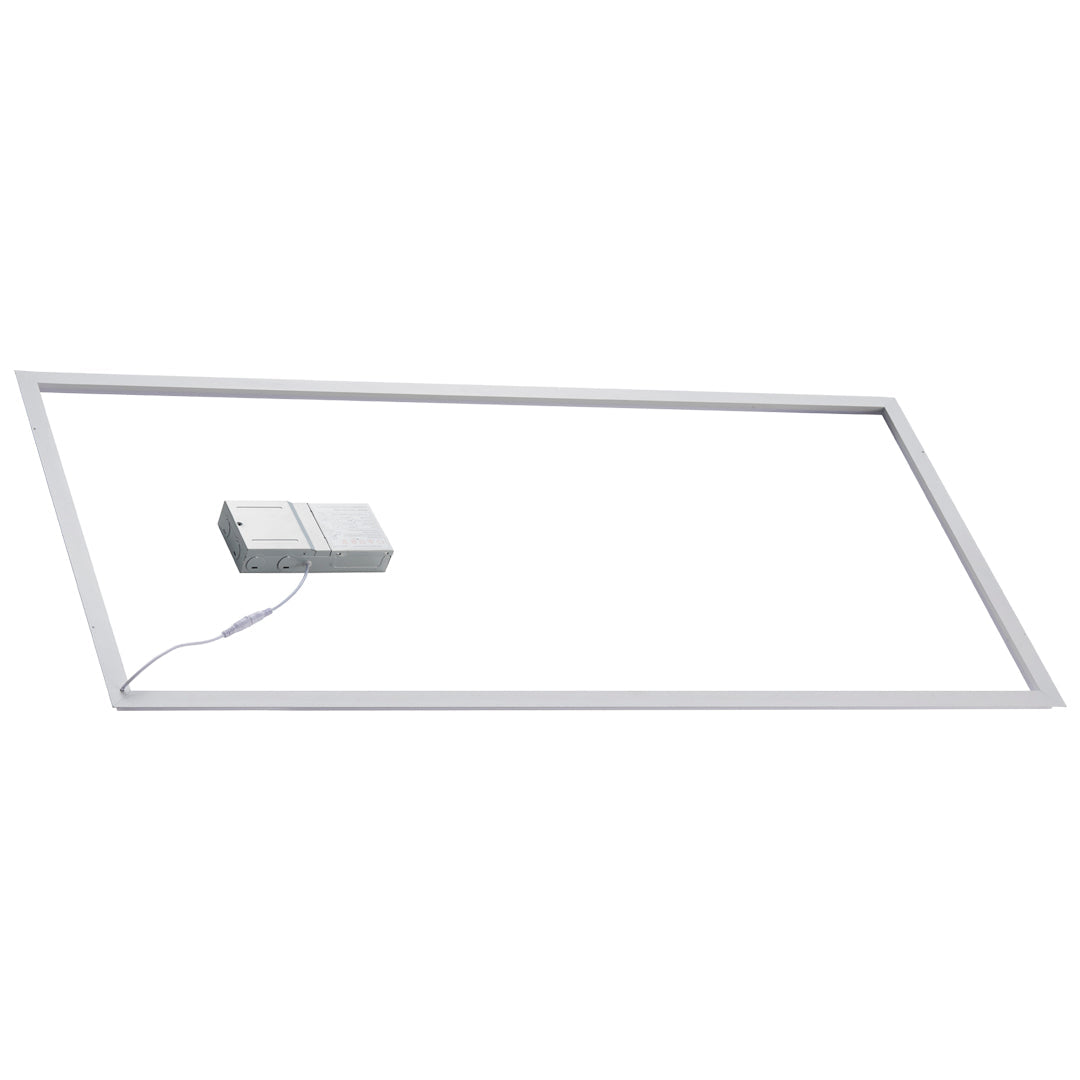

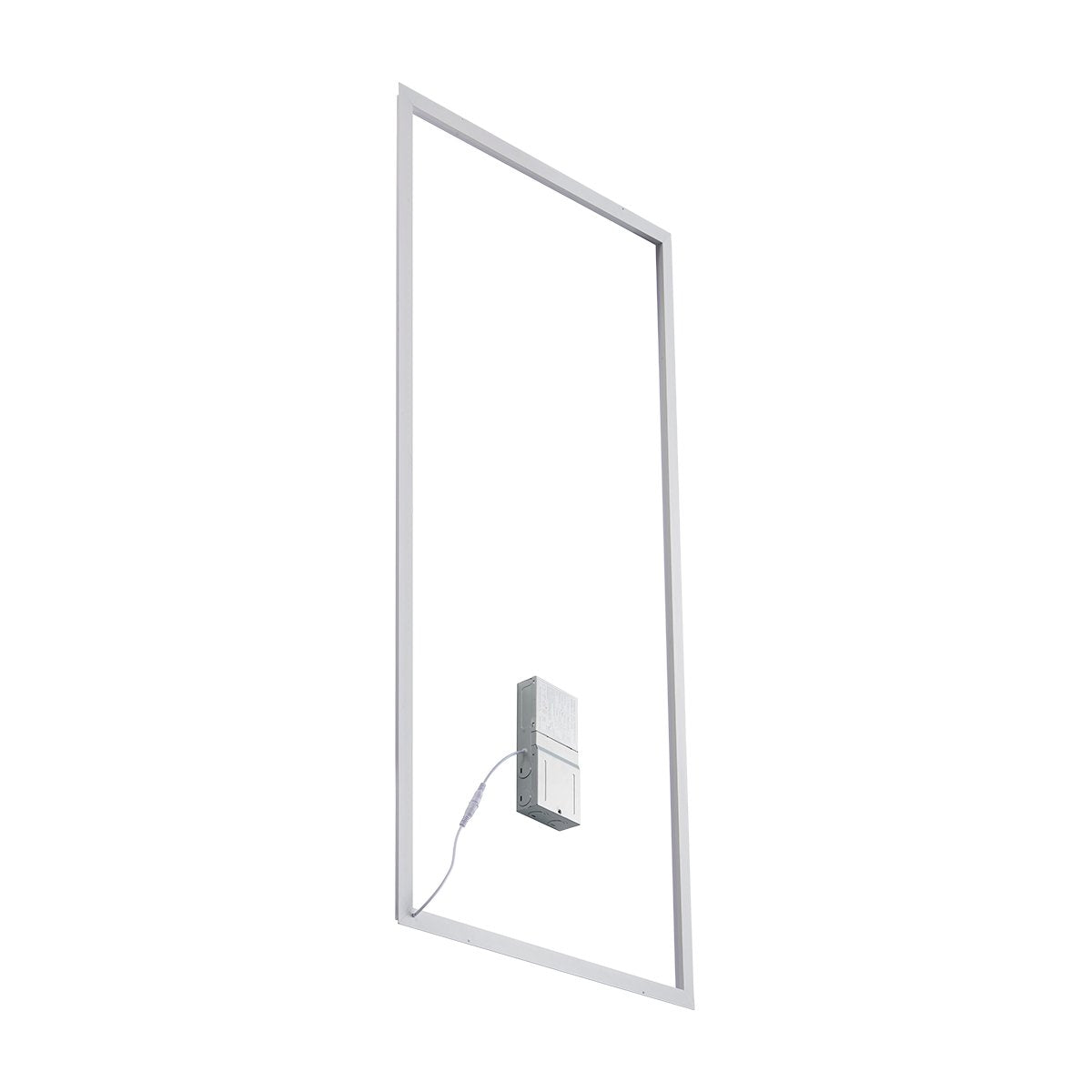

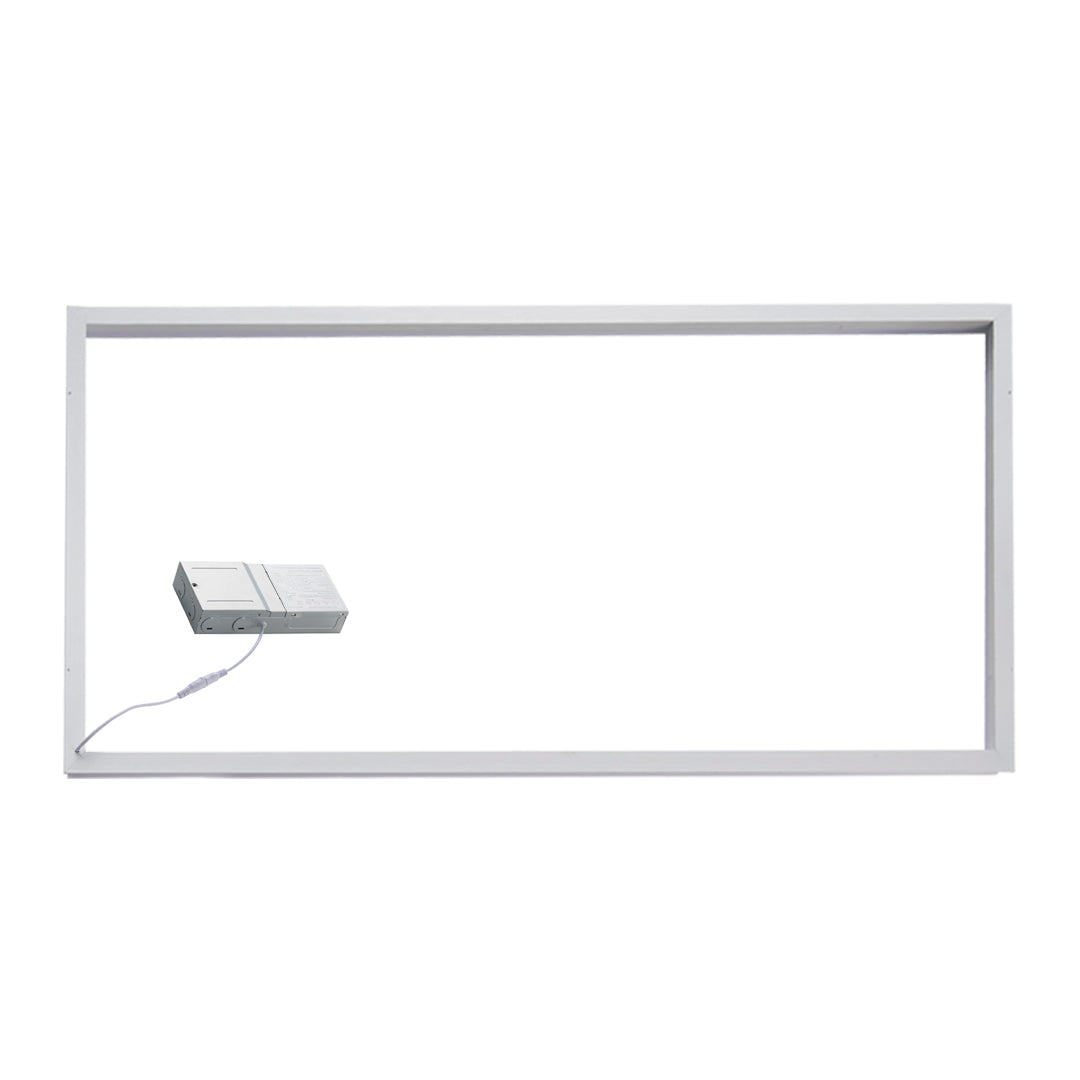

Beyond LED Technology's GEOMETRIC 2nd Gen in 2'×4' delivers 7,500 lumens at up to 60W — the higher-output configuration in the family, suited to larger commercial zones where the 2'×2' variant cannot achieve adequate footcandle levels at standard fixture spacing. Open offices, healthcare corridors, educational facilities, and large retail floors benefit from the broader panel coverage and elevated lumen output per fixture. Three field-selectable wattage settings and five CCT options allow on-site tuning across varied space types. DLC listing supports utility rebate eligibility, and 0–10V dimming integrates with standard commercial control systems.
Key Features
- Up to 125 lm/W efficacy
- Adjustable CCT — field selectable
- Adjustable wattage — field selectable
- Diffusing lens for even direct illumination
- 120° beam angle
- 0–10V dimmable
- White housing finish
- Input voltage 100–277VAC
- 2'×4' fixture size
- ETL & DLC Listed

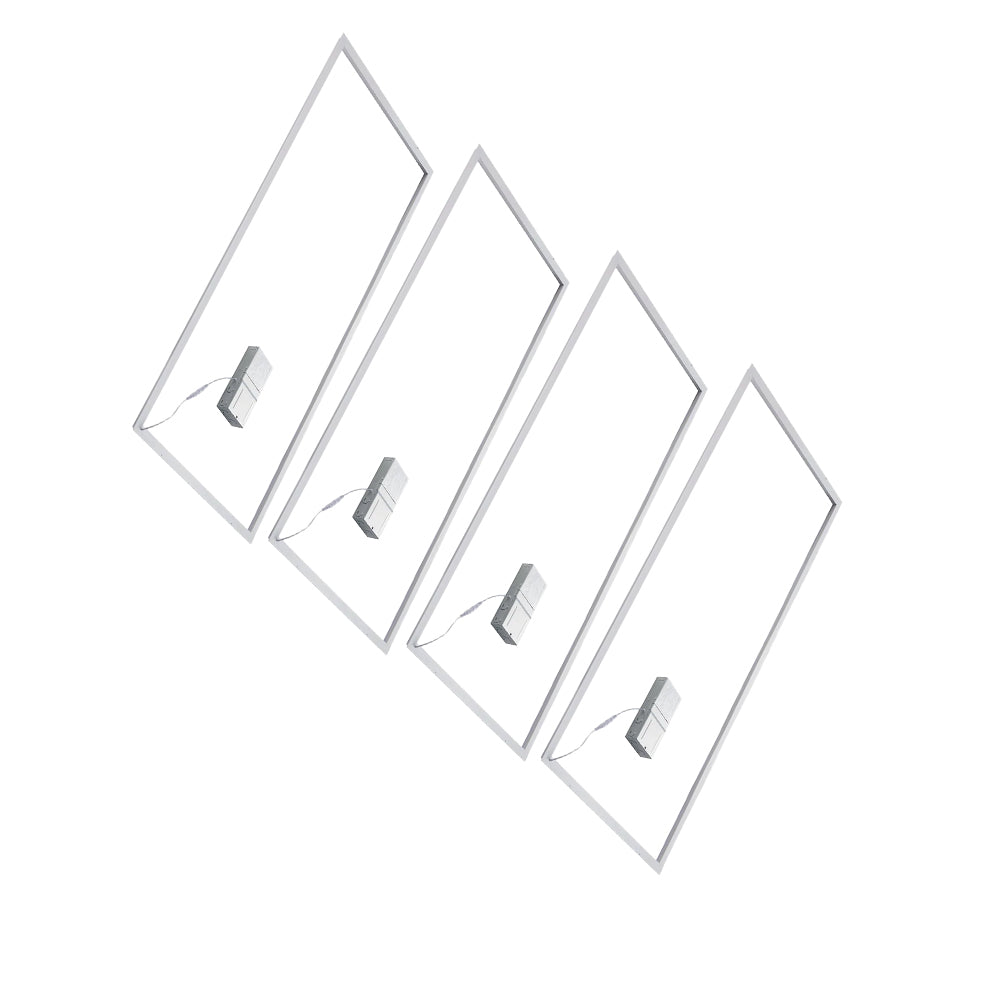

- PCS/Box: 4
- 5-year warranty
Applications
Specifications
| SKU | 156656 |
| Wattage | 40W/50W/60W |
| CCT | 3K/3500K/4K/5K/6500K |
| Lumens | 7500Lm |
| Input Voltage | 100V-277V |
| Size | 2'×4' |
| Construction | White |
| PCS/BOX | 4 PCS/BOX |
| Construction | White |
| Dimming | 0–10V |
| Certification | ETL & DLC Listed |
| Warranty | 5 Years |
Need help?
Talk to a lighting specialist about project pricing, photometrics, or custom requirements.
866-786-1117sales@beyondledtechnology.com
Frequently Asked Questions
Everything you need to know before specifying GEOMETRIC 2nd Gen | LED Grid Panel into a lighting project.
