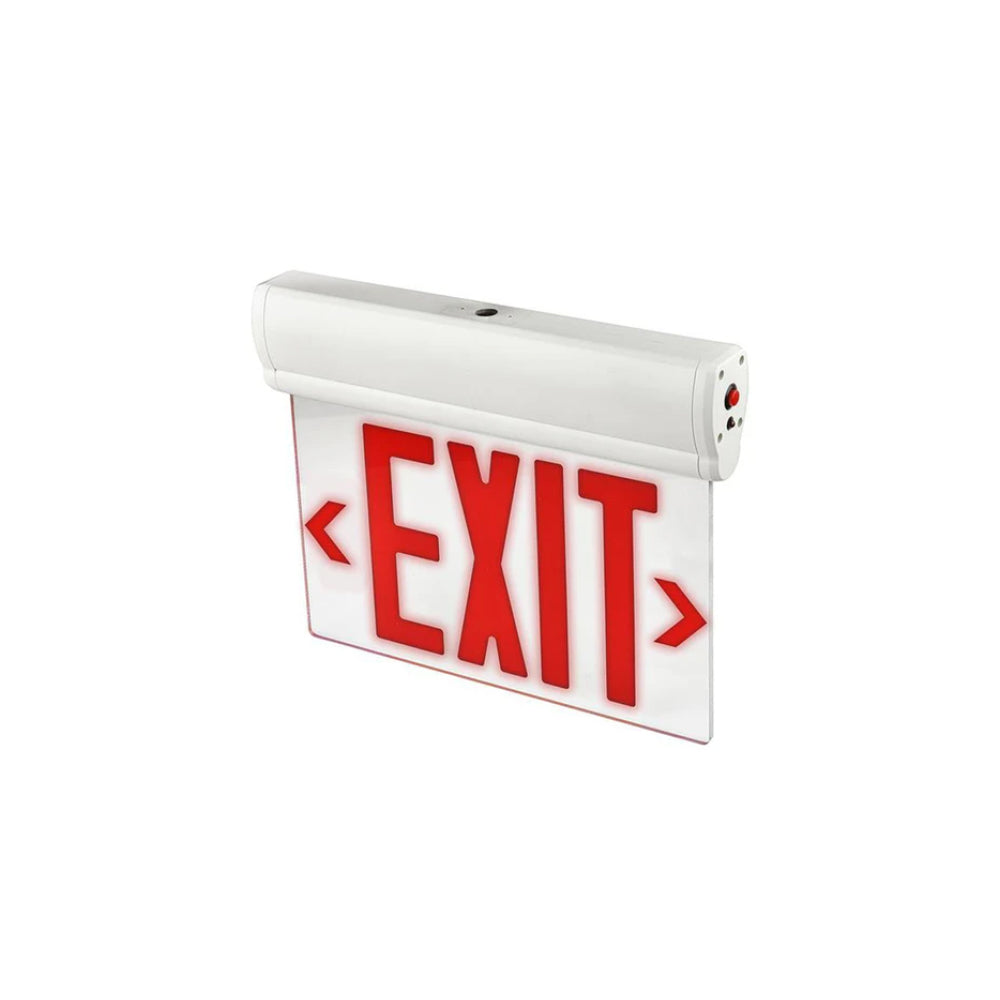

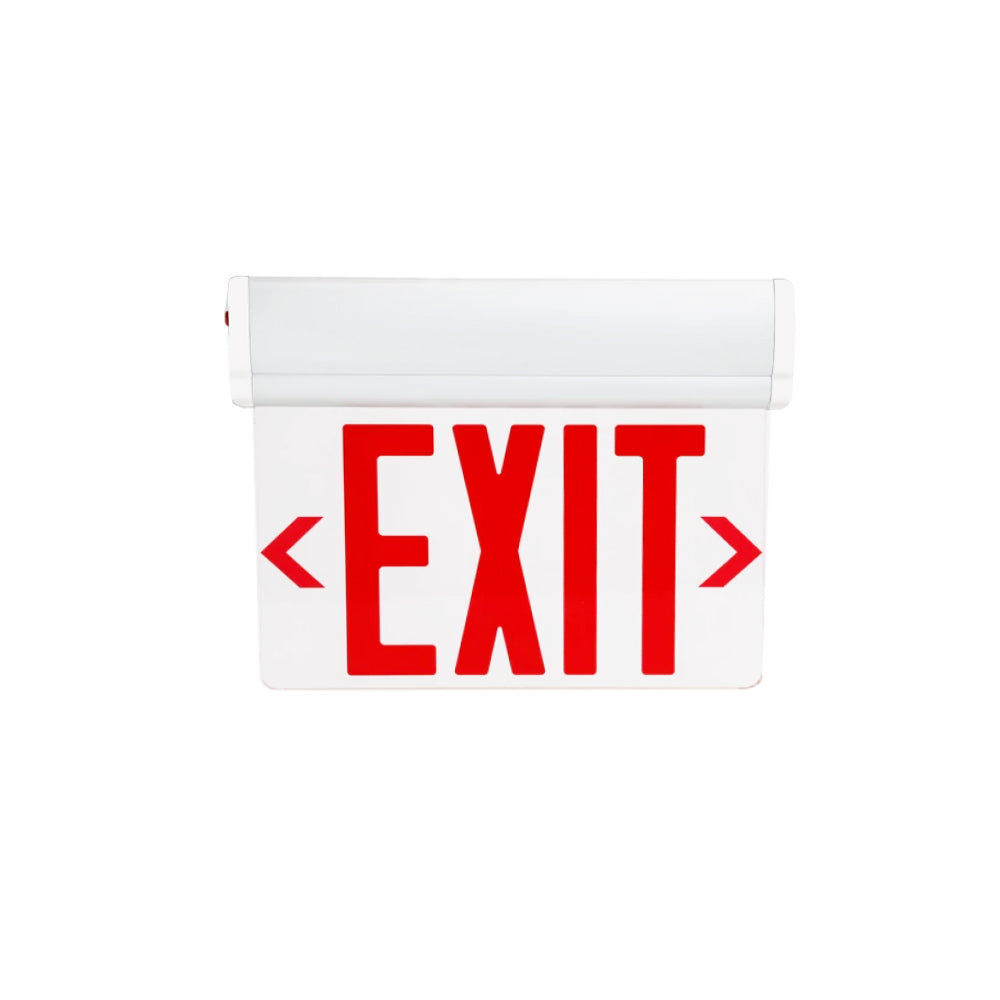

H3 | LED Edge Lit Exit Sign
H3 | LED Edge Lit Exit Sign
H3 | LED Edge Lit Exit Sign
H3 | LED Edge Lit Exit Sign

H3 | LED Edge Lit Exit Sign

1W · Red · 8000K · 120–277V

Watt: 1W CCT: 8000K Rating: UL Listed
★★★★★ 4.8 · 42 reviews
MSRP: $49.95
$39.95
You save $10.00
Contractor, distributor, or reseller? Log in for trade pricing »
Min order: 2 per box
×

The product SKU is: 151309

✓ Free shipping on all Orders
✓ Ships from Stone Mountain, GA — most orders ship in 1 business day
✓ 30-day returns · UL & DLC Listed
Want to Buy in bulk ?

Contact us for volume pricing or become a trade partner.

Contact Team Become Partner

Product Description

Beyond LED Technology's H3 is an edge-lit LED exit sign that combines a slim, modern profile with dependable maintained-mode emergency performance. The edge-lit acrylic panel delivers bright, uniform EXIT illumination continuously — not only during power failures — making it suitable for both standard and emergency operation in commercial spaces. Flame-retardant, high-impact thermoplastic ABS housing provides durable protection in a lightweight form. SMD 2835 red LEDs and a 120° light spread ensure clear visibility across the sign face. A 3.6V Ni-MH battery delivers at least 90 minutes of emergency runtime on a 24-hour charge cycle.

Key Features

  • Fixed output: 1W / 8000K / Red
  • Edge-lit acrylic panel design
  • Maintained mode operation
  • SMD 2835 12pcs red LED
  • 120° light spread
  • Flame-retardant high-impact ABS housing
  • IP20 rated
  • 3.6V 500mAh Ni-MH battery
  • 90-minute minimum emergency runtime
  • 24-hour full charge cycle
  • Input voltage 120–277VAC
  • PCS/Box: 6

Applications

Commercial Exits Corridor Exits Retail Egress Healthcare Facilities Institutional Egress Compliant Installations

Specifications

SKU 151309
Wattage 1W
CCT 8000K
Lumens NA
Input Voltage 120-277V
Construction Flame-Retardant ABS
IP Rating IP20
Certification UL Listed
Warranty

Downloads

Spec Sheet PDF

Need help?

Talk to a lighting specialist about project pricing, photometrics, or custom requirements.

866-786-1117
sales@beyondledtechnology.com
— FAQ —

Frequently Asked Questions

Everything you need to know before specifying H3 | LED Edge Lit Exit Sign into a lighting project.

What does "maintained mode" mean for an exit sign?+
Maintained mode means the sign illuminates continuously during normal operation — not only during emergencies. This keeps exit locations permanently visible to occupants, which is required by code in most commercial occupancies.
How does edge-lit design differ from standard exit signs?+
Edge-lit signs use LEDs along the panel edge to illuminate an acrylic face evenly, producing a thin, uniform appearance with no visible hotspots. This gives a cleaner, more modern aesthetic compared to traditional internally-lit exit sign housings.
Does the H3 exit sign meet code duration requirements?+
Yes. The battery delivers a minimum 90-minute emergency runtime, meeting NFPA 101 and IBC requirements for exit sign illumination duration. UL listing confirms independent testing to applicable safety standards.
What is the difference between this H3 and the H3 Dual Head Emergency Light?+
The H3 Exit Sign is a maintained-mode exit marker with an edge-lit acrylic panel — it marks the exit location. The H3 Dual Head Emergency Light provides area illumination along egress paths. Both serve complementary roles in a complete emergency egress system.
How quickly does the H3 ship and is trade pricing available?+
Most orders ship within one business day from Beyond LED Technology's Stone Mountain, Georgia warehouse. It ships in cases of 6, and approved trade partners through the Beyond LED Trade Partner Program receive factory-direct trade pricing and dedicated account support.
