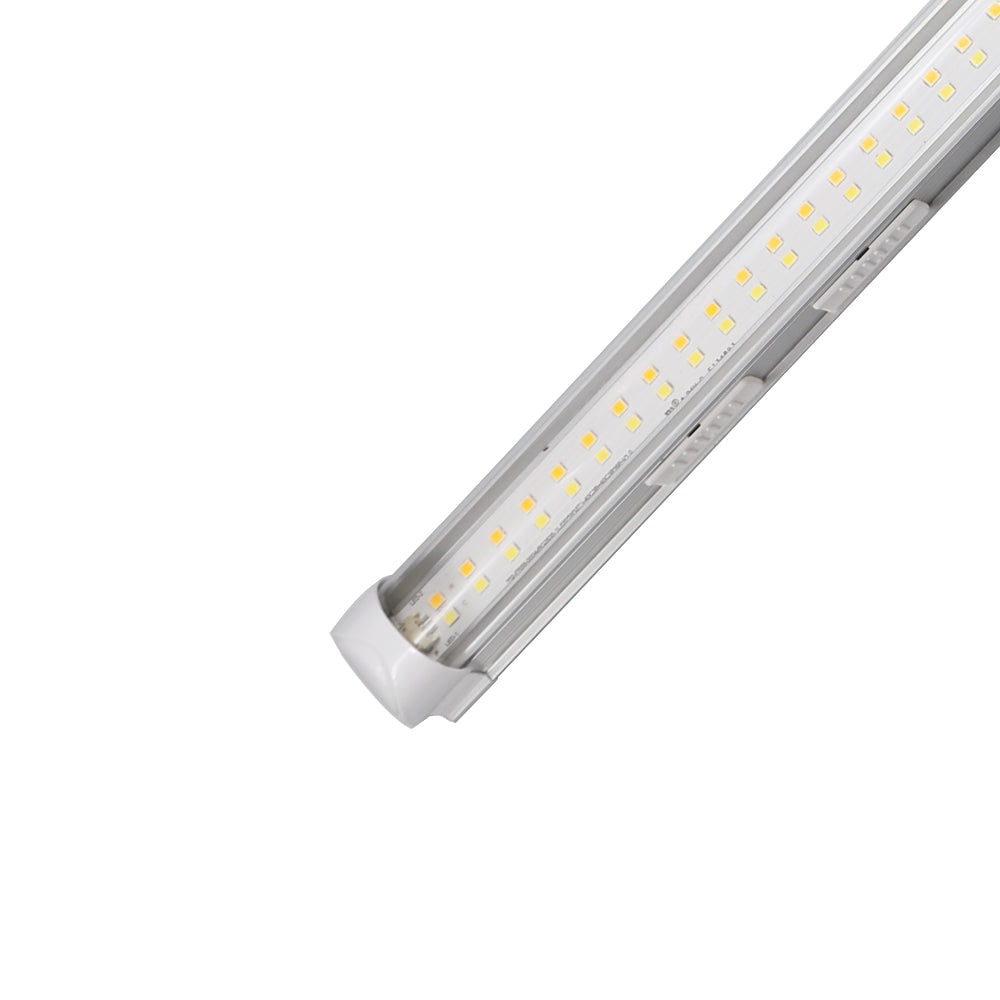

ICONIC 2nd Gen | LED Linkable Integrated Tube
ICONIC 2nd Gen | LED Linkable Integrated Tube
ICONIC 2nd Gen | LED Linkable Integrated Tube
ICONIC 2nd Gen | LED Linkable Integrated Tube
ICONIC 2nd Gen | LED Linkable Integrated Tube
ICONIC 2nd Gen | LED Linkable Integrated Tube
ICONIC 2nd Gen | LED Linkable Integrated Tube
ICONIC 2nd Gen | LED Linkable Integrated Tube

ICONIC 2nd Gen | LED Linkable Integrated Tube

Adj Watt 12W/15W/18W/20W/22W/24W · 3,120 Lumens · Adj CCT 3K/3500K/4K/5K/6K/6500K · 4ft · Clear Lens

Watt: 12W/15W/18W/20W/22W/24W Lumens: 3120Lm CCT: 3K/3500K/4K/5K/6K/6500K Rating: ETL Listed IP: Clear Lens
★★★★★ 4.8 · 42 reviews
Pack of
MSRP: $32.95
PRICE PER PIECE
$24.95
You save $8.00
Contractor, distributor, or reseller? Log in for trade pricing »
Min order: 6 per box
×

The product SKU is: 157097

✓ Free shipping on all Orders
✓ Ships from Stone Mountain, GA — most orders ship in 1 business day
✓ 30-day returns · 5-year warranty · ETL Listed
Want to Buy in bulk ?

Contact us for volume pricing or become a trade partner.

Contact Team Become Partner

Product Description

Beyond LED Technology's ICONIC 2nd Gen is a linkable LED integrated tube built for continuous run installations where seamless, uninterrupted lighting across long spans is the requirement. Up to 18 units can be daisy-chained together — depending on wattage selection — creating continuous runs up to 32 feet from a single power connection, making it exceptionally practical for workshop benches, retail display runs, under-cabinet installations, and industrial task lighting. The integrated driver eliminates the need for external ballasts or drivers entirely, and the self-supporting design mounts directly to any flat surface on standard 120–277V line voltage. Six selectable wattages and six CCT options from 3000K to 6500K give complete on-site control over output and ambiance.

Key Features

  • Up to 130 lm/W efficacy

  • Adjustable wattage – field selectable

  • Adjustable CCT – field selectable

  • CRI>80e

  • Linkable up to 18 units

  • Integrated driver

  • Self-supporting surface mount design

  • 140° beam angle

  • Clear lens

  • Non-dimmable

  • Input voltage 120–277VAC

  • ETL listed



Applications

Task Workstations Merchandise Displays Industrial Tasks Utility Areas Commercial Storage Institutional Corridors

Specifications

SKU 157097
Wattage 12W/15W/18W/20W/22W/24W
CCT 3K/3500K/4K/5K/6K/6500K
Lumens 3120Lm
Input Voltage 120-277V
CRI >80
IP Rating IP20
IP Rating Clear Lens
Certification ETL Listed
Warranty 5 Years

Downloads

Spec Sheet PDF
LM80 Report PDF
LM79 Report PDF

Need help?

Talk to a lighting specialist about project pricing, photometrics, or custom requirements.

866-786-1117
sales@beyondledtechnology.com
— FAQ —

Frequently Asked Questions

Everything you need to know before specifying ICONIC 2nd Gen | LED Linkable Integrated Tube into a lighting project.

What does linkable mean and how many units can be connected?+
Linkable means multiple tubes connect end-to-end from a single power source — the ICONIC 2nd Gen supports up to 18 units depending on wattage selection, creating continuous runs up to 32 feet without additional power connections. This is ideal for workshop benches, retail display runs, and industrial task lighting requiring seamless coverage.
How is the ICONIC 2nd Gen different from standard retrofit T8 tubes?+
It's an integrated tube with a built-in driver — not a retrofit replacement for ballast-based fixtures. It mounts directly to any flat surface on standard 120–277V line voltage without ballasts or external drivers, making it better suited for new installations and continuous run applications than standard retrofit tubes.
Can I adjust wattage and CCT after installation?+
Yes. Both are field selectable across six wattage steps and six CCT options including the rarely available 6000K setting. This level of configurability makes it adaptable across very different commercial and industrial lighting specifications without stocking multiple SKUs.
Is the ICONIC 2nd Gen dimmable?+
No. It's a fixed-output, non-dimmable integrated tube designed for installations where consistent full-output illumination is required. For applications requiring dimming capability, other tubes in the Beyond LED T8 lineup offer dimming support.
Does the ICONIC 2nd Gen qualify for rebate programs?+
ETL listing qualifies it for many energy efficiency programs across the US. Confirming eligibility with your local utility before installation is recommended, particularly on larger commercial and industrial installations.
How quickly does the ICONIC 2nd Gen ship and is trade pricing available?+
Most orders ship within one business day from Beyond LED Technology's Stone Mountain, Georgia warehouse. Approved trade partners through the Beyond LED Trade Partner Program receive factory-direct trade pricing and dedicated account support.
