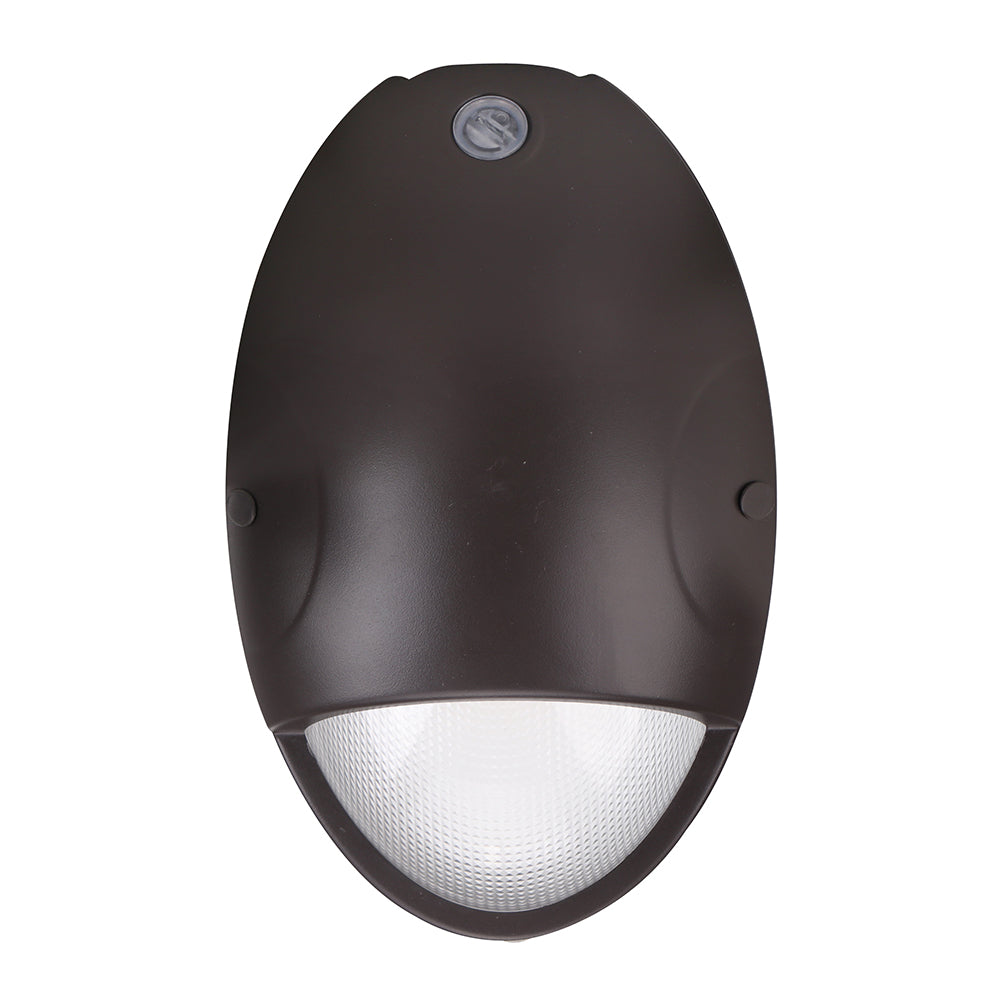

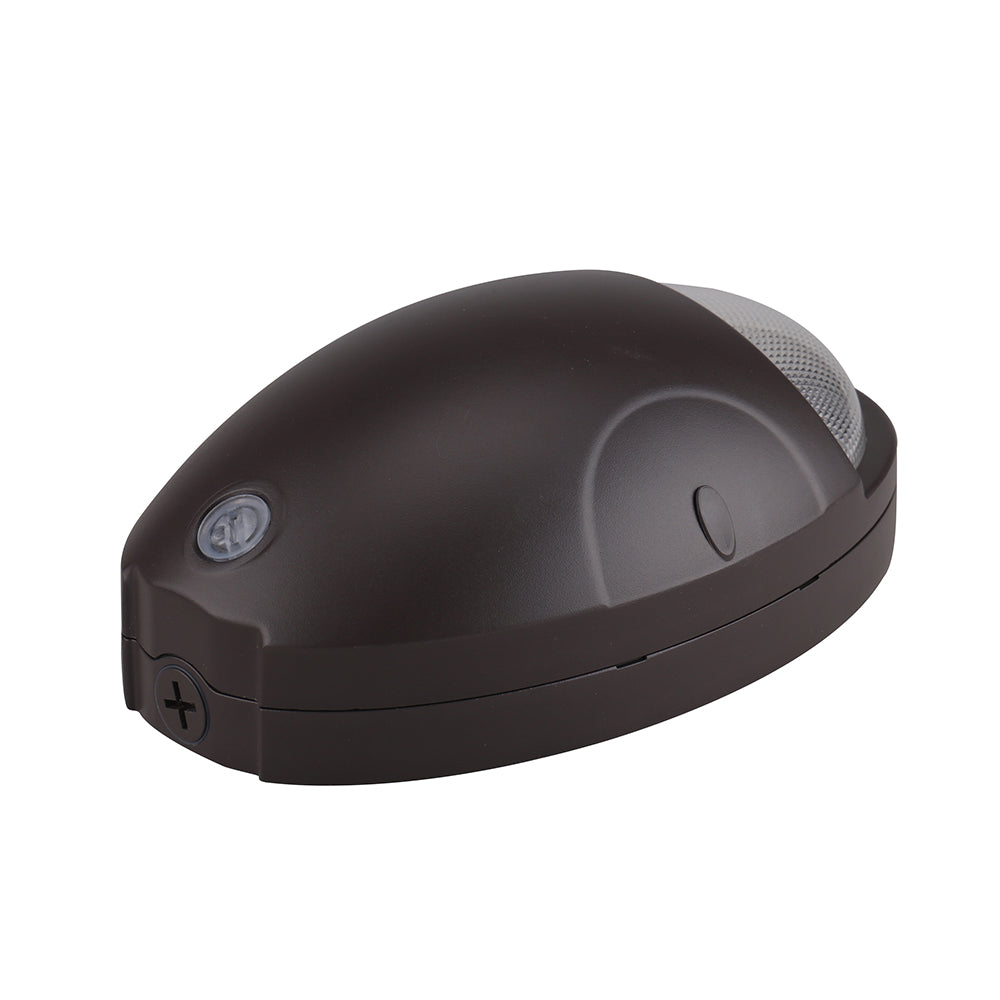

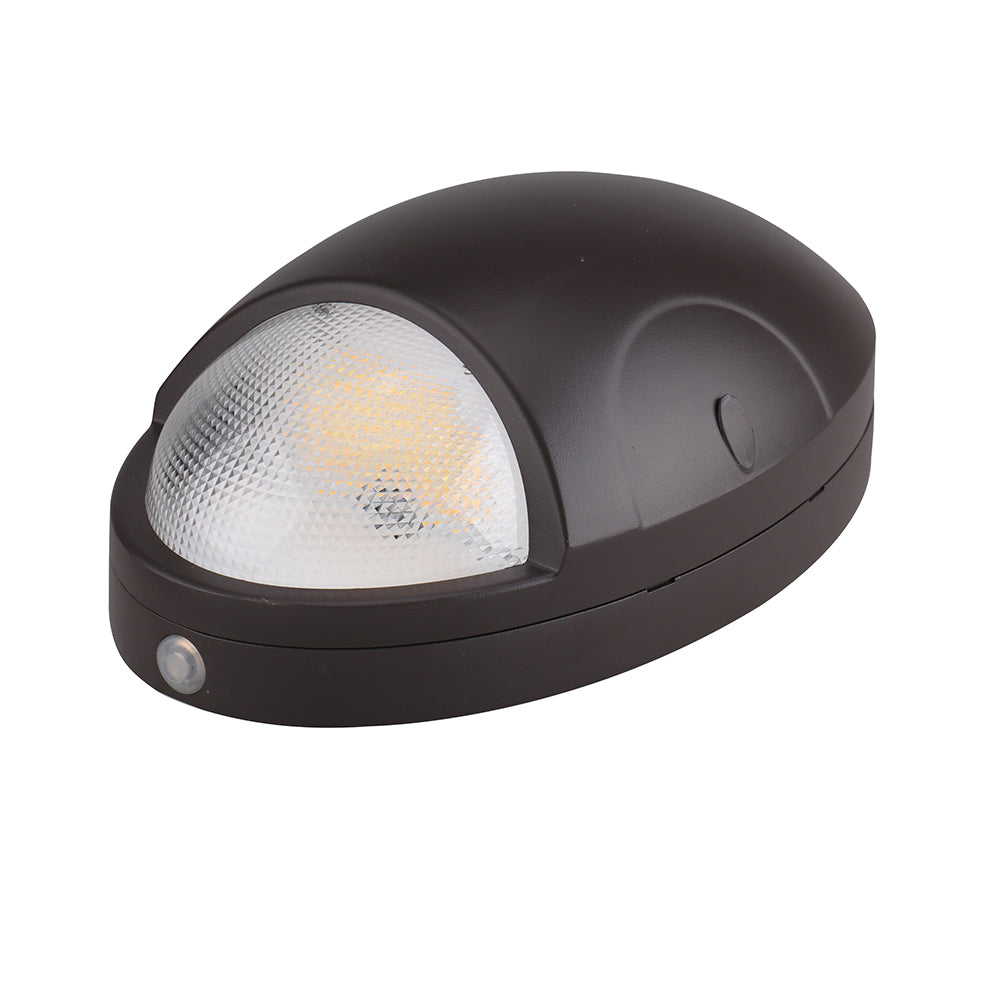

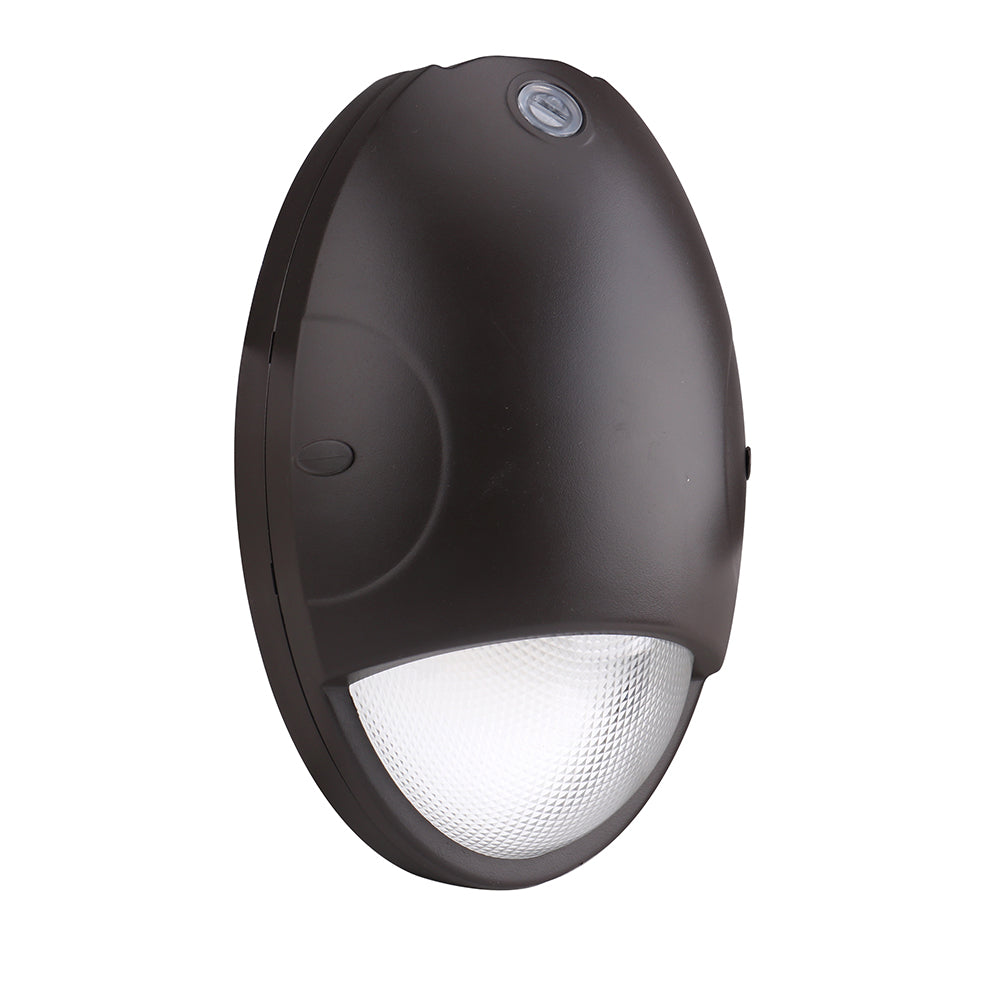

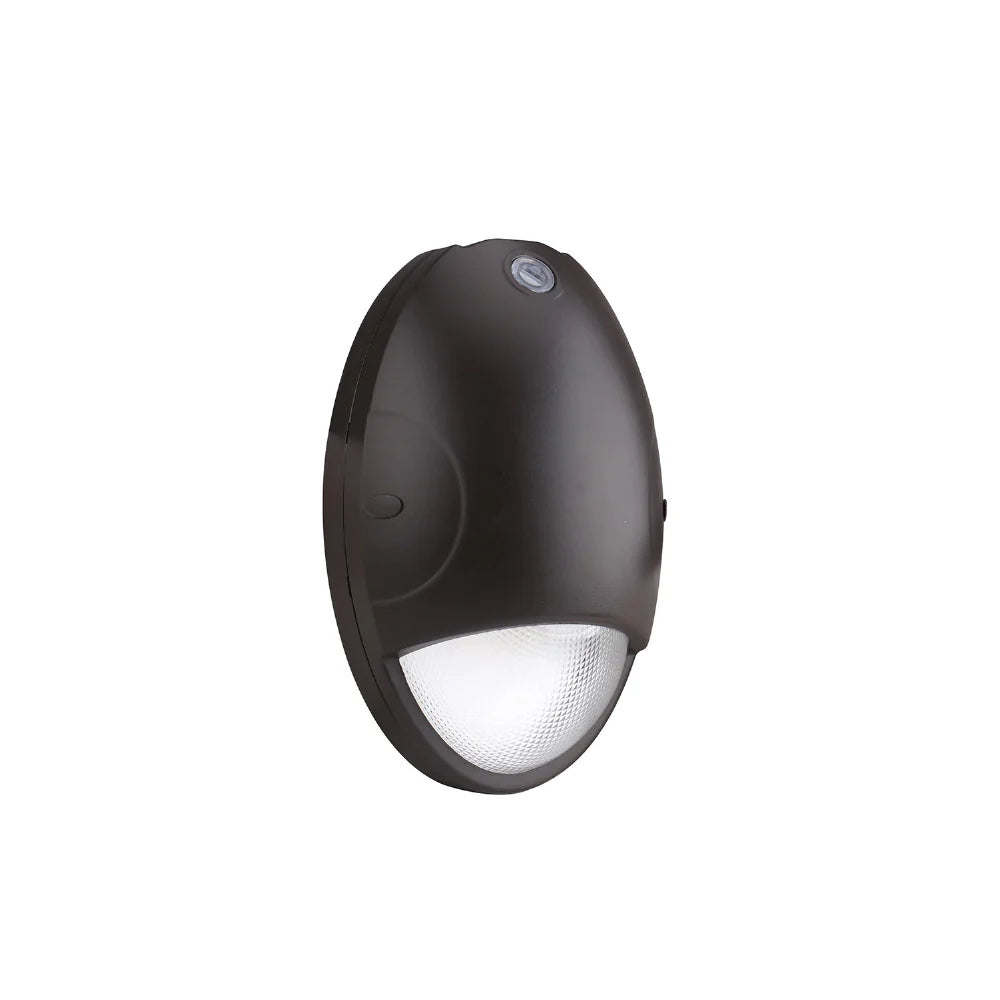

LEAD | LED Mini Wall Pack
Contact us for volume pricing or become a trade partner.
Product Description
Beyond LED Technology's LEAD is the only mini wall pack in its class that doubles as a code-compliant emergency light. When power goes out, the built-in 5W battery backup activates automatically and sustains 90 minutes of continuous illumination — meeting standard egress lighting requirements without a separate emergency fixture. During normal operation, the built-in photocell handles dusk-to-dawn automation and the 0–10V dimming supports building control integration. The compact bronze die-cast aluminum housing, IP65 protection, and UL & DLC listing make it a smart, space-saving solution for commercial entrances, hospitality exteriors, and any application where emergency lighting compliance matters.
Key Features
- Up to 134 lm/W efficacy
- Fixed output: 15W / 2,010 lumens / 5000K
- Built-in 5W battery backup
- 90 minutes emergency operation
- Built-in photocell ON/OFF
- 0-10V dimmable
- 100° beam angle
- Die-cast aluminum construction
- Input voltage 120–277VAC
- IP65 rated
- Input voltage 120–277VAC
- UL & DLC listed
- 10 PCS/Box
Applications
Specifications
| SKU | 156205 |
| Wattage | 15W |
| CCT | 5000K |
| Lumens | 2010Lm |
| Input Voltage | 120V-277V |
| Lumen Efficacy | Up to 134 lm/W |
| Emergency Backup | 5W / 90 Minutes |
| PCS/BOX | 10 PCS/BOX |
| Dimming | 0–10V |
| IP Rating | IP65 |
| Certification | UL & DLC Listed |
| Warranty | 5 Years |
