Home > Products >LINKLITE | LED Sign Module
LINKLITE | LED Sign Module
LINKLITE | LED Sign Module
LINKLITE | LED Sign Module
LINKLITE | LED Sign Module

SKU: 157225

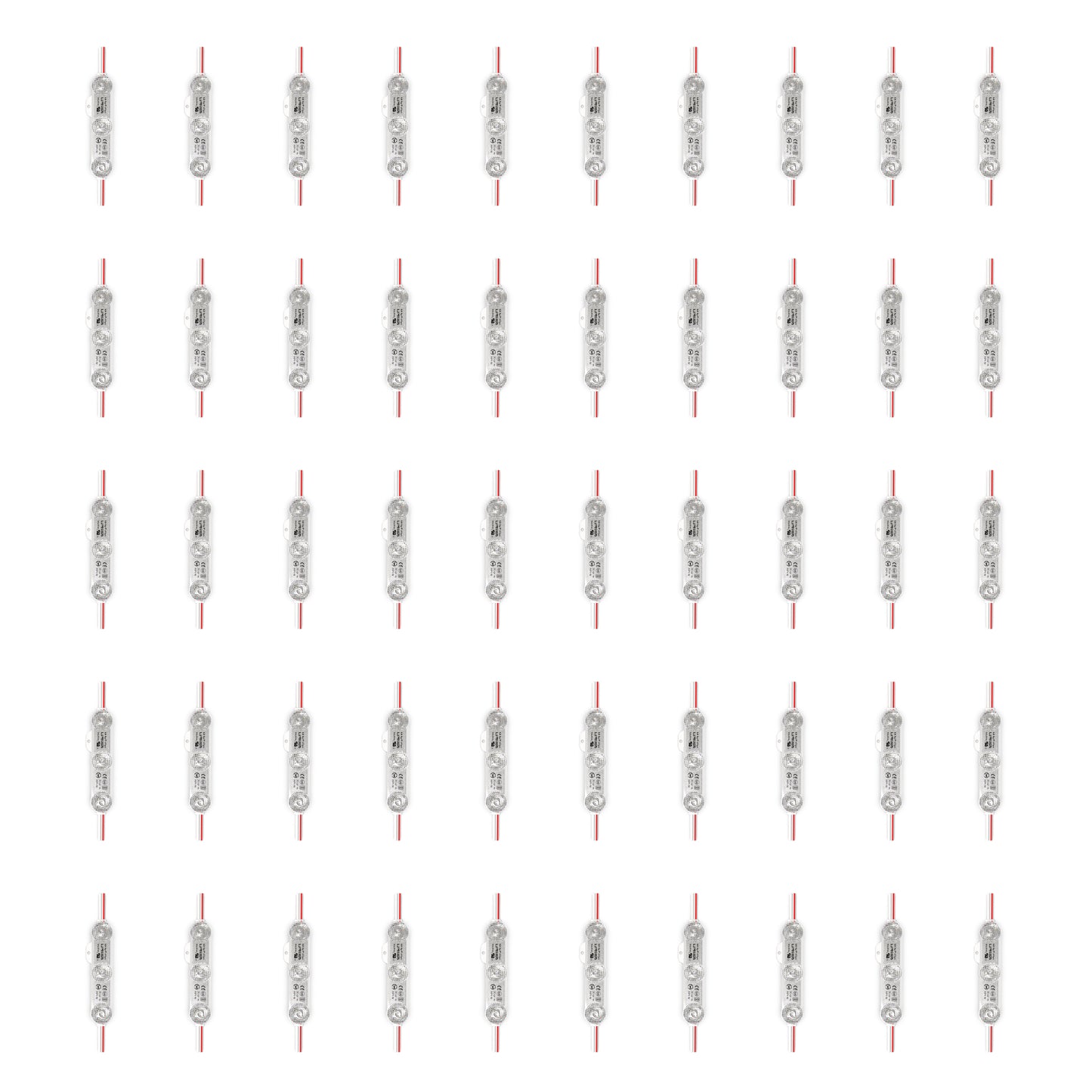

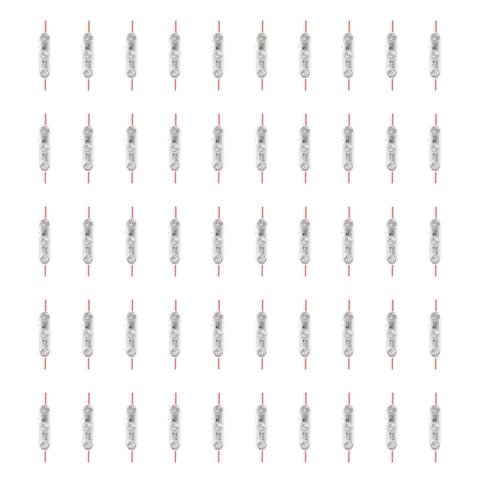

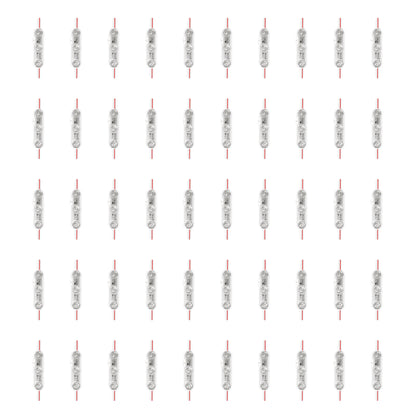

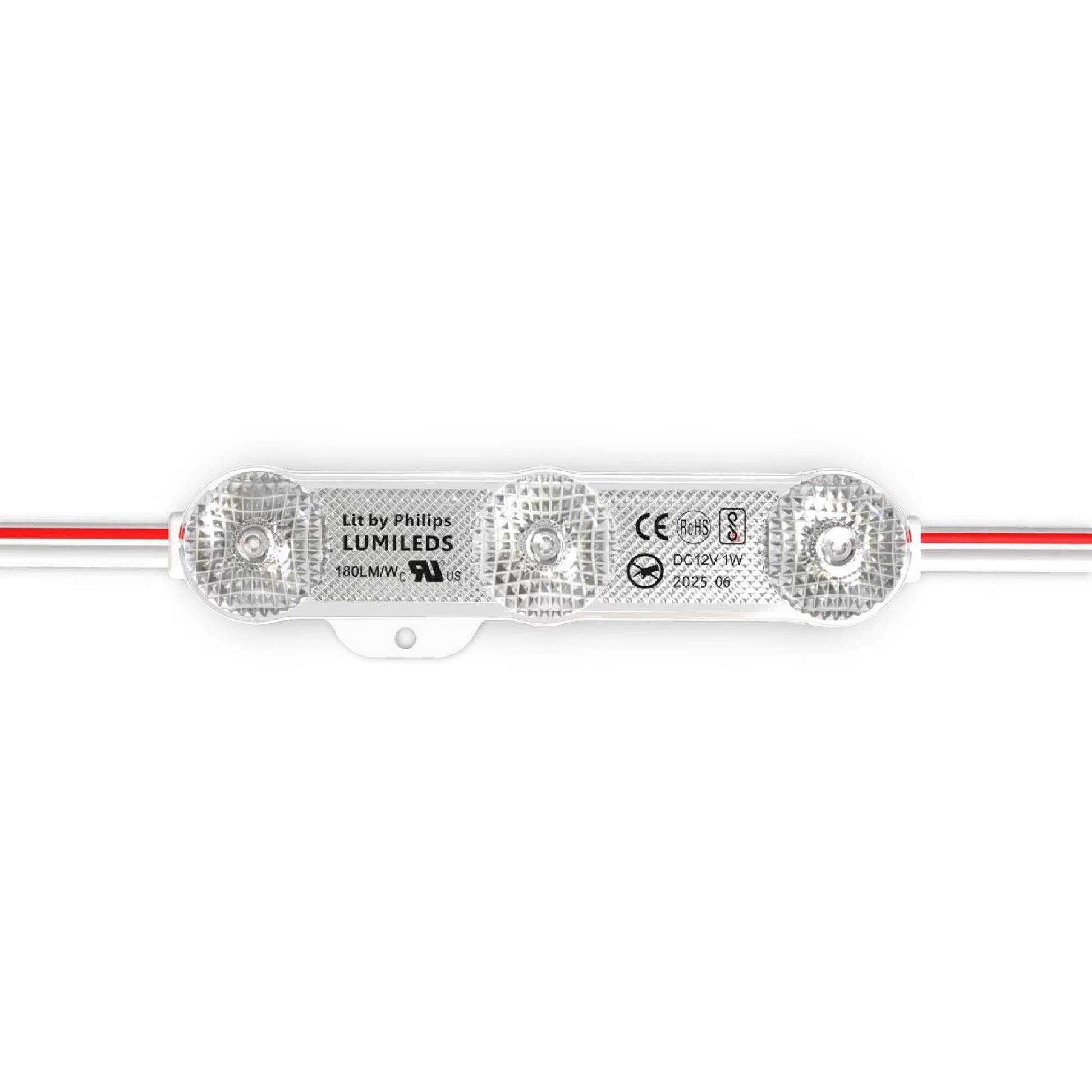

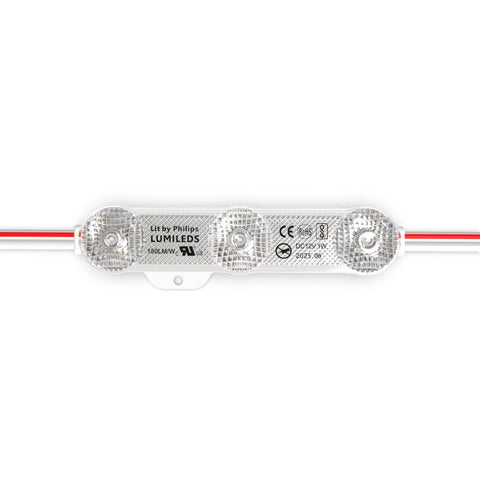

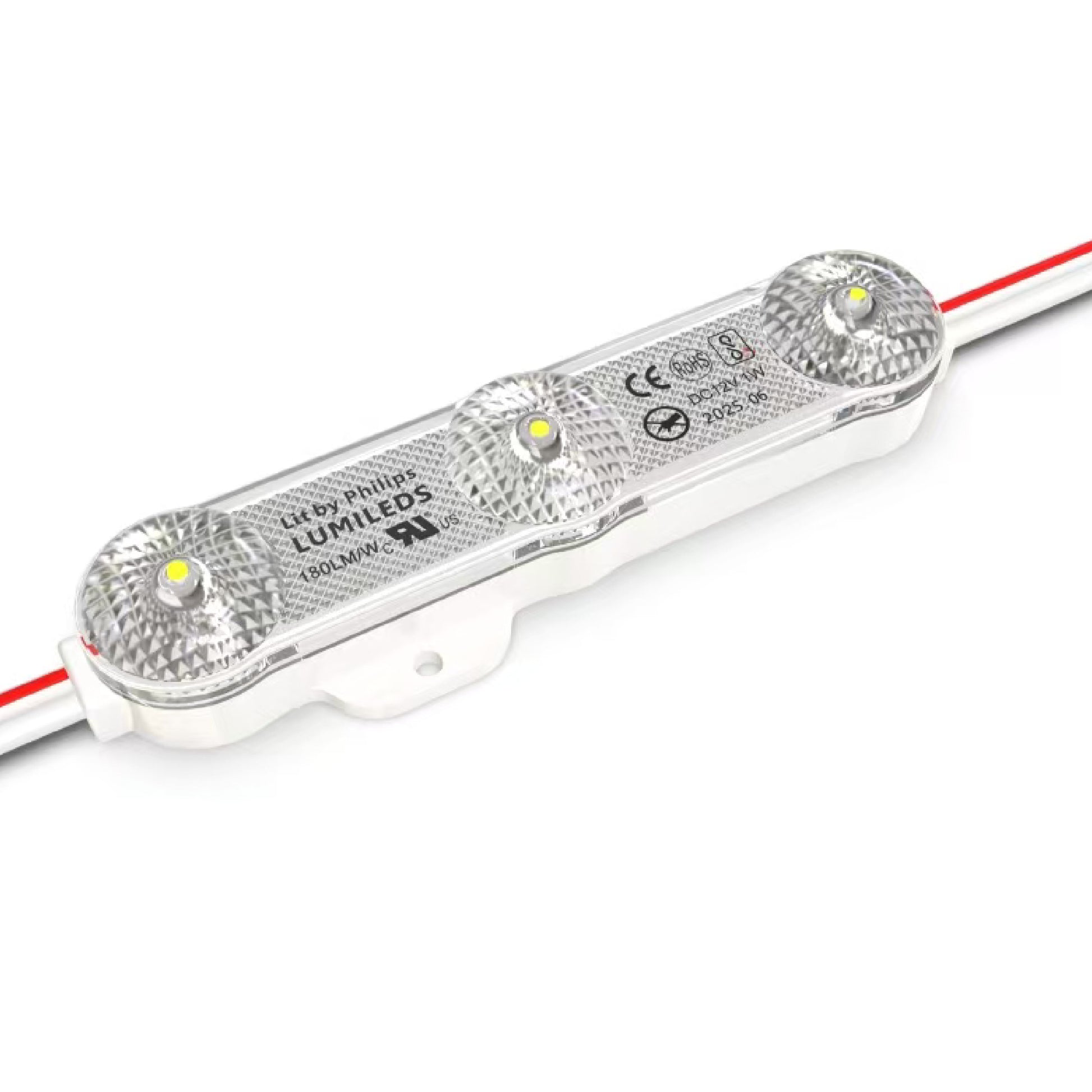

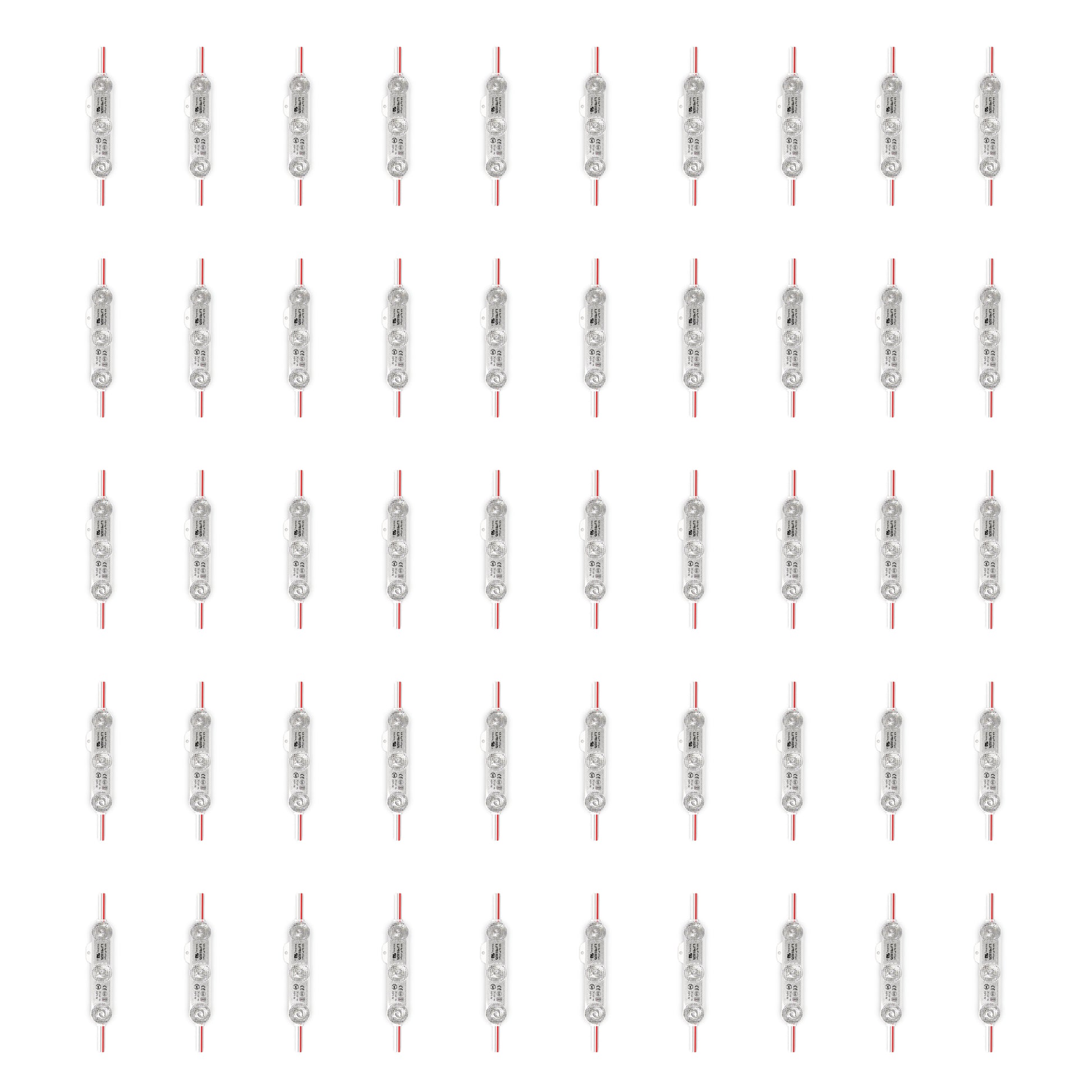

LINKLITE | LED Sign Module

1.2W per Module · 135 Lumens · 6500K · 12V DC · White Housing

Watt1.2W/ModuleLumens135LmCCT6500KCertificationUL ListedIP RatingIP68
MSRP: $37.50
PRICE PER BAG
$27.00
You save $10.50
Contractor, distributor, or reseller?Log in for trade pricing »
Min Order Qty: 1Pc
×

The product SKU is: 157225

✓ Free shipping on all Orders
✓ Ships from Stone Mountain, GA — most orders ship in 1 business day
✓ 30-day returns · 5-year warranty · UL Listed
Want to Buy in bulk ?

Contact us for volume pricing or become a trade partner.

Contact TeamBecome Partner
You May Also Like
AQUABRIGHT 2 | LED Tri-Proof Light
$74.95$89.95
ATLAS 3rd Gen | LED Flood Light
$59.95$79.95
BeamPro+ | LED Area Light
$394.95$469.95
Beyond Beam 2 | LED Linear High Bay
$99.95$129.95
Crisp 2 | LED Strip Fixture
$54.95$79.95Min 4
Zoho 6th Gen | LED Area Light
$184.95$259.95
BEYONDBEAM | LED UFO High Bay
$89.95$129.95
ELITE 3rd Gen | LED Cloud Panel
$114.95$144.95Min 2
View
FORTE | LED Wall Pack
$119.95$154.95

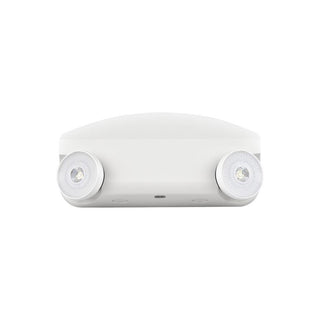

H1 | Dual Head LED Emergency Light
$24.95$34.95Min 2
PIXELFLOW | T Grid Linear Light
$39.95$59.95Min 8
SNAP BRIGHT 2nd Gen | LED Retrofit Downlight
$9.95$11.95Min 12
SUNGLOW | LED Cloud Panel With Built-in Downlight
$124.95$169.95Min 2

Product Description

Beyond LED Technology's LINKLITE 6500K is a daylight white LED sign module built for channel letters, light boxes, and commercial signage where natural, balanced white output is preferred over the ultra-cool intensity of 10000K. The 6500K color temperature renders whites cleanly and accurately — making it the more versatile specification for signage requiring true color representation alongside brightness, including illuminated retail signs, wayfinding displays, and branded commercial installations. The 175° micro-prism lens maintains uniform surface brightness across the full module run, and up to 50 modules link per string on stable 12V DC. IP68 protection covers all outdoor signage environments reliably.

Key Features

  • 1.2W per module
  • Fixed CCT: 6500K
  • 135 lumens per module
  • 3× LumiLEDs SMD 2835 per module
  • Micro-prism lens
  • 175° beam angle
  • Linkable up to 50 modules per string
  • ABS housing with copper wiring
  • White housing finish
  • Input voltage 12V DC
  • UL listed
  • IP68 rated



Applications

Channel Letter Lighting Light Box Illumination Branded Retail Signage Commercial Wayfinding Signs Outdoor Advertisement Boards Display & Interior Signage

Specifications

SKU 157225
Wattage 1.2W/Module
CCT 6500K
Lumens 135Lm
Input Voltage 12V DC
Construction ABS + Copper Wiring Housing
PCS/BOX 50 PCS/BOX
IP Rating IP68
Certification UL Listed
Warranty 5 Years

Technical Resources

Spec Sheet PDF
Install Manual PDF
IES File IES

Need help?

Talk to a lighting specialist about project pricing, photometrics, or custom requirements.

866-786-1117
sales@beyondledtechnology.com
— FAQ —

Frequently Asked Questions

Everything you need to know before specifying LINKLITE | LED Sign Module into a lighting project.

When should I choose 6500K over the 10000K LINKLITE variant?+
Choose 6500K when accurate color rendering alongside brightness is the priority. It's the more balanced, versatile daylight white for branded retail signs, logo illumination, and displays where true color quality matters as much as intensity.
How does 6500K affect illuminated channel letters?+
It produces a clean, natural daylight white that renders letter colors and graphics accurately without the blue tinged intensity of ultra cool whites. It's the standard specification for signage where color fidelity is part of the brand requirement.
Does the micro prism lens work the same way on this variant?+
Yes, the 175° micro prism lens eliminates hotspots and distributes light uniformly across all LINKLITE variants regardless of CCT. The lens design doesn't change between white output models.
Is the 6500K LINKLITE suitable for indoor retail signage?+
Yes, it works well for both indoor and outdoor signage. For retail displays and branded signage where natural daylight color quality is preferred over ultra cool output, 6500K is typically the better specification.
How many modules can be linked per string?+
Up to 50 modules per string on stable 12V DC, sufficient for most standard channel letter and light box configurations without voltage drop concerns.
How quickly does it ship and is trade pricing available?+
Most orders ship within one business day from Beyond LED Technology's Stone Mountain, Georgia warehouse. Approved trade partners through the Beyond LED Trade Partner Program receive factory direct trade pricing and dedicated account support.
