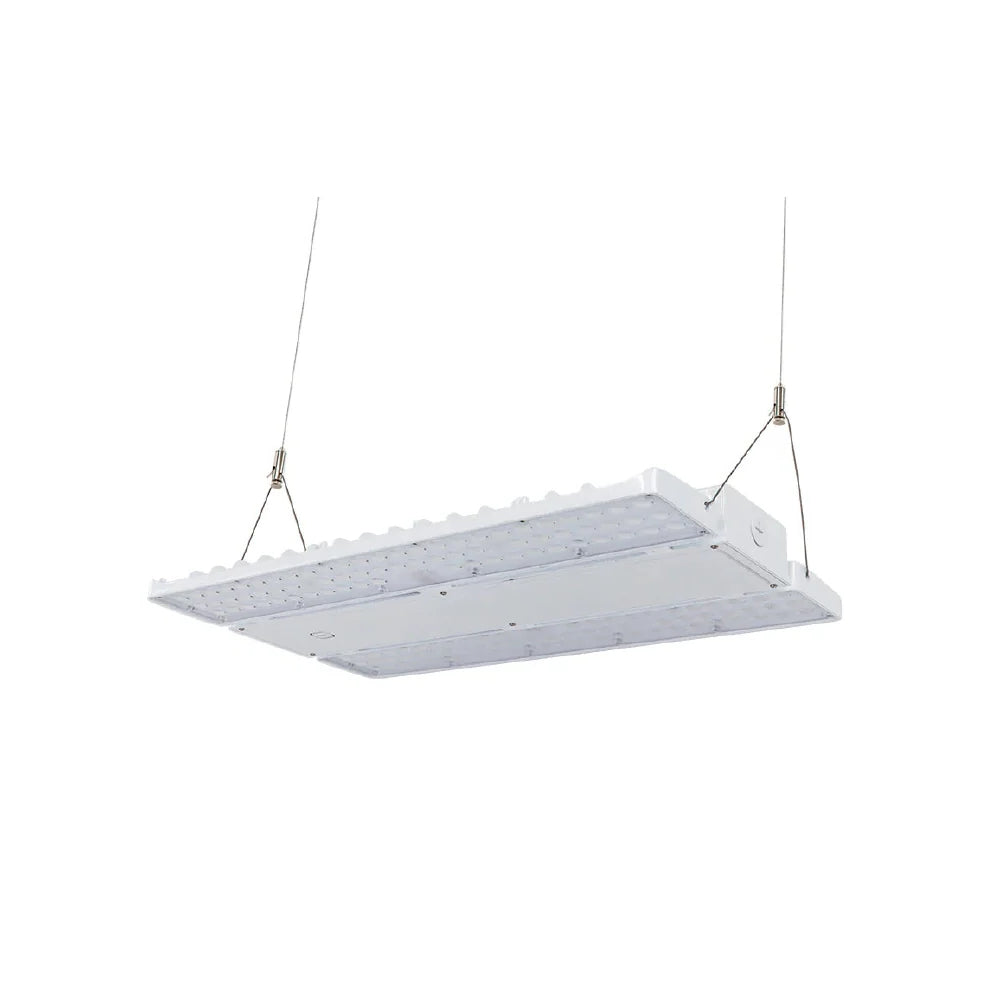

LOYA 2nd Gen | LED Linear High Bay
LOYA 2ND GEN | LED Linear High Bay | Adj Watt 240W-270W-310W | 36240-46810 Lumens | Adj CCT 4000K-5000K | 120-277Vac | Built-In 40W Emergency Battery Backup | White Housing | UL & DLC Listed
LOYA 2ND GEN | LED Linear High Bay | Adj Watt 240W-270W-310W | 36240-46810 Lumens | Adj CCT 4000K-5000K | 120-277Vac | Built-In 40W Emergency Battery Backup | White Housing | UL & DLC Listed
LOYA 2ND GEN | LED Linear High Bay | Adj Watt 240W-270W-310W | 36240-46810 Lumens | Adj CCT 4000K-5000K | 120-277Vac | Built-In 40W Emergency Battery Backup | White Housing | UL & DLC Listed
LOYA 2nd Gen | LED Linear High Bay

LOYA 2nd Gen | LED Linear High Bay

Adj Watt 240W/270W/310W · 46,810 Lumens · Adj CCT 4K/5K · White Housing · 1.70ft

Watt: 240W/270W/310W Lumens: 46810Lm CCT: 4000K/5000K Rating: UL & DLC Listed
★★★★★ 4.8 · 42 reviews
MSRP: $299.95
$259.95
You save $40.00
Contractor, distributor, or reseller? Log in for trade pricing »
Min order: 1 per box
×

The product SKU is: 156747

✓ Free shipping on all Orders
✓ Ships from Stone Mountain, GA — most orders ship in 1 business day
✓ 30-day returns · 5-year warranty · UL & DLC Listed
Want to Buy in bulk ?

Contact us for volume pricing or become a trade partner.

Contact Team Become Partner

Product Description

Beyond LED Technology's LOYA 2nd Gen is a high-output LED linear high bay with a built-in 40W emergency battery backup — eliminating the need for separate emergency fixtures in warehouses, gyms, storage facilities, and industrial spaces where egress lighting compliance is required. When power fails, the backup activates automatically and sustains illumination until power is restored, keeping exits and high-traffic areas safely lit. During normal operation, adjustable wattage across 240W to 310W and selectable CCT deliver up to 46,810 lumens with 150 lm/W efficiency. The optional screw-in motion sensor, 0–10V dimming, and built-in 10KV surge protection round out a fixture engineered for demanding commercial and industrial environments.

Key Features

  • Up to 150 lm/W efficacy
  • Adjustable wattage — field selectable
  • Adjustable CCT — field selectable
  • Built-in 40W emergency battery backup
  • 0–10V dimmable
  • 110° beam angle
  • Optional screw-in motion sensor
  • Built-in 10KV surge protection
  • Standard chain mount included
  • White housing finish
  • Input voltage 120–277VAC
  • UL & DLC listed

Applications

Distribution Centers Sports Centers Storage Facilities Manufacturing Plants Emergency Exits Commercial Interiors

Specifications

SKU 156747
Wattage 240W/270W/310W
CCT 4000K/5000K
Lumens 46810Lm
Input Voltage 120-277Vac
Surge Protection 10KV
Dimming 0–10V
Certification UL & DLC Listed
Warranty 5 Years

Downloads

Spec Sheet PDF
LM80 Report PDF
LM79 Report PDF
IES File IES

Need help?

Talk to a lighting specialist about project pricing, photometrics, or custom requirements.

866-786-1117
sales@beyondledtechnology.com
— FAQ —

Frequently Asked Questions

Everything you need to know before specifying LOYA 2nd Gen | LED Linear High Bay into a lighting project.

What does the built-in emergency battery backup mean for my installation? +
When power fails, the 40W backup activates automatically and sustains illumination without interruption — meeting egress lighting requirements without installing separate emergency fixtures. It simplifies code compliance and reduces overall installation cost.
Does the LOYA 2nd Gen qualify for utility rebates? +
Yes. UL and DLC listing qualifies it for most US utility rebate programs. Beyond LED Technology provides free photometric layout support within 24 hours for approved trade partners, helping streamline documentation on larger installations.
Can I add motion sensing to the LOYA 2nd Gen? +
Yes. An optional screw-in motion sensor integrates directly without rewiring. Combined with 0–10V dimming, it enables occupancy-based energy reduction in partially used warehouse or storage areas.
What makes the LOYA 2nd Gen suitable for gyms and sports facilities? +
The 110° beam angle, high lumen output, and adjustable CCT deliver broad, even coverage across large open floor areas — and the built-in emergency backup ensures the space remains safely lit during power interruptions, which is critical in occupied facilities.
How does the 10KV surge protection benefit industrial installations? +
Industrial environments often experience power fluctuations that can damage fixture drivers over time. The built-in 10KV surge protector absorbs electrical spikes before they reach the driver, extending fixture lifespan in unstable power conditions.
How quickly does the LOYA 2nd Gen ship and is trade pricing available? +
Most orders ship within one business day from Beyond LED Technology's Stone Mountain, Georgia warehouse. It ships in packs of 2, and approved trade partners through the Beyond LED Trade Partner Program receive factory-direct trade pricing and dedicated account support.
