Home > Products >LOYA 2nd Gen | LED Linear High Bay

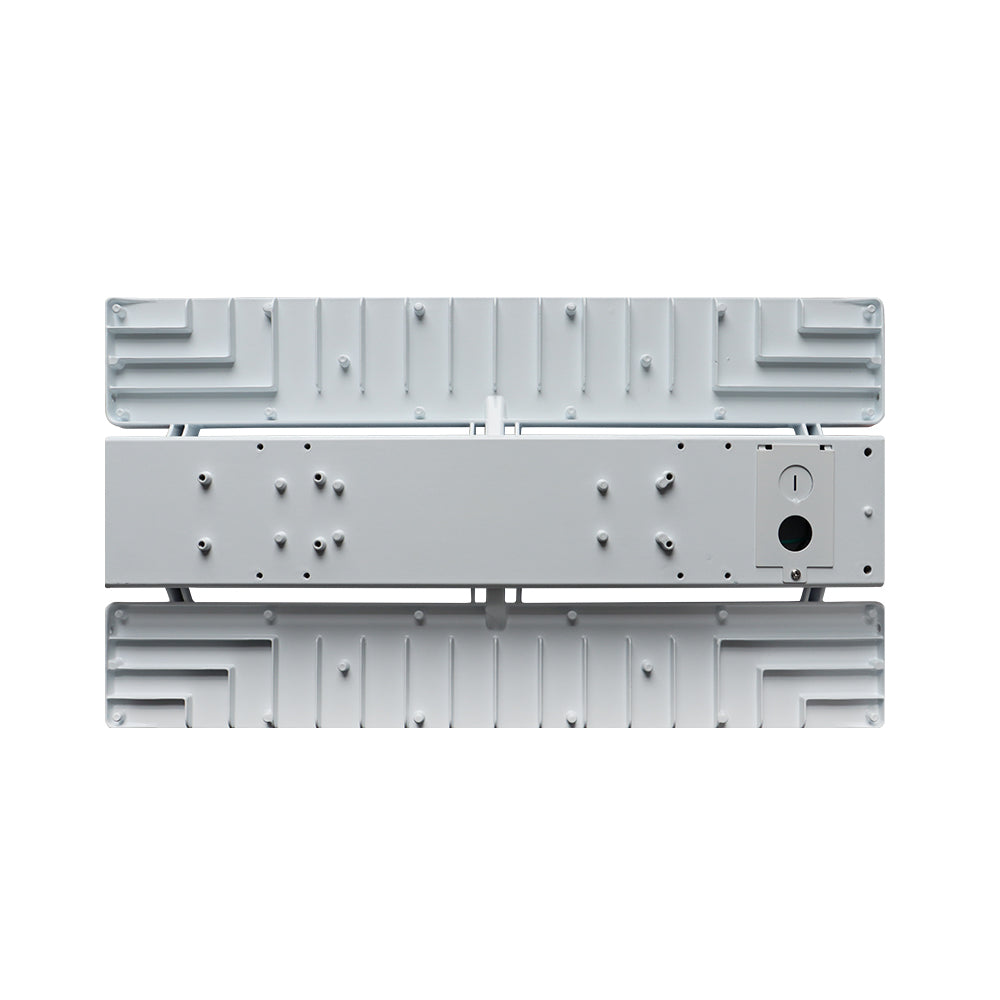

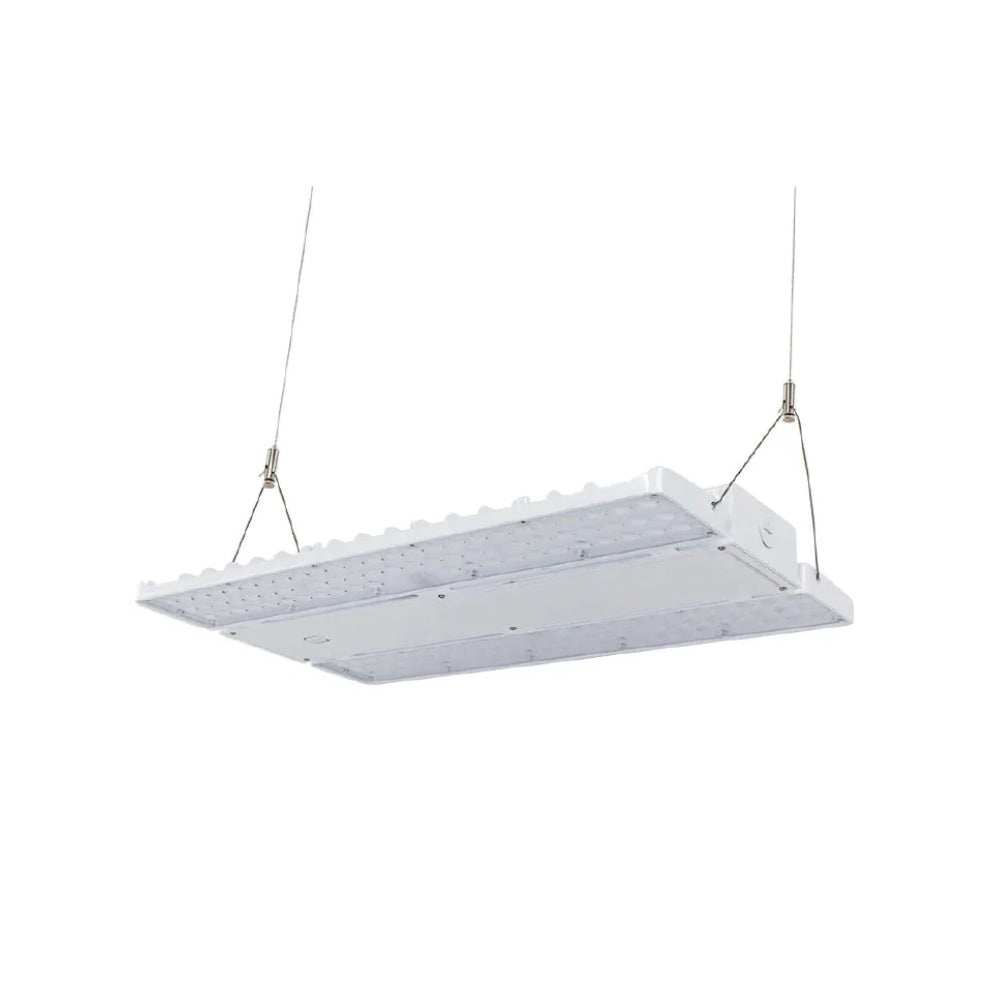

LOYA 2nd Gen | LED Linear High Bay
LOYA 2ND GEN | LED Linear High Bay | Adj Watt 240W-270W-310W | 36240-46810 Lumens | Adj CCT 4000K-5000K | 120-277Vac | Built-In 40W Emergency Battery Backup | White Housing | UL & DLC Listed
LOYA 2ND GEN | LED Linear High Bay | Adj Watt 240W-270W-310W | 36240-46810 Lumens | Adj CCT 4000K-5000K | 120-277Vac | Built-In 40W Emergency Battery Backup | White Housing | UL & DLC Listed
LOYA 2ND GEN | LED Linear High Bay | Adj Watt 240W-270W-310W | 36240-46810 Lumens | Adj CCT 4000K-5000K | 120-277Vac | Built-In 40W Emergency Battery Backup | White Housing | UL & DLC Listed
LOYA 2nd Gen | LED Linear High Bay

LOYA 2nd Gen | LED Linear High Bay

Adj Watt 240W/270W/310W · 46,810 Lumens · Adj CCT 4K/5K · White Housing · 1.70ft

Watt: 240W/270W/310W Lumens: 46810Lm CCT: 4000K/5000K Rating: UL & DLC Listed
★★★★★ 4.8 · 42 reviews
MSRP: $189.95
$149.95
You save $40.00
Contractor, distributor, or reseller? Log in for trade pricing »
Min order: 2 per box
×

The product SKU is: 156748

✓ Free shipping on all Orders
✓ Ships from Stone Mountain, GA — most orders ship in 1 business day
✓ 30-day returns · 5-year warranty · UL & DLC Listed
Want to Buy in bulk ?

Contact us for volume pricing or become a trade partner.

Contact Team Become Partner

Product Description

Beyond LED Technology's LOYA 2nd Gen 277–480V is the high-voltage variant of the LOYA linear high bay series, engineered specifically for large industrial facilities, warehouses, and commercial spaces running on 277–480VAC electrical infrastructure. Where the standard 120–277V version requires step-down transformers on high-voltage supply, this variant connects directly — simplifying installation and eliminating additional hardware costs on industrial sites. Delivering 46,810 lumens at up to 150 lm/W across three selectable wattages, it brings serious, energy-efficient output to demanding high-ceiling environments. The optional screw-in motion sensor, 0–10V dimming, and built-in 10KV surge protection make it a complete, low-maintenance solution for high-voltage commercial and industrial applications.

Key Features

  • Up to 150 lm/W efficacy
  • Adjustable wattage — field selectable
  • Adjustable CCT — field selectable
  • Optional screw-in motion sensor
  • 0–10V dimmable
  • 110° beam angle
  • Built-in 10KV surge protection
  • Standard chain mount included
  • White housing finish
  • Input voltage 277–480VAC
  • UL & DLC listed
  • 2 PCS/Box

Applications

Industrial Facilities Warehouses Manufacturing Plants Sports Facilities Fulfillment Centers Commercial Interiors

Specifications

SKU 156748
Wattage 240W/270W/310W
CCT 4000K/5000K
Lumens 46810Lm
Input Voltage 277-480Vac
Surge Protection 10KV
Dimming 0–10V
Certification UL & DLC Listed
Warranty 5 Years

Downloads

Spec Sheet PDF
LM80 Report PDF
LM79 Report PDF
IES File IES

Need help?

Talk to a lighting specialist about project pricing, photometrics, or custom requirements.

866-786-1117
sales@beyondledtechnology.com
— FAQ —

Frequently Asked Questions

Everything you need to know before specifying LOYA 2nd Gen | LED Linear High Bay into a lighting project.

What makes the 277–480V LOYA different from the standard version? +
This variant is built specifically for high-voltage electrical infrastructure — connecting directly to 277–480VAC supply without step-down transformers. It's the right specification for large industrial facilities and warehouses already running high-voltage systems.
Does the 277–480V LOYA qualify for utility rebates? +
Yes. UL and DLC listing qualifies it for most US utility rebate programs. Beyond LED Technology provides free photometric layout support within 24 hours for approved trade partners on qualifying industrial and commercial projects.
Can I add motion sensing to this high-voltage variant? +
Yes. The optional screw-in motion sensor integrates directly without rewiring, enabling occupancy-based energy reduction in large warehouse and industrial spaces regardless of input voltage.
What wattage setting is right for my ceiling height? +
Generally, higher ceilings need higher wattage for adequate foot-candle levels at floor level. Beyond LED Technology provides free photometric layout support within 24 hours for approved trade partners — the most reliable way to specify the right wattage for your ceiling height and spacing.
How does the 10KV surge protection benefit high-voltage industrial installations? +
High-voltage industrial environments are particularly susceptible to electrical spikes. The built-in 10KV surge protector absorbs transient voltage before it reaches the driver, protecting the fixture in demanding power environments.
How quickly does this ship and is trade pricing available? +
Most orders ship within one business day from Beyond LED Technology's Stone Mountain, Georgia warehouse. It ships in packs of 2, and approved trade partners through the Beyond LED Trade Partner Program receive factory-direct trade pricing and dedicated account support.
