M45 | Square Steel Pole | 4"X4" | 20ft | Bronze Housing | W/Base plate & J Bolt | 11 Guage | ETL Listed

M45 | Square Steel Pole | 4"X4" | 20ft | Bronze Housing | W/Base plate & J Bolt | 11 Guage | ETL Listed - Beyond LED Technology

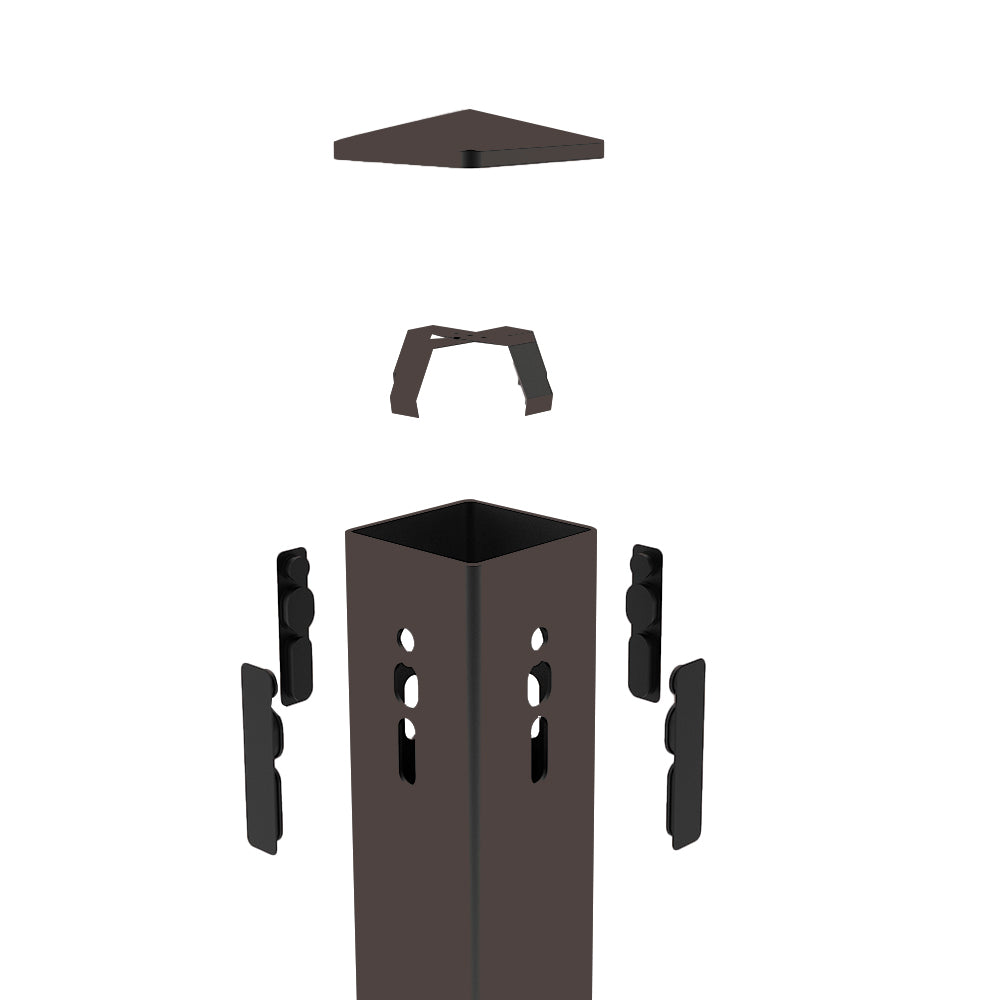

  • Pole Top Options: A removable plastic top cap is provided if the pole is drilled for attaching light fixtures. The drill pattern & drill orientation need to be provided by the customer unless Energy Light fixtures are used for the project. A 2 3/8 inch diameter tenon with a 4 inch length is most common; however, the customer needs to confirm the appropriate tenon size required by the project.

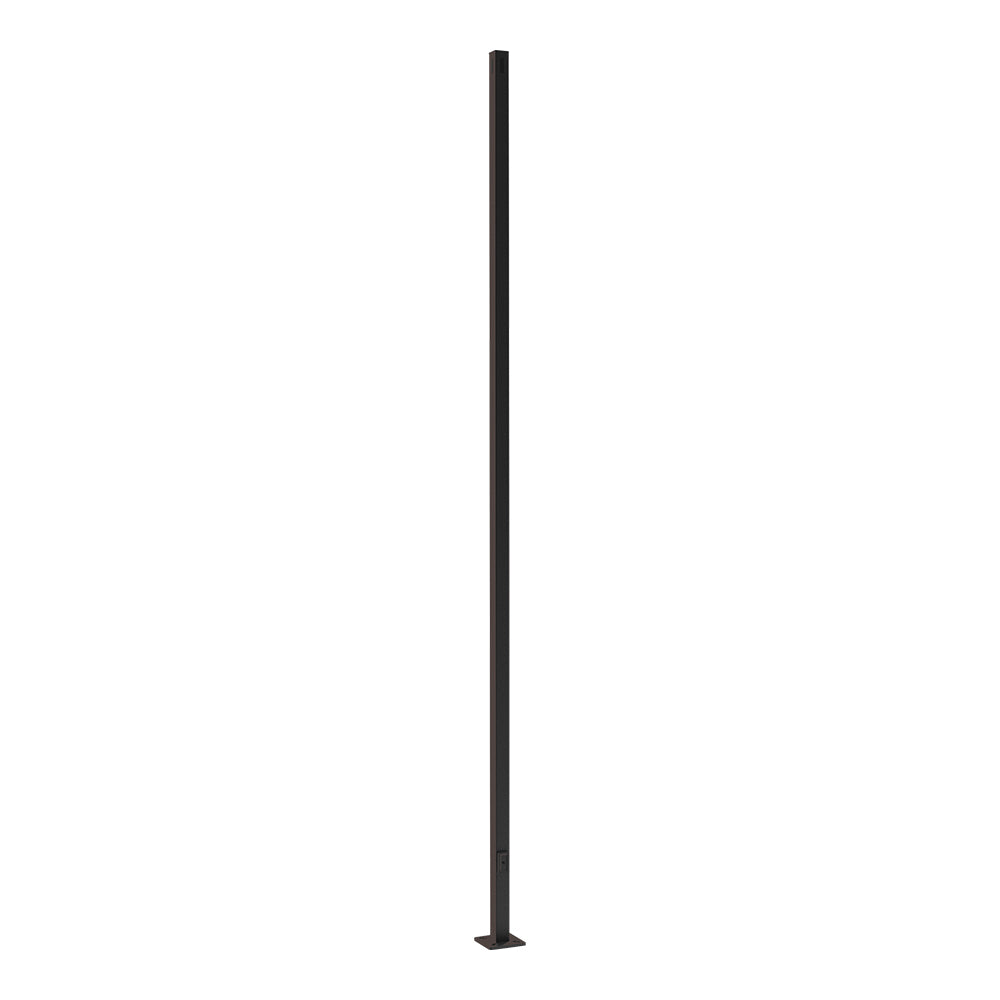

  • Pole Shaft: Hot rolled, commercial quality, welded steel tubing of 1 piece construction with a min yield strength of 55,000 psi is used to fabricate the pole shaft.

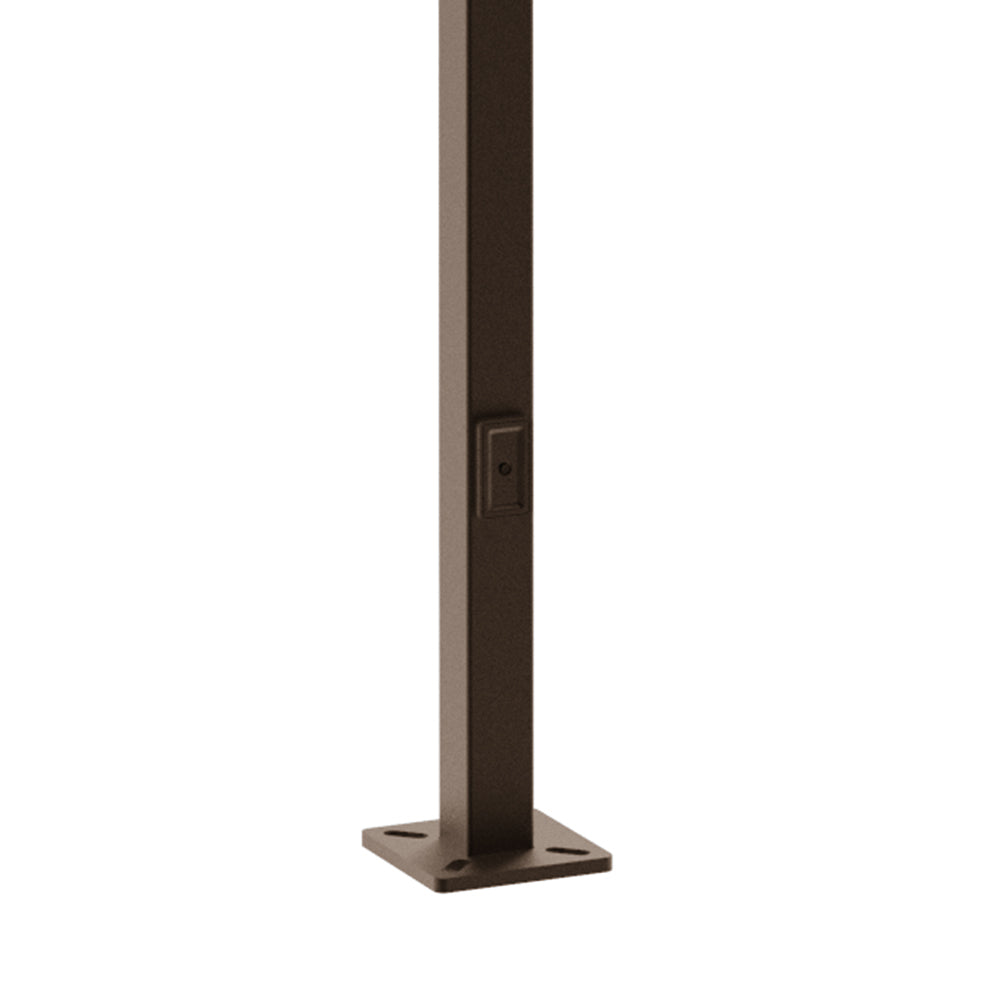

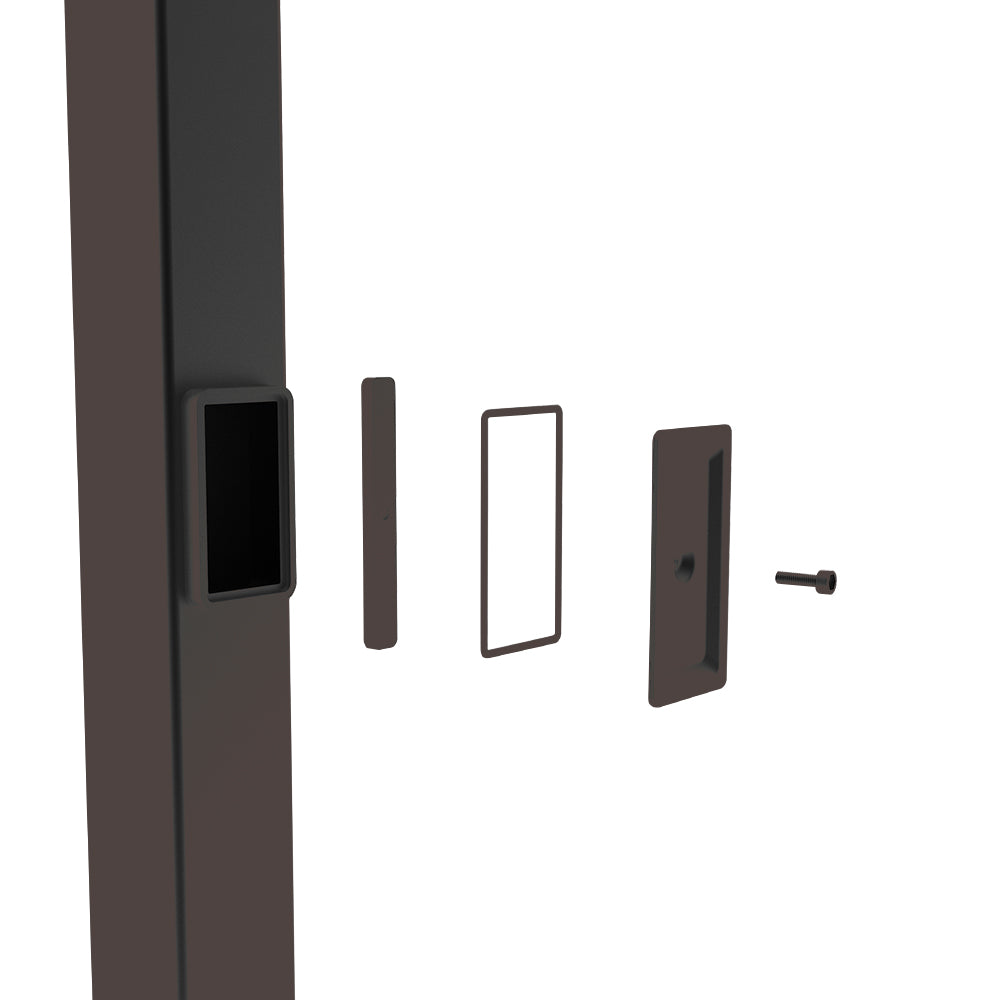

  • Handhole: A 2 1/2 inch wide x 5 inch tall reinforced handhole is provided at 18 inches from the base plate. A cover with a single screw to secure the latch mechanism is also provided.
  • Base Cover: A 2 piece ABS plastic base cover is provided. Plastic rivets are included to securely attach the 2 pieces together after pole installation.

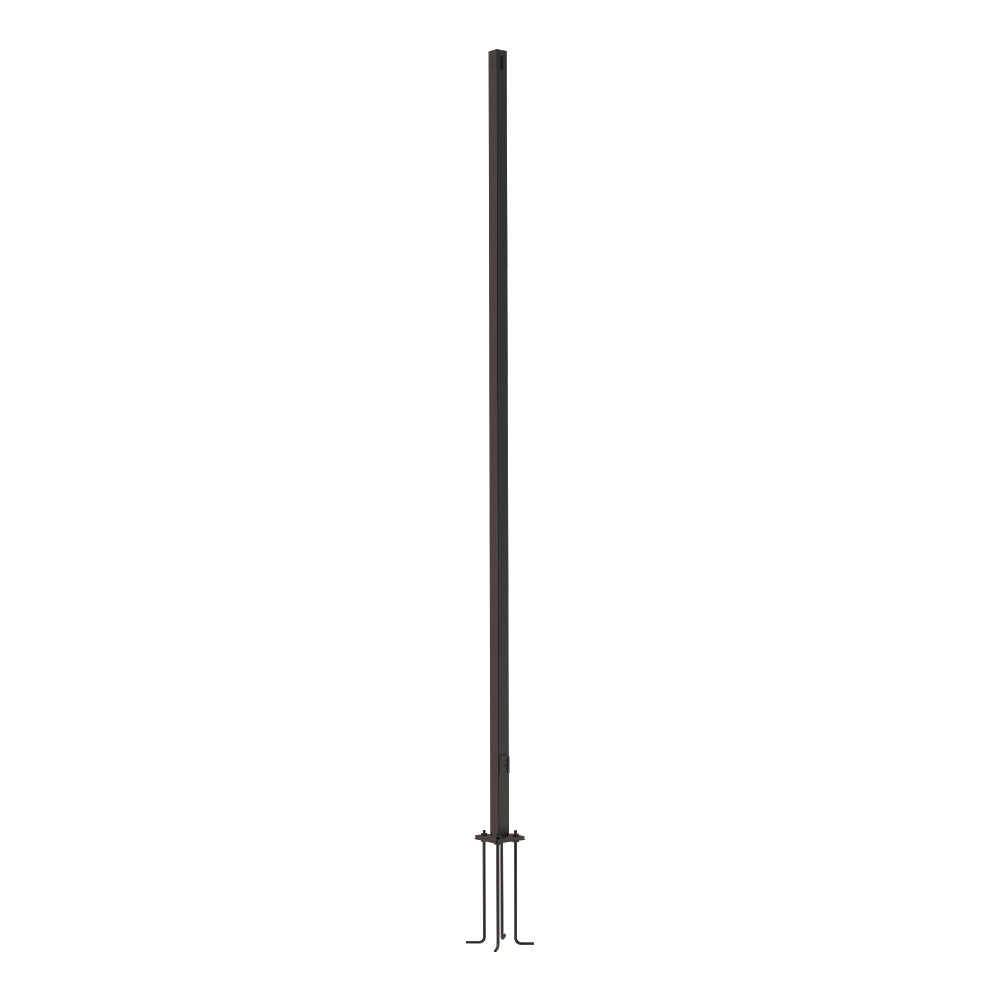

  • Anchor Bolts: A set of 4 steel anchor bolts are provided with each pole assembly. Each bolt includes 2 nuts and 2 washers. A portion of the anchor bolt is threaded for securing & leveling the pole with the provided nuts and washers. An actual size paperanchor bolt template is provided.
SKU BASE MODEL NOMINAL MOUNTING HEIGHT Certification PCS/
BOX
Minimum QTY
To BUY
PRICE PER PIECE Contact Us
155642 Square Pole 4 x 4 20FT 20FT ETL Listed 1 PC/BOX 1 login to see prices

For Quick Assistance



The pole top options include a versatile removable plastic top cap designed for poles intended for attaching light fixtures. This feature allows for easy customization and adaptability to various lighting needs. However, it's essential to note that the customer is responsible for providing the specific drill pattern and orientation unless Energy Light fixtures are utilized for the project, which may have predefined specifications.

Typically, a 2 3/8-inch diameter tenon with a length of 4 inches is the standard configuration. Nonetheless, it's crucial for the customer to confirm the appropriate tenon size required for their specific project. This ensures optimal compatibility and functionality with the chosen lighting fixtures and mounting arrangements.
