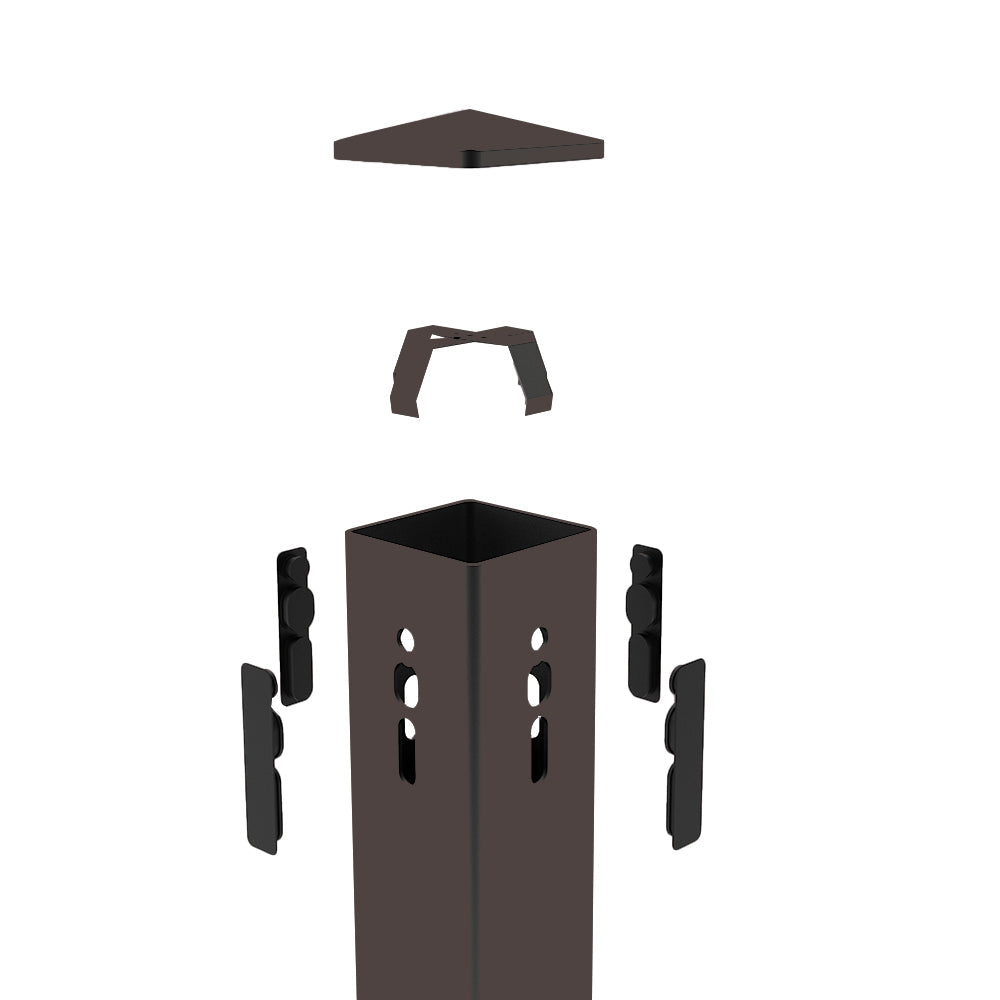

Pole Top Options: A removable plastic top cap is provided if the pole is drilled for attaching light ﬁxtures. The drill pattern and drill orientation need to be provided by the customer unless Energy Light ﬁxtures are used for the project. A 2 3/8 inch diameter tenon with a 4 inch length is most common; however, the customer needs to conﬁrm the appropriate tenon size required by the project.

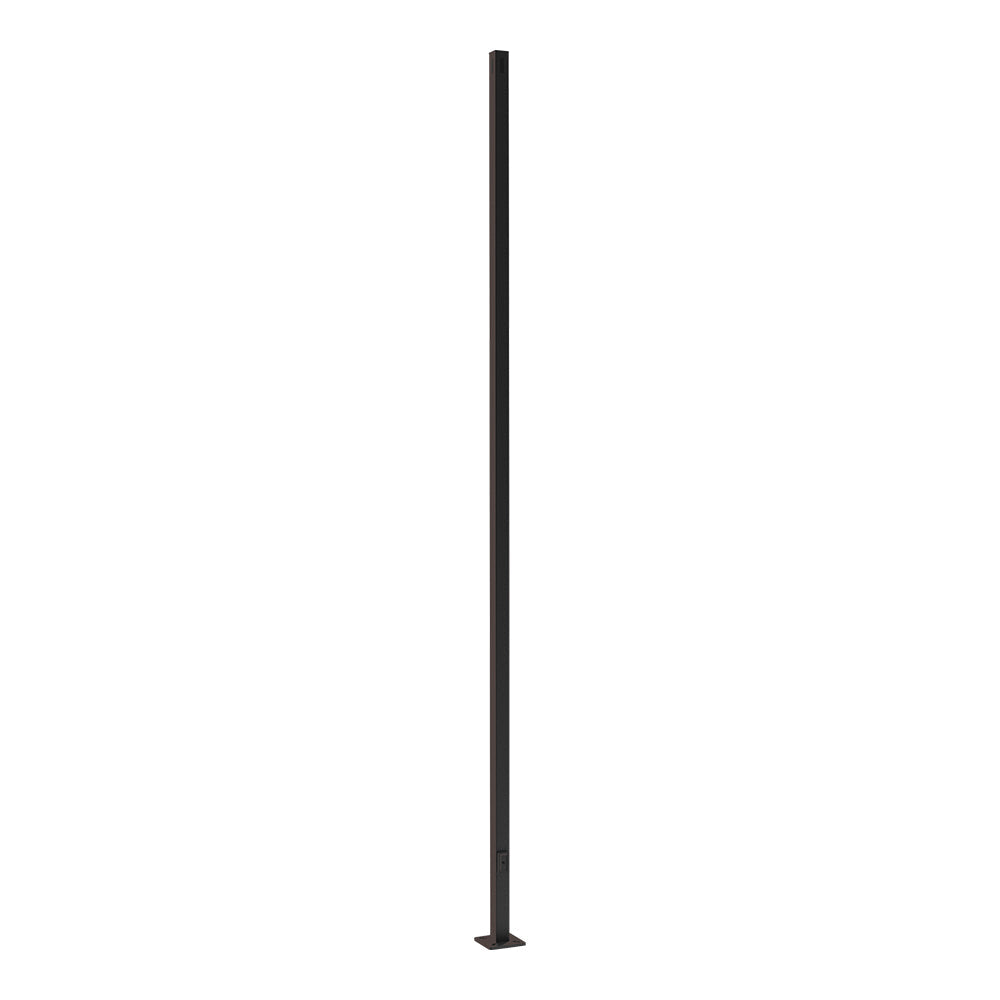

Pole Shaft: Hot rolled, commercial quality, welded steel tubing of 1 piece construction with a minimum yield strength of 55,000 psi is used to fabricate the pole shaft.

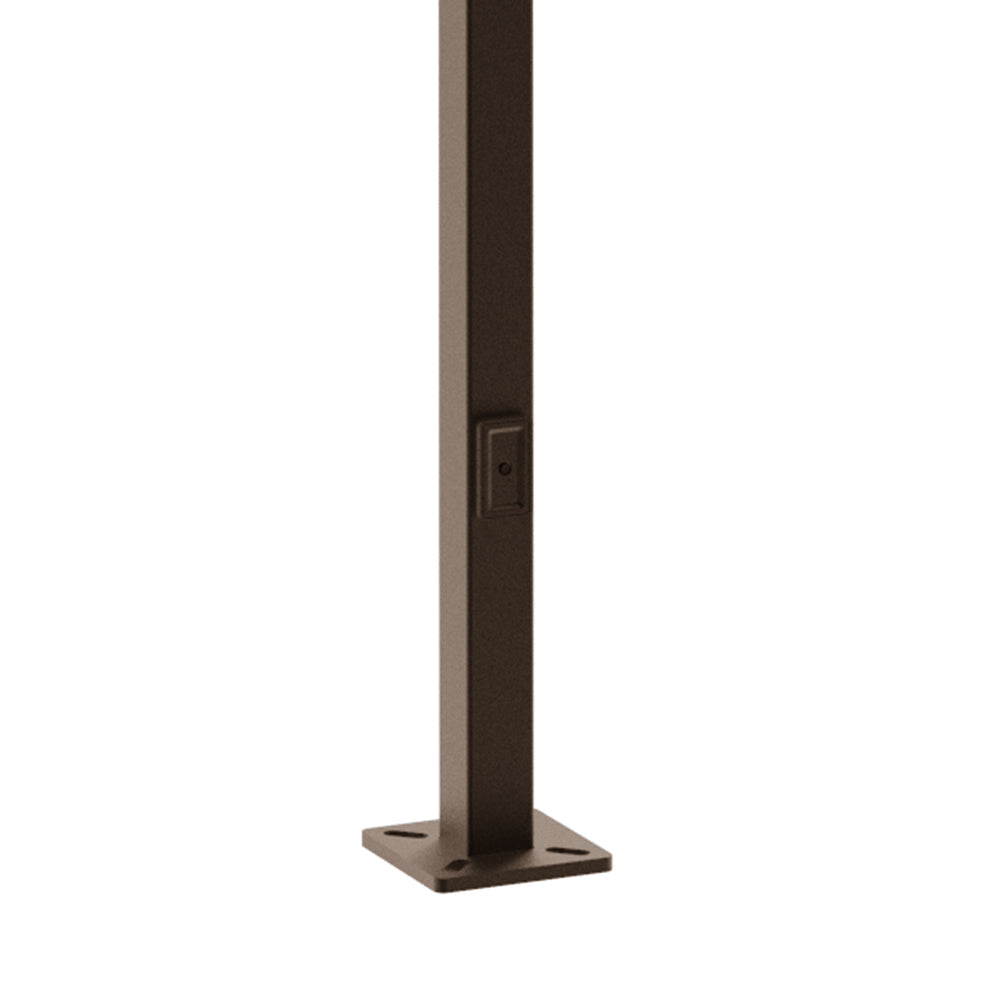

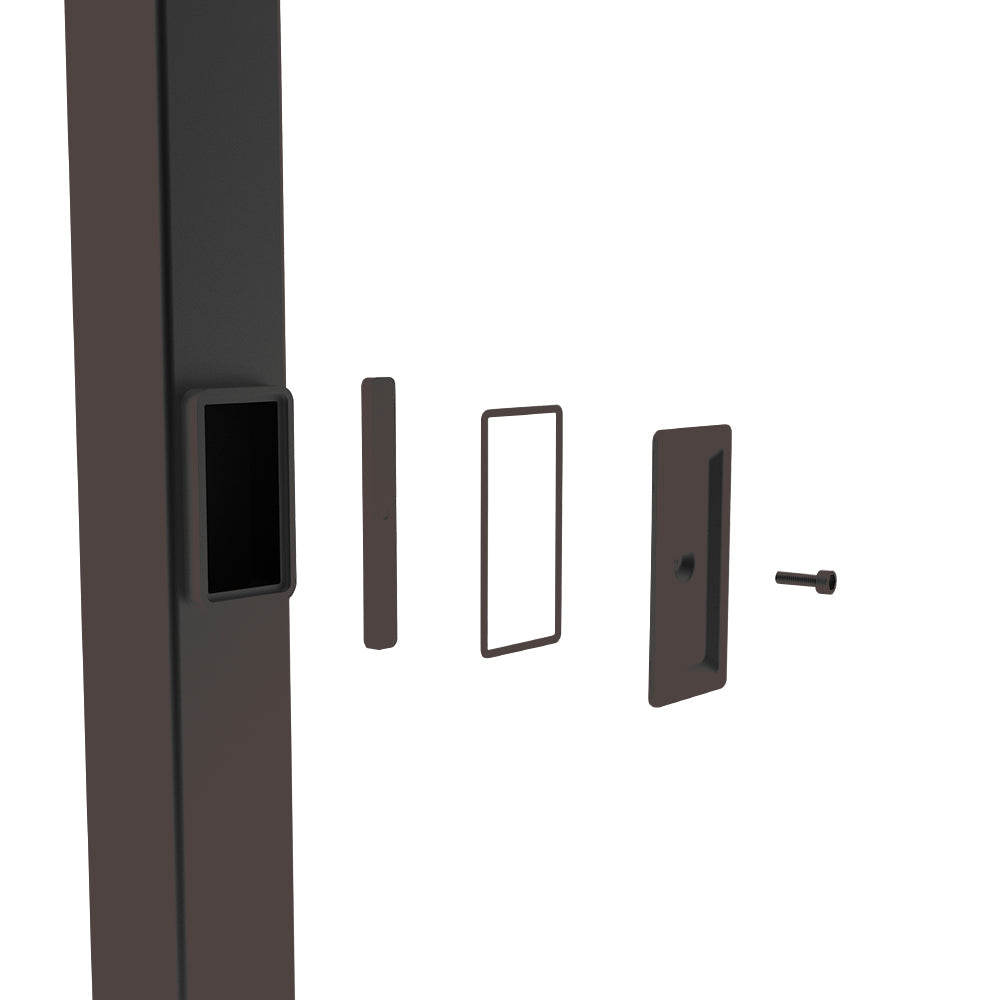

Hand hole: A 2 1/2 inch wide x 5 inch tall reinforced hand hole is provided at 18 inches from the base plate. A cover with a single screw to secure the latch mechanism is also provided.

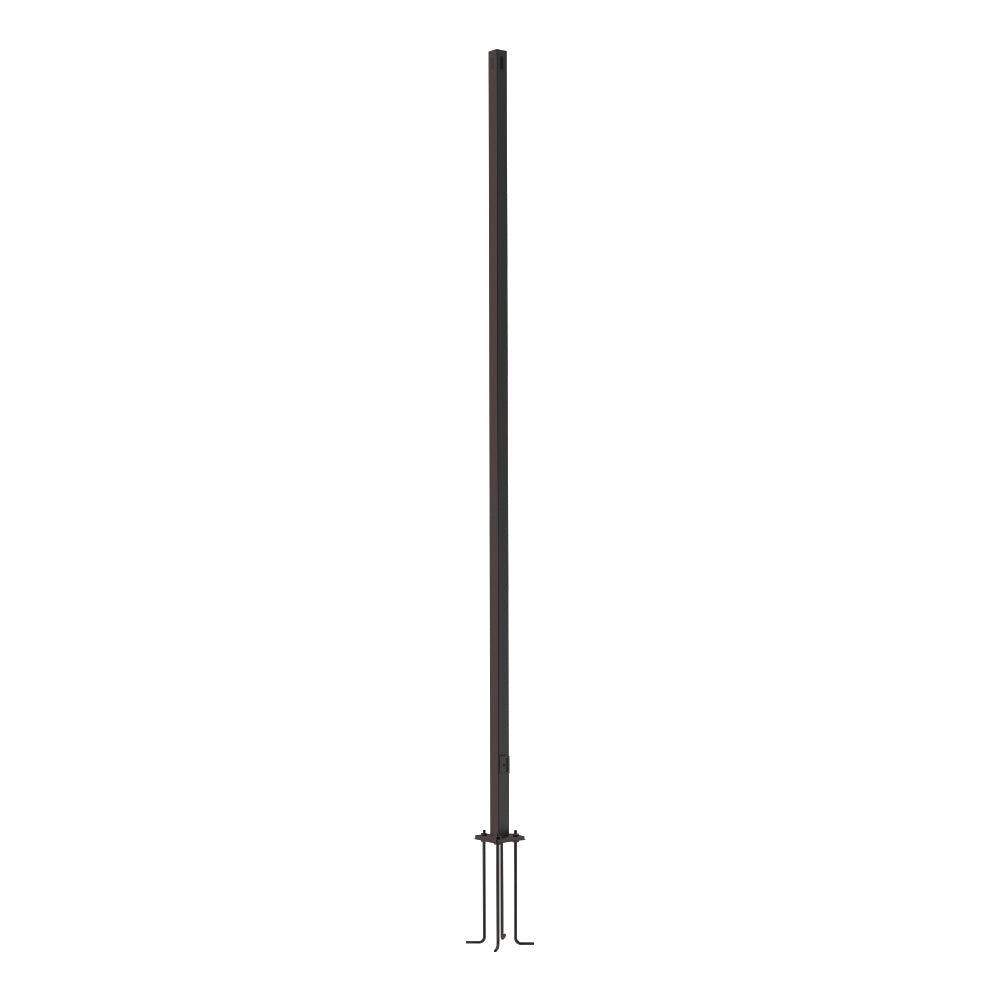

Anchor Bolts: A set of 4 steel anchor bolts are provided with each pole assembly. Each bolt includes 2 nuts and 2 washers. A portion of the anchor bolt is threaded for securing and leveling the pole with the provided nuts and washers. An actual size paper anchor bolt template is provided.
