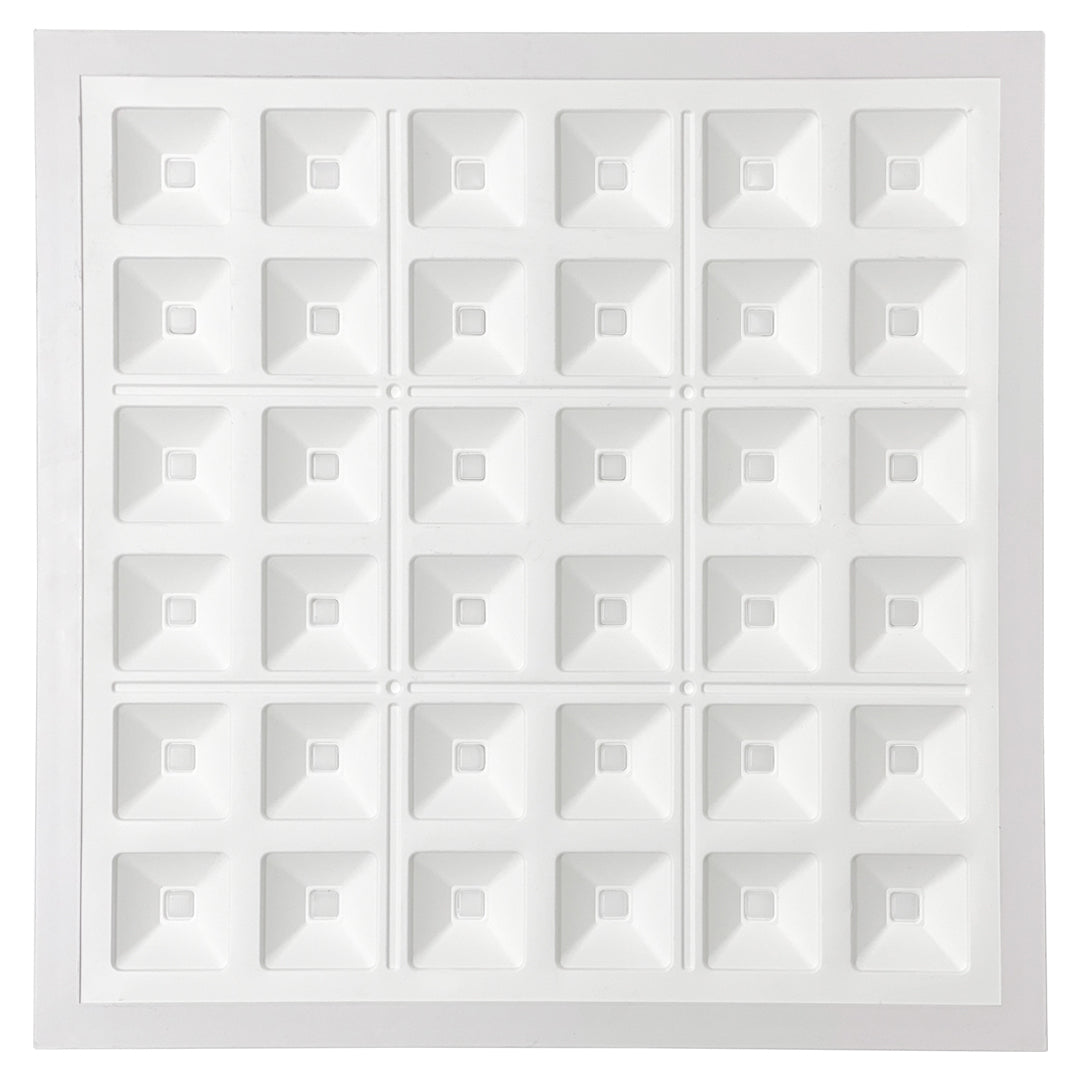

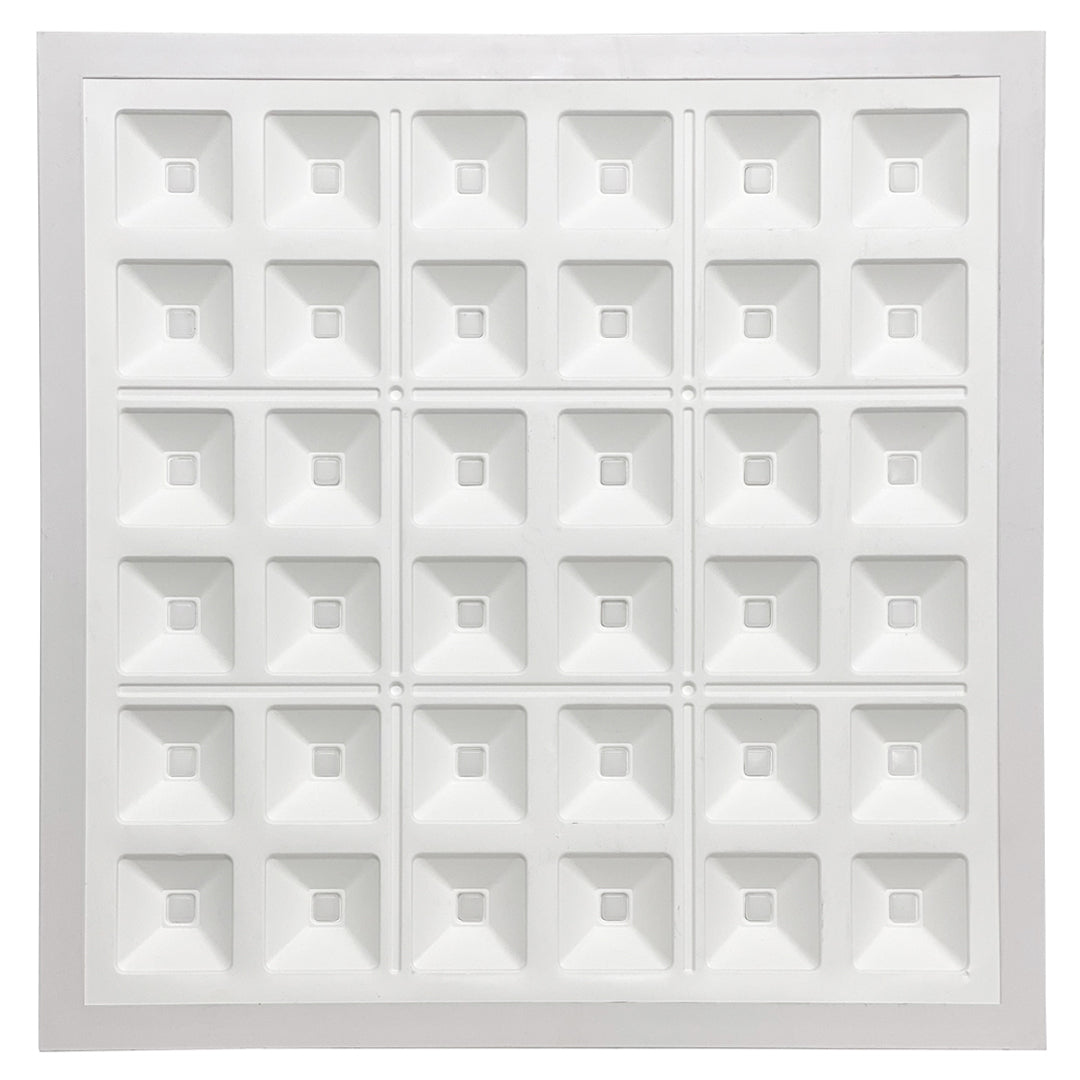

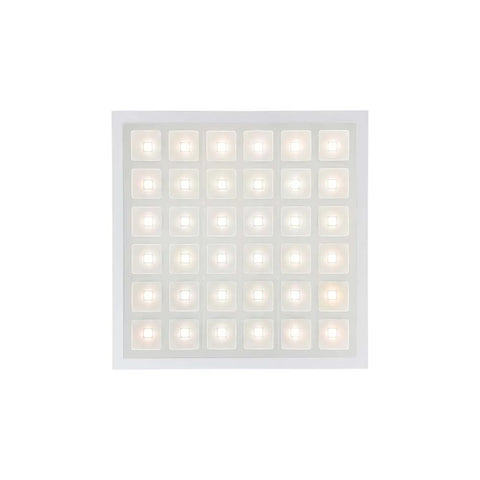

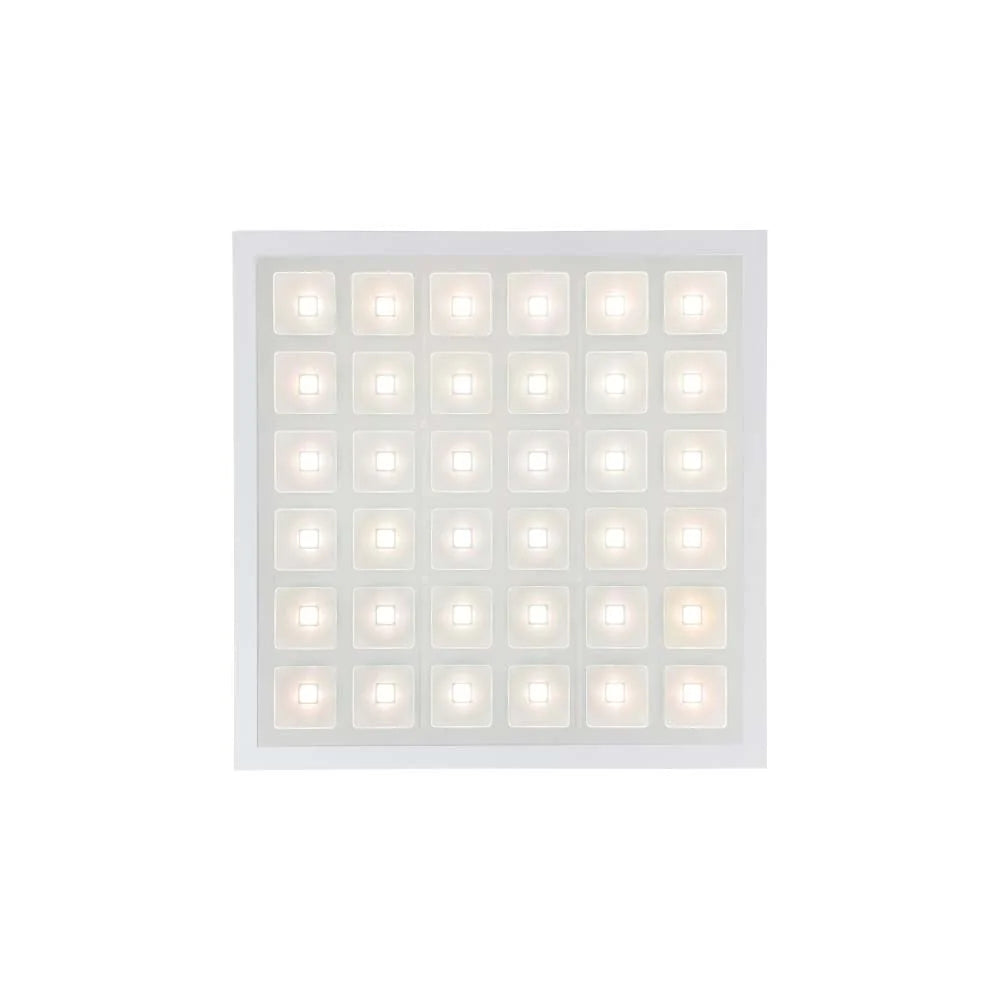

PIXEL SQUARE | LED Designer Troffer

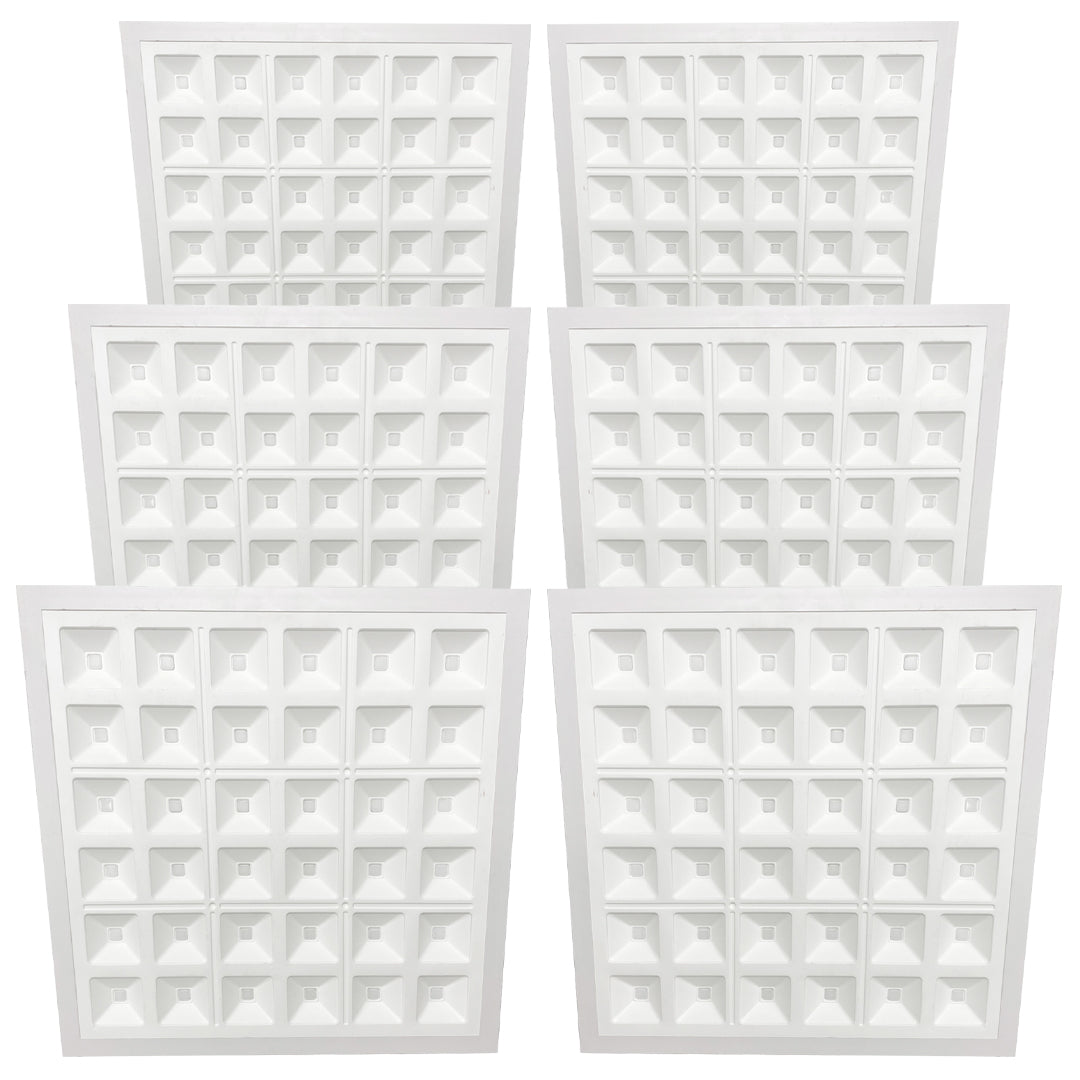

PIXEL SQUARE |LED Designer Troffers | 40 Watt | 5000 Lumens | 4000K | 100V-277V | 2X2 | ETL Listed | Pack of 6
PIXEL SQUARE |LED Designer Troffers | 40 Watt | 5000 Lumens | 4000K | 100V-277V | 2X2 | ETL Listed | Pack of 6
PIXEL SQUARE |LED Designer Troffers | 40 Watt | 5000 Lumens | 4000K | 100V-277V | 2X2 | ETL Listed | Pack of 6
PIXEL SQUARE |LED Designer Troffers | 40 Watt | 5000 Lumens | 4000K | 100V-277V | 2X2 | ETL Listed | Pack of 6
PIXEL SQUARE |LED Designer Troffers | 40 Watt | 5000 Lumens | 4000K | 100V-277V | 2X2 | ETL Listed | Pack of 6
PIXEL SQUARE | LED Designer Troffer

PIXEL SQUARE | LED Designer Troffer

Adj Watt 40W · 5,000 Lumens · 4000K · White Housing

Watt: 40W Lumens: 5000Lm CCT: 4000K Rating: ETL Listed
★★★★★ 4.8 · 42 reviews
MSRP: $54.95
PRICE PER PIECE
$44.95
You save $10.00
Contractor, distributor, or reseller? Log in for trade pricing »
Min order: 4 per box
×

The product SKU is: 151397

✓ Free shipping on all Orders
✓ Ships from Stone Mountain, GA — most orders ship in 1 business day
✓ 30-day returns · 5-year warranty · ETL Listed
Want to Buy in bulk ?

Contact us for volume pricing or become a trade partner.

Contact Team Become Partner

Product Description

Beyond LED Technology's PIXEL SQUARE is a designer troffer engineered for spaces where ceiling aesthetics and lighting quality carry equal weight. Back-lit technology delivers low-glare, uniform diffusion across the full panel surface — no hot spots, no dark edges. The slim, low-profile aluminum frame keeps the fixture visually light and enables single-person installation. Built-in earthquake clips add structural security without additional hardware. At a fixed 40W and 4000K, it provides consistent, neutral-white output well suited to offices, retail environments, healthcare reception areas, and commercial interiors with standard 2×2 drop ceiling grids.

Key Features

  • Up to 110 lm/W efficacy
  • Fixed output: 40W / 5,000 lm / 4000K
  • Back-lit technology
  • Built-in earthquake clips
  • 120° beam angle
  • 0–10V dimmable
  • Input voltage 100–277VAC
  • 2'×2' fixture size
  • Low-profile aluminum frame
  • ETL Listed
  • 5-year warranty

Applications

Office Workspaces Retail Showrooms Exam Rooms Classrooms & Corridors Hospitality Areas Ceiling Retrofits

Specifications

SKU 151397
Wattage 40W
CCT 4000K
Lumens 5000Lm
Input Voltage 100-277Vac
Size 2'×2'
Construction White Housing
PCS/BOX 4 PCS/BOX
Construction White Housing
Dimming 0–10V
Certification ETL Listed
Warranty 5 Years

Downloads

Spec Sheet PDF
LM80 Report PDF
LM79 Report PDF
IES File IES

Need help?

Talk to a lighting specialist about project pricing, photometrics, or custom requirements.

866-786-1117
sales@beyondledtechnology.com
— FAQ —

Frequently Asked Questions

Everything you need to know before specifying PIXEL SQUARE | LED Designer Troffer into a lighting project.

What is back-lit technology and how does it affect light quality?+
Back-lit troffers position LEDs behind the diffuser panel rather than around the edge. This produces more uniform light distribution across the surface, reducing visible hot spots and glare compared to edge-lit designs — better for spaces where occupants spend extended time under the fixture.
What are the built-in earthquake clips and why do they matter?+
Earthquake clips secure the fixture to the ceiling grid during seismic activity, preventing it from dislodging. They are required by code in seismic zones and add structural safety without extra hardware or installation steps.
Is the PIXEL SQUARE easy to install without a crew?+
Yes. The low-profile aluminum frame is lightweight enough for single-person installation into standard 2×2 drop ceiling grids. No custom framing or adapters are needed, making it practical for both new construction and retrofit projects.
Does the PIXEL SQUARE work with standard dimmer controls?+
It supports 0–10V dimming, compatible with standard 0–10V dimmer switches and building automation systems. This allows precise light level control for energy management or occupant comfort across office, retail, and hospitality environments.
Is the PIXEL SQUARE a good fit for seismic zone projects?+
Yes. The built-in earthquake clips meet seismic installation requirements without additional hardware, making it a straightforward specification for projects in California and other seismic zones where ceiling fixture retention is code-mandated.
How quickly does the PIXEL SQUARE ship and is trade pricing available?+
Most orders ship within one business day from Beyond LED Technology's Stone Mountain, Georgia warehouse. Approved trade partners through the Beyond LED Trade Partner Program receive factory-direct trade pricing and dedicated account support.
