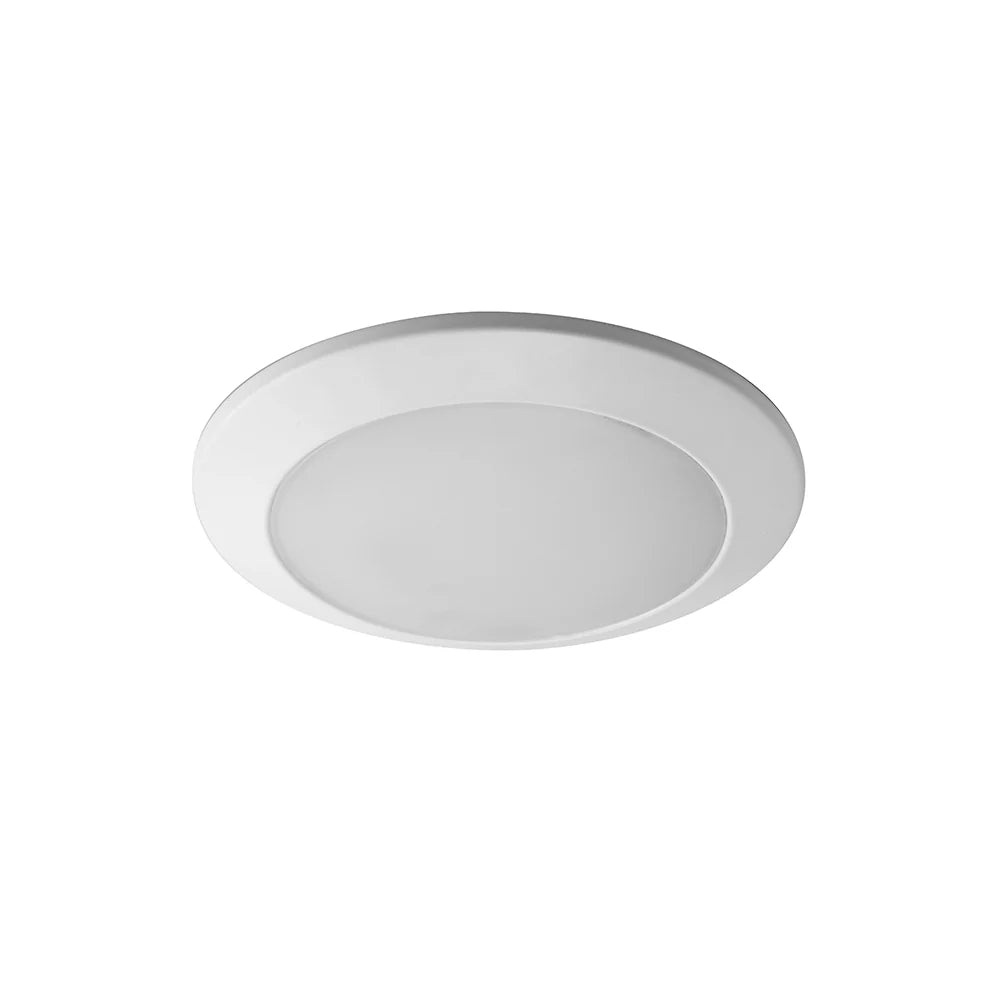

PLANO | LED Disk Light
Contact us for volume pricing or become a trade partner.
Product Description
Beyond LED Technology's PLANO is an ultra-slim 8" disk light built for installations where a low-profile, driverless fixture is the right call. DOB (Driver on Board) technology eliminates the external driver entirely, keeping the fixture thin and the parts count low. Wet location rating opens it up to kitchens, bathrooms, covered soffits, and other moisture-exposed ceilings where standard fixtures fall short. Five field-selectable CCT options cover the full range from warm residential to crisp commercial output. Triac dimming from 10% to 100% works with most standard wall dimmers already in place, making retrofits and new installs equally straightforward.
Key Features
- Up to 82 lm/W efficacy
- Fixed output: 20W / 1,640 lm
- Adjustable CCT — field selectable
- DOB technology
- Ultra-slim, low-profile design
- Wet location rated
- Triac dimmable 10%–100%
- 120° beam angle
- Aluminum + PC housing
- Input voltage 120VAC
- UL & ES Listed
- 5-year warranty
Applications
Specifications
| SKU | 157071 |
| Wattage | 20W |
| CCT | 2700K/3K/3500K/4K/5K |
| Lumens | 1640Lm |
| Input Voltage | 120V |
| Construction | Aluminum + PC |
| Dimming | Triac |
| Certification | UL & ES Listed |
| Warranty | 5 Years |
