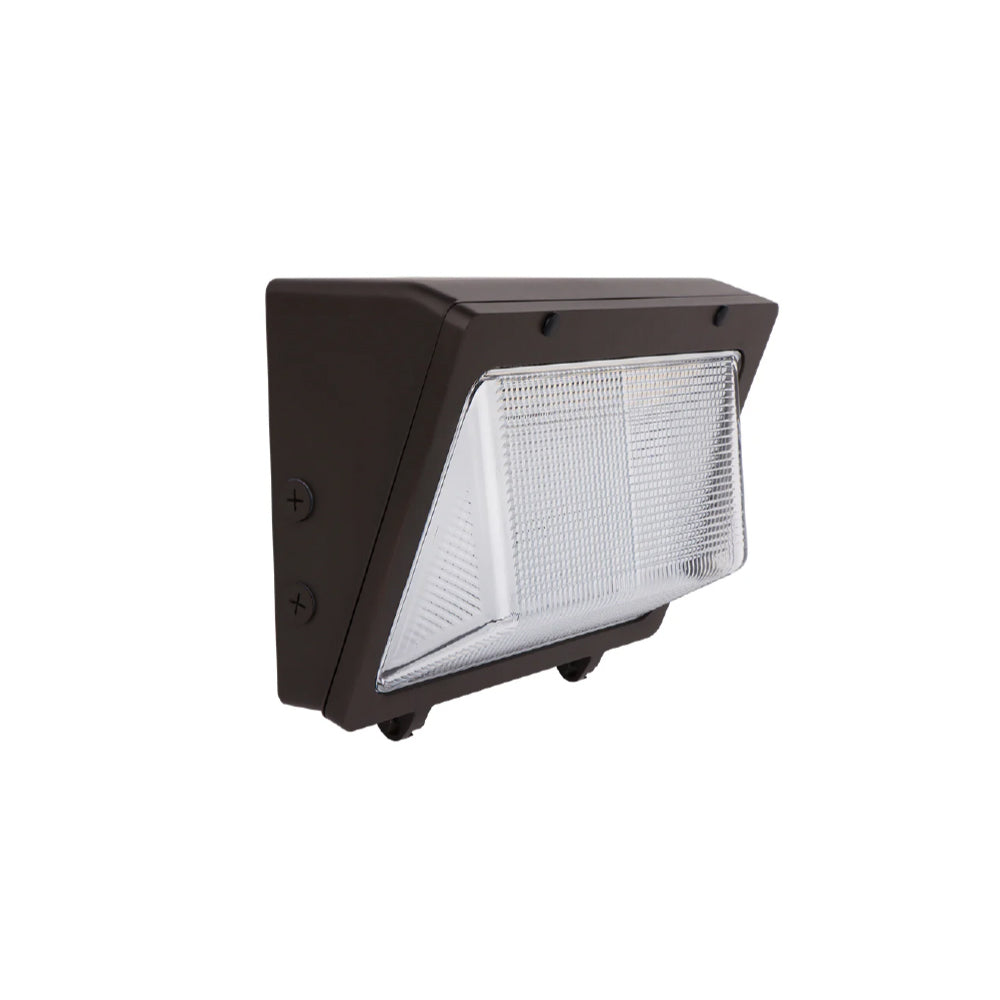

SANTAFE | LED Wall Pack
SANTAFE | LED Wall Pack
SANTAFE | LED Wall Pack
SANTAFE | LED Wall Pack
SANTAFE | LED Wall Pack
SANTAFE | LED Wall Pack
SANTAFE | LED Wall Pack
SANTAFE | LED Wall Pack

SANTAFE | LED Wall Pack

Adj Watt 76W/105W/125W · 16,250 Lumens · Adj CCT 3K/4K/5K · Bronze Housing

Watt: 76W/105W/125W Lumens: 16250lm CCT: 3000K/ 4000K/ 5000K Rating: UL & DLC Listed
★★★★★ 4.8 · 42 reviews
MSRP: $149.95
$114.95
You save $35.00
Contractor, distributor, or reseller? Log in for trade pricing »
Min order: 1 per box
×

The product SKU is: 156868

✓ Free shipping on all Orders
✓ Ships from Stone Mountain, GA — most orders ship in 1 business day
✓ 30-day returns · 5-year warranty · UL & DLC Listed
Want to Buy in bulk ?

Contact us for volume pricing or become a trade partner.

Contact Team Become Partner

Product Description

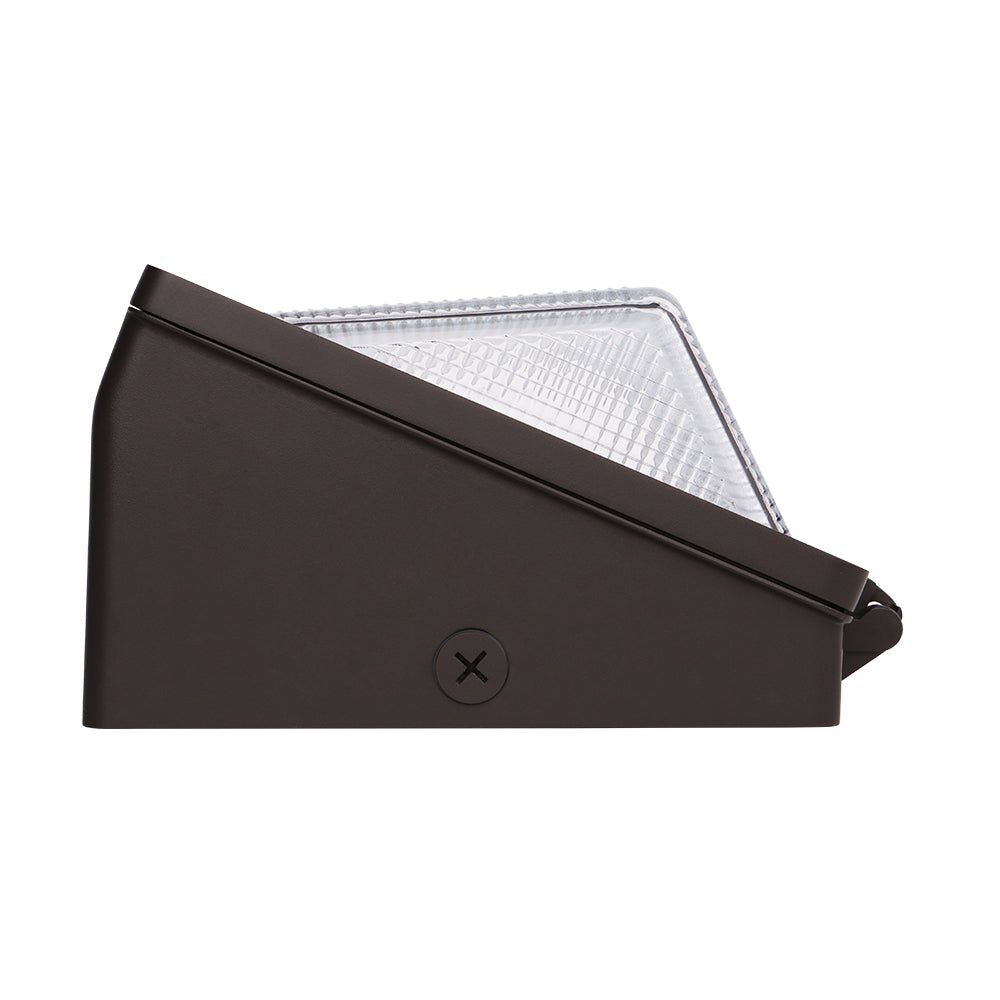

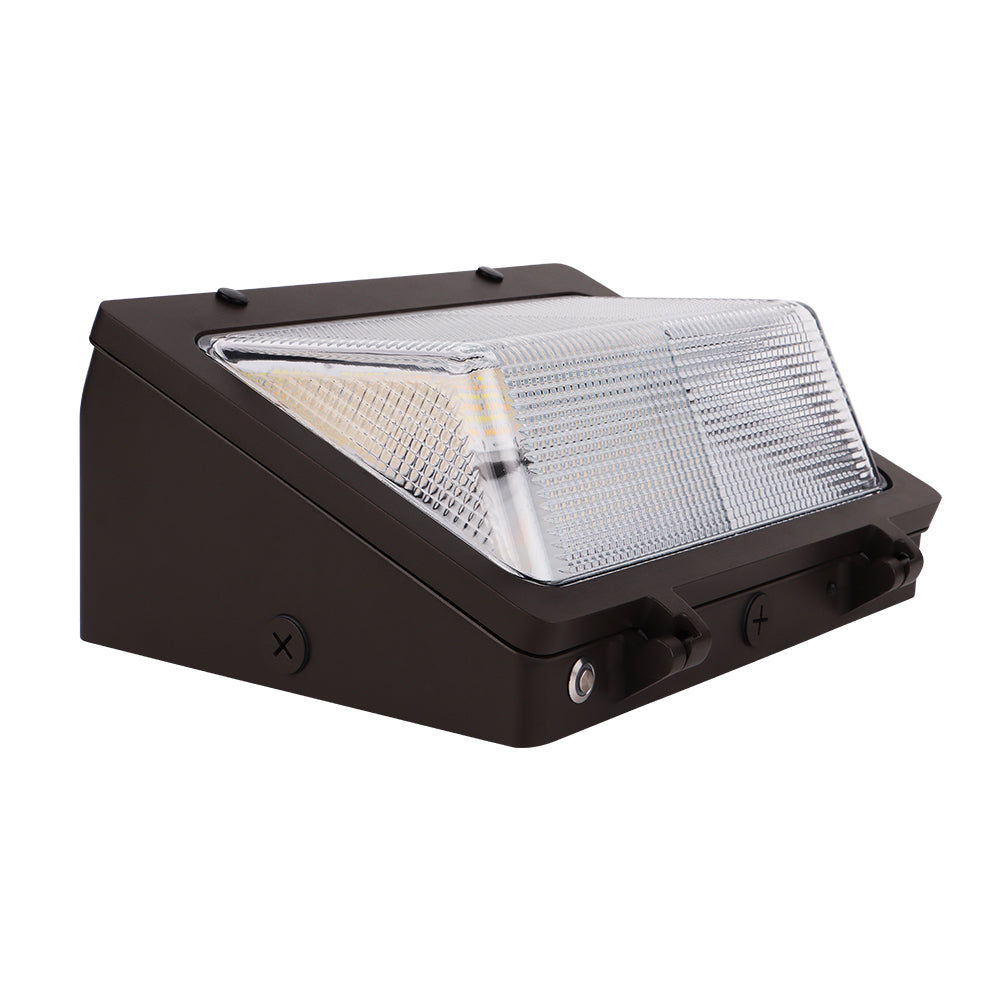

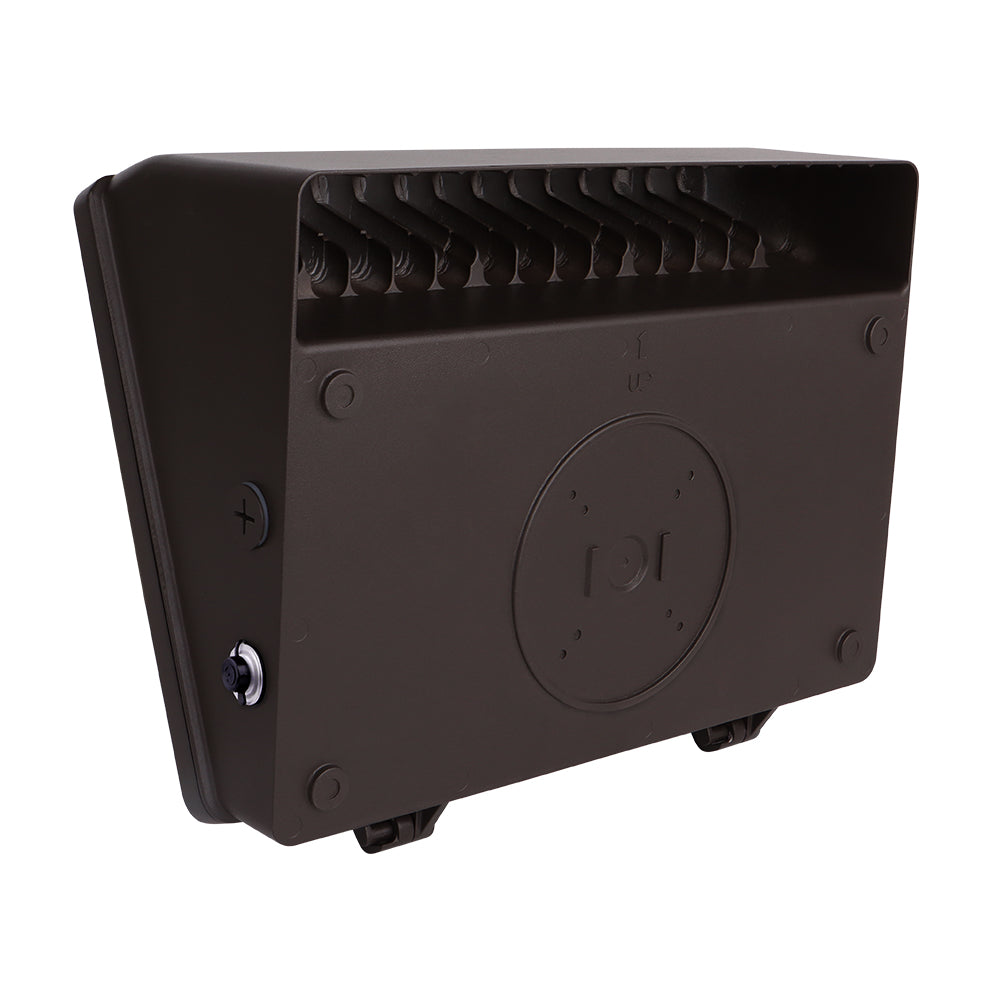

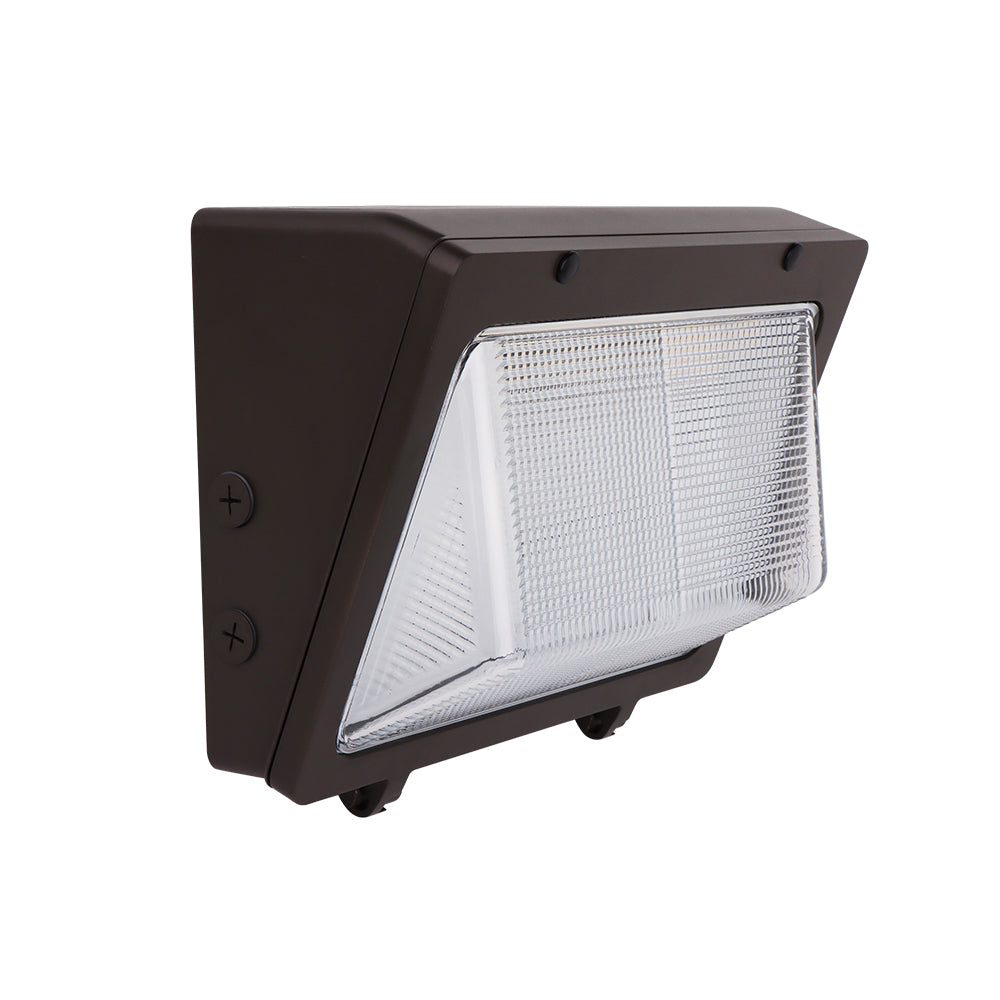

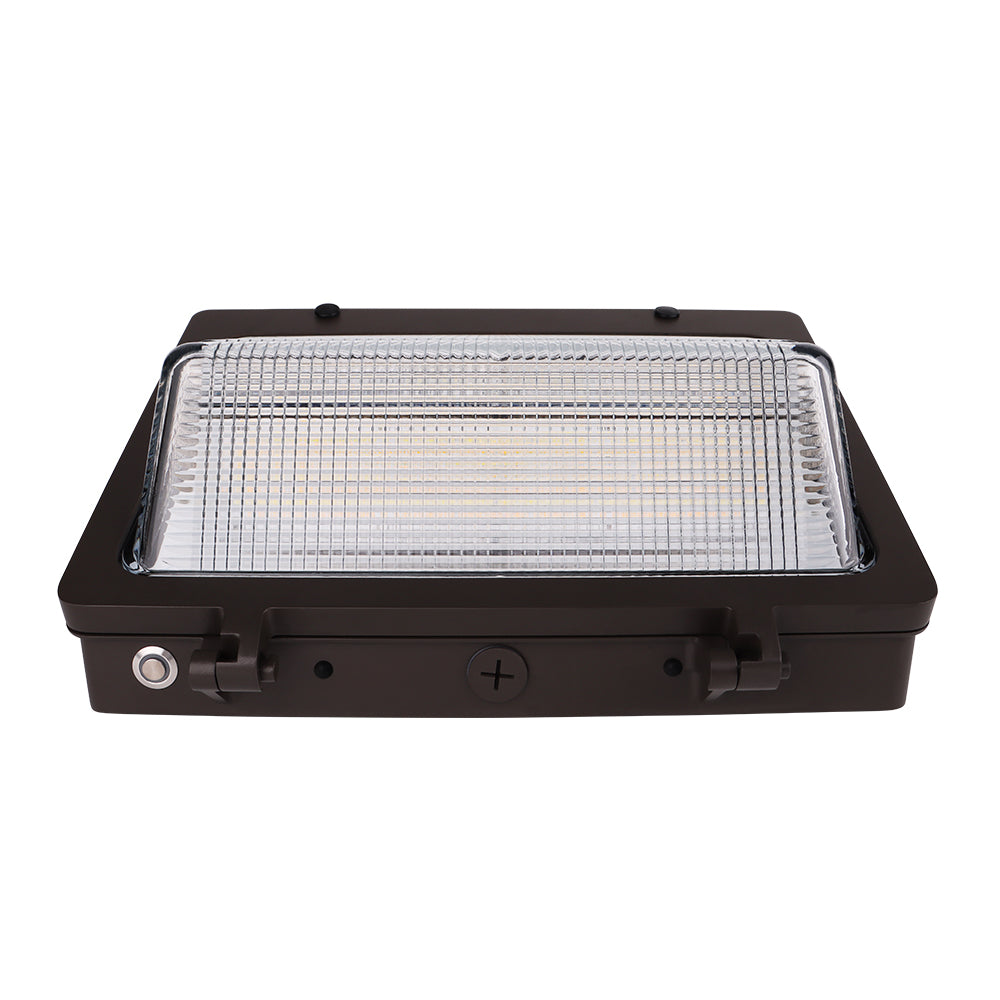

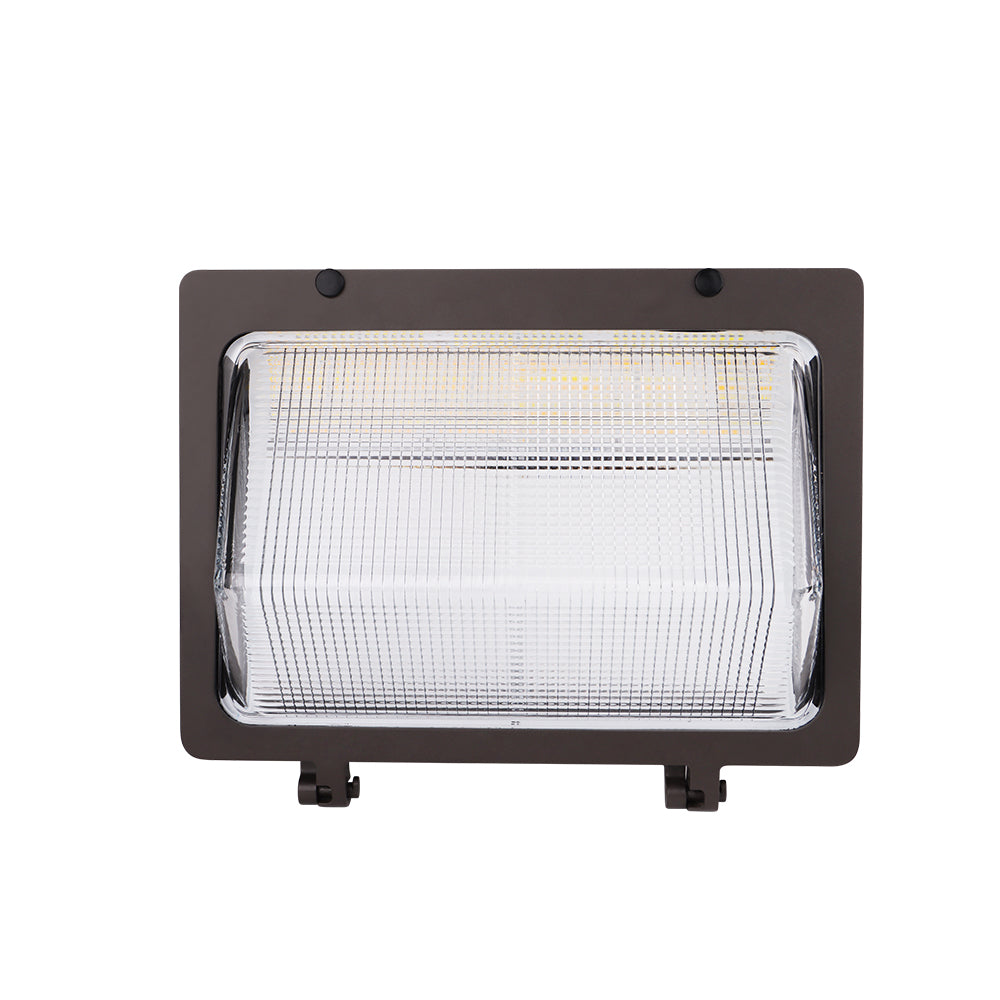

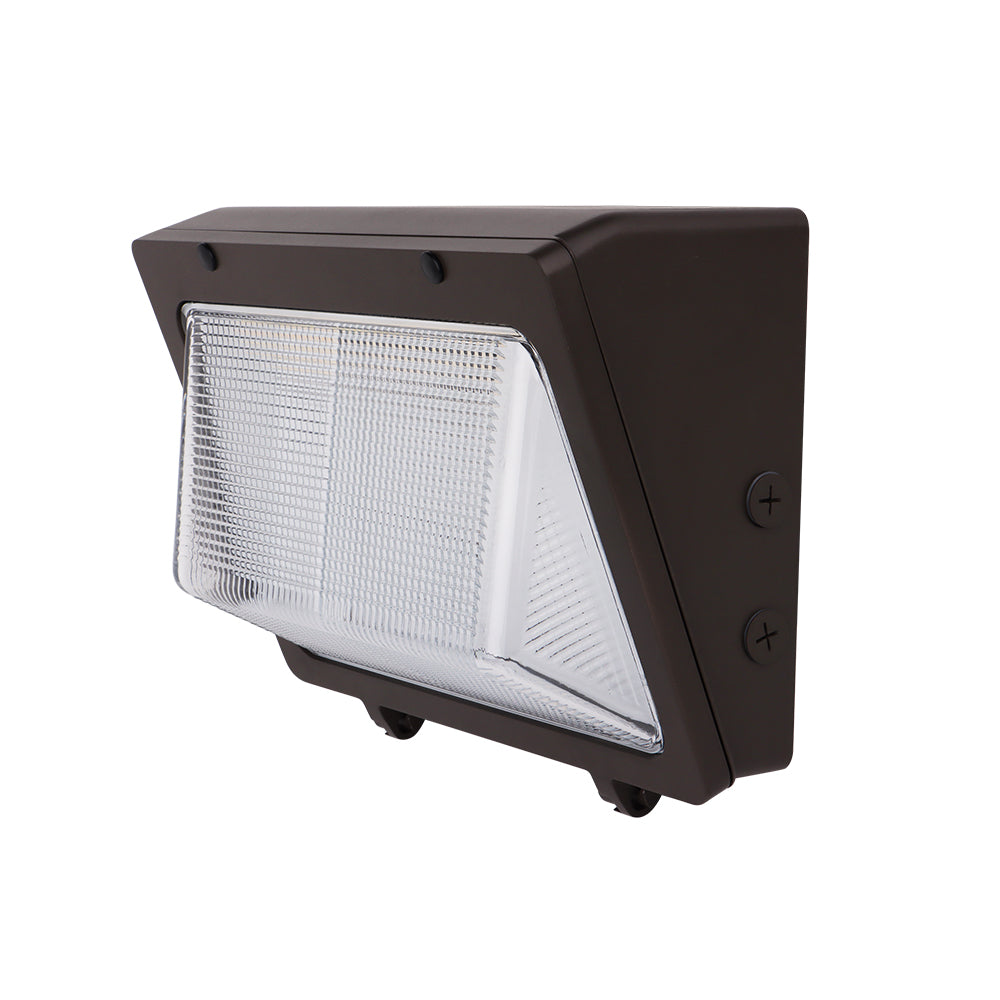

Beyond LED Technology's SANTAFE is a premium commercial LED wall pack that sets itself apart with a durable glass diffuser — a meaningful upgrade over the polycarbonate lenses found on most fixtures in this class. Glass delivers better optical clarity, superior UV resistance, and a longer-lasting finish that doesn't yellow or haze over time. At up to 16,250 lumens across three selectable wattages, it brings serious output to building exteriors, commercial perimeters, and security zones. The built-in photocell, 0–10V dimming, and adjustable CCT give facility teams complete control without any additional hardware.

Key Features

  • Up to 130 lm/W efficacy
  • Adjustable wattage — field selectable
  • Adjustable CCT — field selectable
  • Built-in photocell ON/OFF
  • 0–10V dimmable
  • 100° beam angle
  • Durable glass diffuser
  • CRI>70
  • Die-cast aluminum housing
  • Bronze housing finish
  • Input voltage 120–277VAC
  • UL & DLC listed

Applications

Building Exteriors Security Areas Warehouse Perimeters Retail Walkways Parking Areas Municipal Exteriors

Specifications

SKU 156868
Wattage 76W/105W/125W
CCT 3000K/ 4000K/ 5000K
Lumens 16250lm
Input Voltage 120-277Vac
CRI >70
Dimming 0–10V
Certification UL & DLC Listed
Warranty 5 Year

Downloads

Spec Sheet PDF
LM80 Report PDF
LM79 Report PDF
IES File IES

Need help?

Talk to a lighting specialist about project pricing, photometrics, or custom requirements.

866-786-1117
sales@beyondledtechnology.com
— FAQ —

Frequently Asked Questions

Everything you need to know before specifying SANTAFE | LED Wall Pack into a lighting project.

What makes the SANTAFE different from standard LED wall packs? +
The glass diffuser is the standout difference. It outperforms polycarbonate lenses on optical clarity and UV resistance, and won't yellow or haze over years of outdoor exposure. Combined with Nationstar chip technology, it delivers premium long-term performance.
Does the SANTAFE turn on automatically at dusk? +
Yes. The built-in photocell handles automatic dusk-to-dawn operation with no external control hardware needed. The 0–10V dimming capability also allows integration with building automation systems for schedule-based control.
Is the SANTAFE suitable for high-output commercial security lighting? +
At up to 16,250 lumens with a crisp adjustable CCT, it delivers strong, reliable illumination for perimeters, security zones, and building facades where consistent visibility is critical.
Does the SANTAFE qualify for utility rebates? +
Yes. UL and DLC listing qualifies it for most US utility rebate programs. Beyond LED Technology provides free photometric layout support within 24 hours for approved trade partners.
How durable is the SANTAFE for year-round outdoor use? +
IP65-rated die-cast aluminum housing with 4-6KV surge protection and a glass diffuser makes it exceptionally durable through UV exposure, moisture, and temperature extremes. Backed by a 5-year warranty.
How quickly does the SANTAFE ship and is trade pricing available? +
Most orders ship within one business day from Beyond LED Technology's Stone Mountain, Georgia warehouse. Approved trade partners through the Beyond LED Trade Partner Program receive factory-direct trade pricing and dedicated account support.
