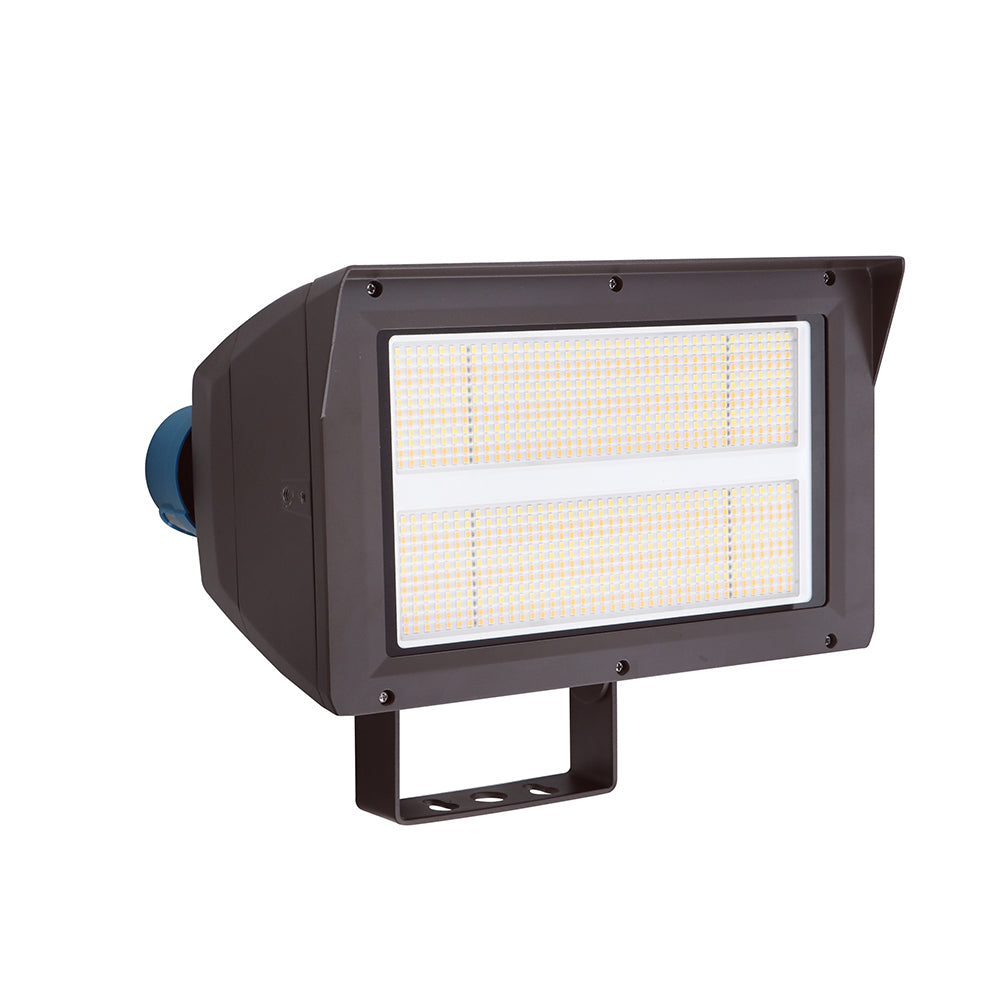

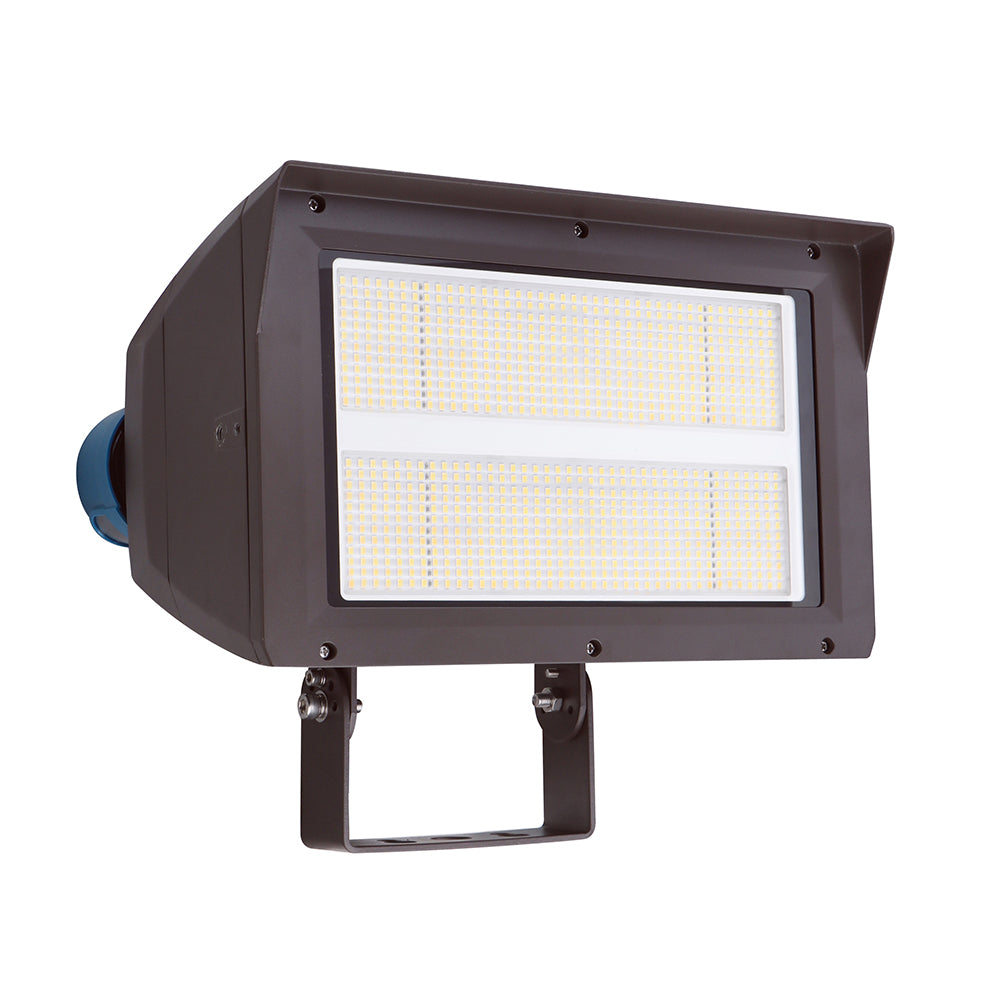

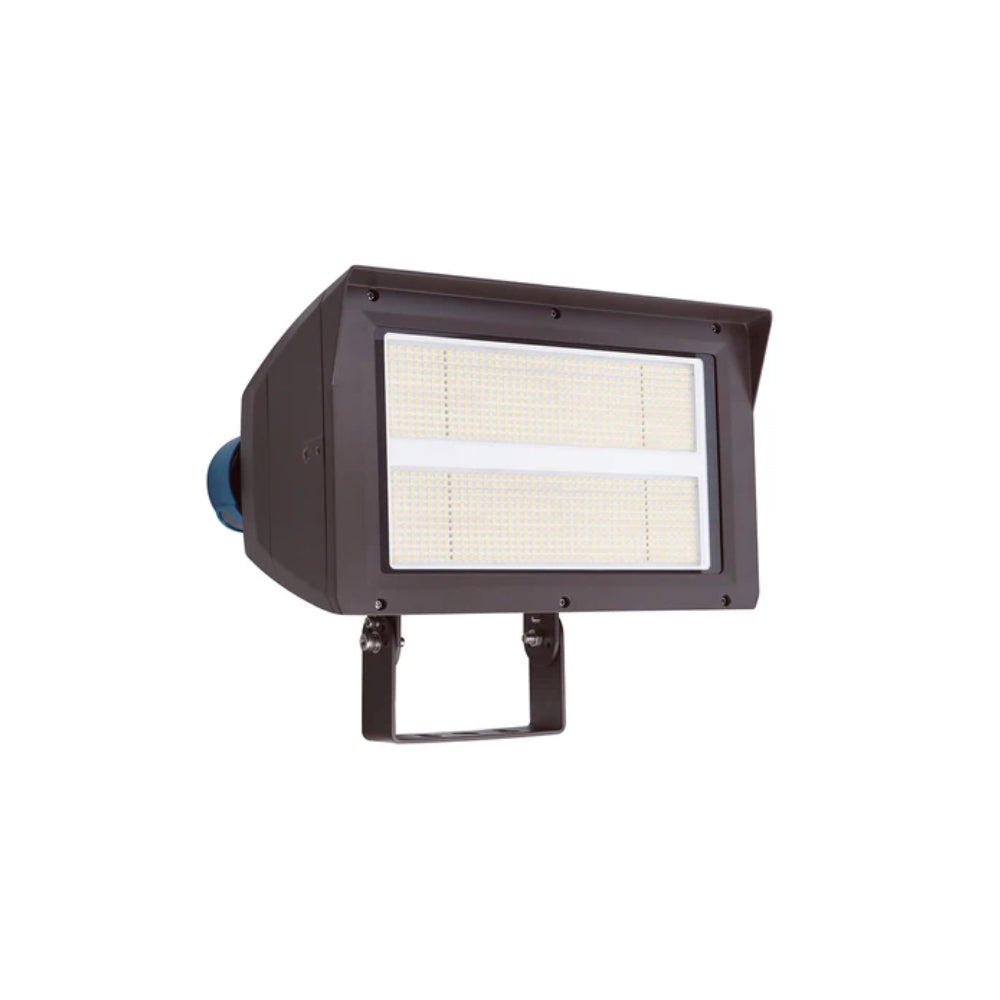

Union | LED Flood Light
Union | LED Flood Light
Union | LED Flood Light
Union | LED Flood Light
Union | LED Flood Light
Union | LED Flood Light
Union | LED Flood Light
Union | LED Flood Light
Union | LED Flood Light
Union | LED Flood Light
Union | LED Flood Light

Union | LED Flood Light

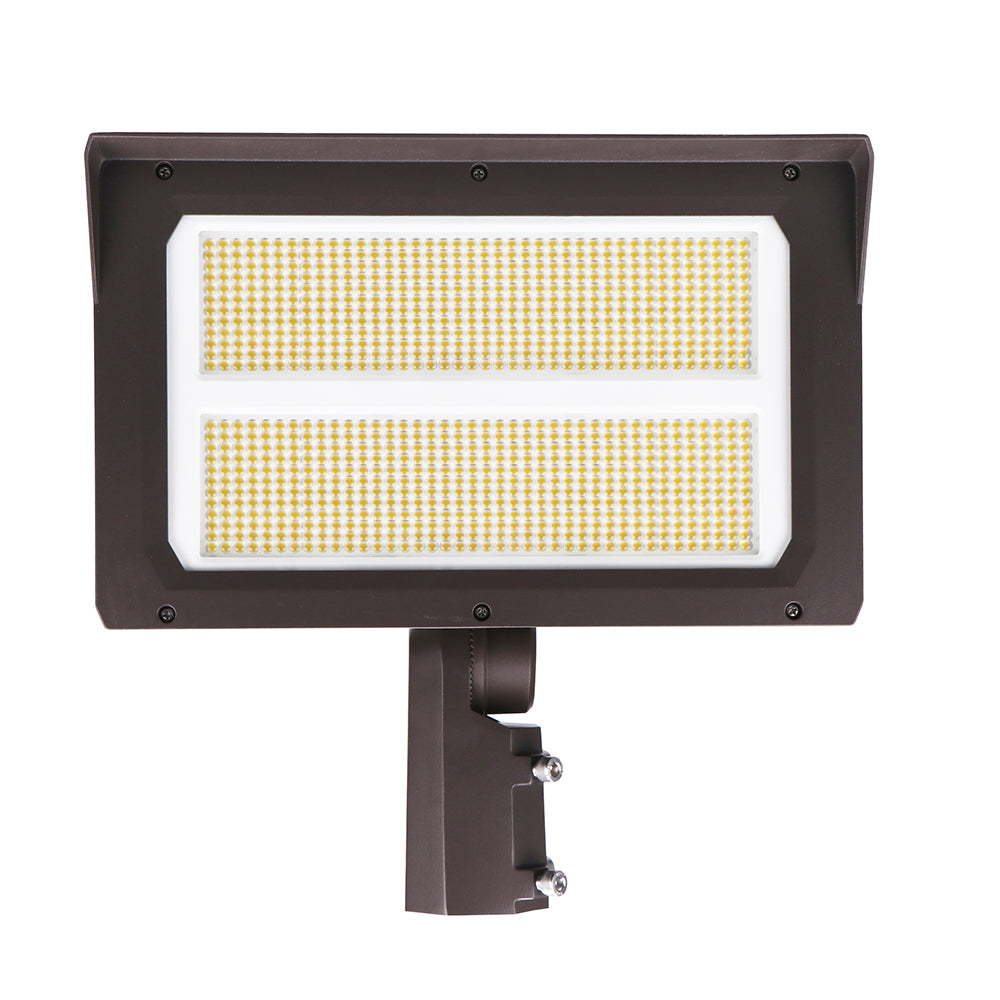

Adj Watt 200W/240W/300W · 45,000 Lumens · 5000K · Bronze Housing

Watt: 200W/240W/300W Lumens: 45000Lm CCT: 5000K Rating: UL & DLC Listed
★★★★★ 4.8 · 42 reviews
MSRP: $319.95
$259.95
You save $60.00
Contractor, distributor, or reseller? Log in for trade pricing »
Min order: 1 per box
×

The product SKU is: 156598

✓ Free shipping on all Orders
✓ Ships from Stone Mountain, GA — most orders ship in 1 business day
✓ 30-day returns · 5-year warranty · UL & DLC Listed
Want to Buy in bulk ?

Contact us for volume pricing or become a trade partner.

Contact Team Become Partner

Product Description

When a project calls for serious output across large, demanding outdoor spaces, the Union LED Flood Light steps in where lower-wattage fixtures fall short. Beyond LED Technology engineered this higher-wattage variant for stadiums, large parking structures, sports facilities, and wide commercial perimeters where 45,000 lumens of precision-controlled illumination is the baseline requirement. NEMA 6H6V optics ensure that output lands exactly where coverage is needed, and field-selectable wattage across three settings keeps the fixture adaptable when load requirements shift across zones or project phases.

Key Features

  • Up to 150 lm/W efficacy
  • Adjustable wattage – field selectable
  • 5000K color temperature
  • 0-10V dimmable
  • 100 x 130° beam angle

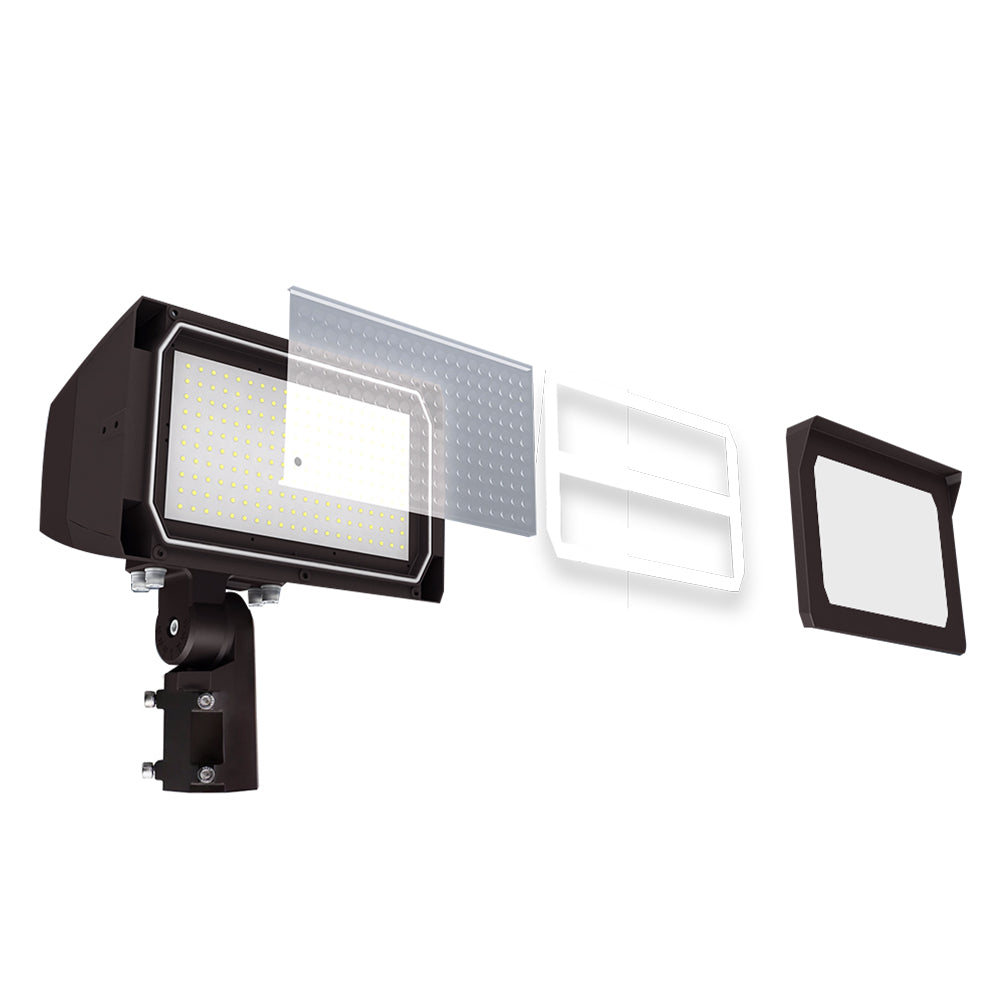

  • NEMA 6H6V optics
  • Built-in 10KV surge protector

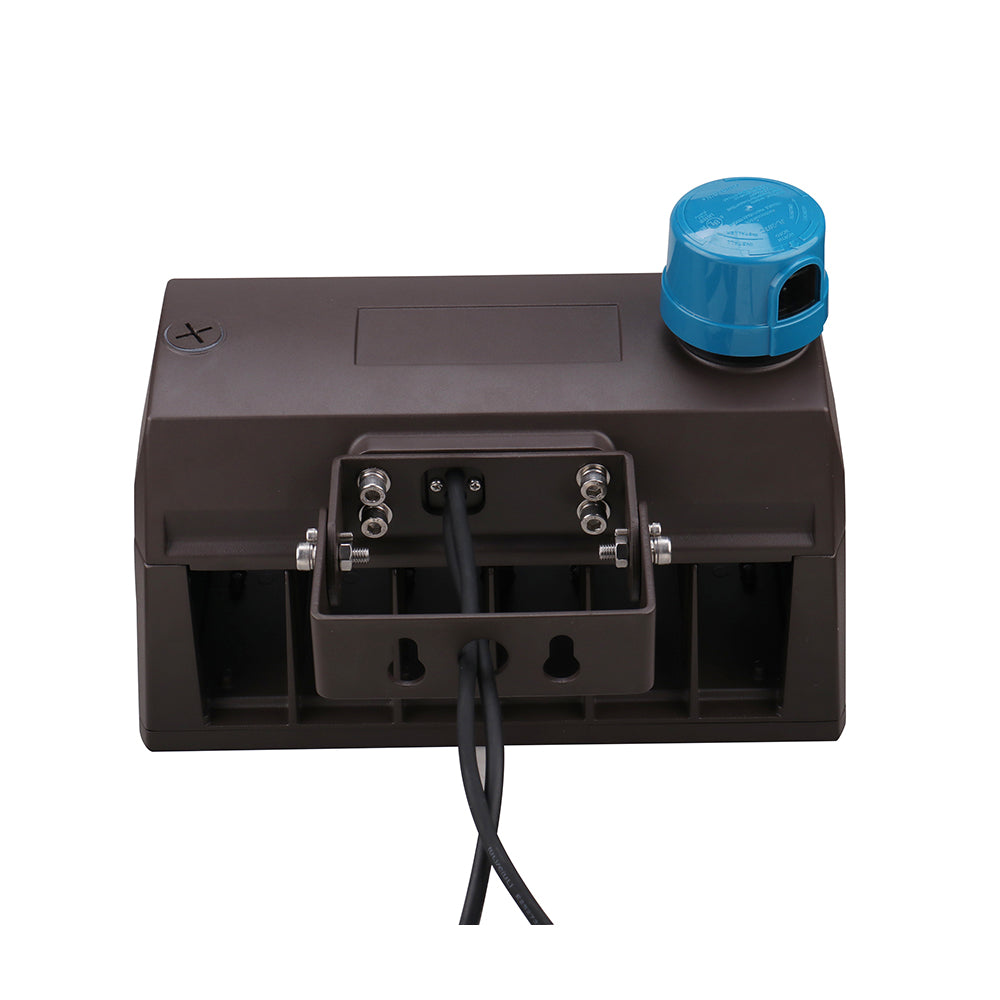

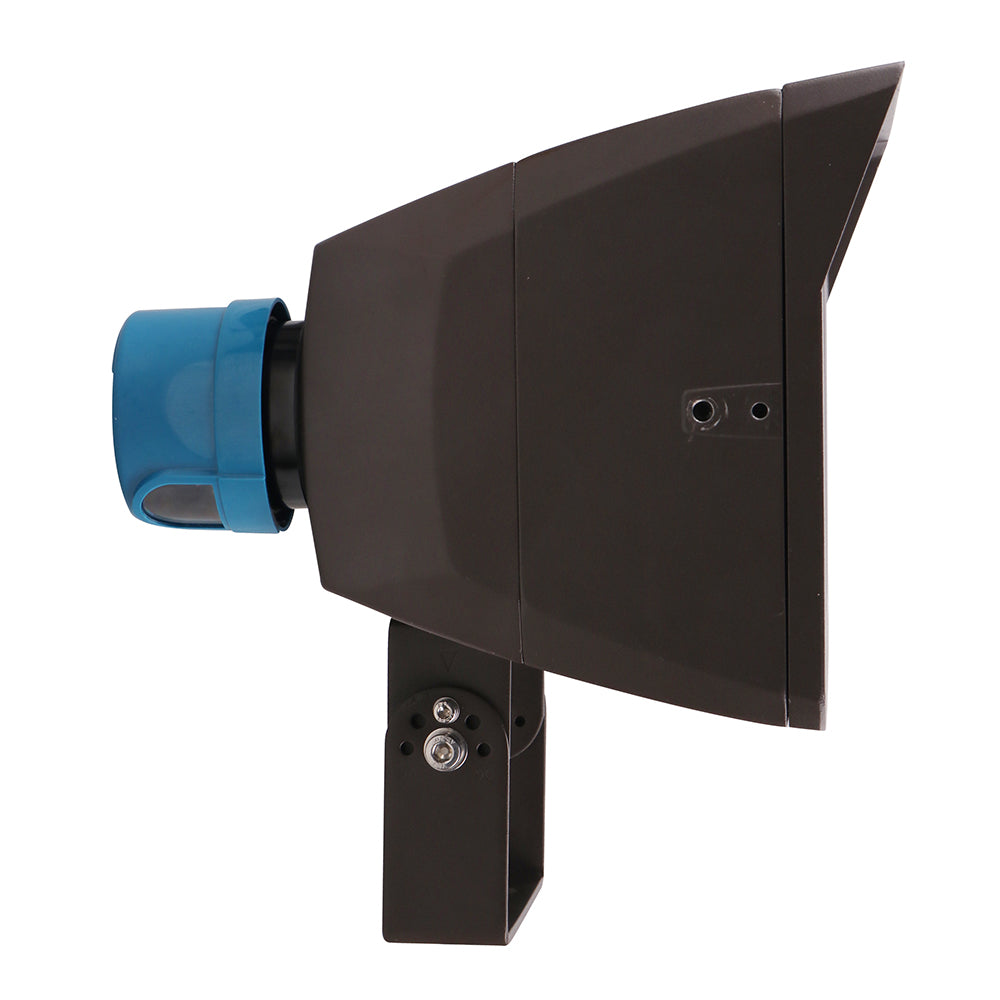

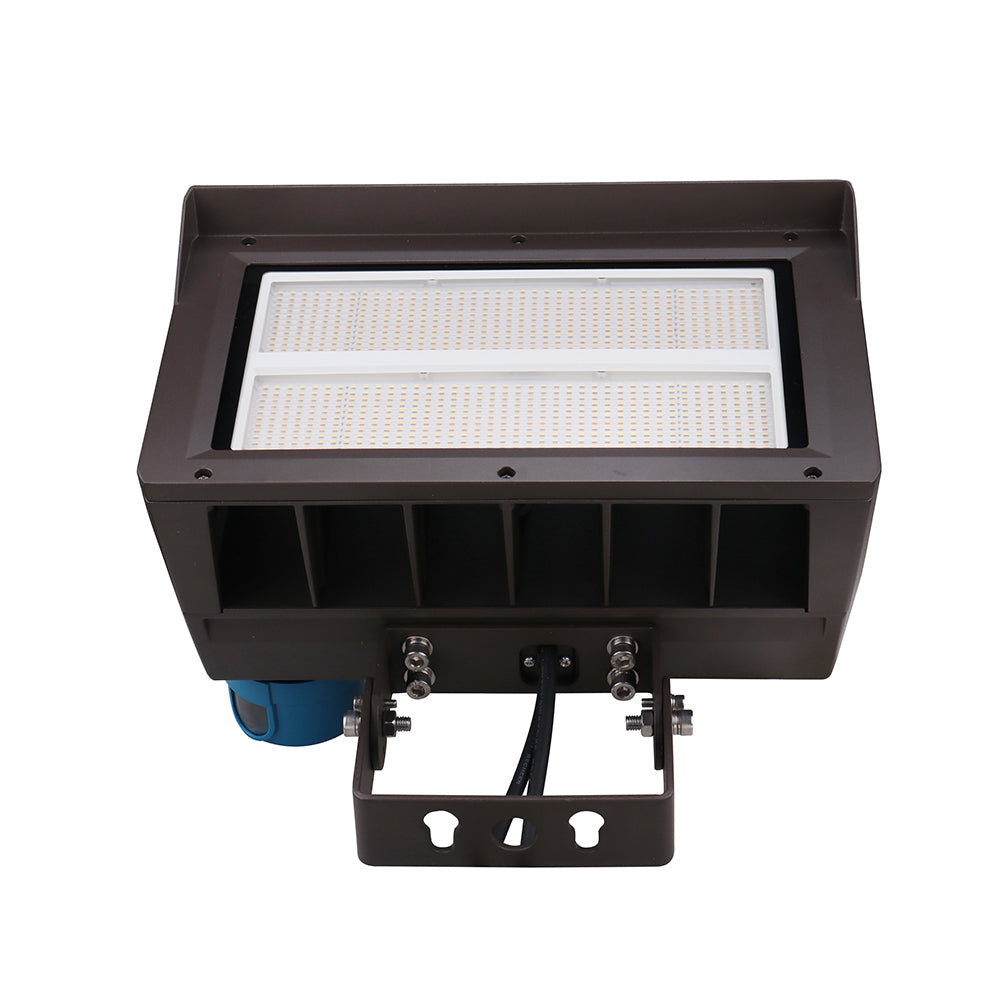

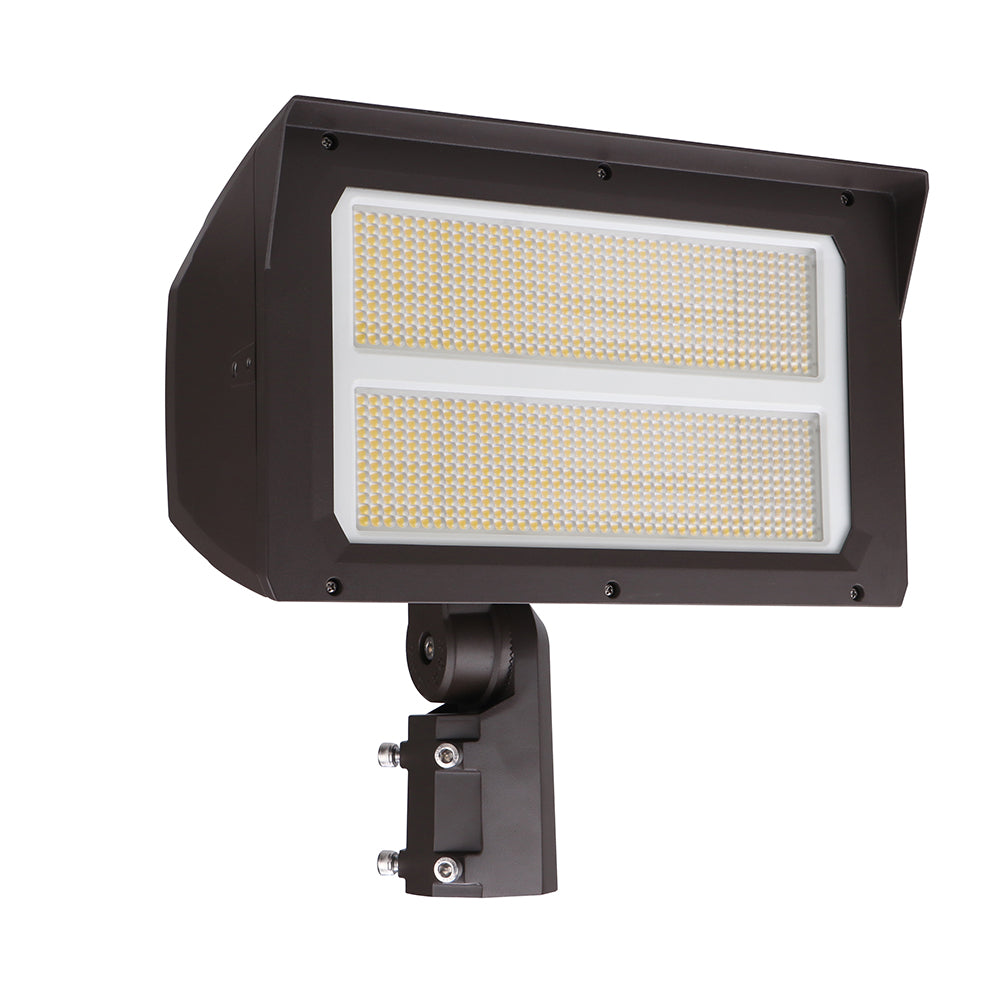

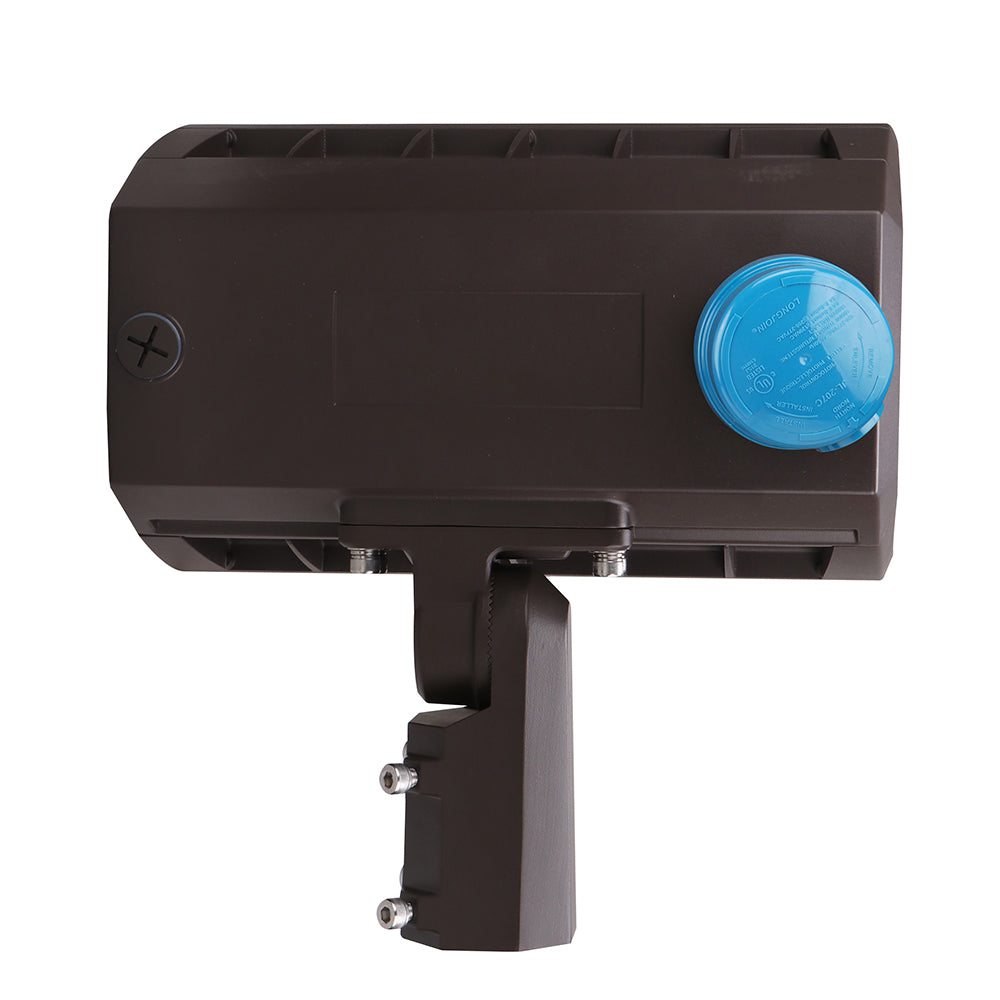

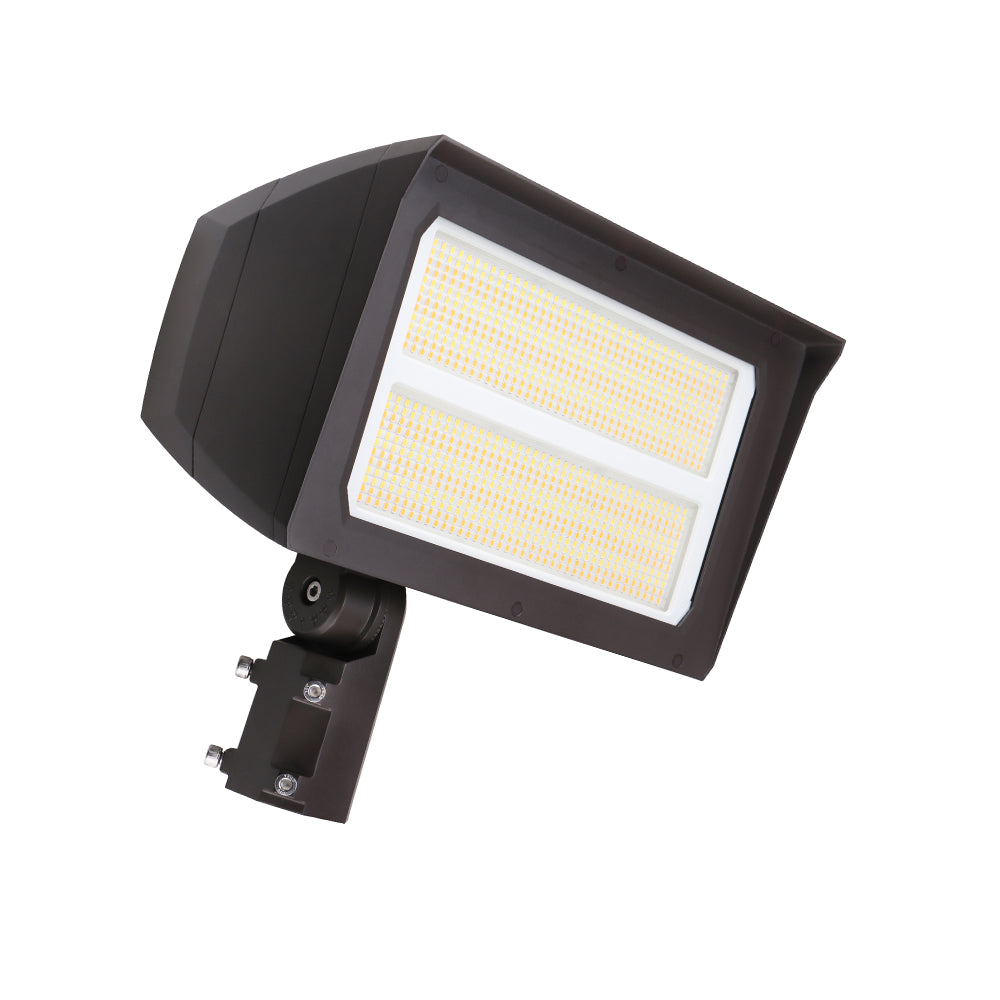

  • Yoke & slip fitter mounts included
  • Bronze die-cast aluminum housing
  • Input voltage 120–277VAC
  • UL & DLC listed
  • 5-year warranty

Applications

Building & Facade Lighting Large Parking Structures Stadiums & Sports Facilities Signage & Billboard Lighting Warehouses & Industrial Yards Security & Perimeter Lighting

Specifications

SKU 156598
Wattage 200W/240W/300W
CCT 5000K
Lumens 45000Lm
Input Voltage 120V-277V
CRI >80
Light Spread 100 x 130°
Dimming 0-10V
IP Rating IP65
Certification UL & DLC Listed
Warranty 5 Years

Downloads

Spec Sheet PDF
LM80 Report PDF
LM79 Report PDF
IES File IES

Need help?

Talk to a lighting specialist about project pricing, photometrics, or custom requirements.

866-786-1117
sales@beyondledtechnology.com
— FAQ —

Frequently Asked Questions

Everything you need to know before specifying Union | LED Flood Light into a lighting project.

Is the Union 200–300W good for stadium and large parking lot lighting? +
Yes, at up to 300W with NEMA 6H6V optics, it's built for large-scale outdoor spaces where consistent, far-reaching coverage matters. Sports facilities, expansive parking structures, and wide commercial perimeters are its sweet spot.
What traditional fixture does the Union 300W replace? +
It's engineered to replace 1000W to 1500W metal halide fixtures while cutting energy consumption significantly. DLC listing also qualifies it for utility rebates across most US states.
Can I adjust the wattage after installation? +
Yes. The wattage is field-selectable at 200W, 240W, or 300W, so one SKU covers multiple zones without re-ordering. Both yoke and slip fitter mounts ship included, handling most installation scenarios right out of the box.
Can I get trade pricing on the Union at Beyond LED Technology? +
Yes. Approved trade partners get factory-direct trade pricing, free photometric layouts within 24 hours, and rebate filing assistance. Direct purchase is open to everyone with no account required.
How fast does it ship and what warranty comes with it? +
It ships from Beyond LED Technology's Stone Mountain, Georgia warehouse — most orders out within one business day. Every unit carries a 5-year warranty with free shipping on qualifying orders.
