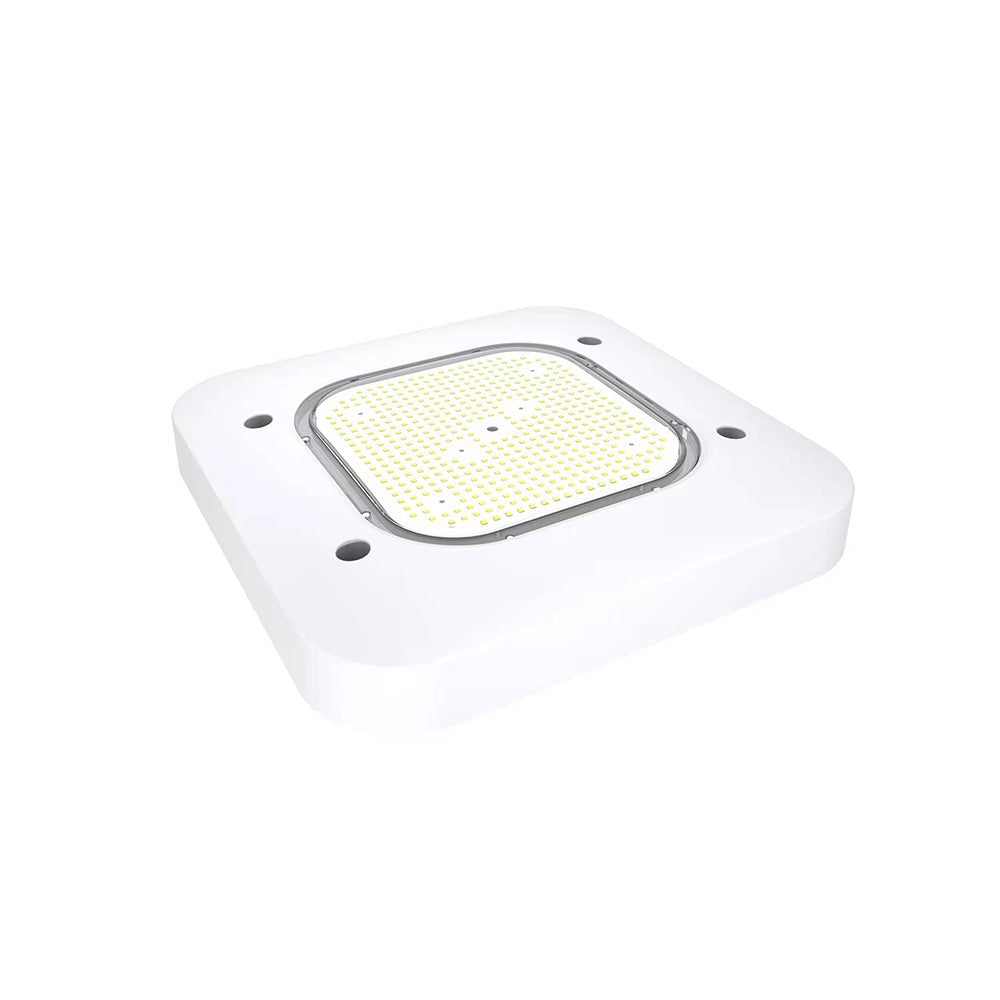

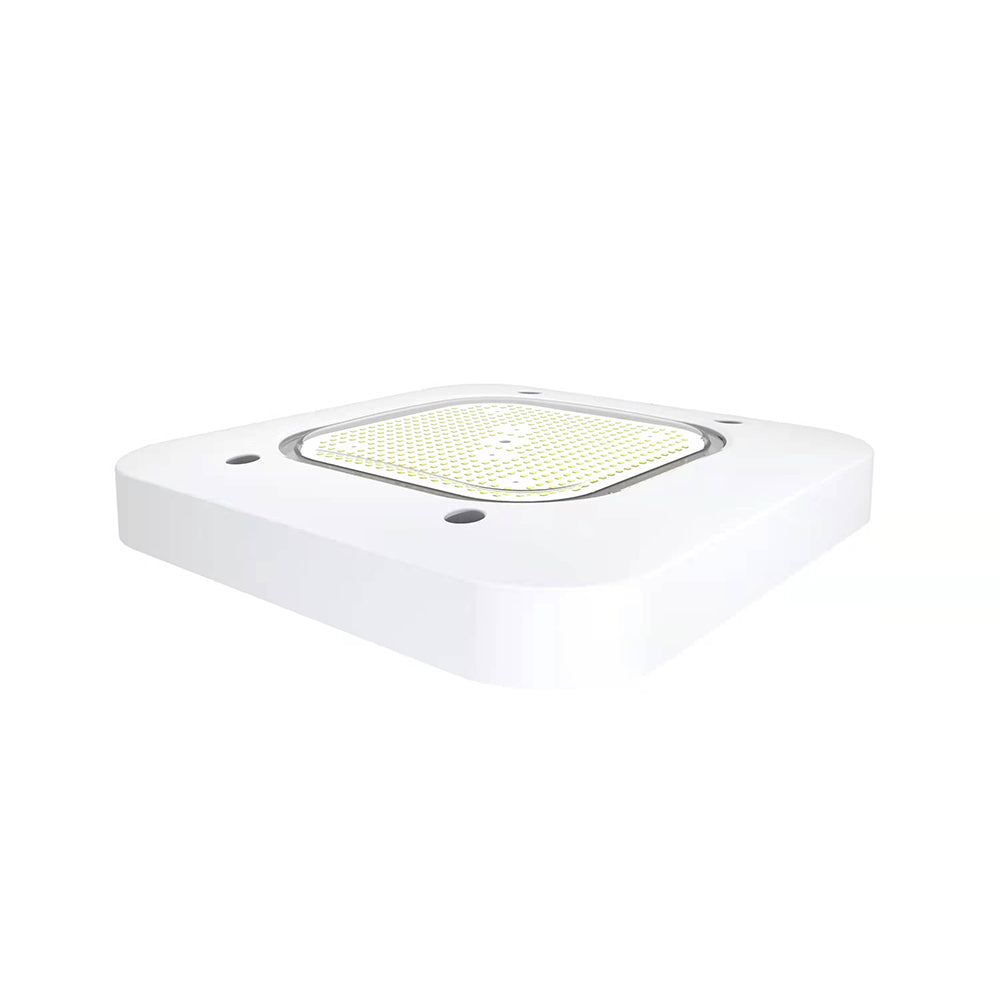

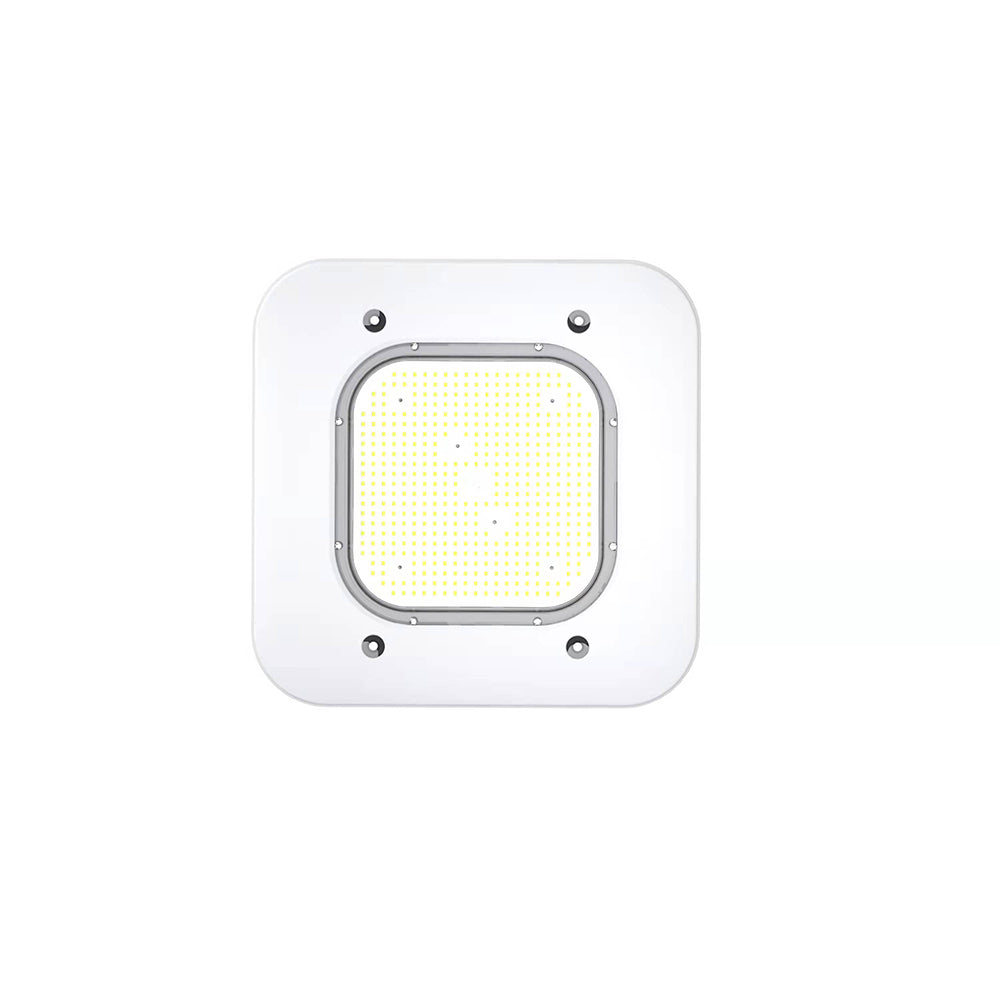

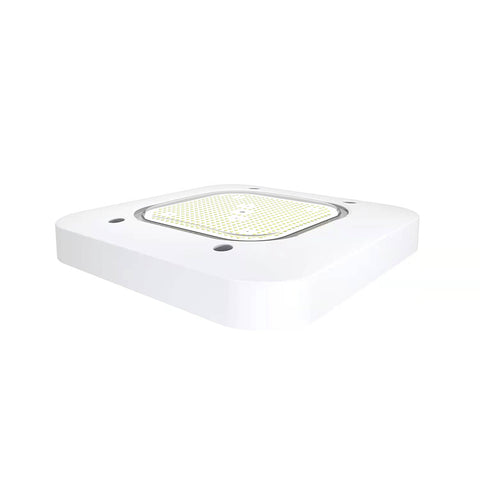

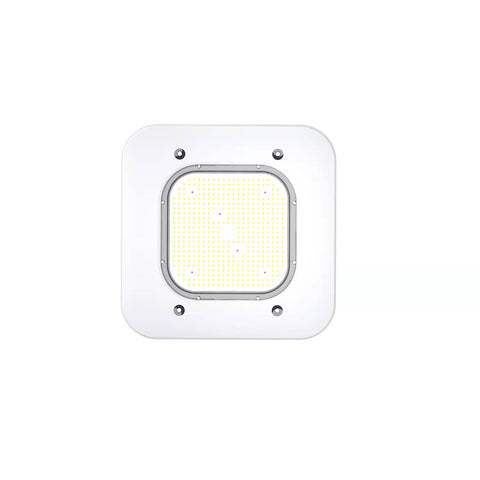

Yale 2nd Gen | LED Petroleum Canopy Light
Contact us for volume pricing or become a trade partner.
Product Description
The Yale 2nd Gen Led Petroleum Canopy Light from Beyond LED Technology is engineered for fuel stations, commercial canopies, transportation facilities, and other covered outdoor environments where dependable illumination is critical. Its high-output LED platform and wide light distribution help create bright, uniform coverage that improves visibility and safety beneath canopies. Constructed with a durable die-cast aluminum housing and IP65-rated protection, this fixture is built to withstand demanding operating conditions. Integrated surge protection, premium Lumileds LEDs, and 0-10V dimming capability make it a reliable solution for both retrofit projects and new commercial lighting installations.
Key Features
- Produces 22,290 lumens of output
- Up to 146 lumens per watt efficacy
- Fixed 5700K color temperature
- Wide 120° light spread
- 0-10V dimmable
- Premium Lumileds SMD2835 LEDs
- TOSMART LED driver
- Integrated 4KV surge protection

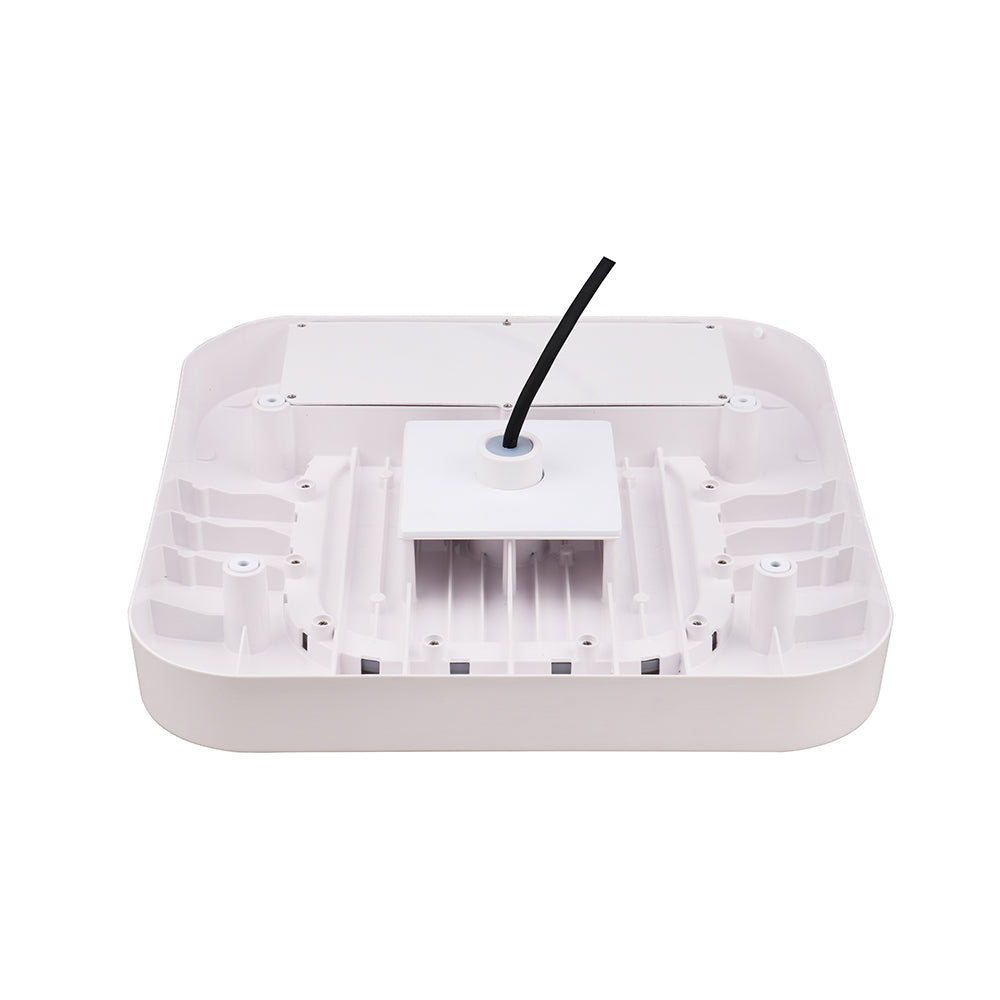

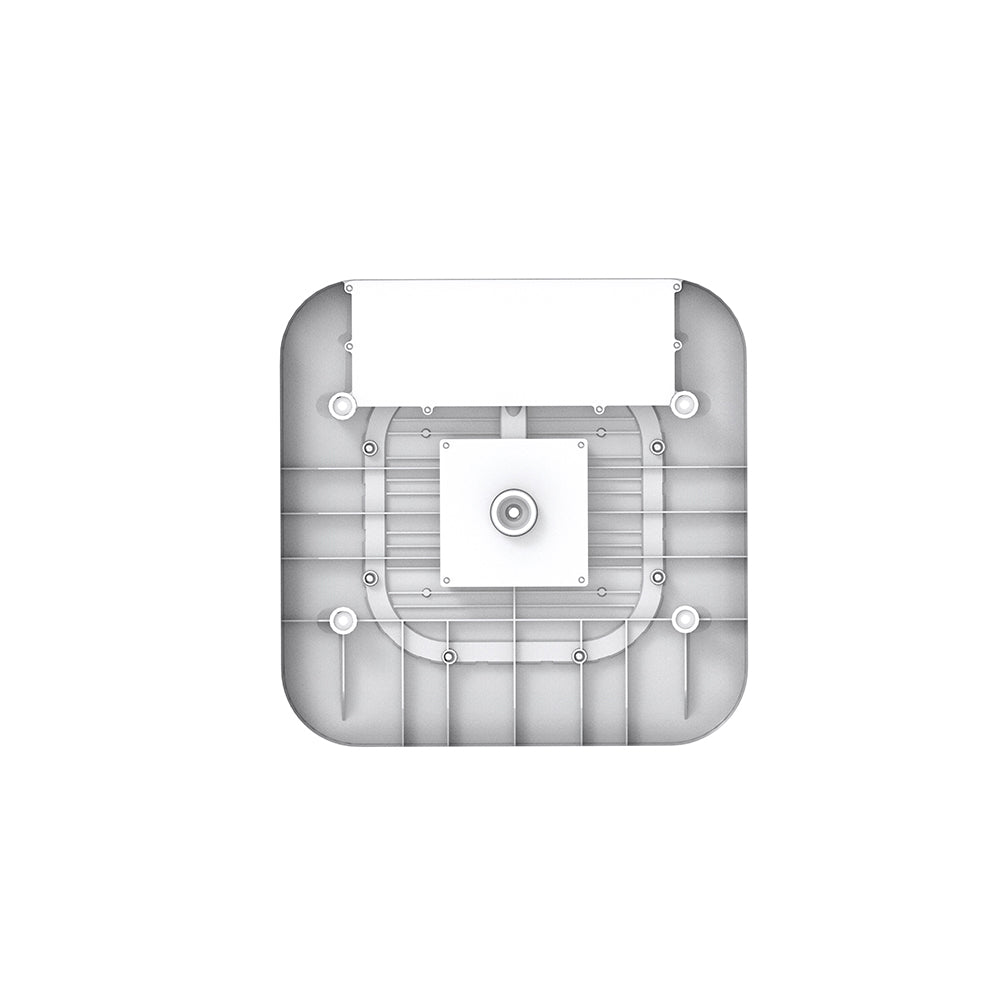

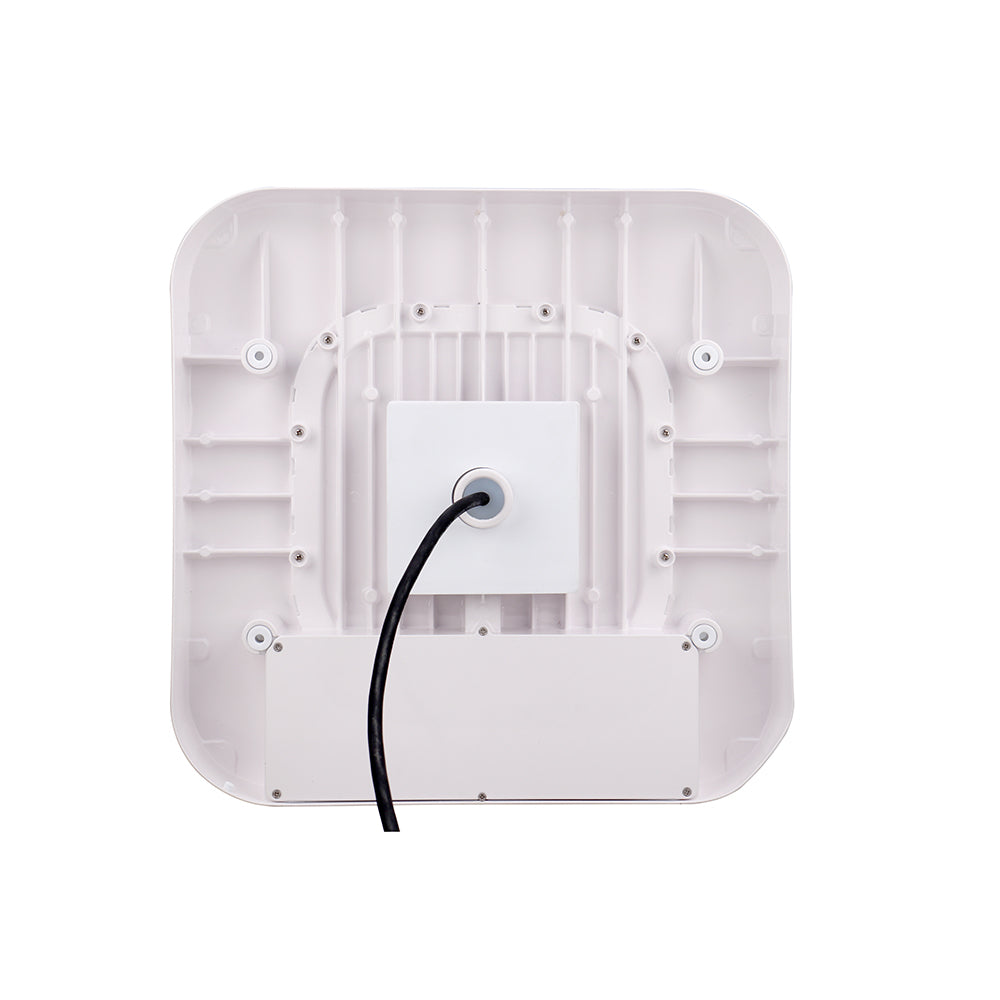

- Die-cast aluminum housing construction
- White housing finish
- Input voltage range of 120-277VAC
- UL & DLC listed
Applications
Specifications
| SKU | 155386 |
| Wattage | 150W |
| CCT | 5700K |
| Lumens | 22290Lm |
| Input Voltage | 120V-277V |
| CRI | >80 |
| Lumen Efficacy | Up to 146 lm/W |
| Power Factor | ≥0.9 |
| PCS/BOX | 1 PC/BOX |
| Light Spread | 120° |
| Dimming | 0-10V |
| IP Rating | IP65 |
| Certification | UL & DLC Listed |
| Warranty | 5 Years |
