Yonah 3rd Gen | LED Linkable Integrated Tube
Yonah 3rd Gen | LED Linkable Integrated Tube
Yonah 3rd Gen | LED Linkable Integrated Tube
Yonah 3rd Gen | LED Linkable Integrated Tube
Yonah 3rd Gen | LED Linkable Integrated Tube
Yonah 3rd Gen | LED Linkable Integrated Tube
Yonah 3rd Gen | LED Linkable Integrated Tube

Yonah 3rd Gen | LED Linkable Integrated Tube

Adj Watt 40W/45W/48W/52W/56W/60W · 8,400 Lumens · Adj CCT 3K/3500K/4K/5K/6K/6500K · 8ft · Strip Lens

Watt: 40W/45W/48W/52W/56W/60W Lumens: 8400Lm CCT: 3K/3500K/4K/5K/6K/6500K Rating: ETL Listed
★★★★★ 4.8 · 42 reviews
Pack of
MSRP: $54.95
PRICE PER PIECE
$47.95
You save $7.00
Contractor, distributor, or reseller? Log in for trade pricing »
Min order: 6 per box
×

The product SKU is: 157061

✓ Free shipping on all Orders
✓ Ships from Stone Mountain, GA — most orders ship in 1 business day
✓ 30-day returns · 5-year warranty · ETL Listed
Want to Buy in bulk ?

Contact us for volume pricing or become a trade partner.

Contact Team Become Partner

Product Description

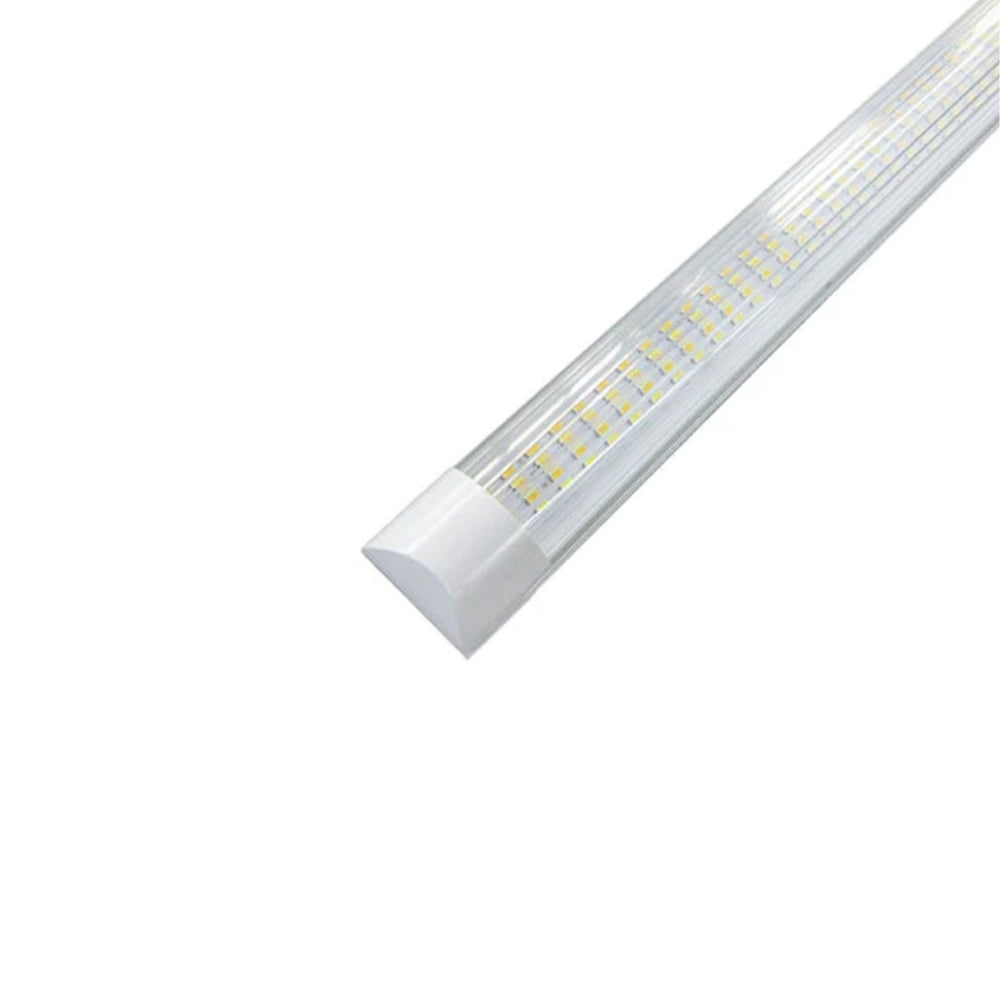

Beyond LED Technology's Yonah 3rd Gen Strip Lens delivers the same 180° near-omnidirectional output and full six-step wattage and CCT configurability as the other Yonah variants, with a strip lens that creates a linear, elongated light pattern along the tube length. This makes it the preferred specification for aisle lighting, shelving illumination, and task-focused installations where directional linear coverage along a defined path is more effective than broad ambient diffusion. Standalone or linkable up to 200W at 120V on direct 100–277VAC line voltage, with aluminum and PC construction built for long-term commercial performance.

Key Features

  • Up to 140 lm/W efficiency
  • Adjustable wattage — field selectable
  • Adjustable CCT — field selectable
  • 180° beam angle
  • Strip lens — linear elongated light pattern
  • Linkable up to 200W at 120V
  • Standalone or linkable configuration
  • Direct line voltage operation
  • Aluminum + PC construction
  • White housing finish
  • Input voltage 100–277VAC
  • 5 years warranty

Applications

Distribution Centers Assembly Lines Commercial Workspaces Institutional Corridors Retail & Supermarkets Commercial Storages

Specifications

SKU 157061
Wattage 40W/45W/48W/52W/56W/60W
CCT 3K/3500K/4K/5K/6K/6500K
Lumens 8400Lm
Input Voltage 100-277Vac
CRI >80
Construction Aluminum + PC
Certification ETL Listed
Warranty 5 Years

Downloads

Spec Sheet PDF
LM80 Report PDF
LM79 Report PDF
IES File IES

Need help?

Talk to a lighting specialist about project pricing, photometrics, or custom requirements.

866-786-1117
sales@beyondledtechnology.com
— FAQ —

Frequently Asked Questions

Everything you need to know before specifying Yonah 3rd Gen | LED Linkable Integrated Tube into a lighting project.

What does a strip lens do differently from frosted or clear lenses?+
A strip lens concentrates and elongates the light pattern along the tube's length rather than distributing it broadly in all directions. This creates a more defined linear beam — effective for aisle lighting, shelf illumination, and task runs where directional coverage along a path matters more than wide ambient fill.
When is the strip lens the right choice over the frosted or clear versions?+
Choose the strip lens for retail aisles, warehouse rack runs, conveyor lines, and shelving illumination where a linear light pattern follows the aisle or shelf direction. The frosted version suits ambient office and commercial lighting; the clear version suits maximum brightness task environments.
Does the strip lens reduce total lumen output?+
No, lumen output remains at 8,400 lm. The strip lens redirects how light is distributed, not how much is produced. The elongated pattern concentrates output along the intended coverage path rather than spreading it broadly.
How does the wattage-based linking limit work on this variant?+
The Yonah links up to 200W total per run at 120V — at 40W per fixture that's up to 5 units; at 60W, up to 3 units. This applies consistently across all three lens variants.
Does the strip lens Yonah qualify for rebate programs?+
ETL listing qualifies it for many energy efficiency programs across the US. Confirming eligibility with your local utility before installation is recommended on larger commercial and retail projects.
How quickly does it ship and is trade pricing available? +
Most orders ship within one business day from Beyond LED Technology's Stone Mountain, Georgia warehouse. It ships in cases of 10, and approved trade partners through the Beyond LED Trade Partner Program receive factory-direct trade pricing and dedicated account support.
