BILLDA - Emergency LED Drivers

BILLDA - Emergency LED Drivers

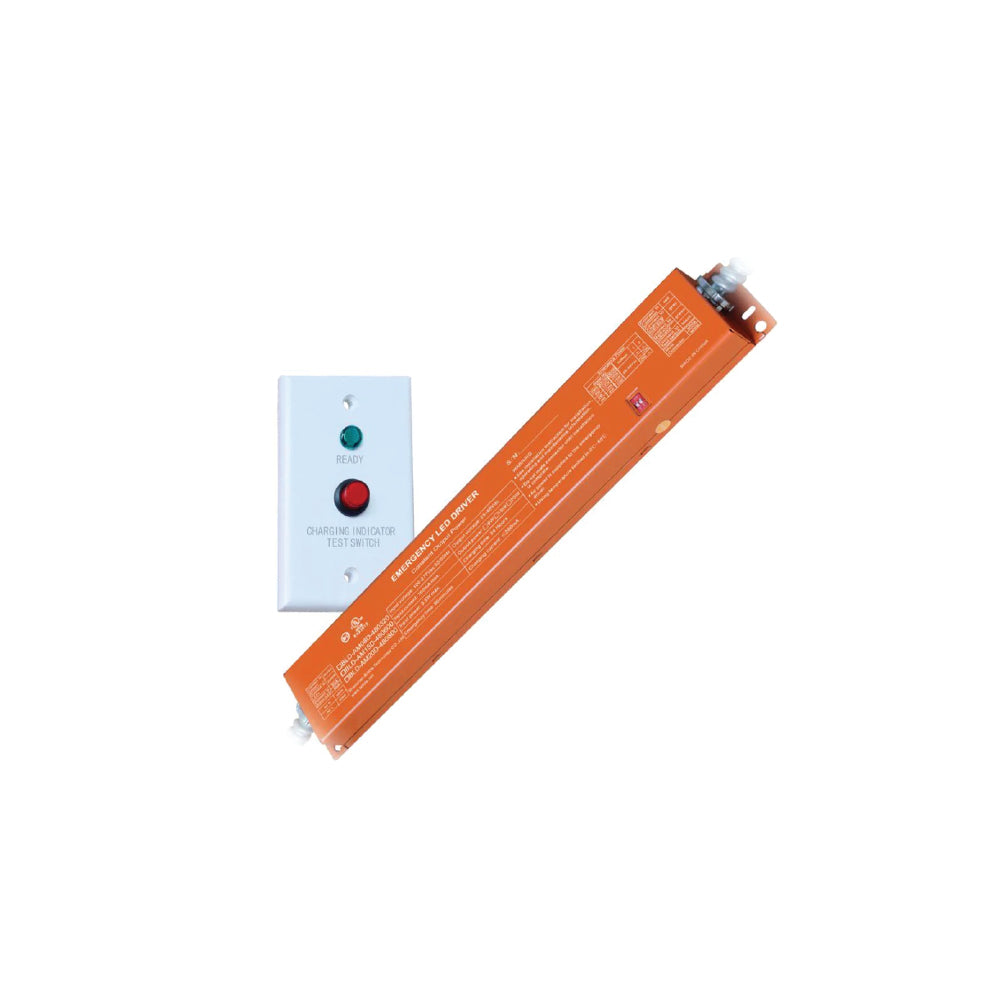

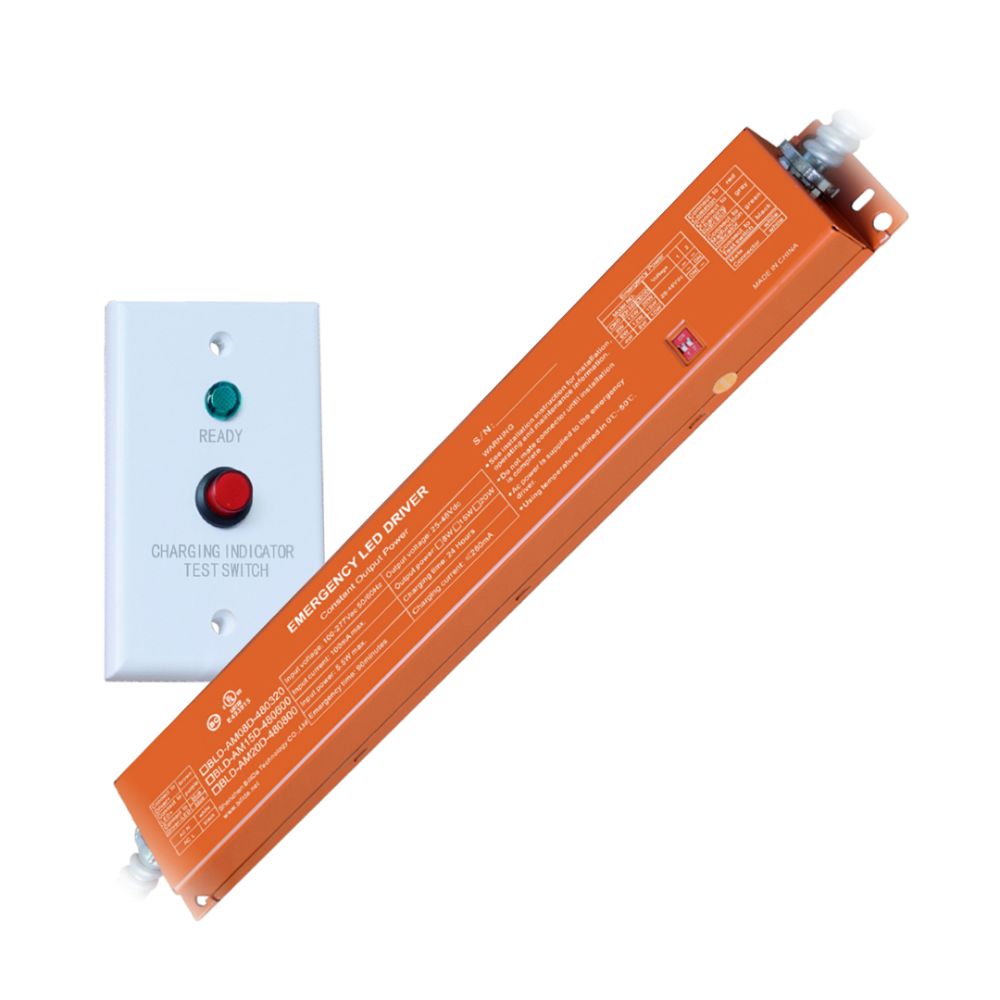

Beyond LED Technology’s BILLDA LED Emergency driver is the most innovative and feature-rich product of its kind. This new BILLDA version is specially designed for LED Panels, Troffers, Downlights, High Bay fixtures, and it’s also compatible with most indoor LED lighting fixtures. This new Billda driver offers multiple selectable emergency power options from 8W to 20W. This new Billda power will provide up to 90 minutes of backup power in case of a power failure.

  • Listed for field installation-UL924 & CSA C22.2 NO.141
  • Test Switch/Charging Indicator Light Low Voltage, illuminated Test Switch
  • Constant output power (Auto sensing output within each range)
  • Output Current & Voltage 320-600mA, 25V-48V
  • Battery protections include over voltage, low voltage, over temperature and short circuit protection
  • Temperature Rating (Ambient) 0°C to +50°C (32°F to 122°F)
  • RoHS compliant
  • AC Input Current 100mA max
  • AC Input Power Rating 5.5W max
  • Output Power 15W/20W max
  • Illumination Time 90 Minutes
  • Full Warranty 5 Years
  • Output LVLE Compliant
  • Input Voltage 100-347Vac
  • Battery High-Temperature, Maintenance-Free, Ni-MH battery, 5 Years Life Expectancy
  • Battery Charging Current 250mA
  • Recharge Time 24Hours
  • Meets CEC Title 20 (California Energy Commission) efficiency standards
SKU IMG Wattage Recharge Time Input Current Emergency Time Output Power Certification PCS/
BOX
Minimum QTY
To BUY
PRICE PER PIECE QTY Add to
Cart
156740

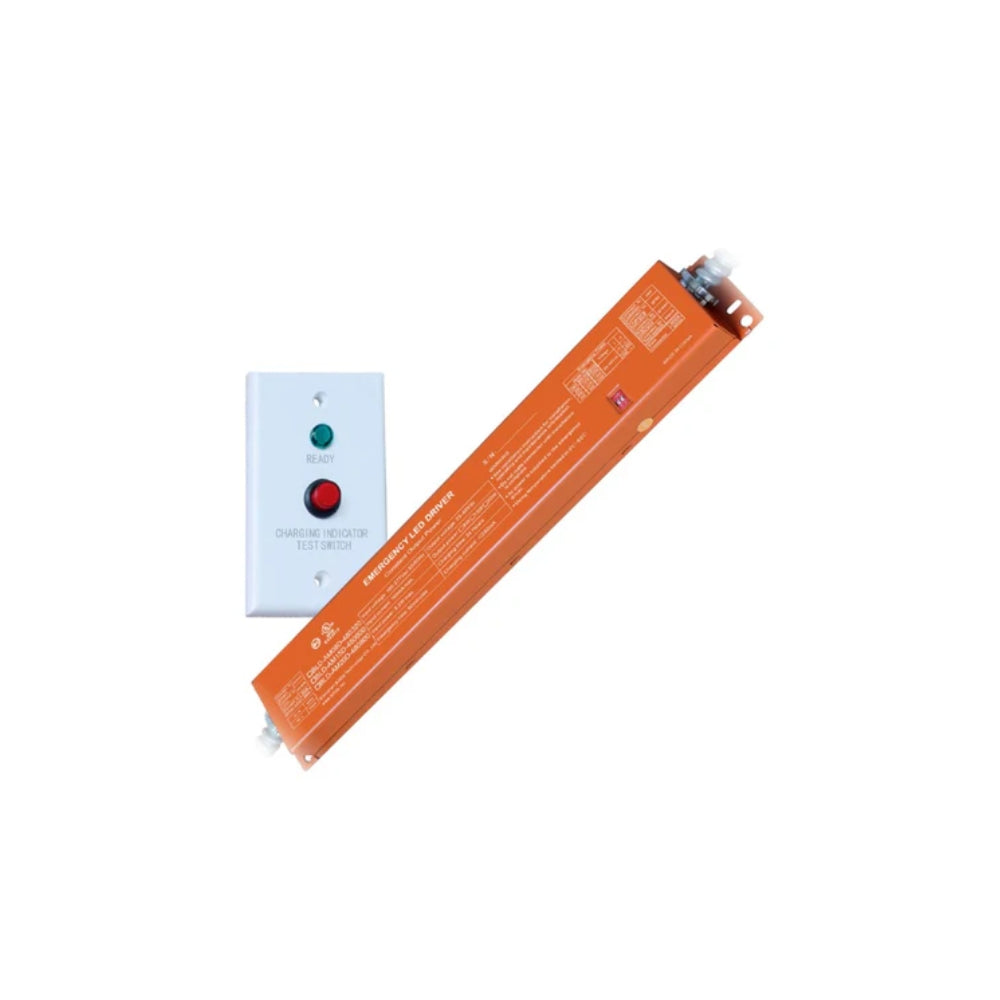

BILLDA | 15 Watt | Emergency Driver - Beyond LED Technology
15W 24Hours ≤100mA 90 Minutes 15W Max 2 UL Listed 1 PC/BOX 1
156690
BILLDA | Emergency Driver | 20 Watt - Beyond LED Technology
20W 24Hours ≤100mA 90 Minutes 20W Max 2 UL Listed 1 PC/BOX 1
BILLDA - Emergency LED Drivers

Beyond LED Technology’s BILLDA LED Emergency driver is the most innovative and feature-rich product of its kind. This new BILLDA version is specially designed for LED Panels, Troffers, Downlights, High Bay fixtures, and it’s also compatible with most indoor LED lighting fixtures. This new Billda driver offers multiple selectable emergency power options from 8W to 20W. This new Billda power will provide up to 90 minutes of backup power in case of a power failure.

  • Listed for field installation-UL924 & CSA C22.2 NO.141
  • Test Switch/Charging Indicator Light Low Voltage, illuminated Test Switch
  • Constant output power (Auto sensing output within each range)
  • Output Current & Voltage 320-600mA, 25V-48V
  • Battery protections include over voltage, low voltage, over temperature and short circuit protection
  • Temperature Rating (Ambient) 0°C to +50°C (32°F to 122°F)
  • RoHS compliant
  • AC Input Current 100mA max
  • AC Input Power Rating 5.5W max
  • Output Power 15W/20W max
  • Illumination Time 90 Minutes
  • Full Warranty 5 Years
  • Output LVLE Compliant
  • Input Voltage 100-347Vac
  • Battery High-Temperature, Maintenance-Free, Ni-MH battery, 5 Years Life Expectancy
  • Battery Charging Current 250mA
  • Recharge Time 24Hours
  • Meets CEC Title 20 (California Energy Commission) efficiency standards
