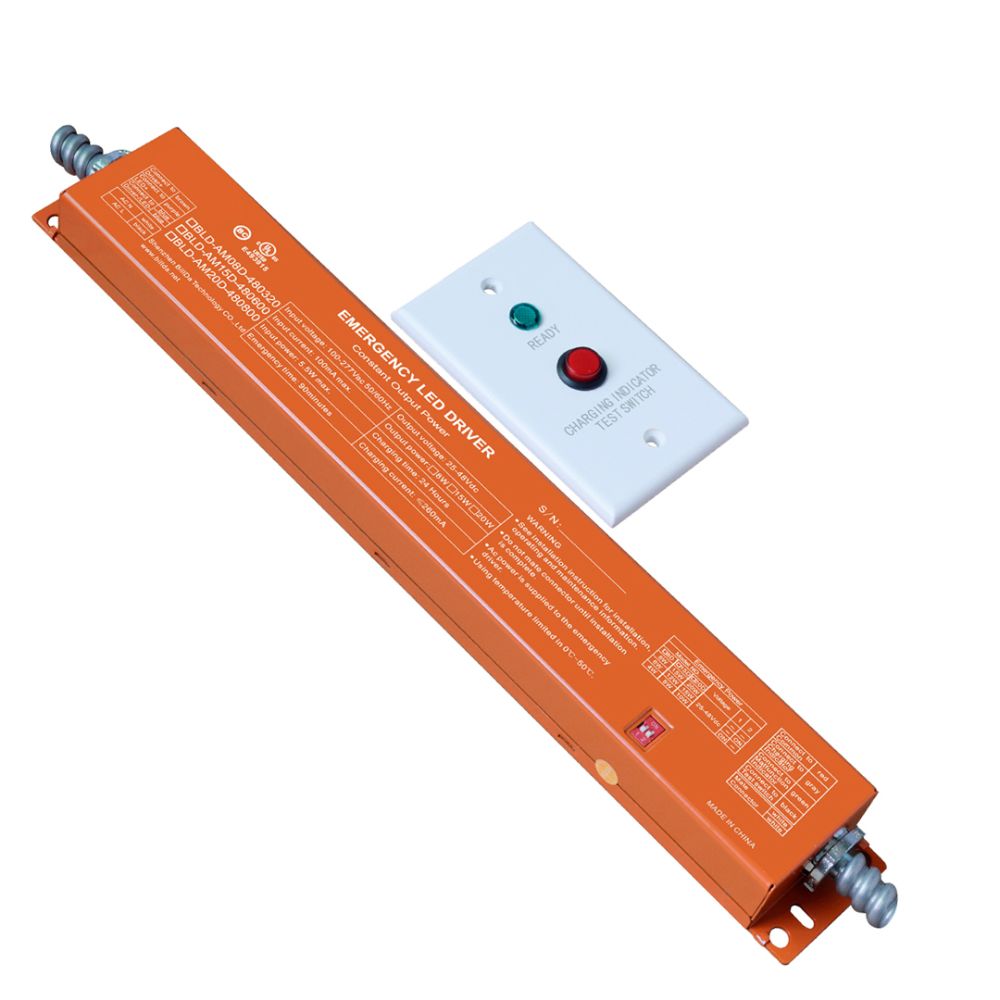

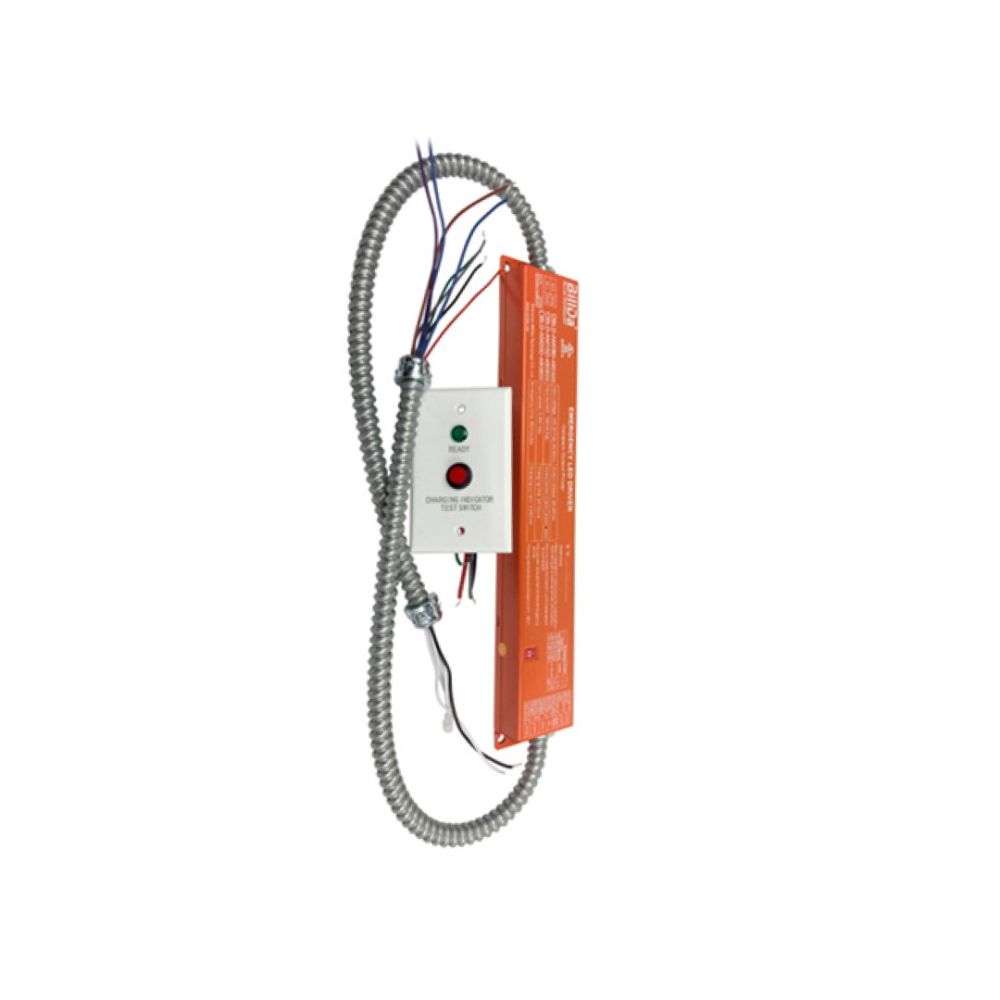

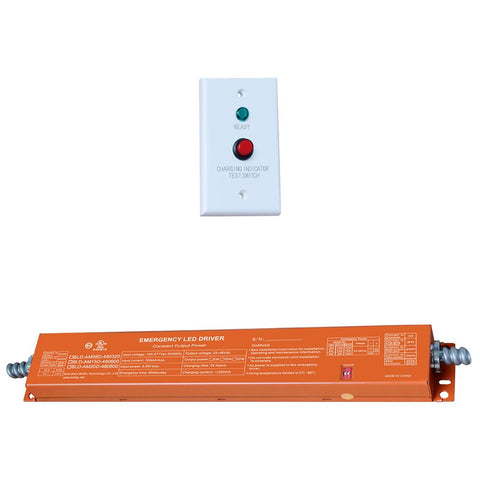

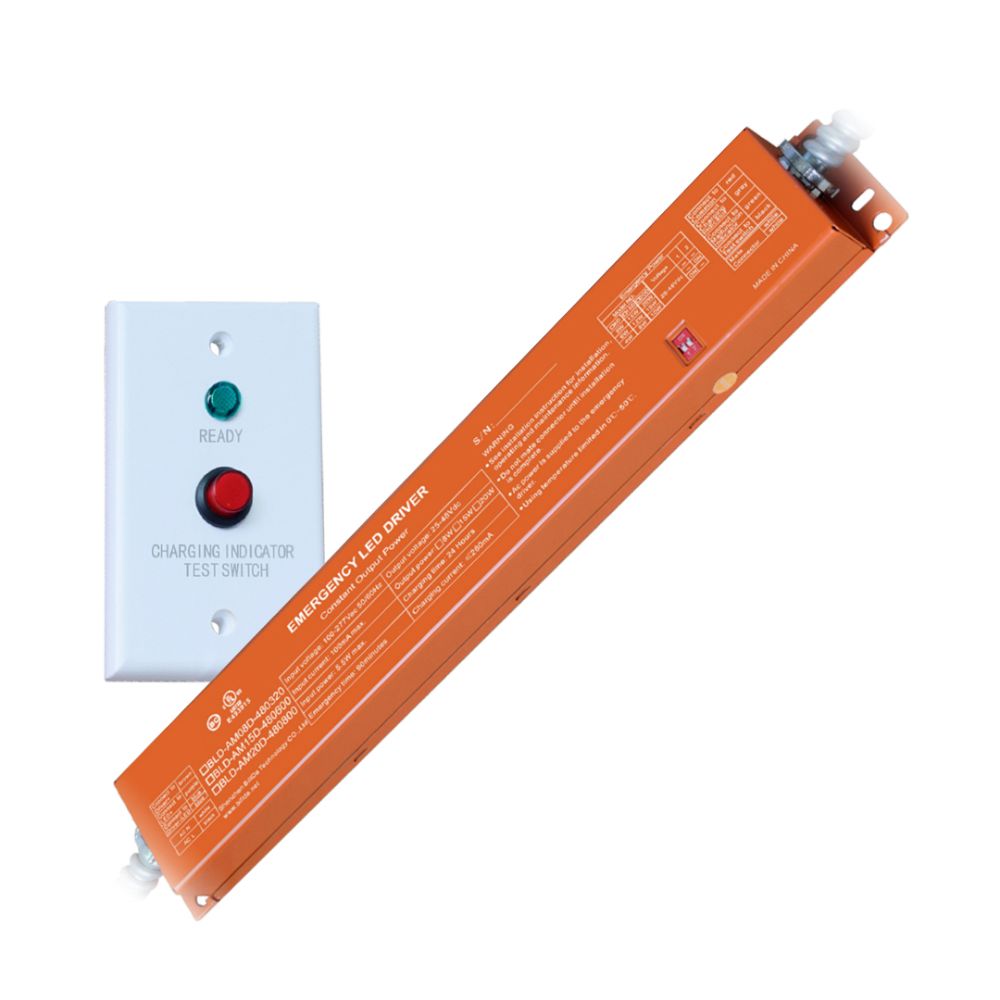

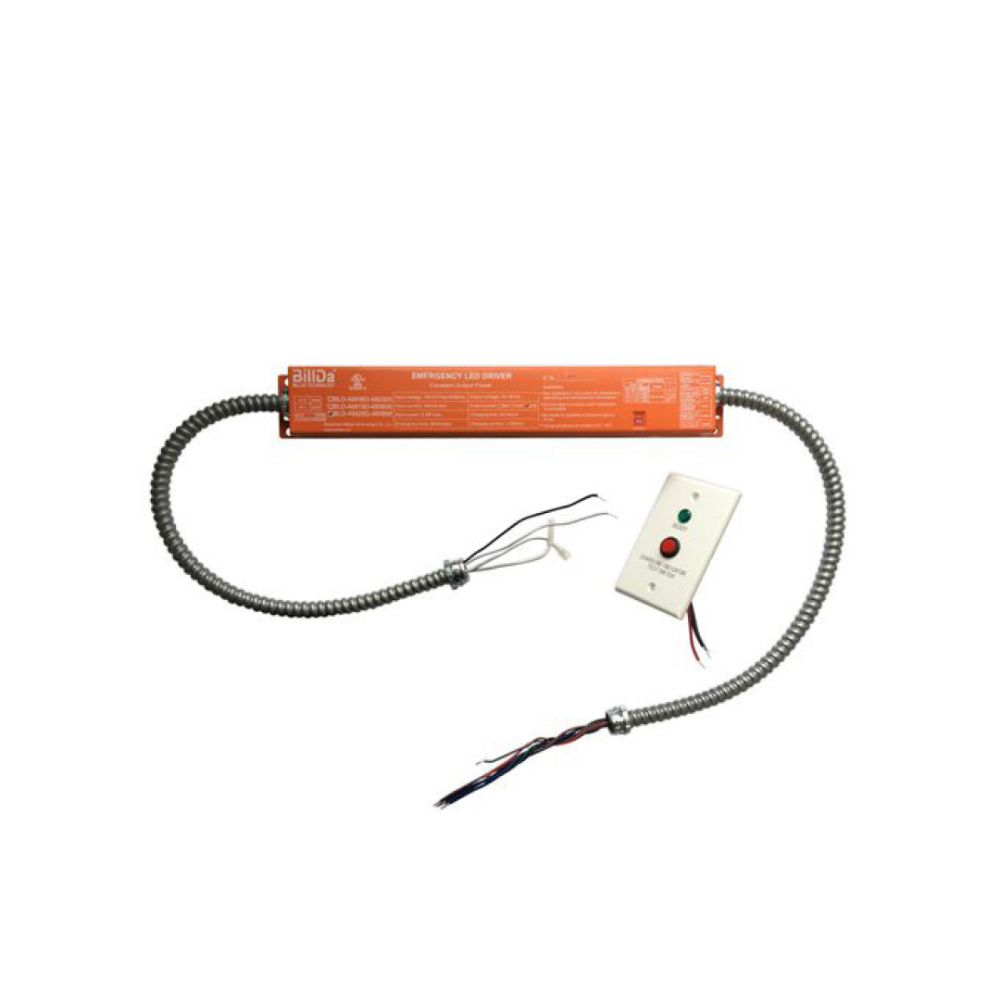

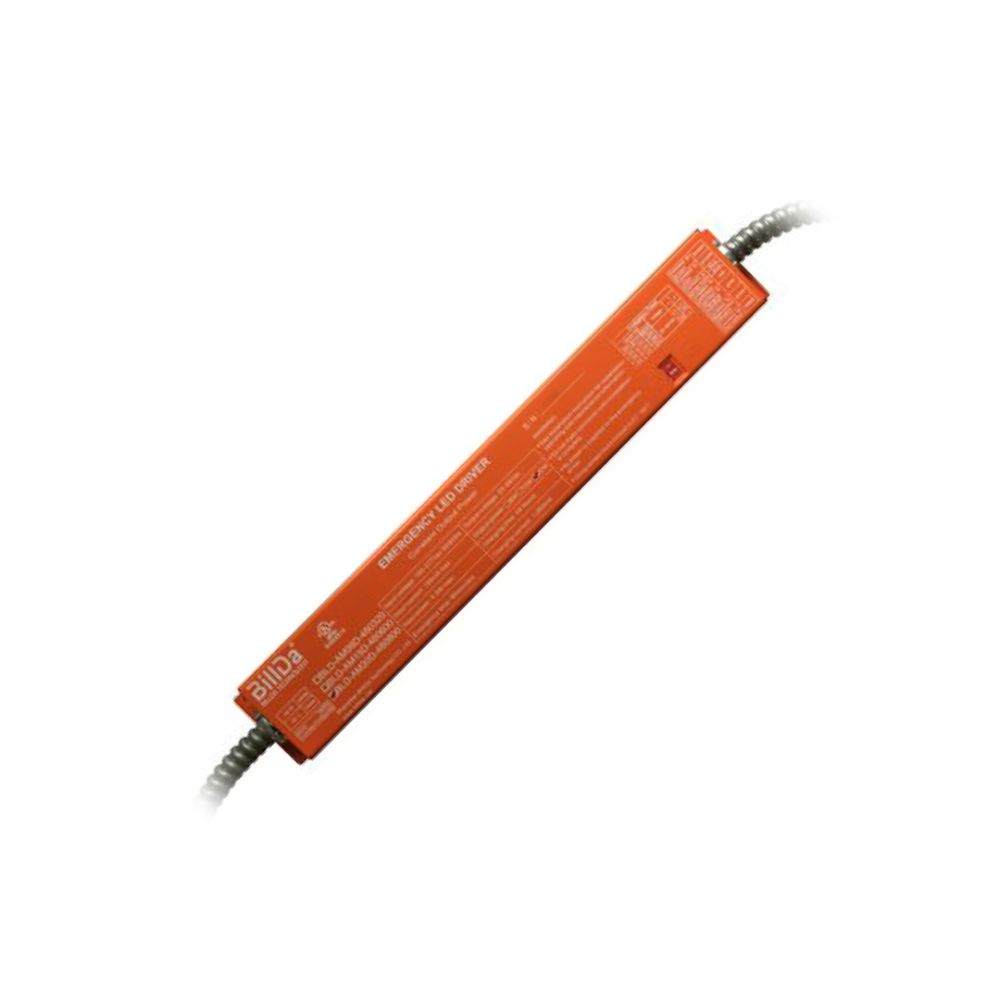

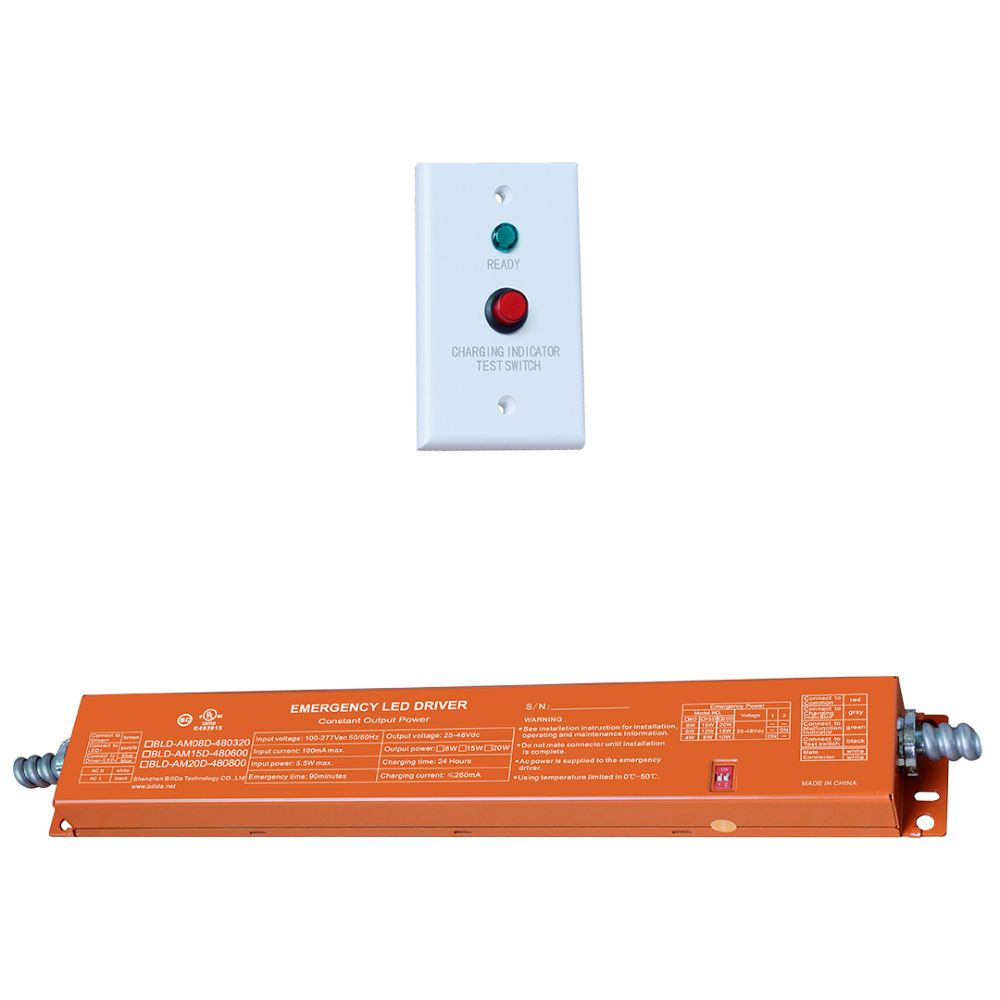

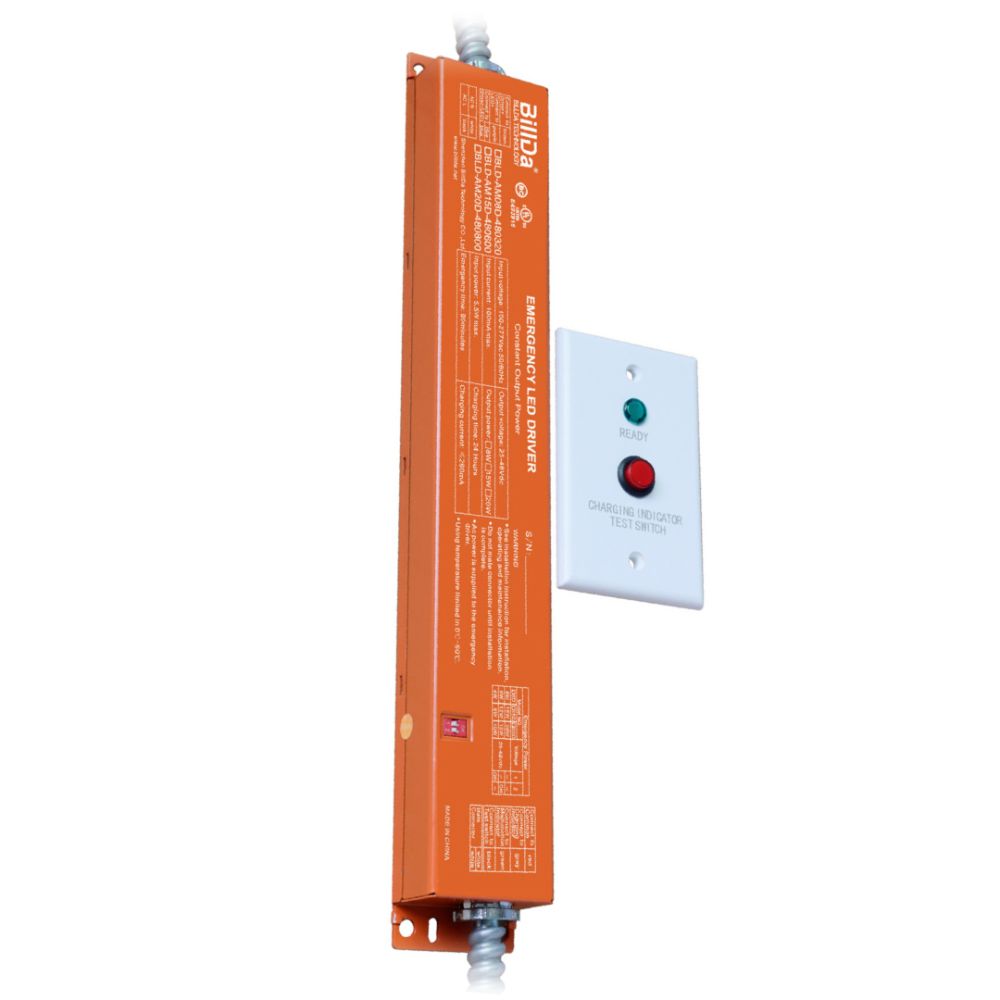

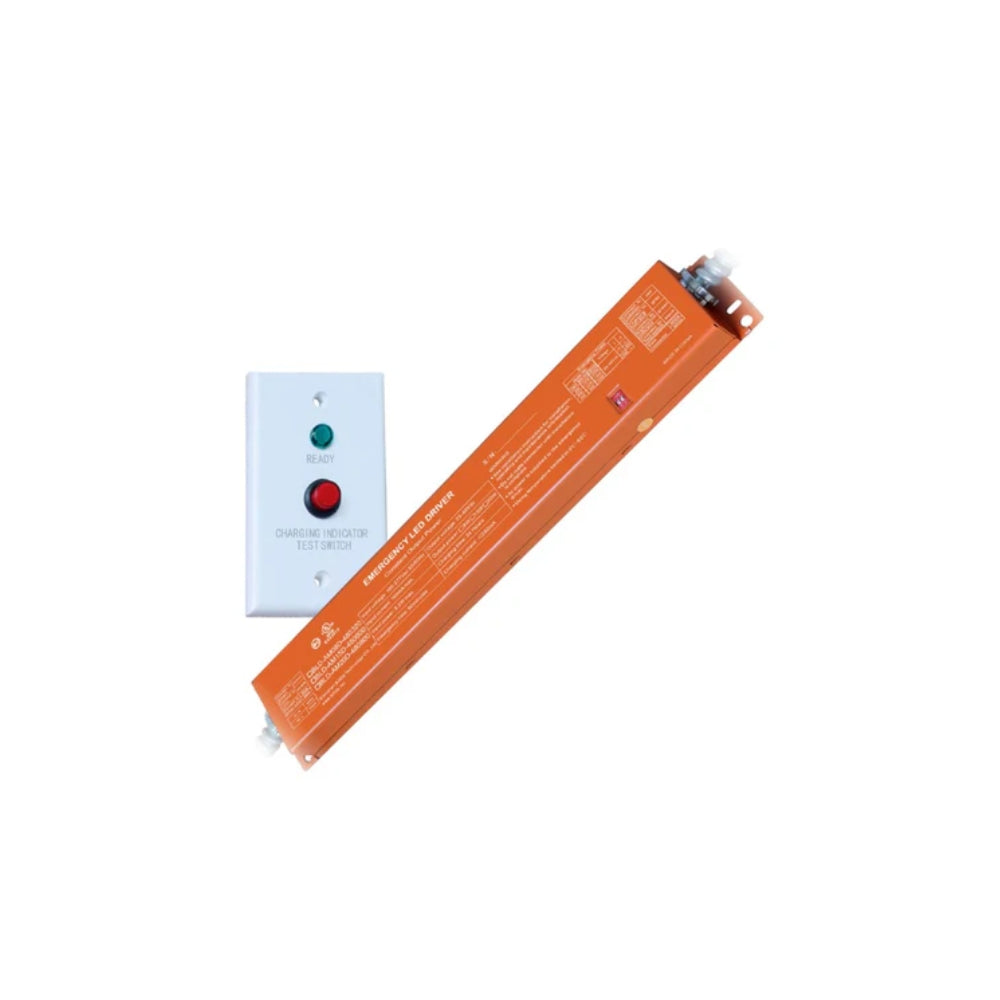

BILLDA | Emergency Driver | 15 Watt | UL Listed

BILLDA | 15 Watt | Emergency Driver - Beyond LED Technology
  • UL924 and CSA C22.2 NO.141 listed
  • Low voltage, illuminated test switch
  • Auto-sensing constant output power
  • Output: 320-600mA, 25V-48V
  • Protections: Over-voltage, low voltage, over-temperature, short circuit
  • Temperature range: 0°C to +50°C (32°F to 122°F)
  • RoHS compliant
  • Max AC input current: 100mA
  • Max AC input power: 5.5W
  • Max output power: 15W/20W
  • Illumination time: 90 minutes
  • 5 years warranty
  • Universal input: 100-347Vac
  • High-temperature, maintenance-free Ni-MH battery (5-year life)
  • Battery charging current: 250mA
  • Recharge time: 24 hours
  • Meets CEC Title 20 efficiency standards
SKU Wattage Recharge Time Input Current Emergency Time Output Power Certification PCS/
BOX
Minimum QTY
To BUY
PRICE PER PIECE QTY IN STOCK
SHIPS TODAY
156740 15W 24Hours ≤100mA 90 Minutes 15W Max 2 UL Listed 1 PC/BOX 1 login to see prices

Beyond LED's Billda Technology LED Emergency Driver is the most innovative and feature-rich product of its kind. The 2020 Billda version is designed for LED Panels, Troffers, Downlights, and High Bay fixtures, and is compatible with most indoor LED lighting. This driver offers multiple selectable emergency power options from 8W to 20W and provides up to 90 minutes of backup power during a power failure.

  • UL924 and CSA C22.2 NO.141 listed
  • Low voltage, illuminated test switch
  • Auto-sensing constant output power
  • Output: 320-600mA, 25V-48V
  • Protections: Over-voltage, low voltage, over-temperature, short circuit
  • Temperature range: 0°C to +50°C (32°F to 122°F)
  • RoHS compliant
  • Max AC input current: 100mA
  • Max AC input power: 5.5W
  • Max output power: 15W/20W
  • Illumination time: 90 minutes
  • 5 years warranty
  • Universal input: 100-347Vac
  • High-temperature, maintenance-free Ni-MH battery (5-year life)
  • Battery charging current: 250mA
  • Recharge time: 24 hours
  • Meets CEC Title 20 efficiency standards
