Product Description

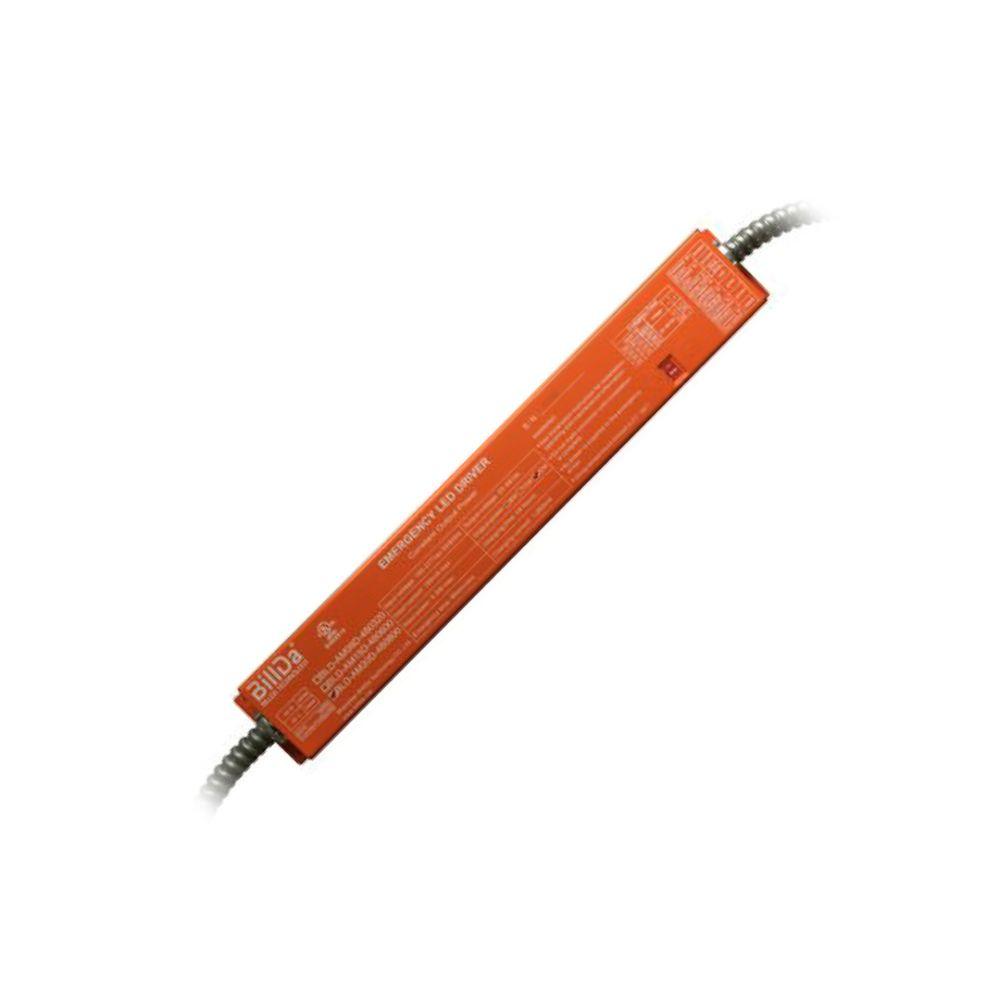

When emergency lighting coverage needs to reach farther, the Billda 20W steps up. Beyond LED Technology's 20W emergency LED driver retrofits into existing panels, troffers, downlights, and high bay fixtures — no fixture replacement, no rewiring. It sustains a minimum 90 minutes of backup illumination across a 100–347VAC input range, covering standard and high-voltage commercial circuits equally. The maintenance-free Ni-MH battery carries a 5-year life expectancy, protected against over-voltage, low-voltage, over-temperature, and short-circuit conditions. UL 924 listed, CSA C22.2 No.141 certified, RoHS compliant, and CEC Title 20 rated for California compliance.
Key Features
- 90-minute minimum emergency backup illumination
- Input voltage: 100–347VAC
- Output power: 20W max
- Output current and voltage: 320–600mA / 25V–48V
- Ni-MH battery — 5-year life expectancy
- Recharge time: 24 hours
- Battery protections

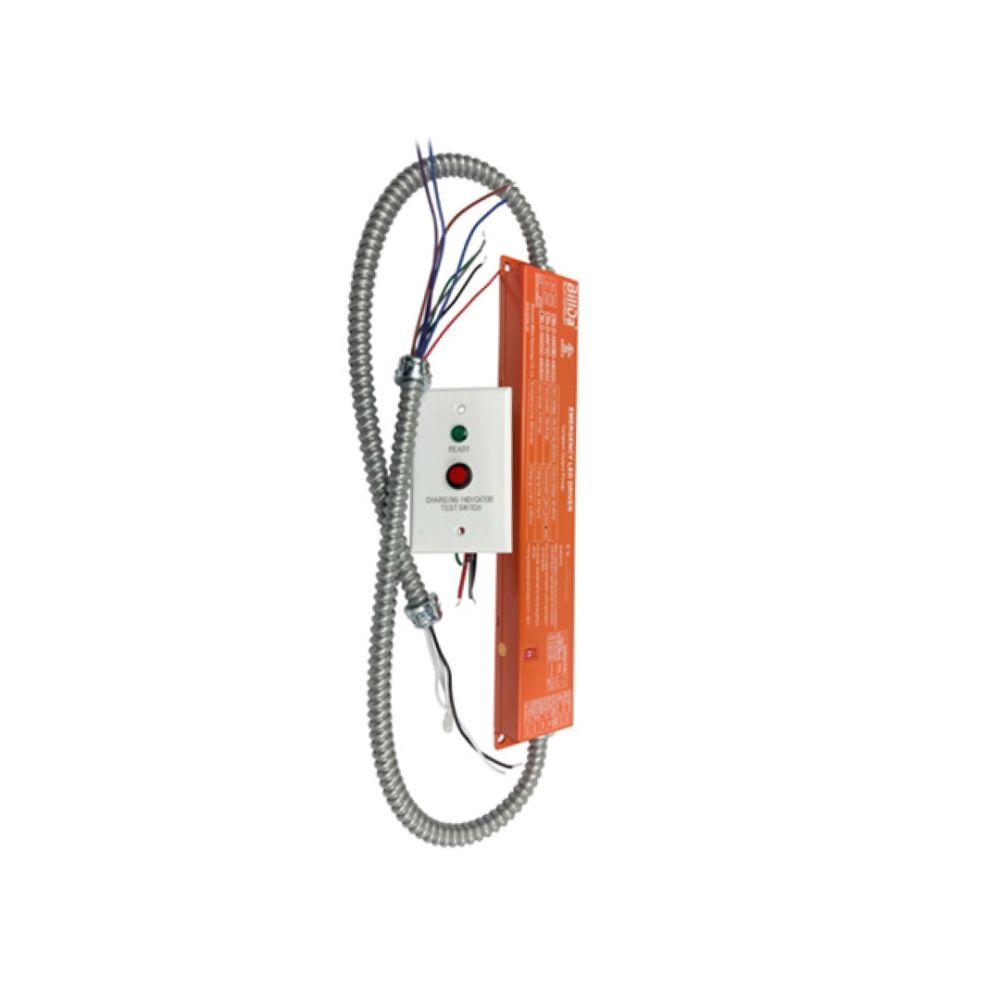

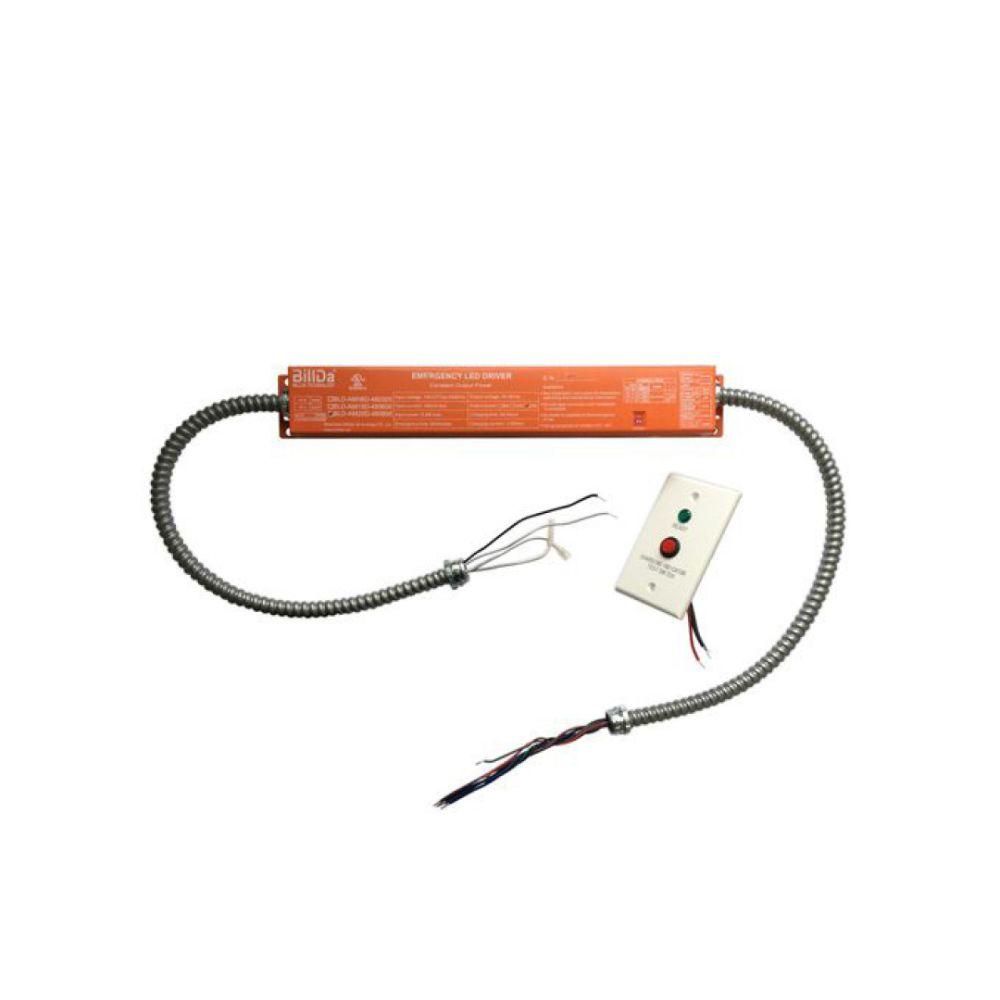

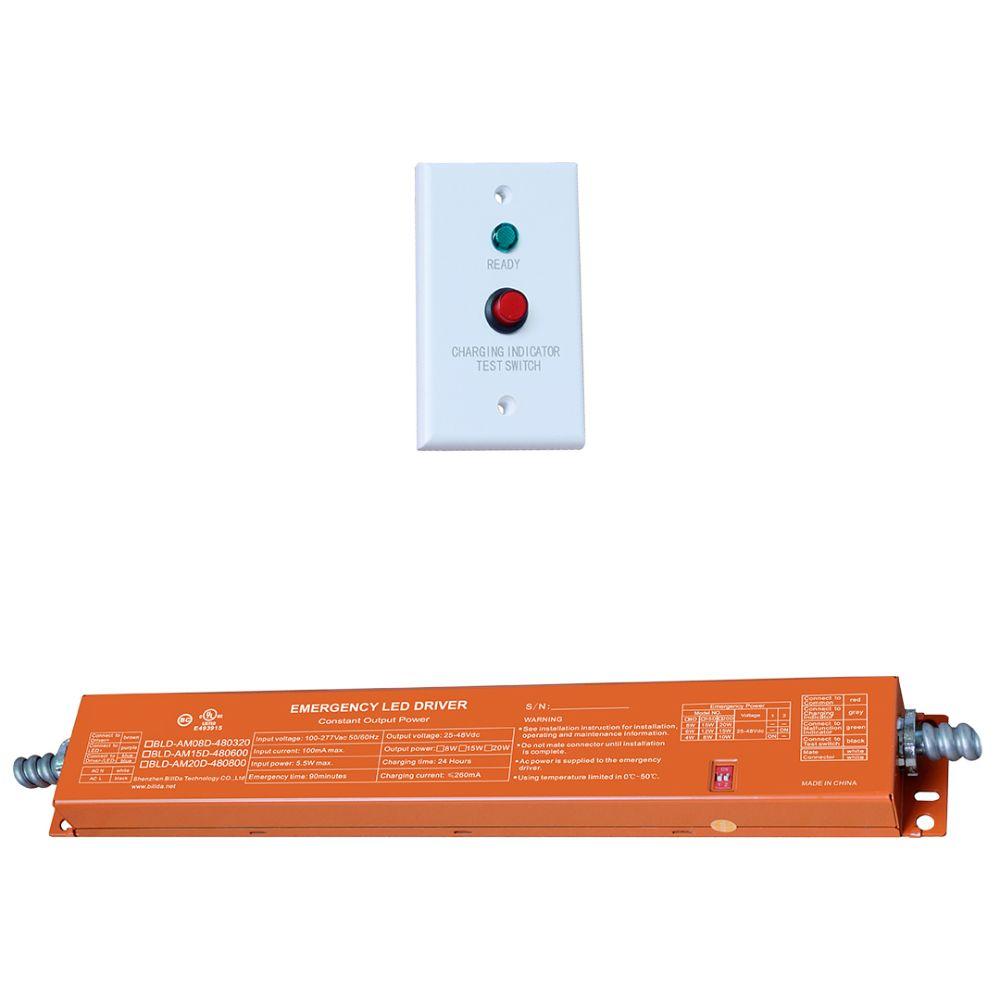

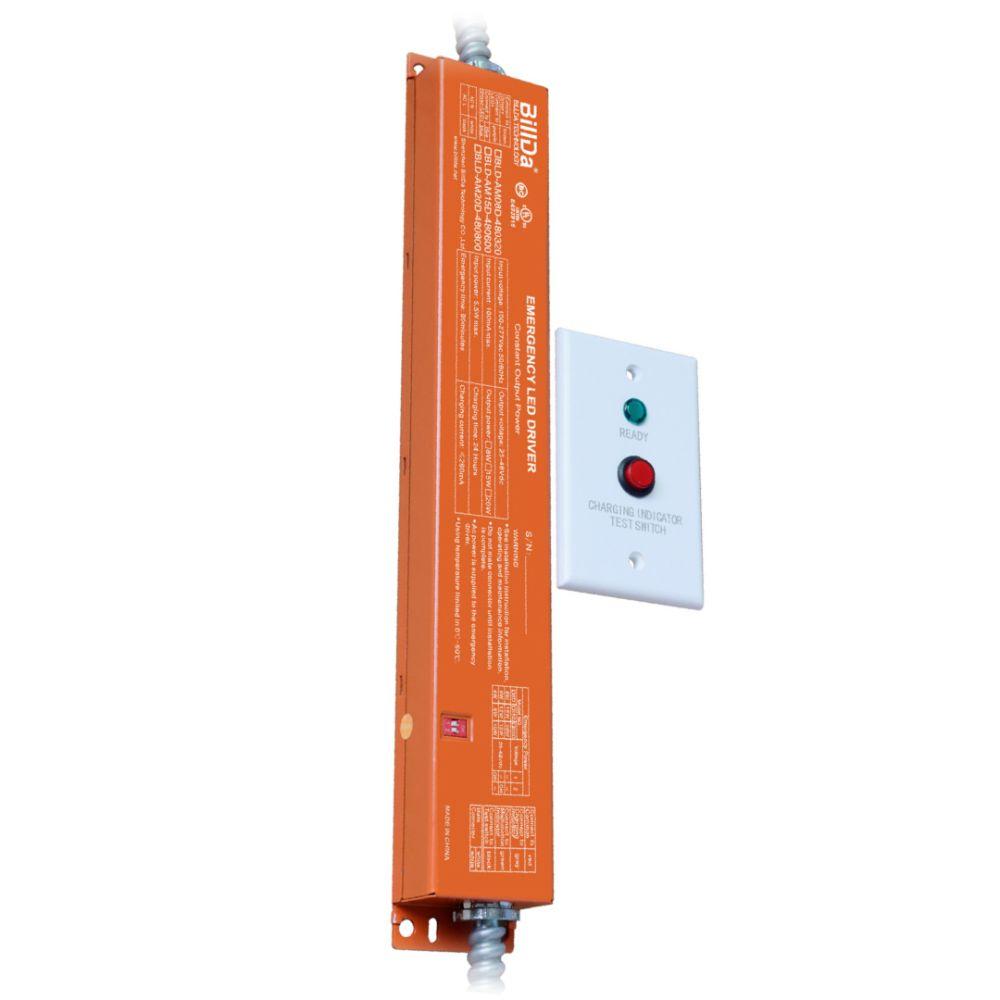

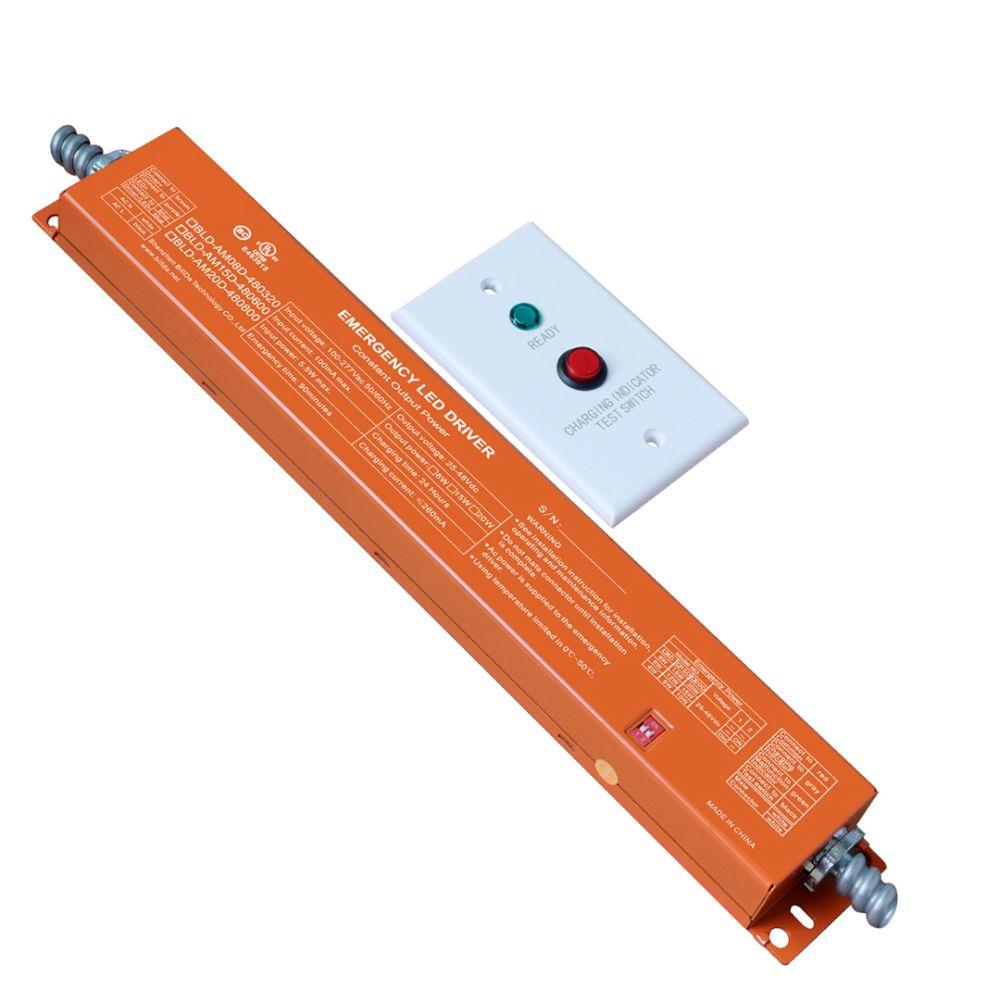

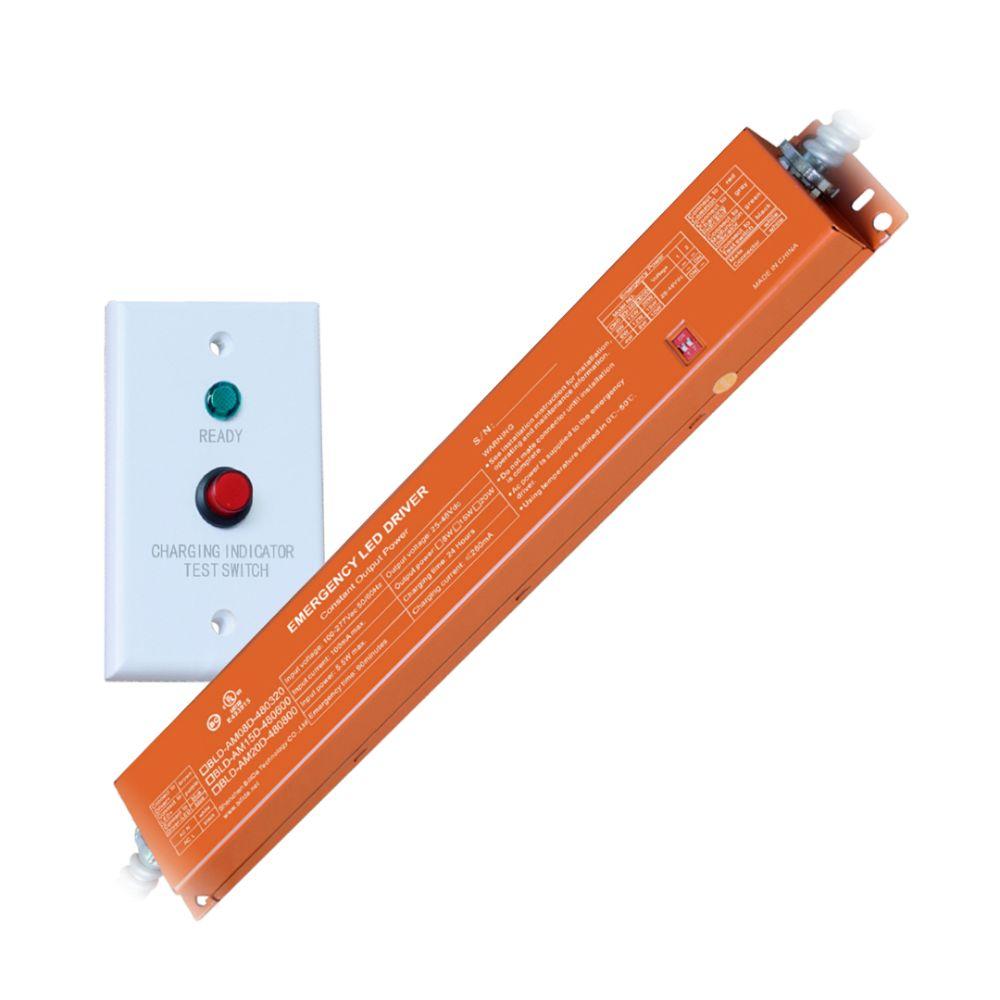

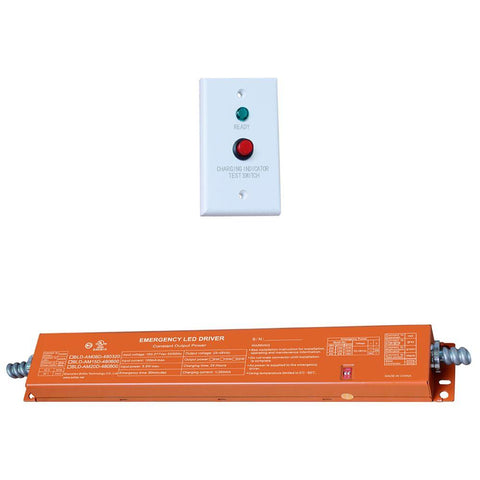

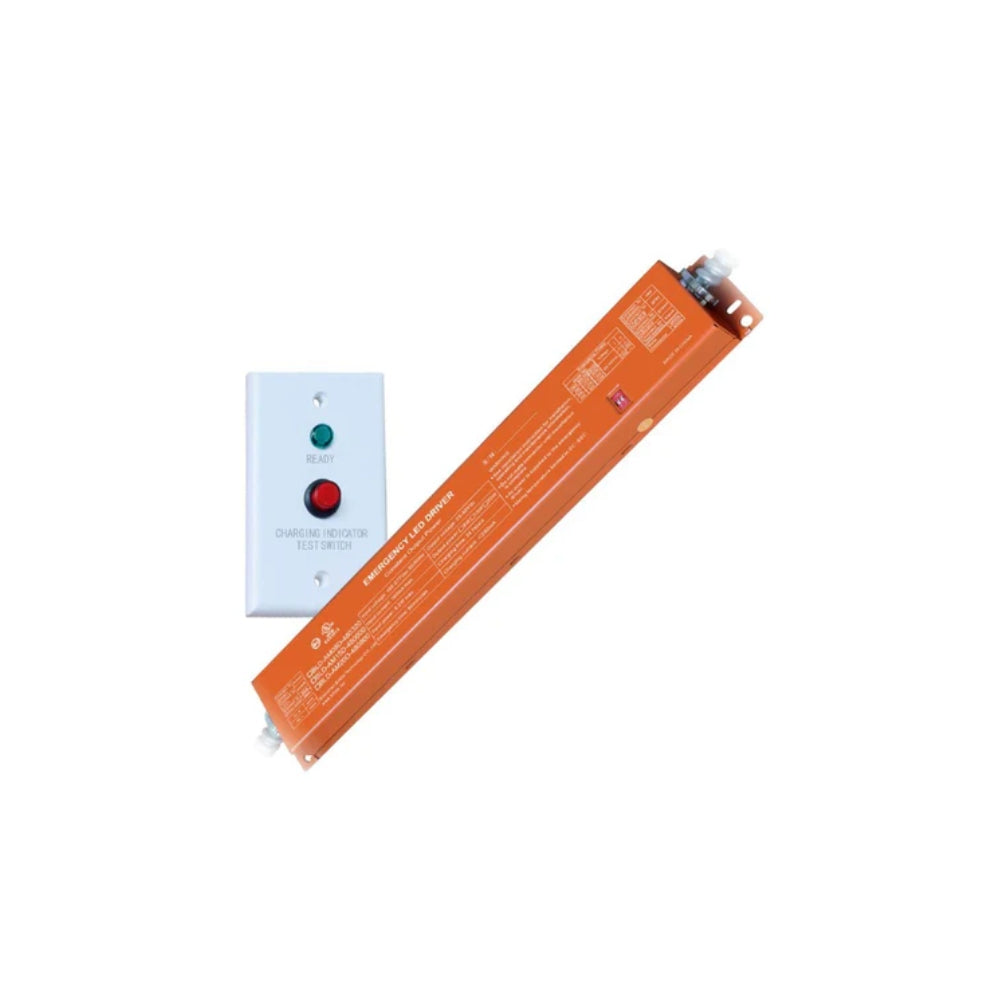

- Illuminated test switch and charging indicator
- Field-installable — no fixture replacement required
- UL 924 and CSA C22.2 No.141 listed
- RoHS compliant, CEC Title 20 certified
- PCS/Box: 10
Applications
Specifications
| SKU | 156690 |
| Wattage | 20W |
| Input Voltage | NA |
| PCS/BOX | 10 PC/BOX |
| Input Current | ≤100mA |
| Output Current/Voltage | 320–600mA / 25V–48V |
| Emergency Time | ≥90 Minutes |
| RoHS | Compliant |
| Certification | UL Listed |
| Warranty | 5 Years |
