HD5 - LED Sign Modules
Beyond LED Technology HD5 LED modules are high quality and specially designed for new construction or retrofit of small, medium size channel letters. Available in Bright white, Green, Red, Blue and RGB, as well as an array of wattages. HD modules are easily customized to meet any customer specification. Installation with double-sided VHB 3M tape ensures these modules will stand the test of time. An IP68, ultrasonically welded body also guarantees water resistance in signage applications.
- High lumens per watt
- 180 degree beam angle (on certain models)
- Polycarbonate lens
- IP68 Waterproof Rated
- 12V DC input
- Made in Korea
- 5 years warranty
| SKU | Wattage | Lumens | CCT | Input Voltage |
Color | Size | LED Type | Certification | PCS/ BOX |
Minimum QTY To BUY |
PRICE PER PIECE | QTY | Add to Cart |
| 107185 | 1.1W | 110Lm | 10000K | 12Vac | White | 25’ | Samsung | CE & ROHS Listed | 50 PCS/BOX | 50 | login to see prices | ||
| 107193 | 1.1W | 132Lm | 6500K | 12V DC | White | 25’ | Samsung | CE & ROHS Listed | 50 PCS/BOX | 50 | login to see prices | ||
| 154314 | 1W | 132Lm | 3000K | 12V | Warm White | 25' | Samsung | UL Listed | 50 PCS/BOX | 50 | login to see prices | ||
| 107441 | 0.72W | 66Lm | N/A | 12Vac | Blue | 25’ | Epistar | CE & ROHS Listed | 50 PCS/BOX | 50 | login to see prices | ||
| 107433 | 0.72W | 66Lm | N/A | 12Vac | Green | 25’ | Epistar | CE & ROHS Listed | 50 PCS/BOX | 50 | login to see prices | ||
| 107417 | 0.72W | N/A | N/A | 12Vac | RGB | 25’ | Epistar | CE & ROHS Listed | 50 PCS/BOX | 50 | login to see prices | ||
| 101733 | 0.72W | 66Lm | N/A | 12Vac | Green | 25’ | Epistar | CE & ROHS Listed | 50 PCS/BOX | 50 | login to see prices | ||
Optional Accessories
| SKU | Title | PCS/ BOX |
Minimum QTY To BUY |
PRICE PER PIECE | QTY | Add to Cart |
||

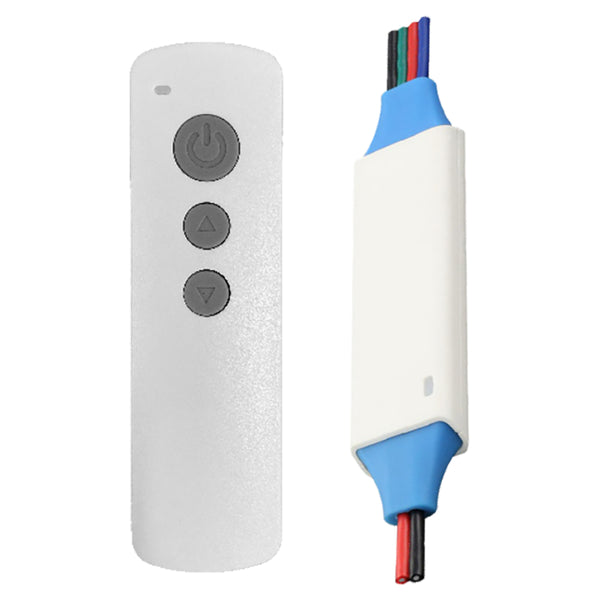

| 101717 | LED RGB Controller Wireless Bluetooth With Remote | 1 PC/BOX | 1 | login to see prices | ||||
| 101683 | LED RGB Controller With Remote | 1 PC/BOX | 1 | login to see prices | ||||
Optional Accessories
Beyond LED Technology HD5 LED modules are high quality and specially designed for new construction or retrofit of small, medium size channel letters. Available in Bright white, Green, Red, Blue and RGB, as well as an array of wattages. HD modules are easily customized to meet any customer specification. Installation with double-sided VHB 3M tape ensures these modules will stand the test of time. An IP68, ultrasonically welded body also guarantees water resistance in signage applications.
- High lumens per watt
- 180 degree beam angle (on certain models)
- Polycarbonate lens
- IP68 Waterproof Rated
- 12V DC input
- Made in Korea
- 5 years warranty
