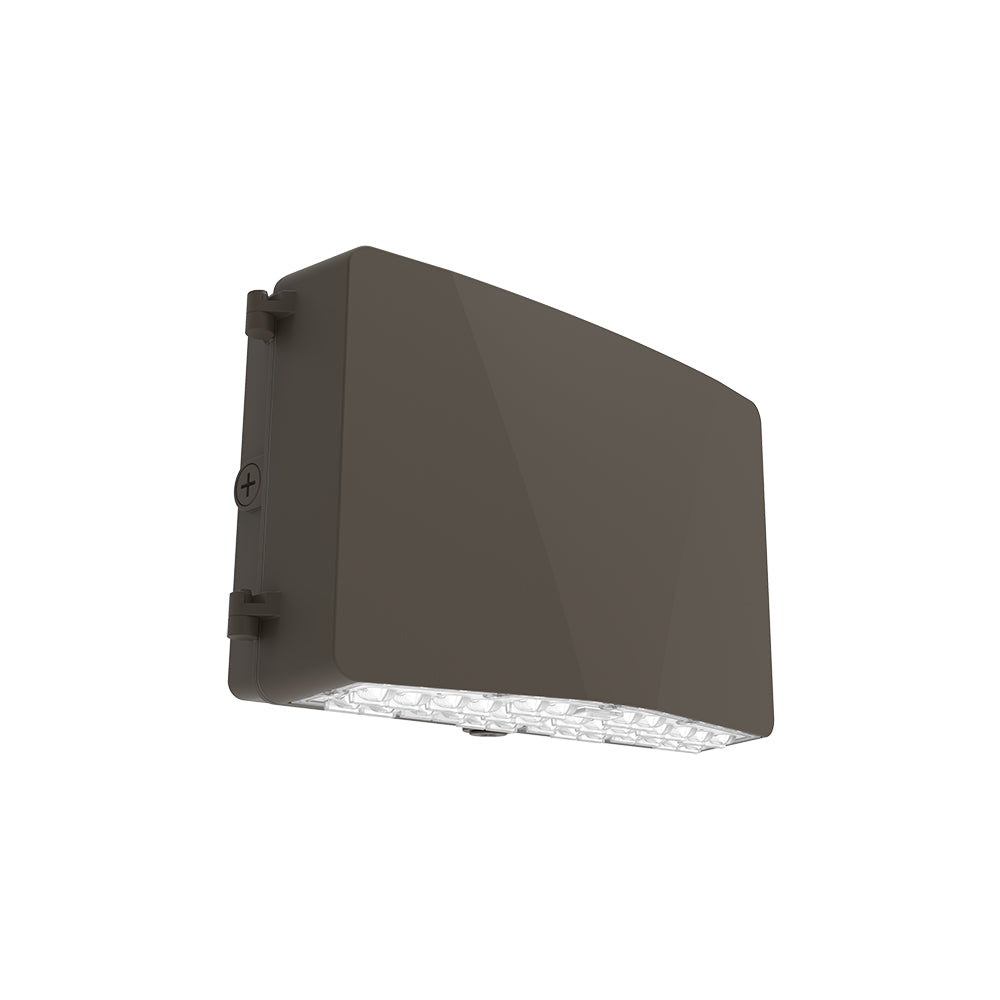

ZION 3rd Gen | LED Full Cutoff Wall Pack
ZION 3rd Gen | LED Full Cutoff Wall Pack
ZION 3rd Gen | LED Full Cutoff Wall Pack
ZION 3rd Gen | LED Full Cutoff Wall Pack
ZION 3rd Gen | LED Full Cutoff Wall Pack
ZION 3rd Gen | LED Full Cutoff Wall Pack
ZION 3rd Gen | LED Full Cutoff Wall Pack

ZION 3rd Gen | LED Full Cutoff Wall Pack

Adj Watt 35W/50W/70W · 9,100 Lumens · 5000K · Bronze Housing

Watt: 35W/50W/70W Lumens: 9100Lm CCT: 5000K Rating: UL & DLC Listed IP: IP65
★★★★★ 4.8 · 42 reviews
MSRP: $124.95
$104.95
You save $20.00
Contractor, distributor, or reseller? Log in for trade pricing »
Min order: 1 per box
×

The product SKU is: 157088

✓ Free shipping on all Orders
✓ Ships from Stone Mountain, GA — most orders ship in 1 business day
✓ 30-day returns · UL & DLC Listed
Want to Buy in bulk ?

Contact us for volume pricing or become a trade partner.

Contact Team Become Partner

Product Description

Beyond LED Technology's ZION 3rd Gen Full Cutoff Wall Pack is built for commercial and security applications where precise, glare-free illumination is a hard requirement. The full cutoff optical design eliminates all upward light spill, directing every lumen exactly where it belongs — downward onto walkways, perimeters, and building exteriors. This makes it a strong choice for sites with dark sky ordinances, security-sensitive perimeters, and high-visibility commercial zones. Adjustable wattage, 0–10V dimming, and robust bronze die-cast aluminum housing with IP65 protection round out a fixture engineered for demanding outdoor environments.

Key Features

  • Up to 130 lm/W efficacy
  • Adjustable wattage — field selectable
  • Fixed CCT: 5000K
  • 0–10V dimmables
  • 100° light spread
  • Full cutoff optical design
  • 4KV surge protection
  • Die-cast aluminum housing
  • Bronze housing finish
  • IP65 rated
  • UL & DLC listed
  • Input voltage 100–277VAC

Applications

Security Perimeters Utility Corridors Parking Perimeters Commercial Walkways Gas Stations Industrial Walls

Specifications

SKU 157088
Wattage 35W/50W/70W
CCT 5000K
Lumens 9100Lm
Input Voltage 100V-277V
CRI >70
Light Spread 100°
Dimming 0–10V
IP Rating IP65
IP Rating IP65
Certification UL & DLC Listed
Warranty

Downloads

Spec Sheet PDF
LM80 Report PDF
LM79 Report PDF
IES File IES

Need help?

Talk to a lighting specialist about project pricing, photometrics, or custom requirements.

866-786-1117
sales@beyondledtechnology.com
— FAQ —

Frequently Asked Questions

Everything you need to know before specifying ZION 3rd Gen | LED Full Cutoff Wall Pack into a lighting project.

What is a full cutoff wall pack and where is it required? +
Full cutoff fixtures direct all light downward with zero upward spill. They're commonly required by municipal dark sky ordinances and recommended for security perimeters, parking areas, and any site where glare control and precise light placement are priorities.

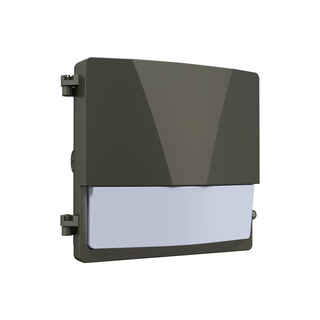

How is this different from the ZION 3rd Gen Semi Cutoff version? +
The full cutoff version eliminates all upward light, making it better suited for security-sensitive and ordinance-regulated sites. The semi cutoff allows modest upward fill, which works better for facades and entry points where some vertical surface brightness is desirable.
Can I dim the ZION 3rd Gen Full Cutoff? +
Yes. 0–10V dimming allows integration with building automation systems and lighting control panels for schedule or occupancy-based output adjustment. No additional hardware is needed beyond a compatible controller.
Does the ZION 3rd Gen Full Cutoff qualify for utility rebates? +
Yes. UL and DLC listing qualifies it for most US utility rebate programs. Beyond LED Technology offers free photometric layout support within 24 hours for approved trade partners, helping streamline rebate documentation on perimeter and security lighting projects.
Is the ZION 3rd Gen Full Cutoff reliable for year-round outdoor security lighting? +
IP65 weather resistance and 4KV surge protection make it dependable through harsh conditions year-round. The fixed 5000K output maintains sharp visibility on perimeters and security zones where consistent color rendering matters.
How quickly does the ZION 3rd Gen ship and is trade pricing available? +
Most orders ship within one business day from Beyond LED Technology's warehouse in Stone Mountain, Georgia. Approved trade partners through the Beyond LED Trade Partner Program receive factory-direct trade pricing and dedicated account support.
