Home > Products >ZION | LED Semi Cutoff Wall Pack

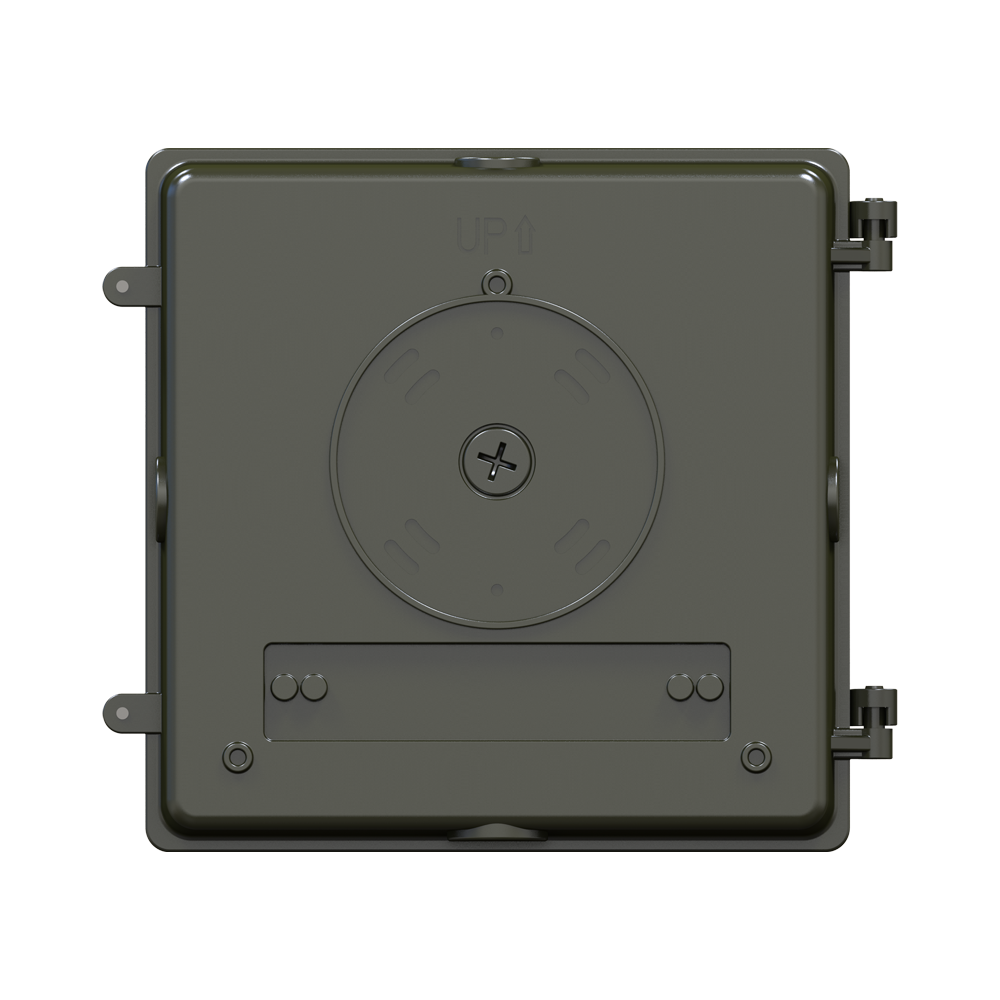

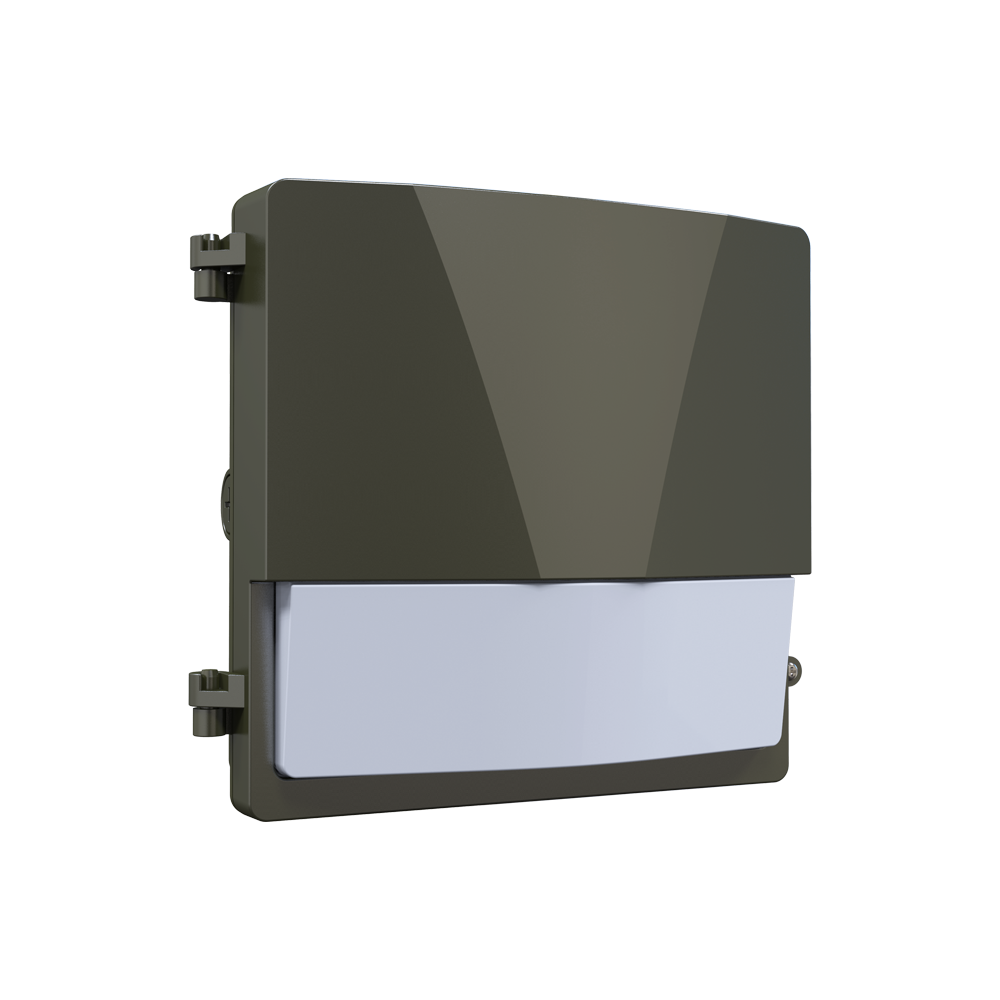

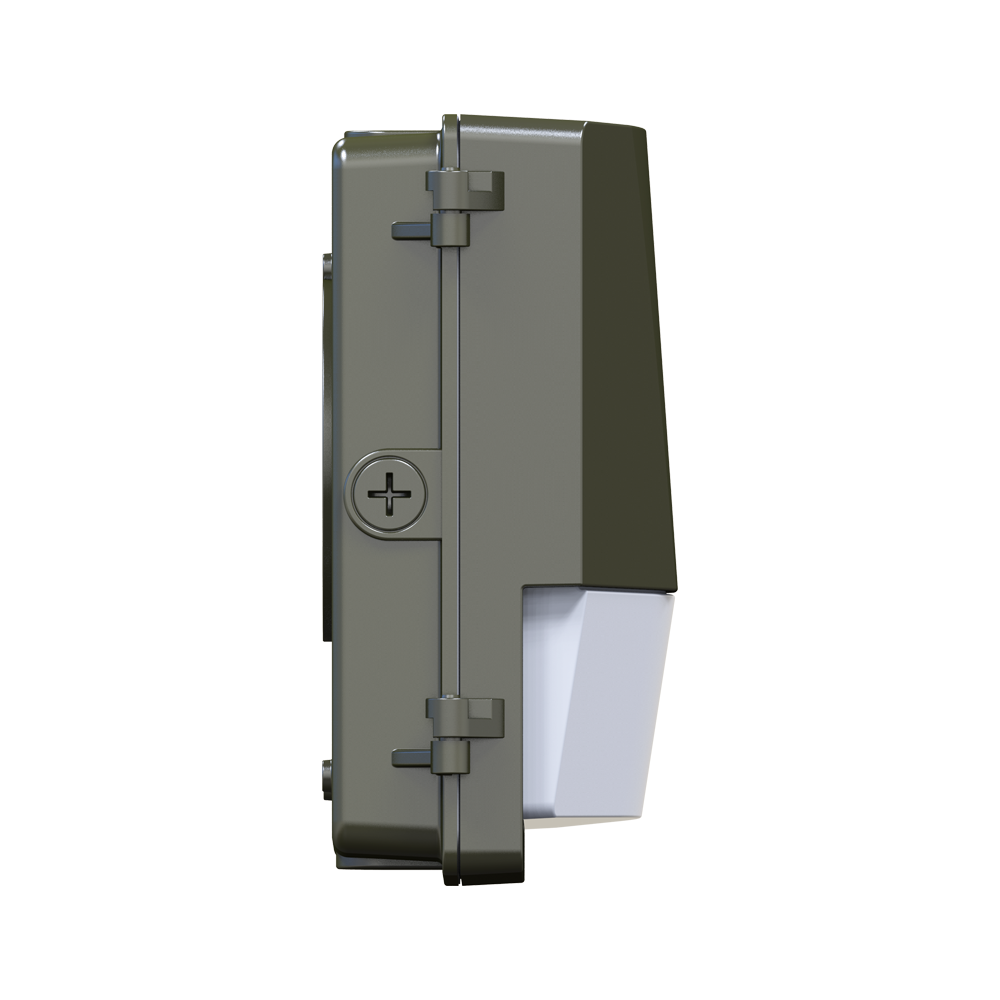

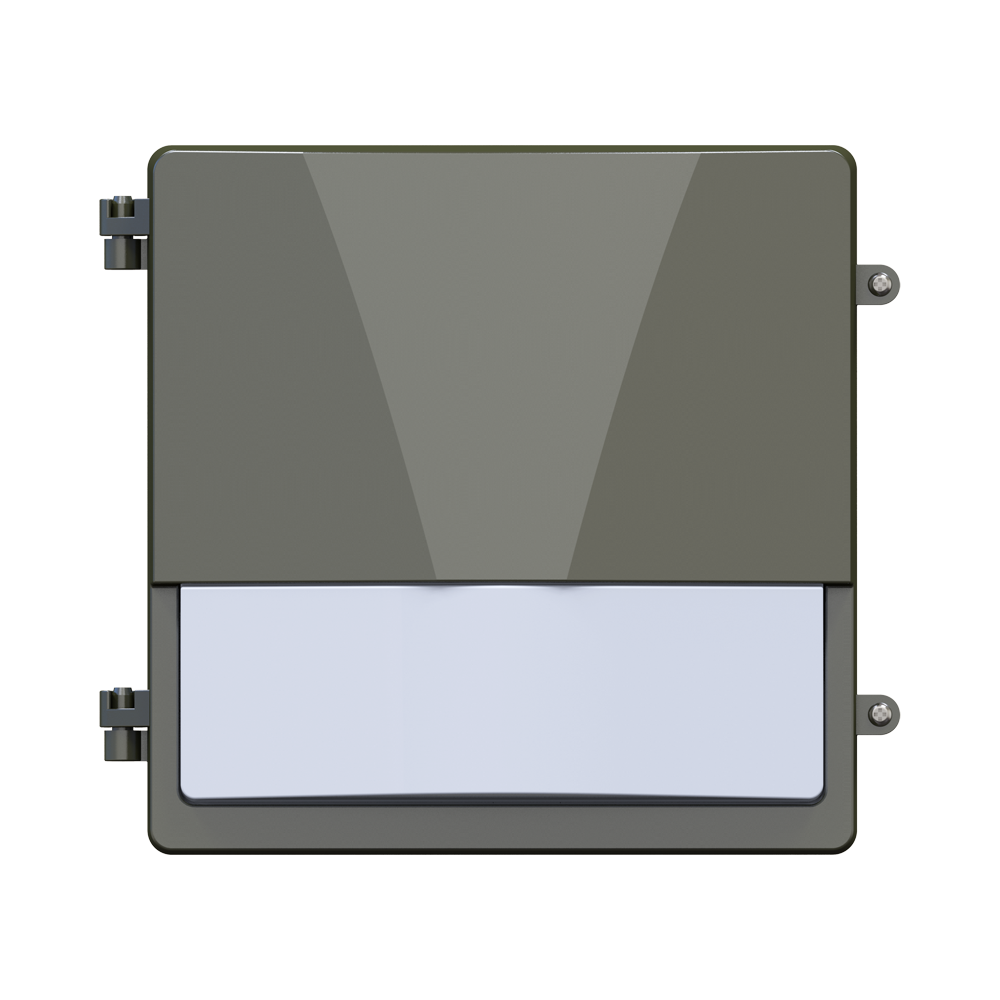

ZION | LED Semi Cut-off Wall Pack | Adjustable Watt 40W/50W/60W | 7200 Lumens | Adjustable CCT 3000K/4000K/5000K | 120V-277V | Built In Photocell | Bronze Housing | IP65 | UL & DLC Listed - Nothing But LED's
ZION | LED Semi Cut-off Wall Pack | Adjustable Watt 40W/50W/60W | 7200 Lumens | Adjustable CCT 3000K/4000K/5000K | 120V-277V | Built In Photocell | Bronze Housing | IP65 | UL & DLC Listed - Nothing But LED's
ZION | LED Semi Cut-off Wall Pack | Adjustable Watt 40W/50W/60W | 7200 Lumens | Adjustable CCT 3000K/4000K/5000K | 120V-277V | Built In Photocell | Bronze Housing | IP65 | UL & DLC Listed - Nothing But LED's
ZION | LED Semi Cut-off Wall Pack | Adjustable Watt 40W/50W/60W | 7200 Lumens | Adjustable CCT 3000K/4000K/5000K | 120V-277V | Built In Photocell | Bronze Housing | IP65 | UL & DLC Listed - Nothing But LED's
ZION | LED Semi Cutoff Wall Pack

ZION | LED Semi Cutoff Wall Pack

Adj Watt 40W/50W/60W · 7,200 Lumens · Adj CCT 3K/4K/5K · Bronze Housing

Watt: 40W/50W/60W Lumens: 7200Lm CCT: 3000K/4000K/5000K Rating: UL & DLC Listed
★★★★★ 4.8 · 42 reviews
MSRP: $119.95
$99.95
You save $20.00
Contractor, distributor, or reseller? Log in for trade pricing »
Min order: 1 per box
×

The product SKU is: 154305

✓ Free shipping on all Orders
✓ Ships from Stone Mountain, GA — most orders ship in 1 business day
✓ 30-day returns · 5-year warranty · UL & DLC Listed
Want to Buy in bulk ?

Contact us for volume pricing or become a trade partner.

Contact Team Become Partner

Product Description

Beyond LED Technology's ZION is a practical, well-specified semi cutoff LED wall pack built for smaller commercial exteriors where a lower wattage range is the right fit. At 40W to 60W, it covers building entrances, walkways, retail facades, and perimeter walls without the energy overhead of higher-wattage fixtures. The semi cutoff design allows modest upward fill that keeps vertical surfaces and signage visible, while the built-in photocell automates operation without additional hardware. Adjustable wattage and CCT give installers the flexibility to match output precisely to the space, and the bronze die-cast aluminum housing with IP65 protection ensures reliable long-term outdoor performance.

Key Features

  • Up to 120 lm/W efficacy
  • Adjustable wattage — field selectable
  • Adjustable CCT — field selectable
  • Semi cutoff optical design
  • Built-in photocell ON/OFF
  • 0-10V dimmable
  • 100° light spread
  • Aluminum and PC construction
  • Bronze housing finish
  • IP65 rated
  • Input voltage 120–277VAC
  • UL & DLC listed

Applications

Retail Facades Commercial Walkways Parking Perimeters Feature Walls Mixed-Use Exteriors Industrial Walls

Specifications

SKU 154305
Wattage 40W/50W/60W
CCT 3000K/4000K/5000K
Lumens 7200Lm
Input Voltage 120V-277V
CRI >80
Dimming 0–10V
IP Rating IP65
Certification UL & DLC Listed
Warranty 5 Years

Downloads

Spec Sheet PDF
LM80 Report PDF
LM79 Report PDF
IES File IES

Need help?

Talk to a lighting specialist about project pricing, photometrics, or custom requirements.

866-786-1117
sales@beyondledtechnology.com
— FAQ —

Frequently Asked Questions

Everything you need to know before specifying ZION | LED Semi Cutoff Wall Pack into a lighting project.

What makes the ZION a good fit for smaller commercial exteriors? +
The 40–60W range delivers strong, efficient illumination for building entrances, walkways, and retail facades without the energy overhead of larger fixtures. It's a practical, right-sized solution for spaces that don't need high-wattage output.
How does the semi cutoff design benefit building facades and signage walls? +
Semi cutoff allows modest upward light that keeps vertical surfaces, signage, and entry points visible — unlike full cutoff which directs everything downward. It's the better choice where wall wash effect and facade visibility matter.
Can I control the ZION remotely or integrate it with automation systems? +
The built-in photocell handles automatic dusk-to-dawn operation independently. The 0–10V dimming capability also supports integration with building automation systems for schedule or occupancy-based control.
Does the ZION qualify for utility rebates? +
Yes. UL and DLC listing qualifies it for most US utility rebate programs. Beyond LED Technology provides free photometric layout support within 24 hours for approved trade partners on qualifying projects.
How durable is the ZION for year-round outdoor use? +
IP65-rated aluminum and PC construction handles dust, moisture, and temperature extremes reliably. Backed by a 5-year warranty for long-term peace of mind.
How quickly does the ZION ship and is trade pricing available? +
Most orders ship within one business day from Beyond LED Technology's Stone Mountain, Georgia warehouse. Approved trade partners through the Beyond LED Trade Partner Program receive factory-direct trade pricing and dedicated account support.
