ZION | LED Semi Cutoff Wall Pack

ZION | LED Semi Cutoff Wall Pack

Adj Watt 80W/100W/120W · 14,400 Lumens · Adj CCT 3K/4K/5K · Bronze Housing

Watt: 80W/100W/120W Lumens: 14400Lm CCT: 3000K/4000K/5000K Rating: UL & DLC Listed
★★★★★ 4.8 · 42 reviews
MSRP: $134.95
$114.95
You save $20.00
Contractor, distributor, or reseller? Log in for trade pricing »
Min order: 1 per box
×

The product SKU is: 154304

✓ Free shipping on all Orders
✓ Ships from Stone Mountain, GA — most orders ship in 1 business day
✓ 30-day returns · 5-year warranty · UL & DLC Listed
Want to Buy in bulk ?

Contact us for volume pricing or become a trade partner.

Contact Team Become Partner

Product Description

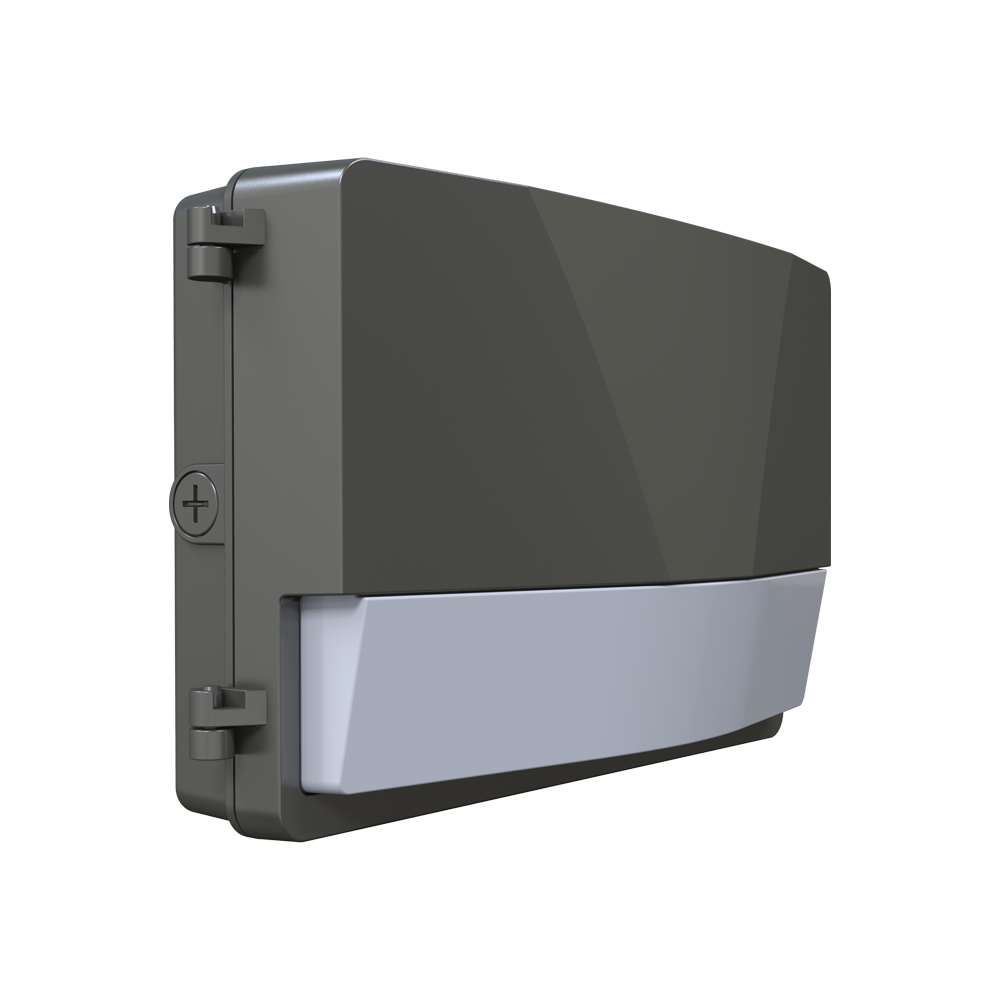

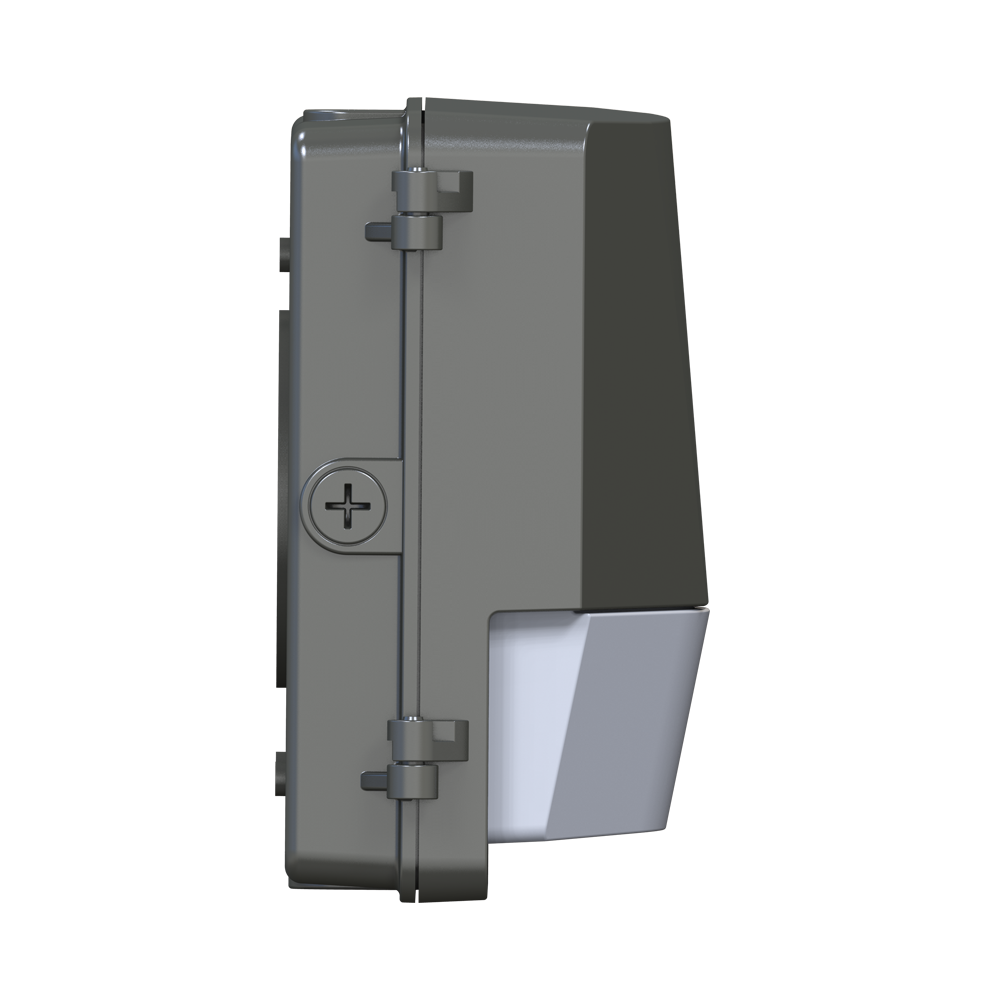

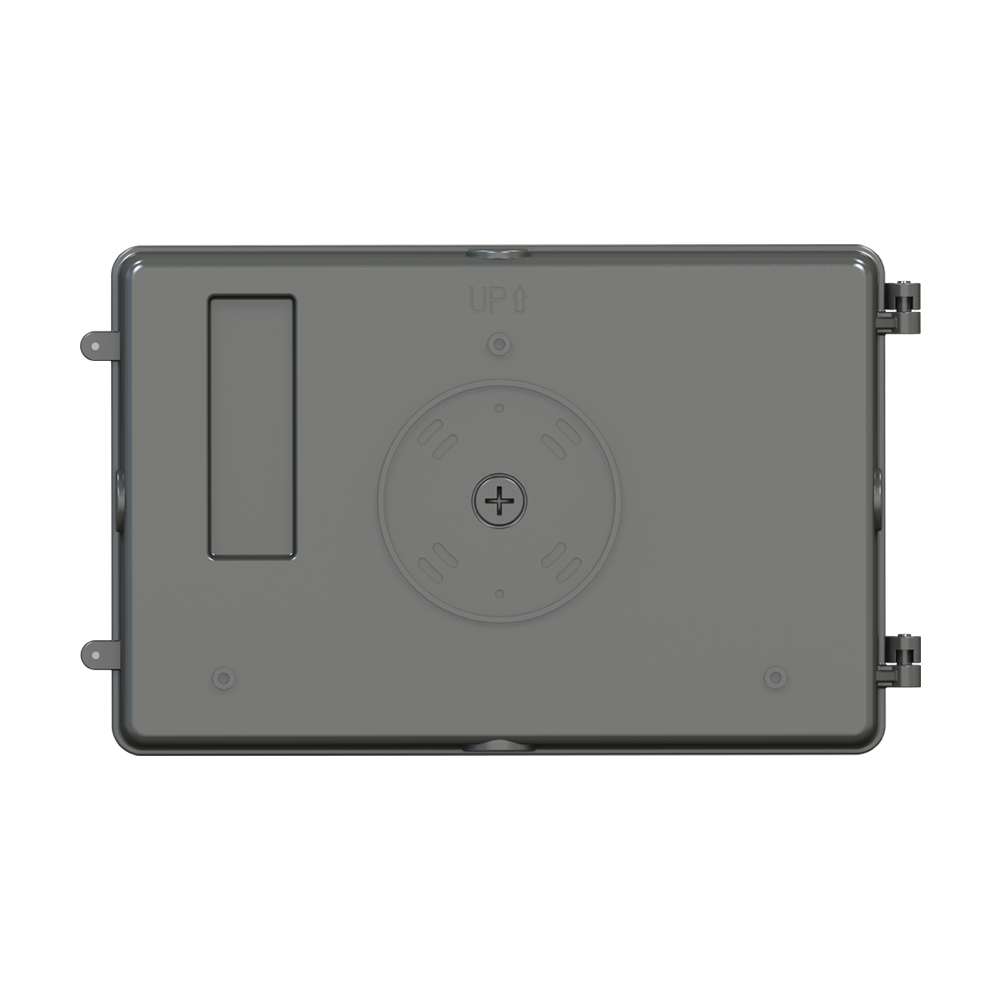

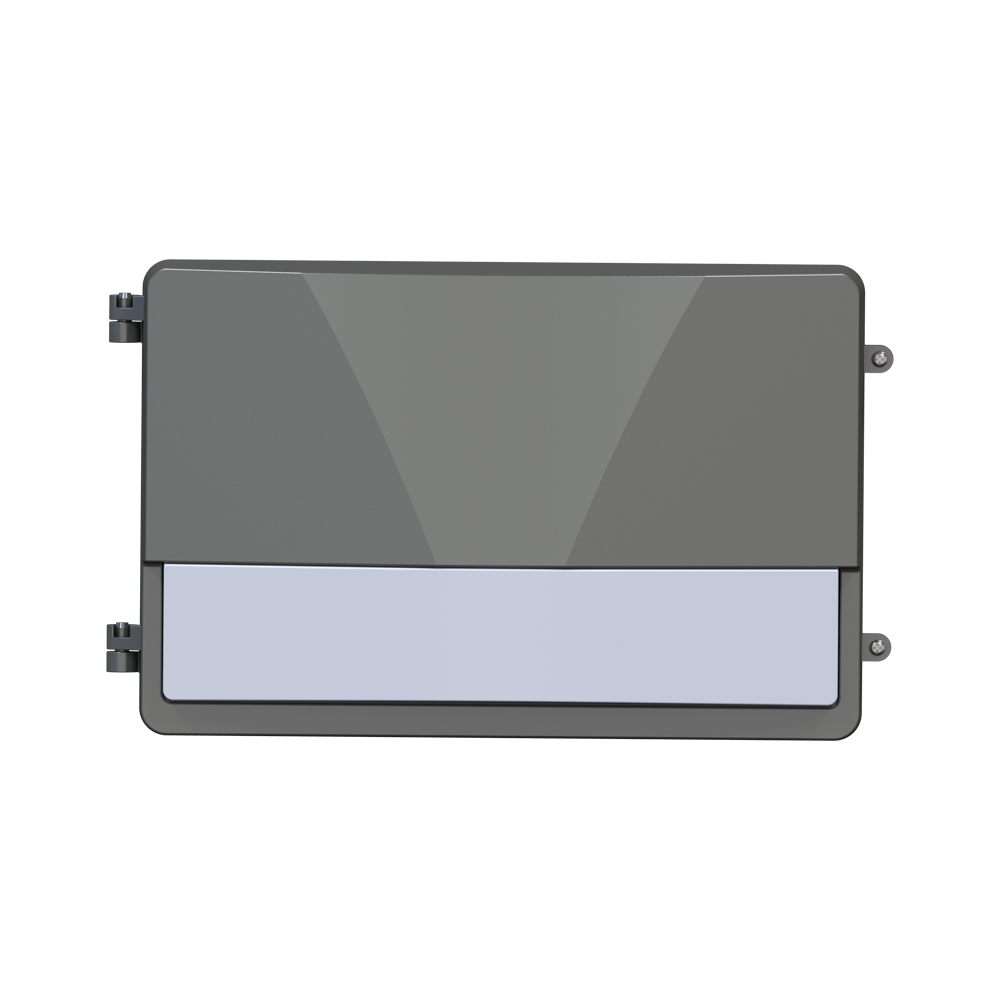

Beyond LED Technology's ZION 80–120W is the higher-output variant of the ZION semi cutoff wall pack, built for mid-to-large commercial exteriors where the lower wattage range doesn't meet coverage requirements. Delivering 14,400 lumens across wide building facades, warehouse perimeters, and expansive exterior walls, it brings serious illumination to spaces that demand it. The semi cutoff optic keeps vertical surfaces and adjacent walls well lit while containing light within the intended zone. Built-in photocell automation, adjustable wattage, CCT flexibility, and bronze IP65-rated die-cast aluminum housing make it a complete, low-maintenance outdoor lighting solution.

Key Features

  • Up to 120 lm/W efficacy
  • Adjustable wattage — field selectable
  • Adjustable CCT — field selectable
  • Semi cutoff optical design
  • Built-in photocell ON/OFF
  • 0–10V dimmable
  • 100° light spread
  • Aluminum and PC construction
  • Bronze housing finish
  • IP65 rated
  • Input voltage 120–277VAC
  • UL & DLC listed

Applications

Building Facades Industrial Perimeters Parking Perimeters Loading Docks Campus Exteriors Commercial Walkways

Specifications

SKU 154304
Wattage 80W/100W/120W
CCT 3000K/4000K/5000K
Lumens 14400Lm
Input Voltage 120V-277V
CRI >80
Dimming 0–10V
IP Rating IP65
Certification UL & DLC Listed
Warranty 5 Years

Downloads

Spec Sheet PDF
LM80 Report PDF
LM79 Report PDF
IES File IES

Need help?

Talk to a lighting specialist about project pricing, photometrics, or custom requirements.

866-786-1117
sales@beyondledtechnology.com
— FAQ —

Frequently Asked Questions

Everything you need to know before specifying ZION | LED Semi Cutoff Wall Pack into a lighting project.

How does this ZION differ from the 40–60W version? +
This variant delivers 14,400 lumens across an 80–120W range — double the output of the lower wattage version. It's built for larger facades, higher mounting heights, and wider coverage areas where the 40–60W doesn't meet specification.
Is the ZION 80–120W suitable for warehouse and industrial perimeter lighting? +
Yes. The higher lumen output and semi cutoff design make it well suited for warehouse walls, industrial perimeters, and loading dock exteriors where broad coverage and vertical surface visibility are both priorities.
Does the built-in photocell work reliably in commercial installations? +
Yes. It provides automatic dusk-to-dawn operation with no external hardware required. The 0–10V dimming adds schedule-based control capability when paired with a building automation system.
Will this qualify for utility rebates? +
UL and DLC listing qualifies it for most US utility rebate programs. Beyond LED Technology provides free photometric layout support within 24 hours for approved trade partners on larger exterior projects.
How durable is the ZION 80–120W for demanding outdoor environments? +
IP65-rated aluminum and PC construction handles moisture, dust, and temperature extremes reliably year-round. Backed by a 5-year warranty.
How quickly does it ship and is trade pricing available? +
Most orders ship within one business day from Beyond LED Technology's Stone Mountain, Georgia warehouse. Approved trade partners through the Beyond LED Trade Partner Program receive factory-direct trade pricing and dedicated account support.
