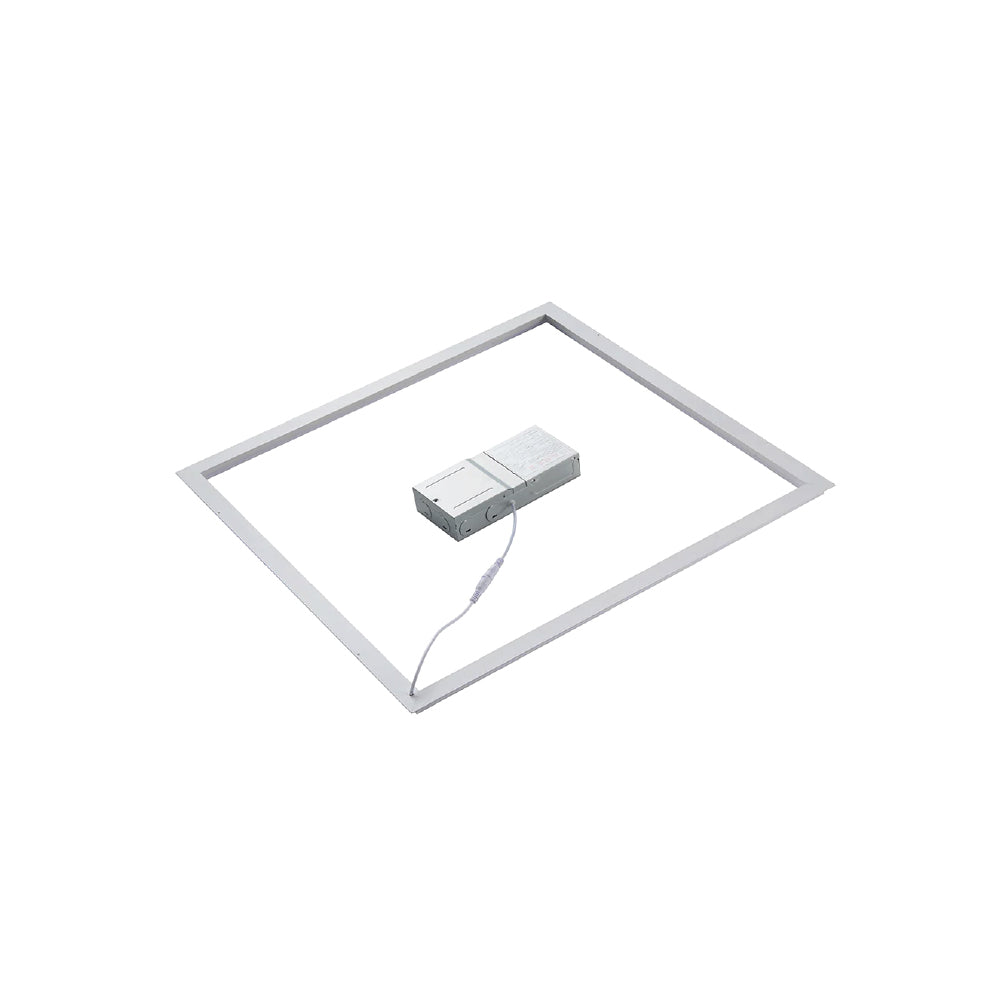

GEOMETRIC 2nd Gen - LED Grid Panel
Our new 2023 Geometric Grid panels offer uniform illumination and excellent energy savings when you replace traditional T5, T8, or T12 fluorescent troffers. Our Geometric Grid Panel with diffusing lens for direct lighting is also CCT adjustable & offers multiple Wattage options. A clever choice for illuminating spaces with a lighting fixture that blends with the architectural design of your ceiling, simultaneously creating an elegantly stunning light effect. Perfect for corporate offices, medical/ health, educational facilities and more.
- Up to 120 Lumens per watt
- Adj Watt 20W/30W/40W
- CCT Adjustable 3000K/3500K/4000K/5000K/6500K
- Input Voltage 100-277Vac voltage (50-60Hz)
- 0-10V Dimmable
- Ultra-light weight, one person installs
- Housing material: 6063-T5
- Installs into conventional grid ceiling
- ETL & DLC Listed
- 5 Year warranty
| SKU | IMG | Wattage | Lumens | CCT | Input Voltage |
Size | Dimming | Certification | PCS/ BOX |
Minimum QTY To BUY |
PRICE PER PIECE | QTY | Add to Cart |

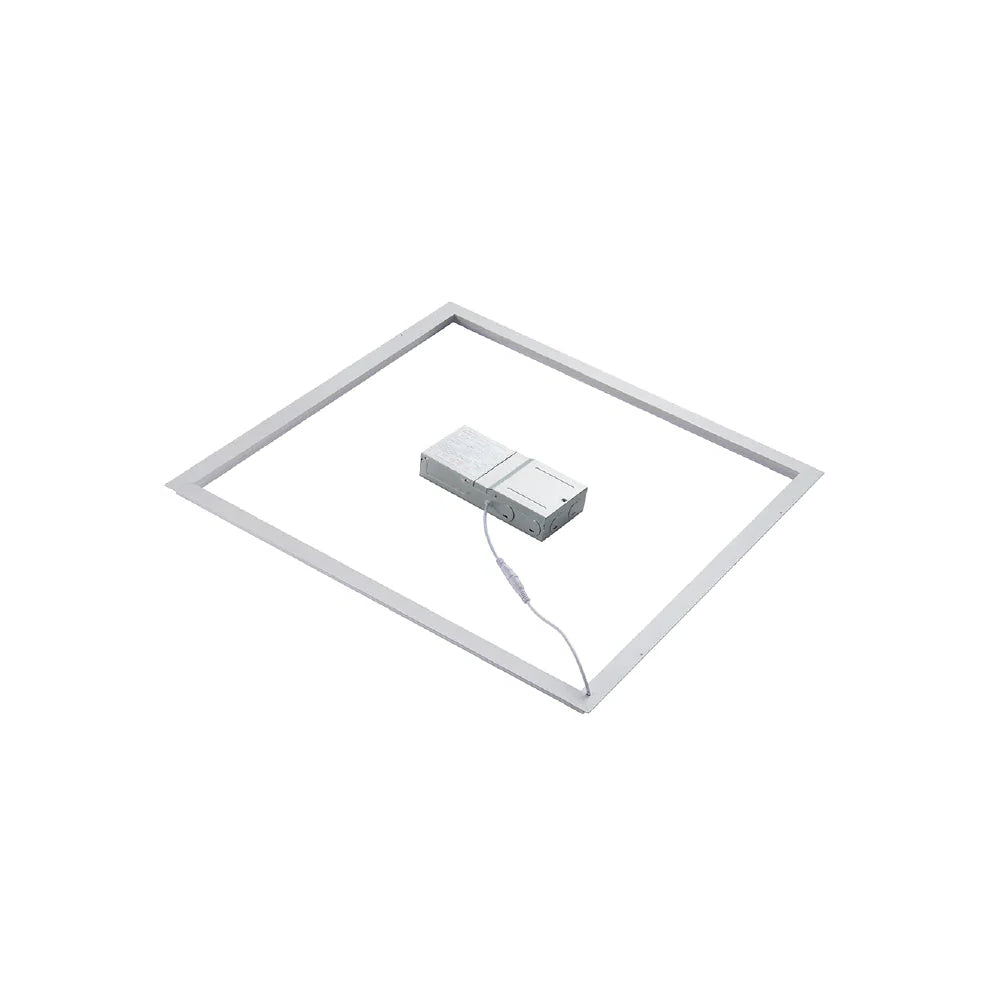

| 156790 |
|
Adj Watt 20W/30W/40W | 4800Lm | Adj CCT 3K/3500K/4K/5K/6500K | 100V-277V | 2x2FT | 0-10V | ETL & DLC Listed | 4 PCS/BOX | 4 | login to see prices | ||

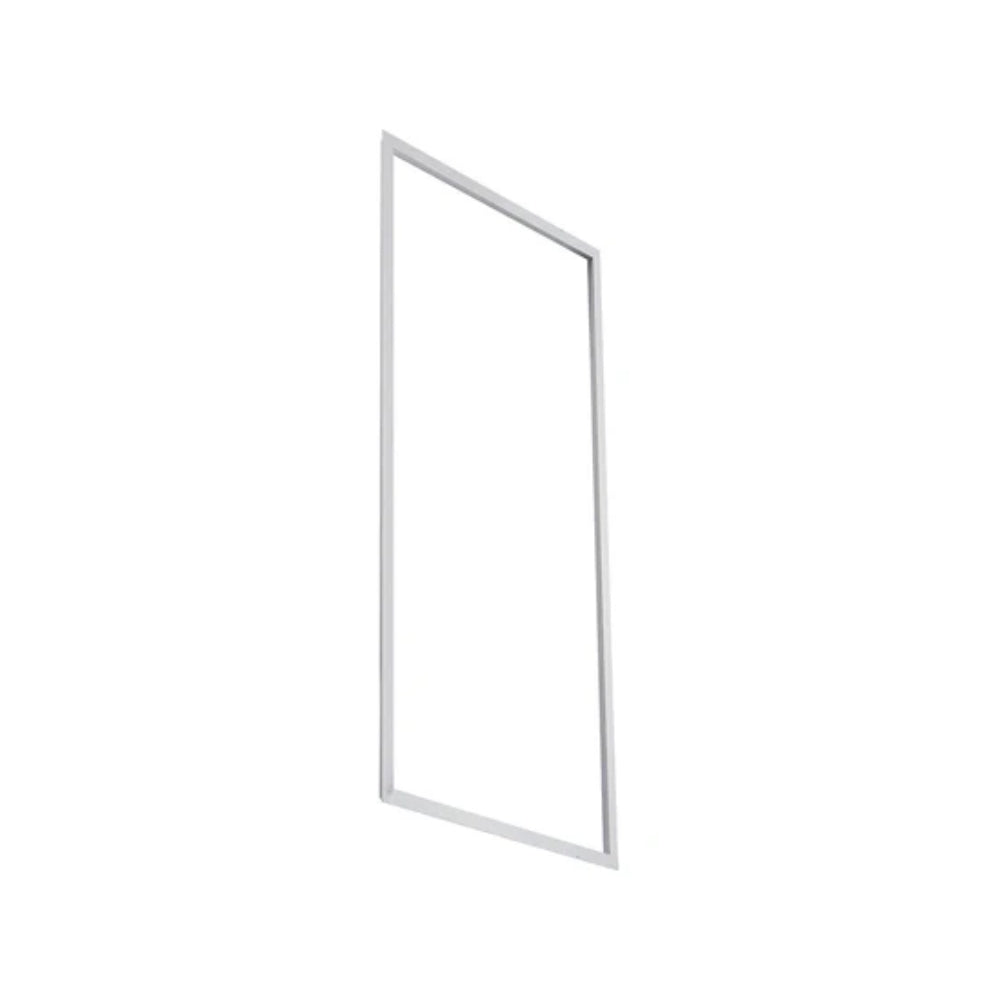

| 156656 |
|
Adj Watt 40W/50W/60W | 7500Lm | Adj CCT 3K/3500K/4K/5K/6500K | 100V-277V | 2x4FT | 0-10V | ETL & DLC Listed | 4 PCS/BOX | 4 | login to see prices | ||
