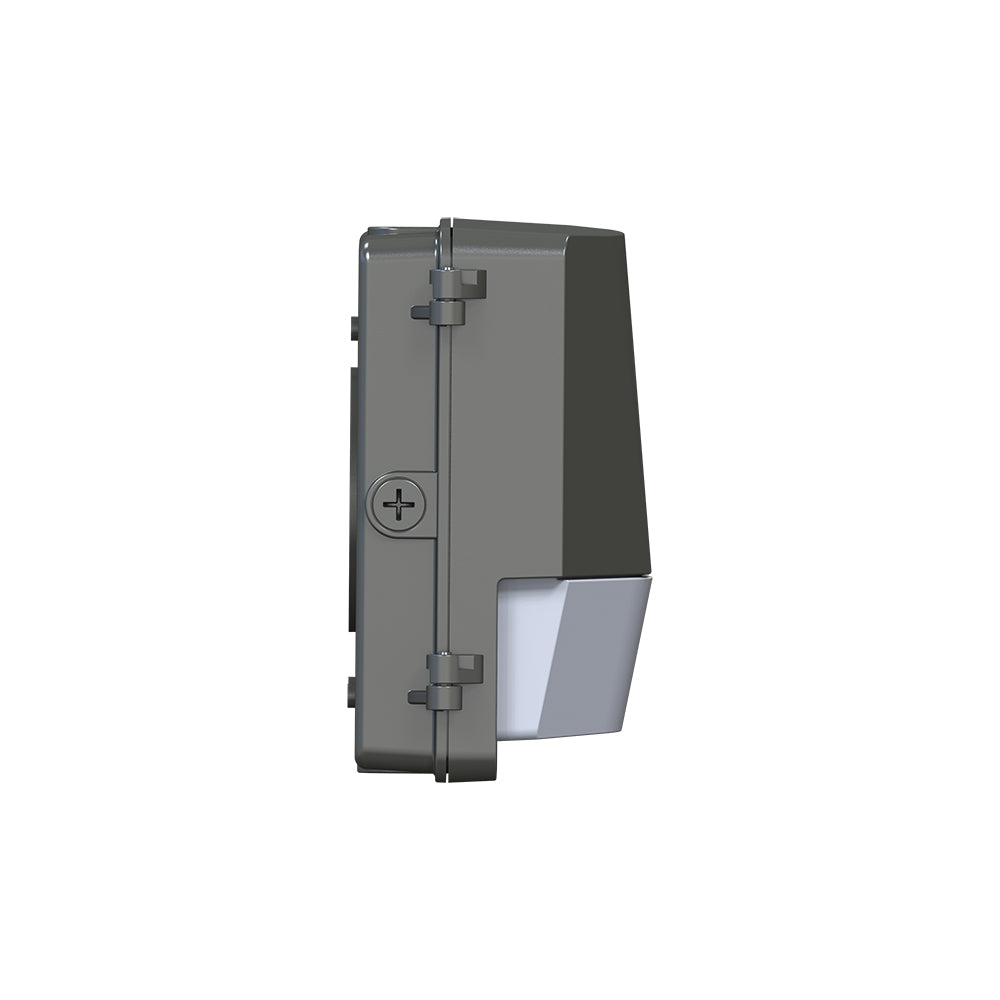

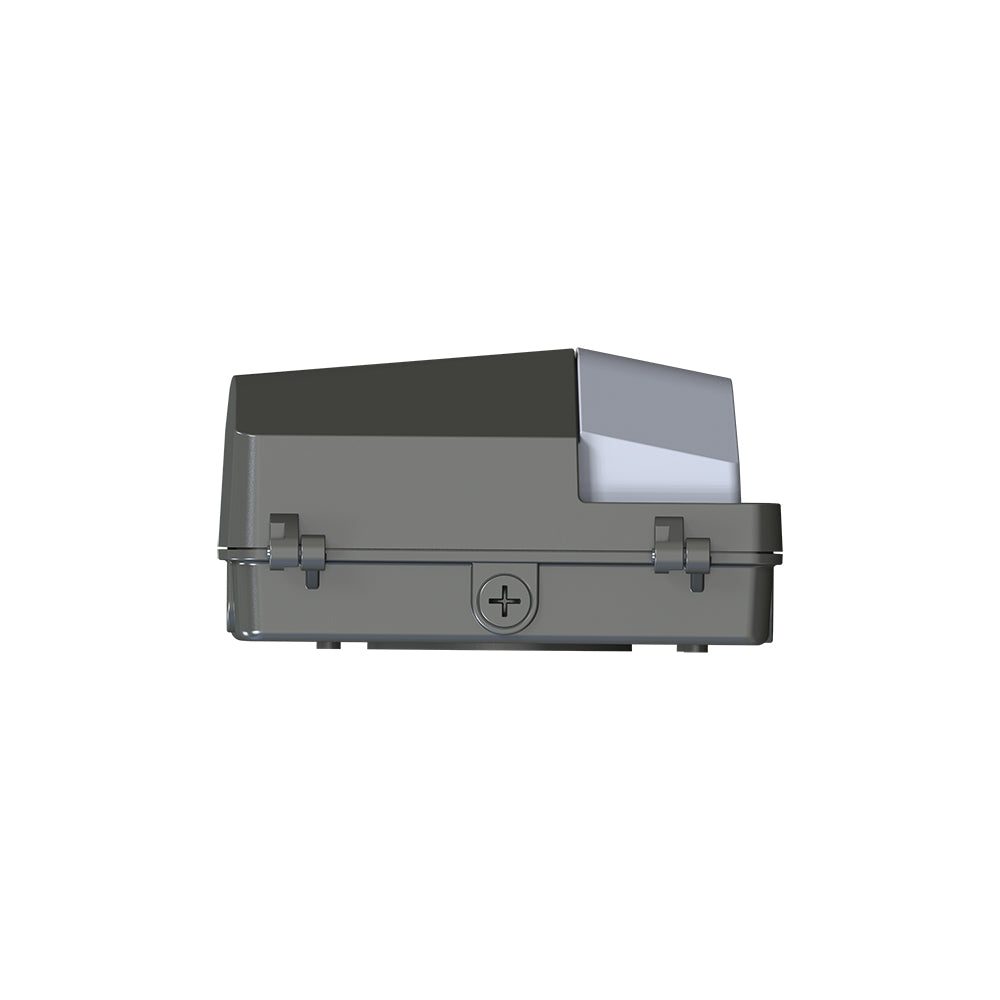

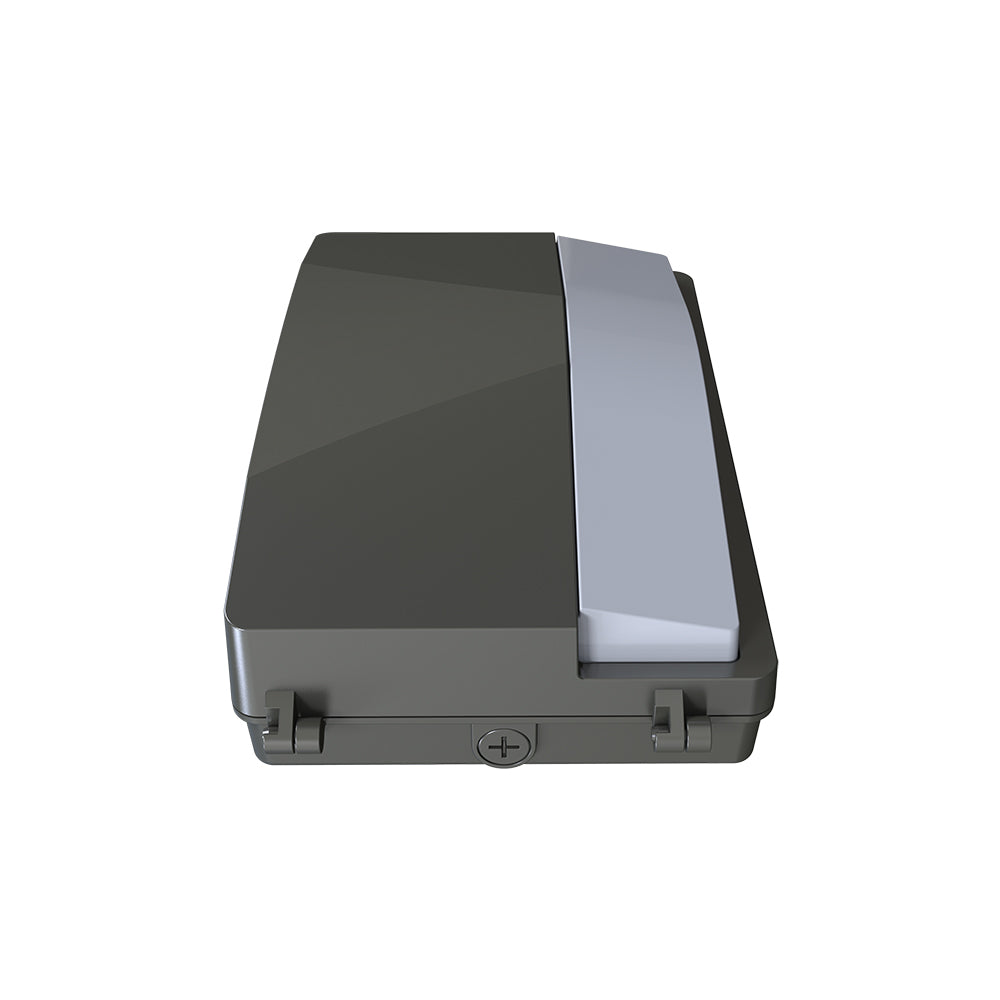

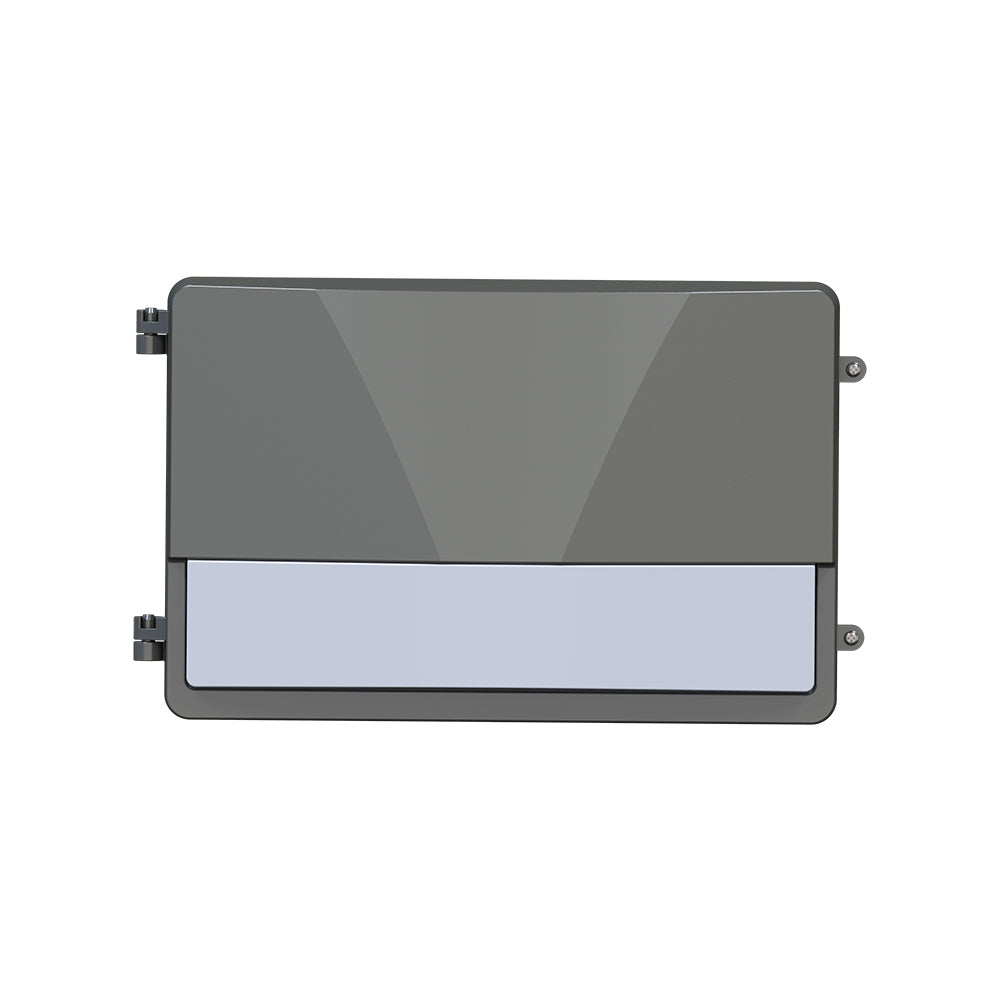

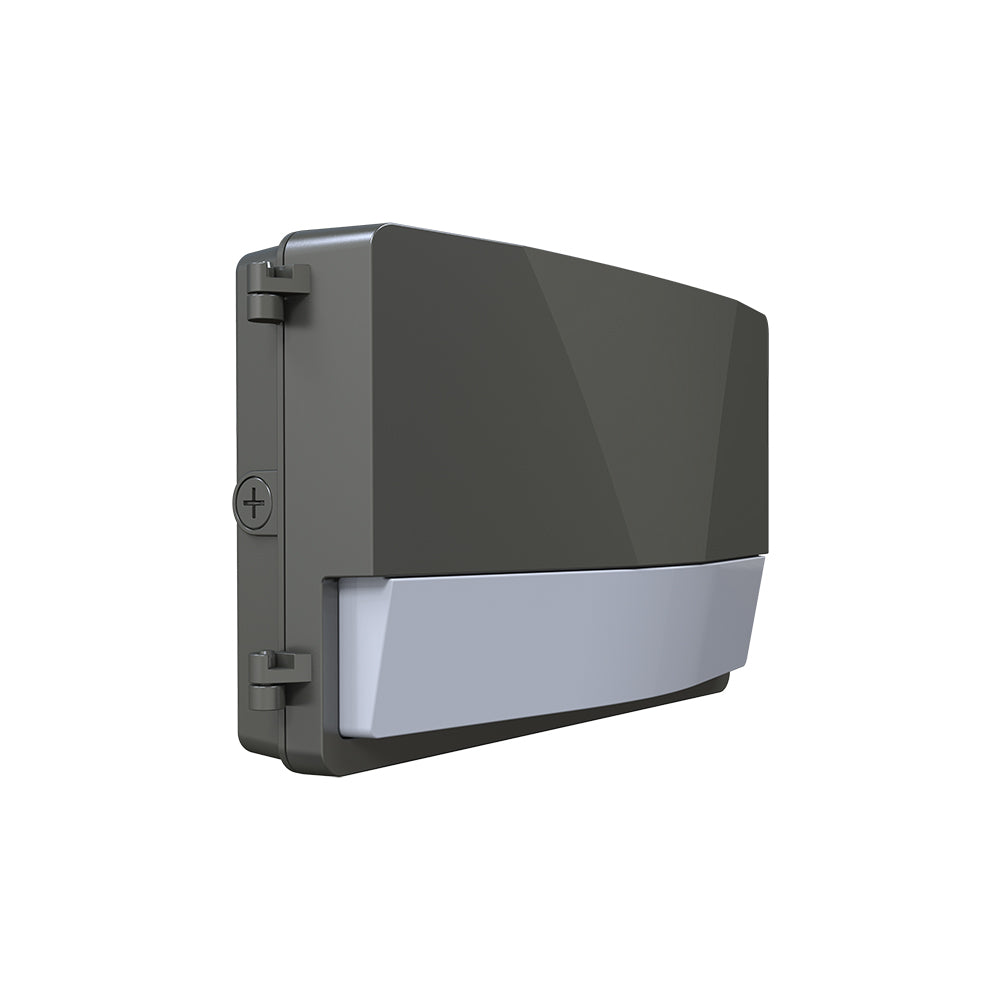

ZION 3rd Gen | LED Semi Cutoff Wall Pack
Contact us for volume pricing or become a trade partner.
Product Description
Beyond LED Technology's ZION 3rd Gen Semi Cutoff Wall Pack in the 80–120W range is engineered for larger commercial exteriors where the lower wattage variant simply doesn't cover the ground. Delivering up to 13,200 lumens across wide building facades, expansive perimeters, and high-ceiling exterior walls, it brings serious output to demanding outdoor spaces. The built-in photocell handles dusk-to-dawn automation without additional hardware, and adjustable wattage with CCT flexibility gives facility teams precise control over both energy use and lighting character. Bronze die-cast aluminum housing and IP65 protection ensure it performs reliably through every season.
Key Features
- Up to 110 lm/W efficacy
- Adjustable wattage — field selectable
- Adjustable CCT — field selectable
- Semi cutoff optical design
- Built-in photocell ON/OFF
- 0–10V dimmable
- 100° light spread
- CRI>80
- Die-cast aluminum housing
- Bronze housing finish
- UL & DLC listed
- Input voltage 100–277VAC
Applications
Specifications
| SKU | 157095 |
| Wattage | 80W/100W/120W |
| CCT | 3000K/4000K/5000K |
| Lumens | 13200Lm |
| Input Voltage | 120-277Vac |
| CRI | >80 |
| Power Factor | ≥0.9 |
| Construction | Aluminum + PC |
| Light Spread | 100° |
| IP Rating | IP65 |
| IP Rating | IP65 |
| Certification | UL & DLC Listed |
| Warranty |
